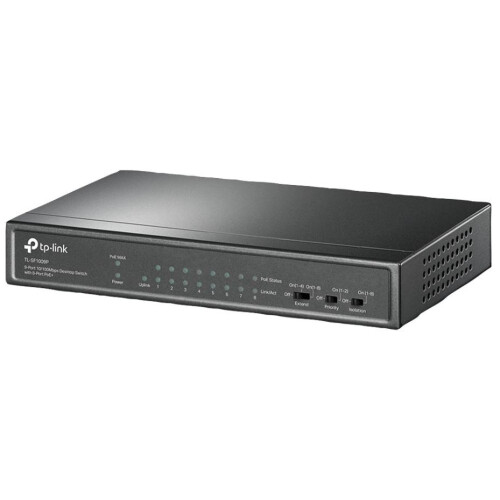

TP-LINK - 9 Port Fast Ethernet Desktop Switch with PoE+

TP-LINK - 9 Port Fast Ethernet Desktop Switch with PoE+ Description

The TL-SF1009P provides an effective solution for network expansion, complete with PoE functionality allowing you to expand your network to where there are no dedicated power lines or outlets.

8 Port 802.3af/at PoE+ support delivers up to 30W per port with 65W total power budget

Integrated port priority system and intelligent power management

Extend Mode provides up to 250m data and power range, specially designed for surveillance systems

Priority Mode ensures high priority on ports 1 and 2 to maintain performance of important applications

Isolation Mode separates client traffic for port 1-8 to improve security

1.6Gb/s Switching capacity with 2K MAC address table

Auto MDI/MDI-X & auto negotiation on all ports

Plug and play setup and configuration for easy installation

Wall mountable housing with fanless operation

Dimensions (HxWxD): 27x171x98mm

Footnotes

Note: Extend Mode port speed is reduce to 10Mb/s, actual transmission distance may very due to physical and environmental factors.

No. of Ports: 9Ports

Ethernet Switch Application: Commercial

Ethernet Switch Type: Unmanaged PoE Fast Ethernet

Ethernet Switch Mounting: Desktop

Port Types: RJ45 x 9

Network Speeds: 10Mbps, 100Mbps
