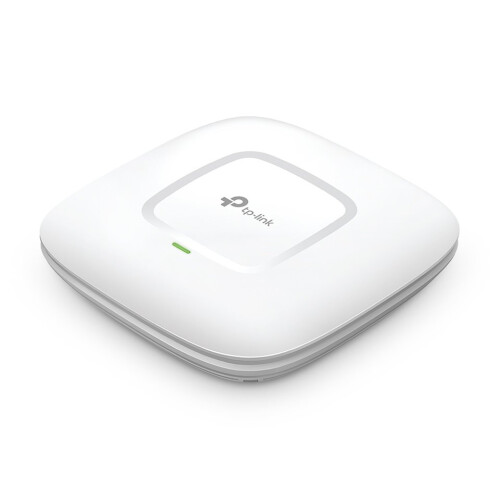

TP-LINK AC1750 1300Mbit/s Power over Ethernet (PoE)
Similar Products we think you'll like
Would you like us to let you know when it's back?
TP-LINK AC1750 1300Mbit/s Power over Ethernet (PoE) Description
- Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals
1750Mbps Wi-Fi speeds
- Free EAP Controller Software lets administrators easily manage
hundreds of EAPs
- Support Power over Ethernet(802.3at) for convenient and
affordable installatio
Data transmission Data transfer rate (max) 1300 Mbit/s Performance 2.4 GHz No 5 GHz Yes Wireless isolation Yes Automatic channel selection Yes Syslog Yes Transmitting power 27 dBmW Reset button Yes Frequency band 2.4GHz and 5GHz Web-based management Yes Rate limiting Yes Quality of Service (QoS) support Yes Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x Certification CE, FCC, RoHS Data transfer rate (max) 1300 Mbit/s Wireless LAN features Frequency band 2.4GHz and 5GHz Networking Internal No Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x Ports & interfaces Ethernet LAN (RJ-45) ports 1 DC-in jack Yes Security Port-based Network Access Control (PNAC) Yes Number of SSID support 16 Security algorithms 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK MAC address filtering Yes Cable lock slot Kensington Management features Web-based management Yes Rate limiting Yes Quality of Service (QoS) support Yes Antenna Integrated antenna Yes Antenna type Internal Omni Antenna gain level (max) 4 dBi Certificates Certification CE, FCC, RoHS Power Power consumption (typical) 12.7 W Power over Ethernet (PoE) Yes Input voltage 12 Input current 1.5 Design Placement Ceiling, Wall Internal No LED indicators Power Cable lock slot Kensington Technical details Transmitting power 27 dBmW Reset button Yes Indication LED indicators Power System requirements Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 Operational conditions Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 70 °C Storage relative humidity (H-H) 5 - 90% Weight & dimensions Width 180 mm Depth 180 mm Height 47.5 mm Packaging content Mounting kit Yes CD quick installation guide Yes AC adapter included Yes
Details
| OPC | P89HKN |
|---|---|
| Brand | |
| Codes | 6935364096687 (EAN) |
| Links | TP-Link Routers |
Detailed Product Information
| Data Transfer Rate | 1300 Mbit/s |
|---|
Product Data
| Type: | Access Point |
|---|---|
| Max Signal Rate: | 1300 Mbps |
| Dual Band: | Yes |
| Interface(s): | 1 x Gigabit Ethernet (RJ-45) Port (Support IEEE802.3at PoE) |
| Wireless Standards: | IEEE 802.11ac/n/g/b/a |
| Antenna: | Internal Omni 2.4GHz: 3 x 4dBi 5GHz: 3 x 4dBi |
| Button(s): | Reset |
| Power Supply: | PoE or External 12VDC / 1.5A Power Supply |
| Power Consumption: | 12.7 W |
| Dimensions ( W x D x H ): | 180 x 180 x 47.5mm |
| Weatherproof: | No |
| Frequency: | 5GHz: Up to 1300Mbps 2.4GHz: Up to 450Mbps |
| Wireless Functions: | See Overview |
| Wireless Security: | "Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK" |
| Management: | EAP Controller Software Email Alerts LED ON/OFF Control Management MAC Access Control SNMP Local/Remote Syslog Telnet HTTP/HTTPS L3 Management Multi-site Management |
| Environment (℃): | Operating Temperature: 0C~40C (32F~104F) Storage Temperature: -40C~70C (-40F~158F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package Contents: | AC1750 Wireless Dual Band Gigabit Access Point EAP245 Power Adapter Mounting Kits Installation Guide |
| Package Type: | Retail |
| Package Weight: | 1.1800 kg |
| Warranty: | Limited Lifetime |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Protocols
| Management protocols | HTTP/HTTPS |
|---|
Features
| Cabling technology | 10/100/1000Base-T(X) |
|---|---|
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel scanning | Yes |
| Band steering | Yes |
| Transmitting power (FCC) | 24 dBm |
| Transmitting power (CE) | 20 - 23 dBm |
| BeamForming | Yes |
| 6 GHz | No |
Packaging data
| Package weight | 1.05 kg |
|---|
Power
| Output voltage | 12 V |
|---|---|
| Output current | 1.5 A |
| AC input voltage | 12 V |
| Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
Packaging content
| Cables included | AC |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Security
| Service Set Identifier (SSID) features | Multiple SSIDs |
|---|
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
Certificates
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
