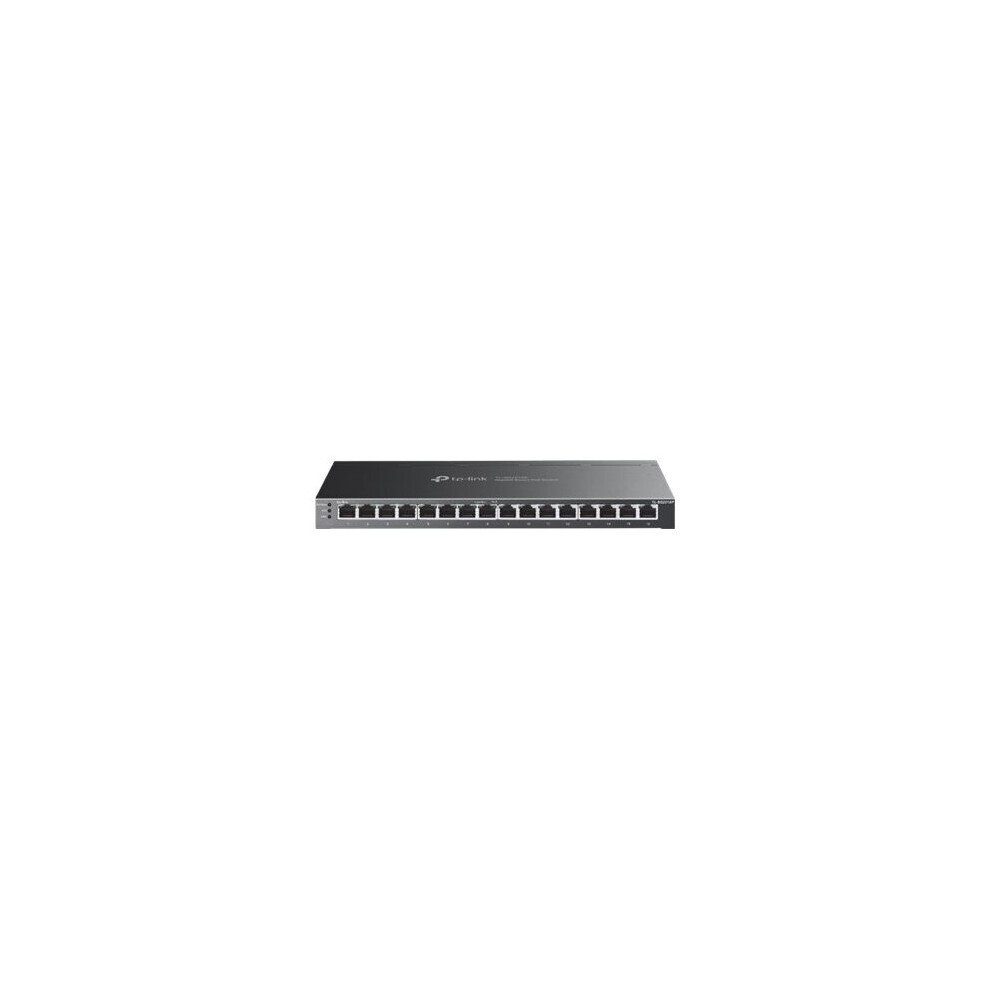

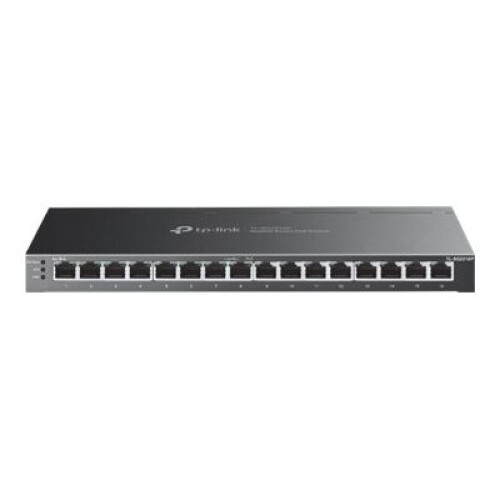

TP-Link JetStream TL-SG2016P V1 - Switch - L2+ - Managed - 16 x 10/100/1000 - rack-mountable, surface-mountable
Brand TP-LINK
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 131,000 Trustpilot reviews and an 'Excellent' rating
£229.42
FREE Delivery
1%
Earn £2.29 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 15th - Mon 17th Aug
Returns: 30 days
180-day payment protection
You might also like
Description & Details
TP-Link JetStream TL-SG2016P V1 - Switch - L2+ - Managed - 16 x 10/100/1000 - rack-mountable, surface-mountable Description
TP-Link JetStream TL-SG2016P V1 - Switch - L2+ - Managed - 16 x 10/100/1000 - rack-mountable, surface-mountable
Details
| OPC | PBWVRRK |
|---|---|
| Brand | |
| Codes | 4897098689349 (EAN) |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Certificates
| Certification | CE, FCC, RoHS |
|---|
Security
| Security algorithms | EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
|---|---|
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
Protocols
| Supported network protocols | ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
Data transmission
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9000 |
| Throughput | 16 Gbit/s |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 499.98 BTU/h |
Packaging data
| Package weight | 1.94 kg |
|---|---|
| Package depth | 434 mm |
| Package height | 70 mm |
| Package width | 227 mm |
Performance
| Minimum system requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/10/11, MAC OS, NetWare, UNIX, Linux |
|---|---|
| Firmware upgradeable | Yes |
| Fanless | Yes |
Power
| Power source | DC/PoE |
|---|---|
| Input current | 1.31 A |
| DC input voltage | 53.5 V |
| Power consumption (max) | 146.5 W |
Weight & dimensions
| Height | 25.4 mm |
|---|---|
| Width | 286 mm |
| Depth | 111.7 mm |
Design
| LED indicators | PoE, Power, System |
|---|---|
| Product colour | Black |
| Housing material | Metal |
Network
| Networking standards | IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
|---|---|
| Flow control support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Number of VLANs | 4000 |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Auto-negotiation | Yes |
| Virtual LAN features | Multicast VLAN, Tagged VLAN, Voice VLAN |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
Management features
| MIB support | RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757 |
|---|---|
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
Multicast features
| Multicast support | Yes |
|---|---|
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
Packaging content
| Manual | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Power connector | DC-in jack |
