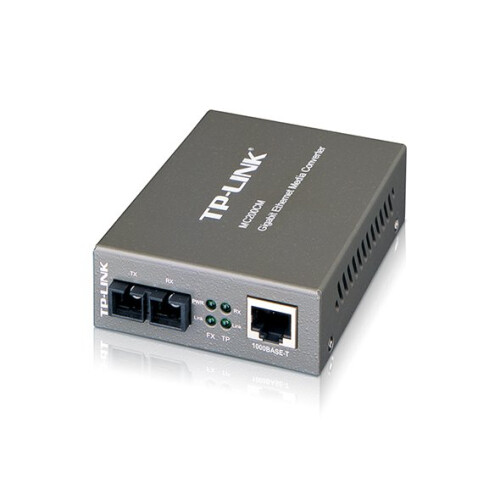

TP-Link MC200CM V3 Gigabit Multi-Mode Media Converter MC200CM V3

TP-Link MC200CM V3 Gigabit Multi-Mode Media Converter MC200CM V3 Description

Complies with IEEE 802.3ab and IEEE 802.3z
Provides switch configuration of Force /Auto transfer mode for FX port
Extends fiber distance up to 0.55km

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.

Specifications


Standards and Protocols
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Basic Function
Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber
Extends fiber distance up to 0.22km using 62.5/125um fiber

Ports
1 1000M SC/UPC port
1 1000M RJ45 port (Auto MDI/MDIX)

Wave Length
850nm

Network Media 1000BASE-FX
Multi-mode Fiber

Network Media 1000BASE-SX
Multi-mode Fiber

Network Media 1000BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

LED Indicators
PWR, LINK, RX

Dimensions (W*D*H)
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply
External Power Adapter

Max Power Consumption
5.5W

Safety & Emission
FCC, CE, RoHS

Environment
Operating Temperature: 0℃
40℃ (32℉
104℉)
Storage Temperature: -40℃
70℃ (-40℉
158℉)
Operating Humidity: 10%
90% non-condensing
Storage Humidity: 5%
90% non-condensing
