Product Images

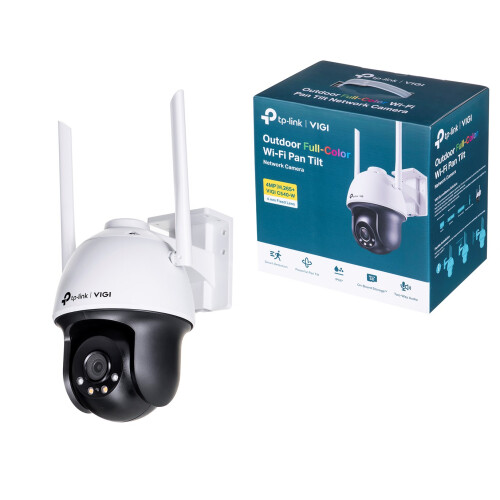

TP-LINK VIGI C540-W(4mm) camera
Brand TP-LINK
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£164.99
+£6.99 Delivery
1%
Earn £1.65 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£6.99) | Mon 13th - Wed 15th Jul
Sold by: Fenicians
Returns: 30 days
180-day payment protection
Most Popular in Video Cameras
Description & Details
TP-LINK VIGI C540-W(4mm) camera Description
TP-LINK VIGI C540-W(4mm) camera
Details
| OPC | PGPZ2GP |
|---|---|
| Brand | |
| Codes | 4897098683798 (EAN) |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Performance
| Type | IP security camera |
|---|---|
| Certification | RCM, BSMI, VCCI, NCC, JRF, KC |
| Connectivity technology | Wired & Wireless |
| Placement supported | Indoor & outdoor |
Network
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
|---|---|
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Ethernet LAN | Yes |
| Bluetooth | No |
| Wi-Fi | Yes |
| Live view | Yes |
| Ethernet interface type | Fast Ethernet |
| Number of simultaneous live view channels | 3 channels |
Security
| Security algorithms | WPA, WPA2-PSK |
|---|---|
| Mirror | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Digest authentication | Yes |
Lens system
| Zoom capability | Yes |
|---|---|
| Lens diameter | 4 mm |
| Number of lenses | 1 |
| Observe distance | 33 m |
| Detect distance | 80 m |
| Recognize distance | 16 m |
| Identify distance | 8 m |
Storage
| Compatible memory cards | MicroSD (TransFlash) |
|---|---|
| Card reader integrated | Yes |
| Maximum memory card size | 256 GB |
| Built-in HDD | No |
Packaging data
| Package weight | 1.21 kg |
|---|---|
| Package depth | 243 mm |
| Package height | 243 mm |
| Package width | 163 mm |
Design
| Form factor | Turret |
|---|---|
| Product colour | Black, White |
| Housing material | Plastic |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
Audio
| Built-in microphone | Yes |
|---|---|
| Built-in speaker(s) | Yes |
Operational conditions
| Operating temperature (T-T) | -30 - 60 °C |
|---|
Weight & dimensions
| Height | 198 mm |
|---|---|
| Width | 120 mm |
| Depth | 172 mm |
Image sensor
| Sensor type | CMOS |
|---|---|
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Video
| Maximum resolution | 2560 x 1440 pixels |
|---|---|
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Bit rate | 256 Kbps - 4 Mbps |
| Noise reduction | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Total megapixels | 4 MP |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Video streaming | Yes |
| Privacy masking | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Noise reduction technology | 3D noise reduction |
Night vision
| LED type | IR |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| Infra-red wavelength | 850 nm |
Camera
| Tilt angle range | 0 - 120° |
|---|---|
| Pan range | 0 - 350° |
| Pan speed | 44 °/sec |
| Tilt speed | 44 °/sec |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 79° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, diagonal | 93° |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Management features
| Reset button | Yes |
|---|---|
| Behavior analysis | Intrusion detection, Line crossing detection |
Power
| DC output voltage | 12 |
|---|---|
| Power source type | DC |
| Power consumption (Power over Ethernet (PoE)) | 14 W |
Packaging content
| Mounting kit | Yes |
|---|---|
| Number of cameras | 1 |
Features
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
|---|
Sustainability
| Compliance certificates | CE, RoHS |
|---|
