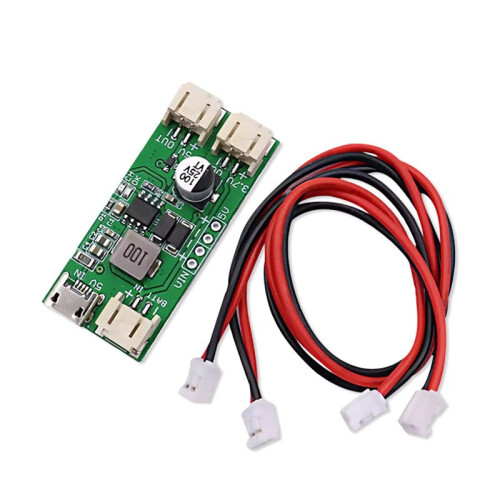

TP5400 Single-Cell Lithium Battery Charging & Boost Control Module, 1A Charging, 5V 1A Output, Voltage Control
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Wed 14th - Fri 16th Oct
Sold by: JKSYshop
Returns: 30 days
180-day payment protection
You might also like
Summary
- The TP5400 is a dedicated power bank charger for single-cell lithium-ion batteries and a constant 5V boost controller. The charging section integrates high-precision voltage and current regulators, pre-charge functionality, charging status indication, and charging cutoff, and can output a maximum charging current of 1A.
- The boost circuit utilizes a VFM switching DC/DC boost converter manufactured using CMOS technology, exhibiting extremely low no-load current. It features very low no-load power consumption (less than 10µA) and a boost output drive current capability of up to 1A.
- No external buttons are required; it is plug-and-play.
- Boost Module
- Digital Display Module
TP5400 Single-Cell Lithium Battery Charging & Boost Control Module, 1A Charging, 5V 1A Output, Voltage Control Description
The TP5400 is a dedicated power bank charger for single-cell lithium-ion batteries and a constant 5V boost controller. The charging section integrates high-precision voltage and current regulators, pre-charge functionality, charging status indication, and charging cutoff, and can output a maximum charging current of 1A.
The boost circuit utilizes a VFM switching / boost converter manufactured using CMOS technology, exhibiting extremely low no-load current. It features very low no-load power consumption (less than 10µA) and a boost output drive current capability of to 1A.
No external buttons are required; it is plug-and-.
Input Section:
* MICRO USB charging input: 5V (charging input voltage range: 5-9V)
* Maximum charging current: 0.99A
* Rechargeable battery: 3.7V single lithium-ion battery
* Charging voltage: 4.2V Output Section:
* Output voltage: 5V (uncharged)
Note: When charging and discharging simultaneously, the output voltage = input voltage - 0.4V
* Output current: 1A
Color: As Shown
Material: plastic
Package Contents:
1*module 1*cable
Details
| OPC | PTDQCCD |
|---|---|
| Brand | Exogio |
| Codes | 6032252724131 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 4cm |
| Length | 6cm |
| Weight | 0.01kg |
| Colour | As Shown |
| Material | Plastic |
