TPMS Diagnostic Scanner Tool LCD Display 2400mAh Lithium-polymer Battery Tire Type Pressure Selection

TPMS Diagnostic Scanner Tool LCD Display 2400mAh Lithium-polymer Battery Tire Type Pressure Selection Description

Specifications:
Type: Diagnostic Tool
Display: TFT color display (320 x 240 dpi)
Power: 3.7 V Li-polymer battery; 2400mAh
Operating Temperature: 0 to 50C (32 to 122F)
Storage Temperature: -20 to 70C (-4 to 158F)
Dimensions (W x H x D): 202.2 mm (7.96") x 106.7 mm (4.20") x 37.7 mm (1.48")
Connectivity: Mini USB 2.0*1
Weight: 0.4 kg (0.88 lb.)
Warranty: 1 year
Software Update: Free
Highlights:
1. Easy vehicle identification
2. Activate TPMS sensors
3. Read sensor data
4. TPMS diagnose, one step for complete TPMS health check
5. Read/clear TPMS DTCs; on-screen DTC description
6. Program MX-Sensor by auto creating sensor ID
7. Read Sensor ID by OBD and copy ID into MX-Sensor
8. Relearn by OBD function
9. Relearn procedure guide on the tool
10. Check Key FOB
11. Tire Type/Pressure selection
12. TPMS Toolkit (other function)
13. Built-in rechargeable li-ion battery
14. Strong housing with protective rubber boot
15. Print TPMS sensor data via PC
16. USB Internet updatable
17. Historical test records
18. Lifetime Software Update
-- Support Tire Type/Pressure selection
-- Internet updatable via USB
-- Read/Activate/Relearn All Known Sensors
-- Detect & Display TPMS System Faults
-- Display Vehicle-Specific Relearn Procedures; Perform OBDII Relearns
-- 2 Programming Options: MX-Sensors Only
-- TPMS System Status Screen
-- Key Fob Signal Test
-- FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
-- Display Sensor ID, Battery Life (on supported sensors) and Psi
-- Includes OBDII Cable
-- 2.3" Color Display 320x240
-- Easy-To-Use Navigation
-- 2400mAh Lithium-polymer Battery

Features:
1. 2024 Newest TPMS Tool, Upgrade of TS501, TS408S, TS401
As 2024 newest, Autel TS501 PRO has packed almost all TPMS functions including one-step TPMS health check, read & clear TPMS codes, on-screen DTC description, reset TPMS warning light, activate/relearn both OE and aftermarket TPMS sensors, read sensor data, program Autel MX-Sensors, and unique features like check key fob frequency, Tire Type/ Pressure Selection for faster & better TPMS repairs & services.
2. Activate/ Relearn TPMS Sensors
To turn off the TPMS warning light after replacement, you need to relearn the sensors! Autel TS501 PRO TPMS reset tool can wirelessly activate & relearn all OE or aftermarket TPMS sensors, and provides you with 4 ways of on-tool relearn procedures: Stationary Relearn, Automatic Relearn, OBD Relearn, and Copy Relearn. Over 50% of vehicles provide two or more relearn options.
3. Program Autel MX-Sensors
Autel TS501 PRO TPMS programming tool allows both DIYers and auto technicians to program sensor data to Autel MX-sensors (315/433MHz) in no time! TS501 PRO comes with 2 TPMS sensor programming options: 1. Auto Create 1-16 Sensors, 2. Copy by OBD( Not included in TS408) to replace faulty sensors with low battery life or not functioning well. NOTE: TS501 PRO can only program Autel MX-sensors. It can NOT program other brand sensors.
4. TPMS Diagnosis
The TPMS application performs functions including TPMS Diagnose, Program Sensor, Position Relearn, Information (OE and MX-Sensor data and vehicle OBDII port location diagram), and Tire Type/Pressure Selection (tire pressure placard value change).
5. Tire Type/Pressure Selection
If all TPMS faults are cleared and the four tires are inflated to the reference pressure listed on the placard, but the TPMS Malfunction Indicator Lamp (MIL) is still on, you may need to use this function to select your tire type and set the right tire pressure value.
6. Relearn All Known TPMS Sensors:
The Autel TPMS TS501 PRO introduces a new OBD Relearn Method, an upgrade over the MaxiTPMS TS401 and TS408. To turn off the TPMS warning light after sensor replacement, you need to relearn the sensors to the vehicle. The Autel TS501 PRO TPMS Relearn Tool offers three on-tool relearn procedures for both OE and aftermarket sensors: Stationary Relearn, Automatic Relearn, and OBD Relearn.
7. Activate All-Known Brand Sensors:
The Autel TS501 Pro TPMS Reset Tool wirelessly activates most OEM/Universal TPMS sensors, allowing you to easily retrieve sensor data such as Sensor ID, Tire Pressure, Tire Temperature, Sensor Battery, Sensor Position, and Frequency. Additionally, the TS501 Pro can diagnose the TPMS system by connecting to the OBDII port to read and clear codes.
8. Lifetime Free Update:
Autel TS501 Pro TPMS relearn tool provide lifetime FREE software updates.

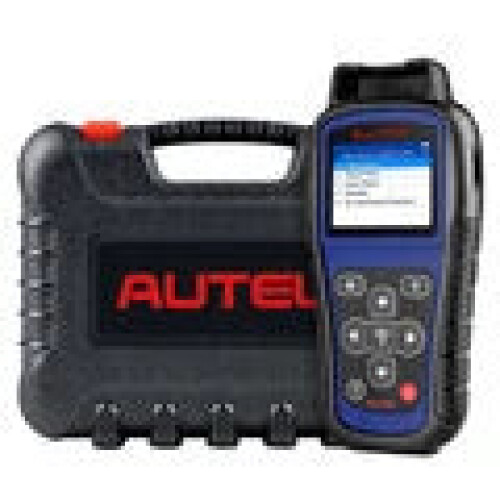

Package includes:
1 x TS501 Pro Main Unit
1 x OBDII Cable
1 x USB Cable
1 x Plug
1 x Instructions
1 x Carry Case
