Product name: Aluminum profile hole punch
Fixing method: aluminum profile slider locking
Specification: Aluminum profile punching assistant (single hole)
Scope of application: Home, carpentry
Application: Wood Working Tool

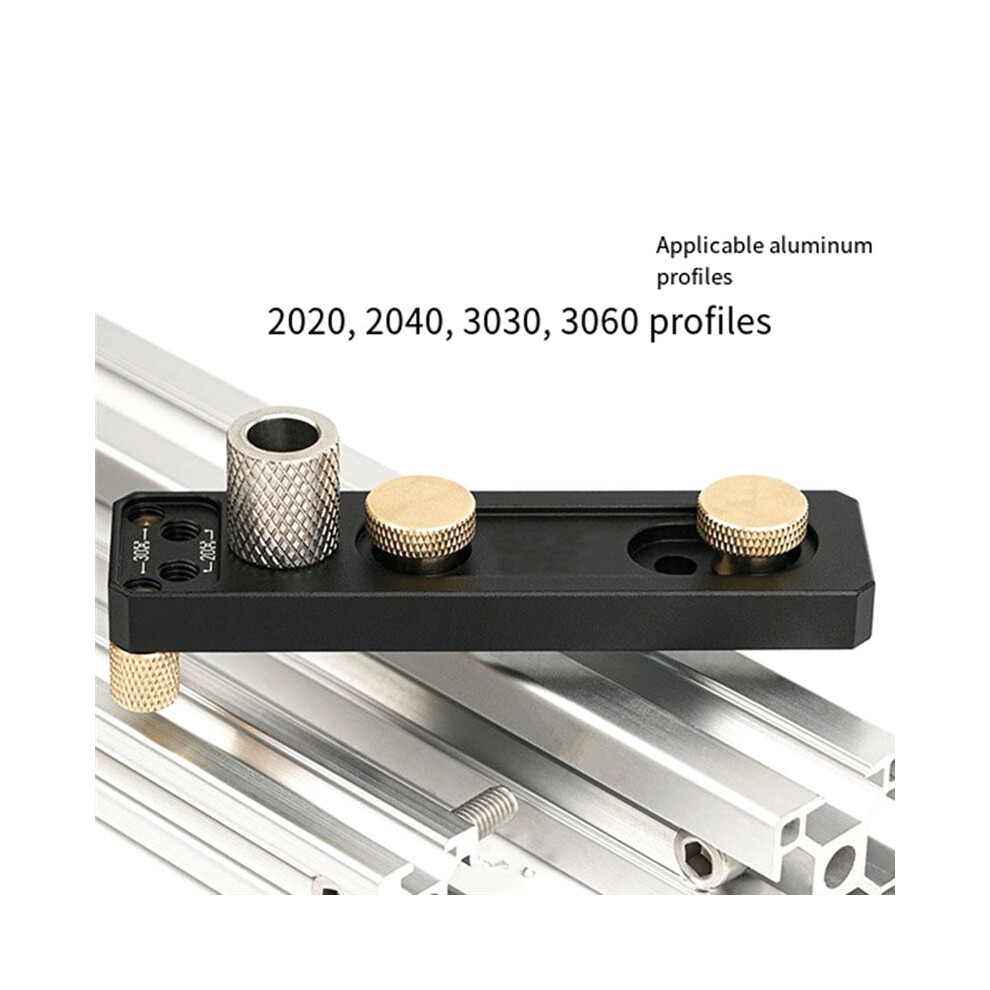

Applicable profile: 2020/2040/3030/3060 profile
Operation:
1.Adjust the limit: If punching profiles 3030, 3060, adjust the limit column to the "30" pointing hole.
2.Install the slider:Select the appropriate slider according to the profile specification.

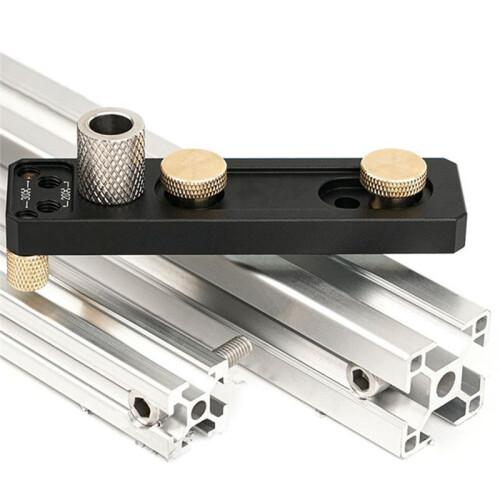

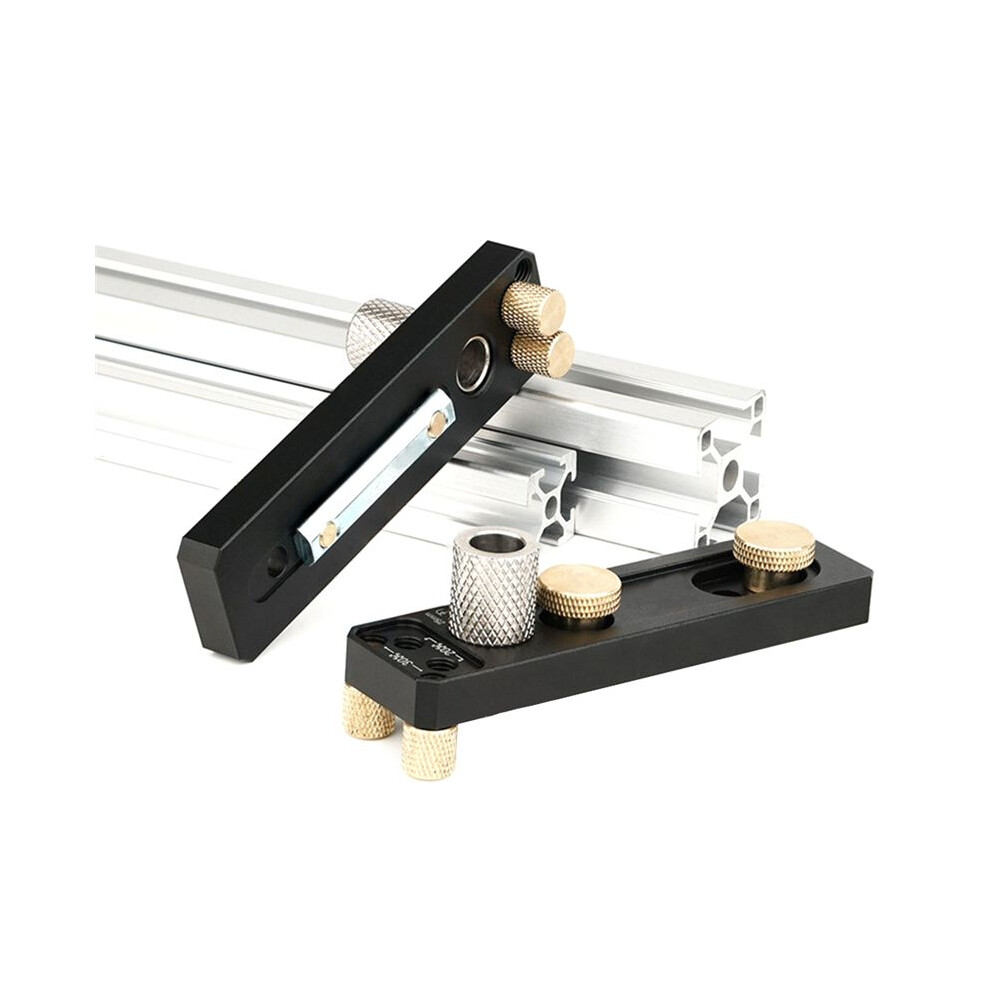

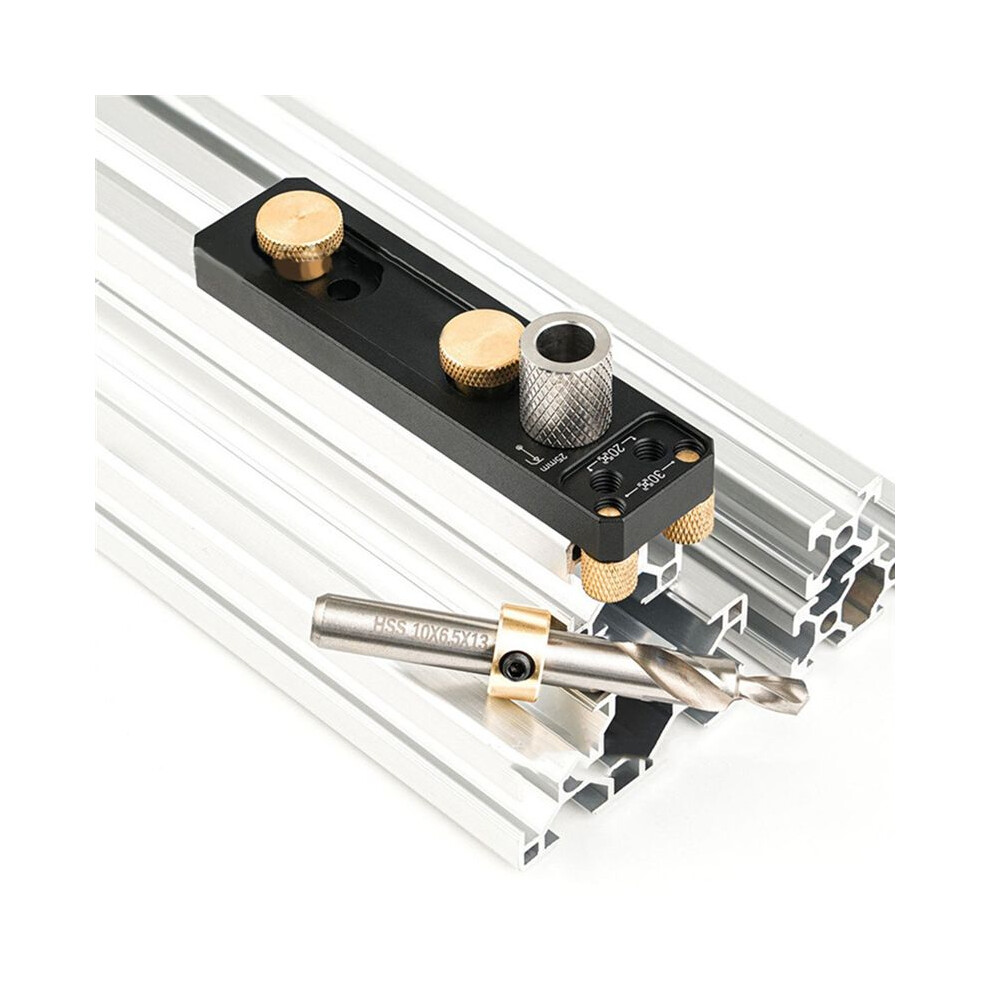

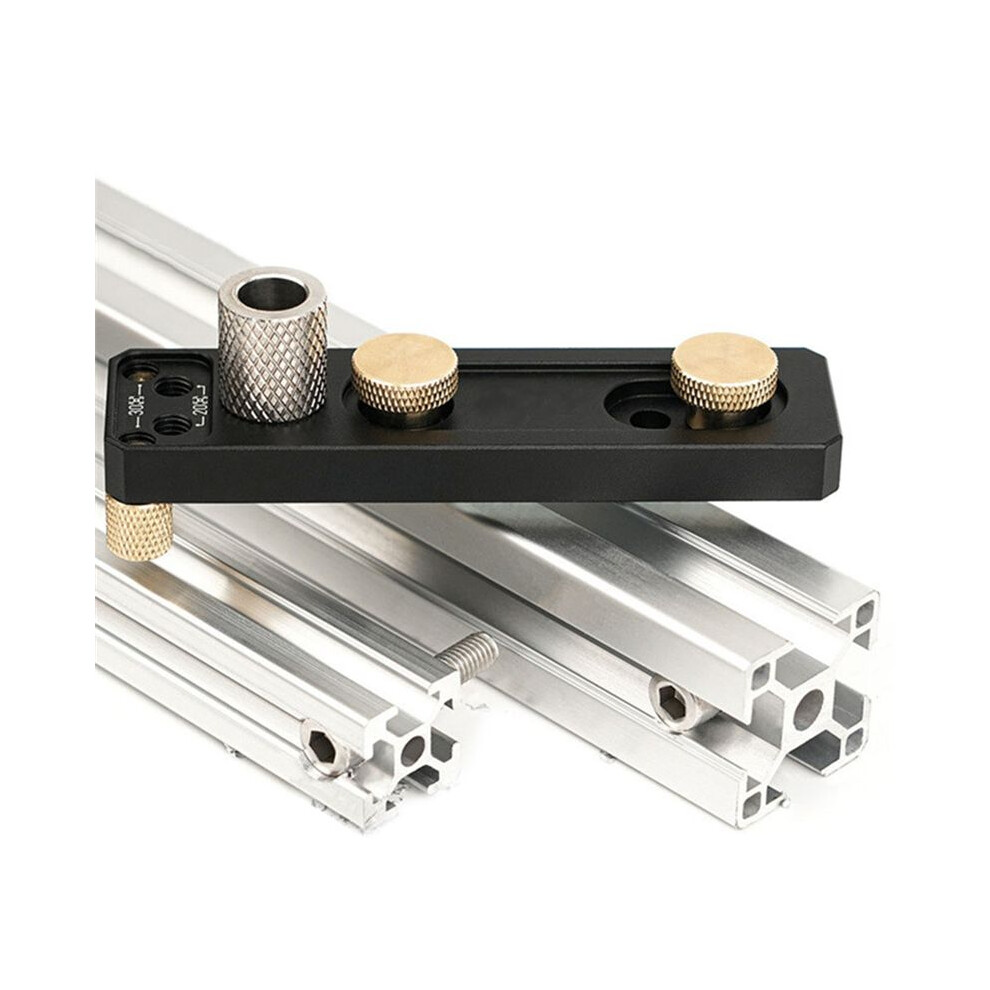

3. Fixed punching: Slide the product into the aluminum profile, against the copper pillar.Lock the brass screws and use the step drill to punch holes.
4. Punch holes in other locations: Remove the copper pillar, slide the product into the aluminum profile.Punch the center, 25mm away from the top of the product,Use a ruler to confirm the punching position, lock and punch.
Colour:Black
Material:Aluminum Alloy

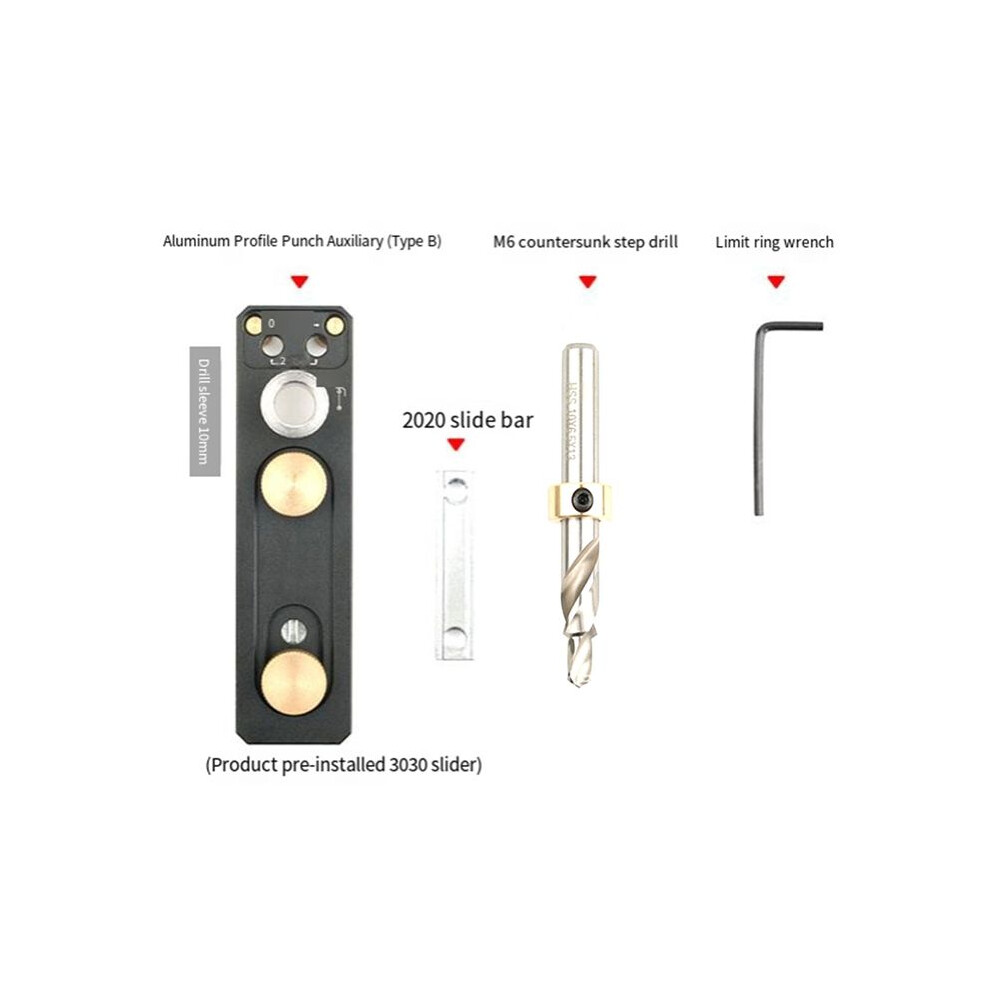

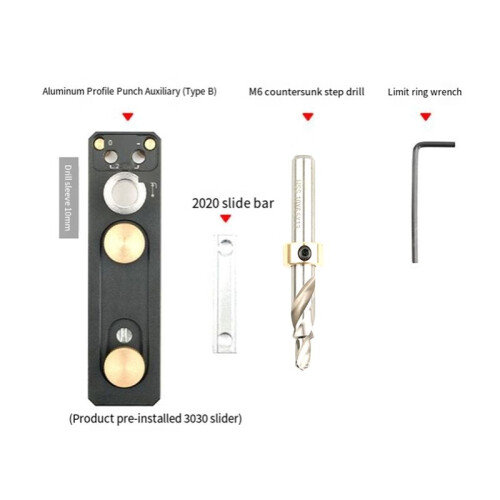

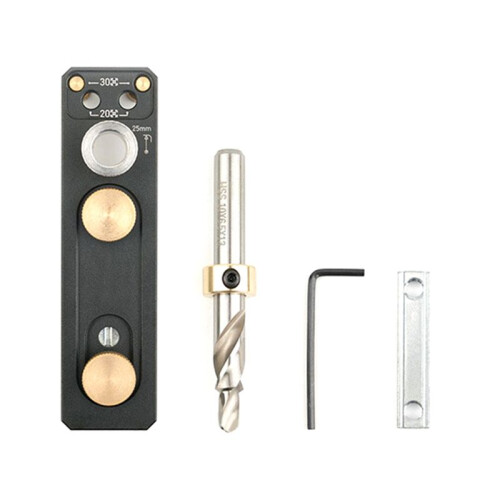

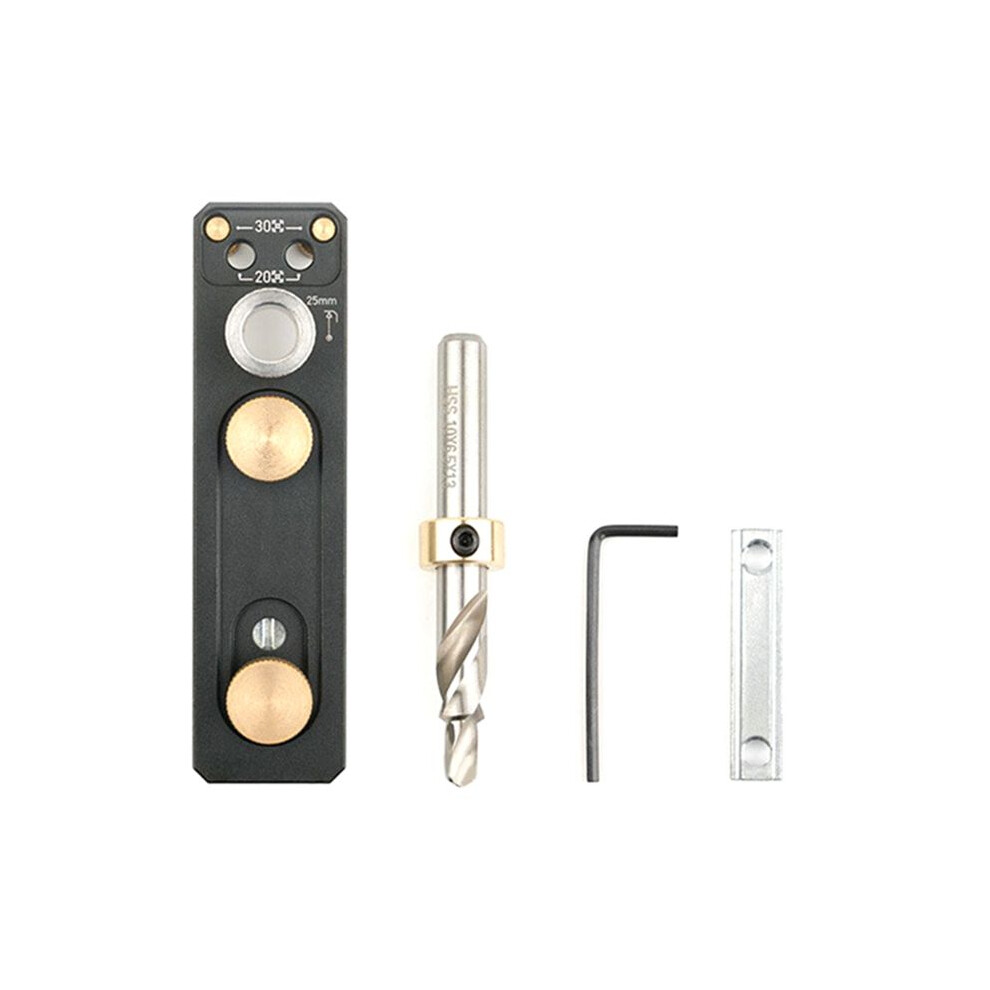

Package Contents:
1 x punch auxiliary
1 x drill
1 x wrench
1 x slide bar
