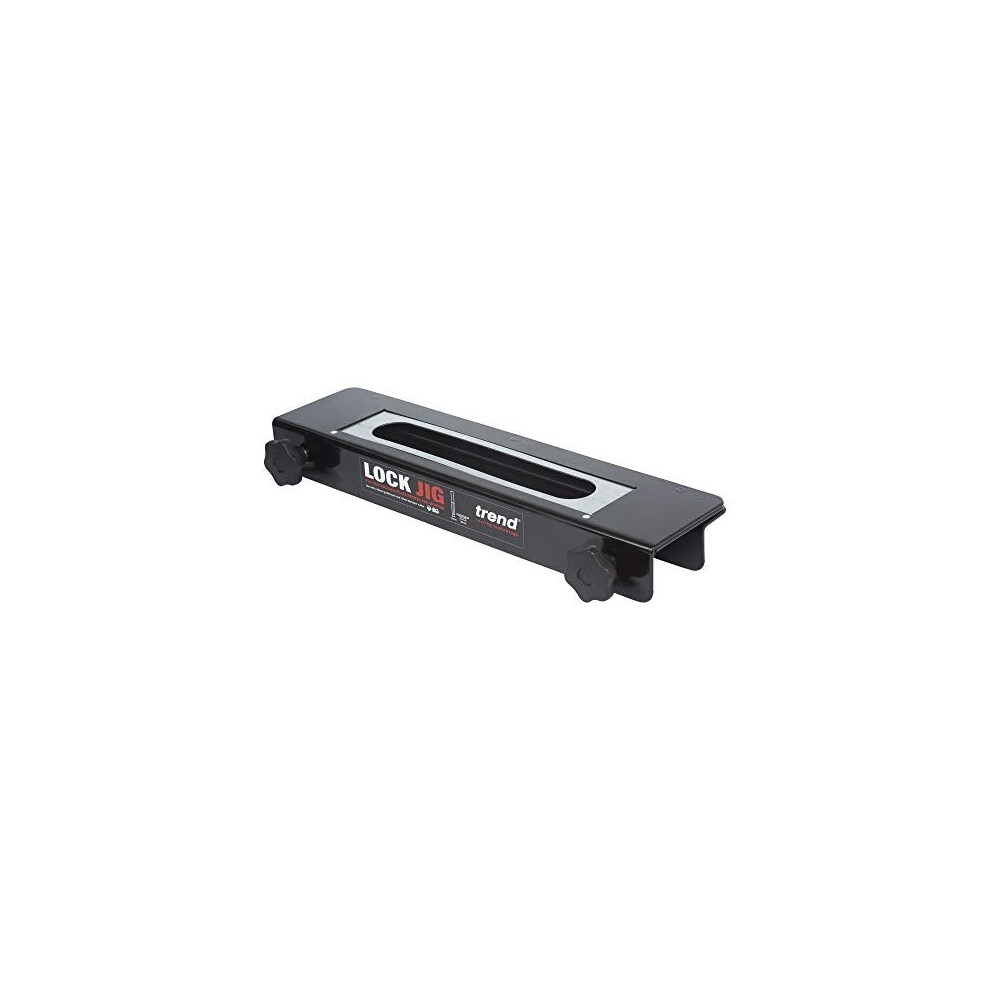

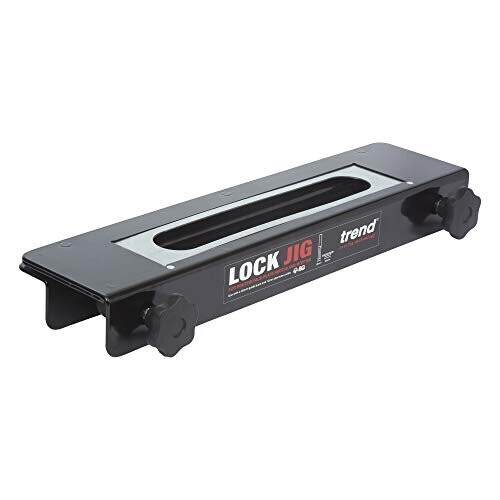

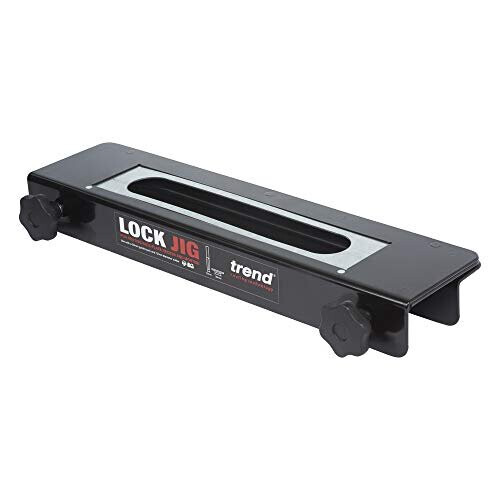

TREND Lock/Jig/A Large with Baldwin Templates

TREND Lock/Jig/A Large with Baldwin Templates Description

Features

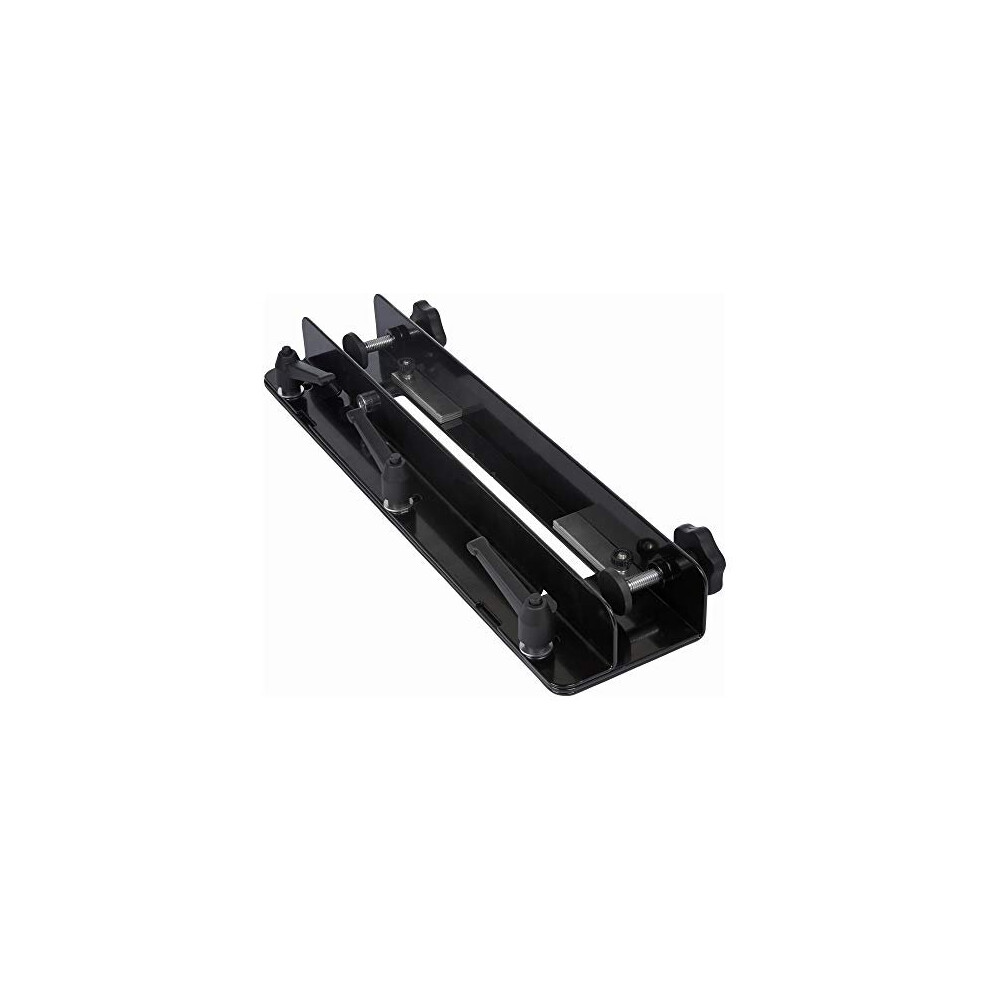

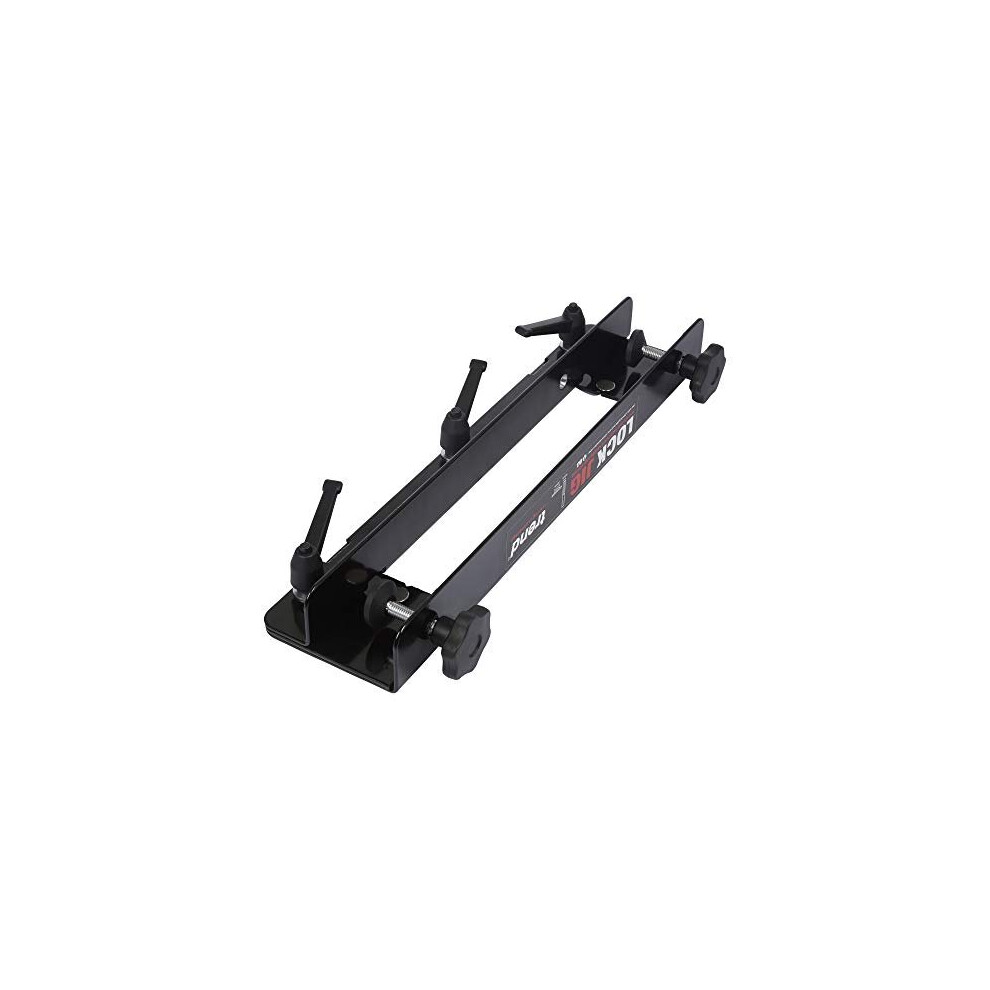

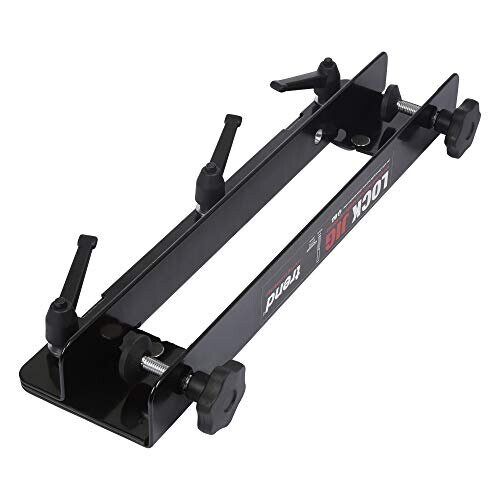

• Suitable for use on doors 34mm to 58mm in thickness. Jig clamps to the door.
• For use in a 1/2in capacity router with 80mm plunge capacity fitted with a 30mm guidebush and 12mm cutter.Suitable trend cutters: 3/75X1/2TC, TR37X1/2TC, C172X1/2TC

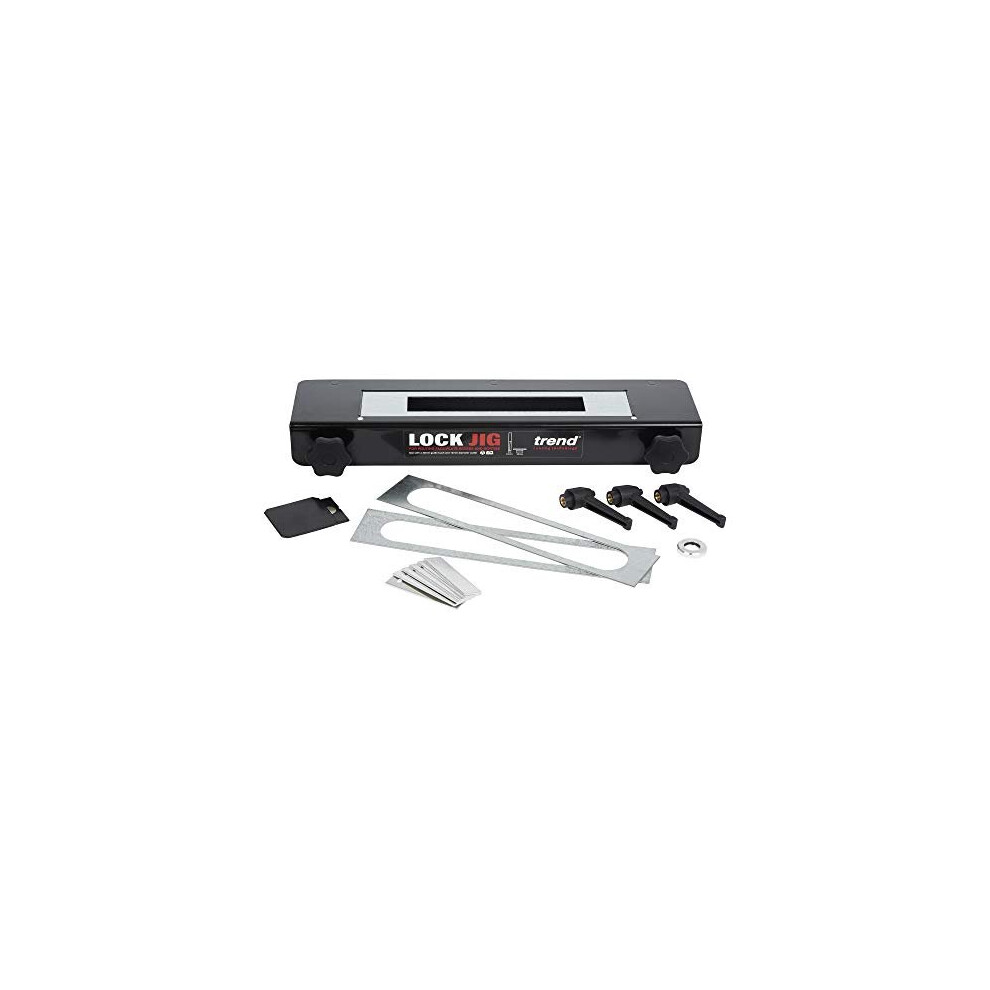

• Suited for DDA (Disability Discrimination Act) lock size. 20mm x 235mm radius end face plate, 24mm x 235mm radius end face plate and 17mm x 170mm mortise plate supplied as standard.
• Jig supplied with adaptor plate to allow smaller templates (as supplied with standard lock/jig) to be used.
• Suits DIN style locks.

Product DescriptionFor routing the face-plate and mortise for larger locks quickly & accurately. Suitable for two sizes of Baldwin locks with faceplate sizes 1 1/4" X 8" Or 1" X 8" And mortise sizes 1" X 5 23/32" Or 7/8" X 5 23/32". Fast, clean & accurate results on doors 1 5/16 inch to 2 1/4 inch thick, even in hardwood. Adaptor plate included to allow smaller templates to be fitted (as supplied with standard lock/Jig).an auger bit and drill is required to complete deep mortises. Includes 15/32 inch diameter 1/2 inch shank TCT router Bit and 1-3/16 inch screw-on style guide bush. Jig requires a router with 3-1/8 inch plunge.
