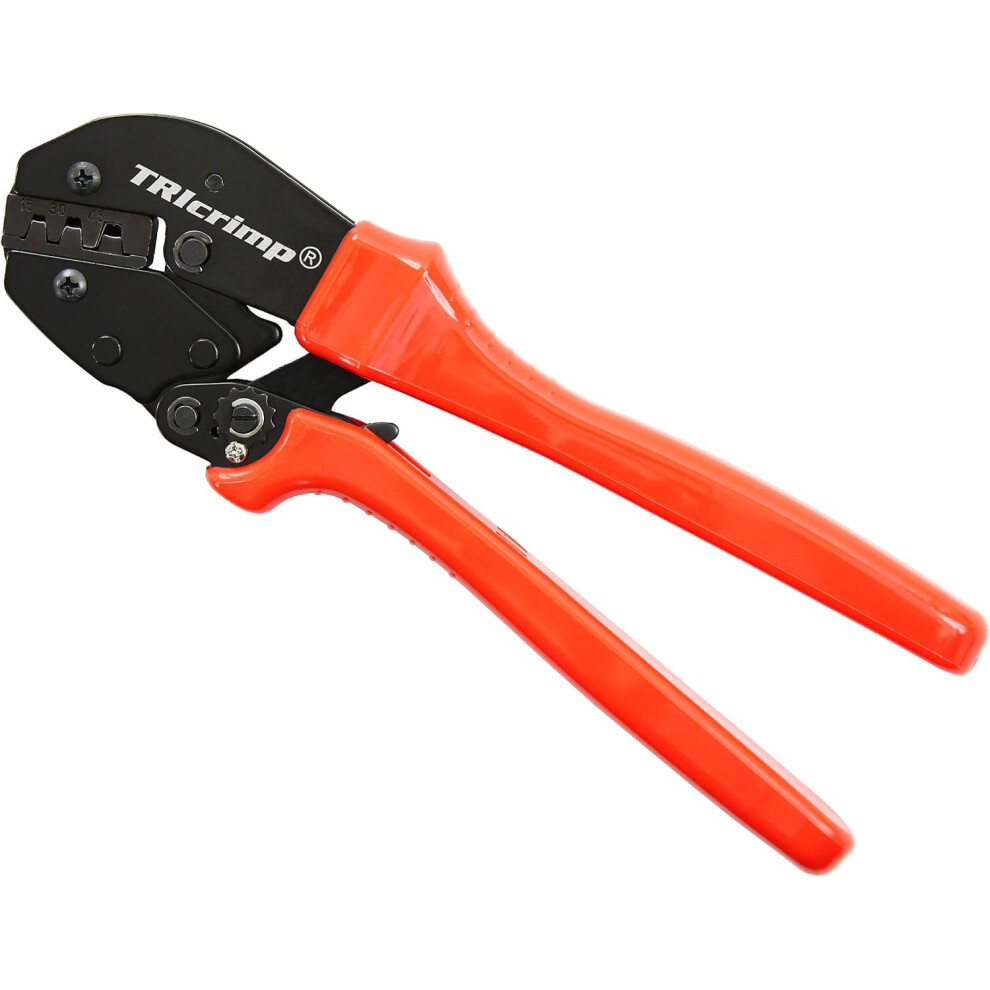

TRIcrimp Powerpole crimping tool for 15/30/45A contacts

TRIcrimp Powerpole crimping tool for 15/30/45A contacts Description

Product Description The TRIcrimp crimping tool is designed and manufactured exclusively by to provide a positive crimp on the 15, 30 & 45 amp contacts manufactured by Anderson Power. TRIcrimp Features Crimps all three sizes of Powerpole contacts; 15, 30 and 45 amp Built-in contact positioner that holds the contact during crimping Ratchet mechanism assures proper crimps every time Far faster and better than soldering Provides the highest strength and the lowest resistance connections possible Dimensions: 7.75" X 3" X 1.5" Contacts & Jaw Position The 3 contacts have different amp ratings: 15 Amp (SKU: 1332) is designed to receive 16, 18 and 20 gauge wire. 30 Amp (SKU: 1331) is designed to receive 12, 14 gauge wire. 45 Amp (SKU: 261G2) is designed to receive 10 gauge wire. Assembly Instructions 15 & 30 Amp To crimp the 15 & 30 amp contacts it is - that you insert the wire into the contact prior to inserting them into the tool. Then, with the flat side of the contact down, insert the contact tip into the proper slot for crimping. Squeeze the ratchet handle until the ratchet mechanism releases. Assembly Instructions 45 Amp To crimp the 45 amp contact it is - that you position the tip of the 45 amp contact into the 45 amp position slot before the wire is inserted. Make sure the contact is properly positioned with the U (open contact) facing up. If the contact is lying sideways you may not obtain a proper crimp. Then, insert your wire into the inserted contact. Squeeze the ratchet handle until the ratchet mechanism releases.
