Description & Details

Summary

  • [Accurate Measurement] The DIN rail voltmeter utilizes advanced circuit technology and accurate components to accurately measure voltage values, ensuring high measurement accuracy.
  • [Switch Output Function] The DIN rail voltmeter can convert voltage signals into digital signals through the switch quantity output port for convenient control and processing.
  • [Intuitive Display] Featuring a large LCD screen, the voltage meter provides an intuitive display of voltage values and other relevant parameters, allowing users to see in real time.
  • [Easy Installation] The modular voltmeter adopts rail type installation, allowing direct mounting on DIN rail of electrical equipment, avoiding traditional complex installation and occupying less space.
  • [Convenient to Operate] With a clear and user friendly interface, the DC voltmeter is easy to operate through simple button, providing users with a convenient and efficient experience.

Triple Way DIN Rail Power Voltmeter LCD 3 Digits Isolated DC11-310V Description

DIN Rail Voltmeter 3 Digits LCD Display Isolated Triple Way Modular Voltage Meter DC11‑310V
Item Type: DIN Rail Voltmeter
Material: PC
Model: TOVME 3D
Displayable Circuits: 3
Power Consumption: 3W
Current Type: DC
Voltage Range: DC 11-310V
Accuracy: 100V: 1%, <100V: 2%
Overvoltage Tolerance: +5% within 1 hour
Low Voltage Alarm: L0
High Voltage Alarm: H1
Meter Type: Digital Display
Display Digits: 3
Power on Display: 888 (888ms)
Isolation: Completely isolated between channels
Installation Type: DIN Rail
Operating Temperature: 0~+40 (32~+104)
Storage Temperature: -40~+60 (-40~+140)
IP Rating: IP20

Details

OPC PSTD56T
Codes 9431390902963 (EAN)

Product Images

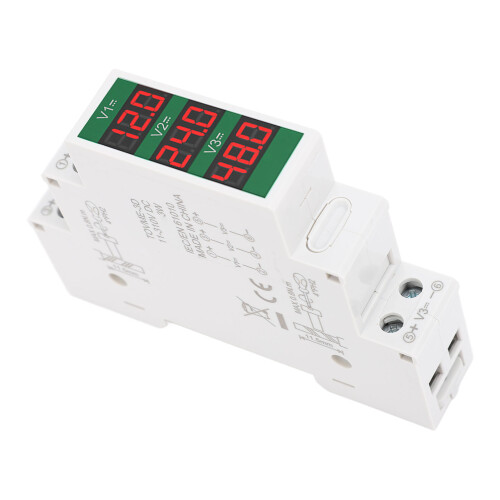

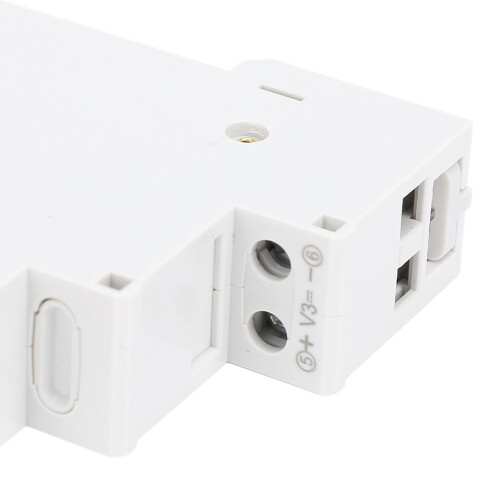

Triple Way DIN Rail Power Voltmeter LCD 3 Digits Isolated DC11-310V 1

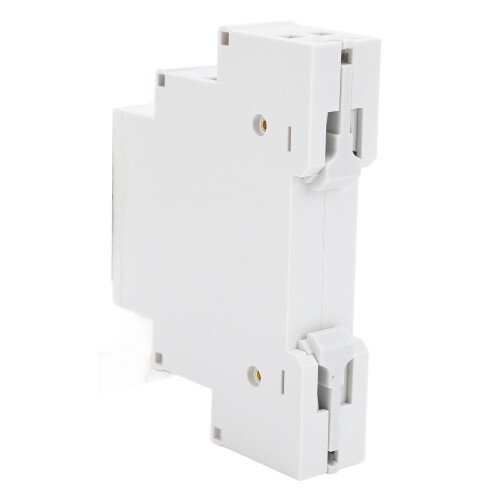

Triple Way DIN Rail Power Voltmeter LCD 3 Digits Isolated DC11-310V 2
