Tuya Automatic Smart Zigbee Roller Shade Blinds Mo

Tuya Automatic Smart Zigbee Roller Shade Blinds Mo Description

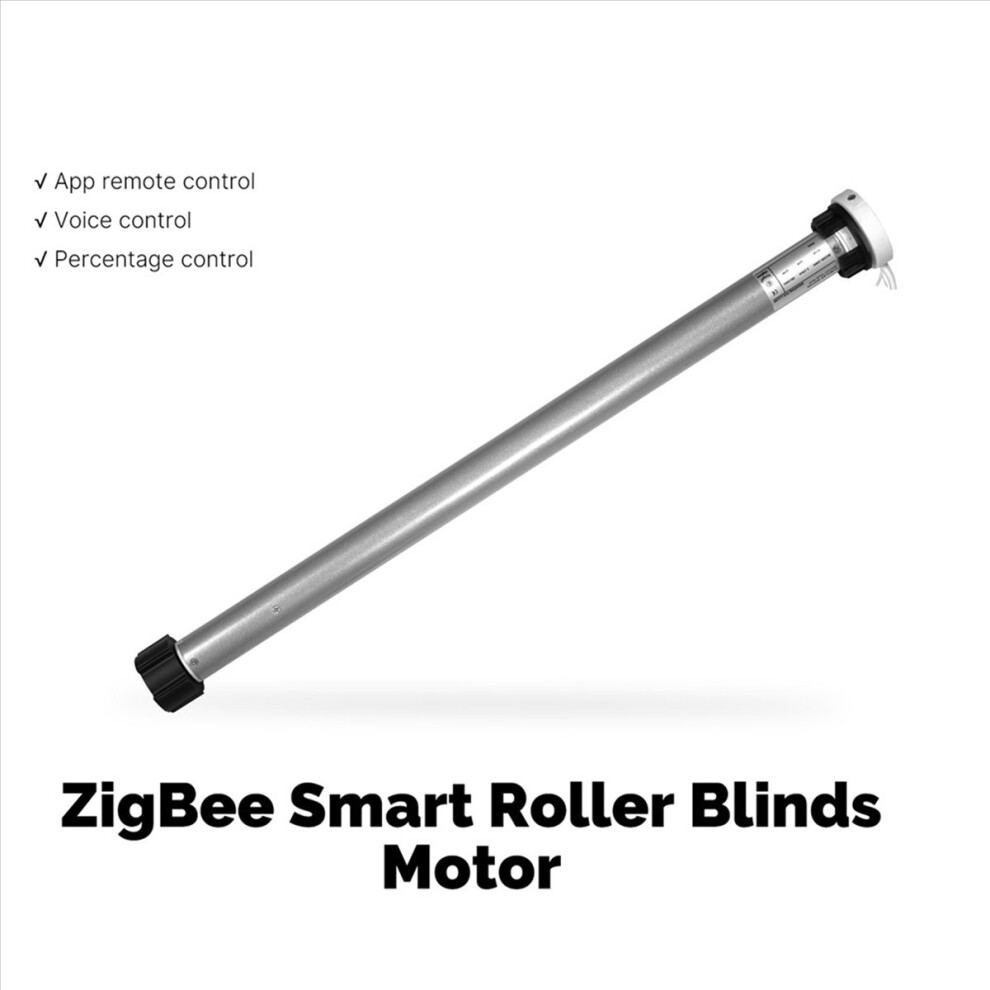

ZigBee Smart Roller Blinds Motor. App Remote Control. Voice Control. Timing Function. Remote Control. Percentage Control
Note: ZigBee gateway is required,please purchase in addition.
Applicable Scenarios, The versatile motor powers window blinds, projection screens and roller blinds. Its reliable performance and easy installation ideal for those seeking a convenient way to control coverings.
Smart Scene Linkage The smart electric roller blind motor enables integration into a smart scene linkage such as smart light switches. Motor Rotation Switchable When you accidentally install the curtain motor in the wrong direction, choose reverse rotation in App, then the App operation can be as normal direction.
Comparison of The Data There are two motor models in this link, both with an outer tube diameter of 25mm, but some of their data differ. Please refer to this chart for specific details.Installation Guide:There are four steps in total. lf you need further assistance, to contact our customer service promptly.

1. Position the motor according to the diagram markings, ensuring shaft groove aligns preciselywith the roller channel before insertion.
2. Insert the crown into the motor's bottom port, verify its alignment with the roller end position, thenpush and lock until fully secured.
3.Install plug into the motor's left-side port: align with the designated groove and fasten it frmly.
4. Mount the motor-roller assembly to the target location (Note: Positioning varies depending oninstallation scenarios).
Outer Tube Diameter: 25mm
Input voltage: 100-240/60-50V
Output voltage: 12V
Outer Tube Length: 410mm
B:
Rated torque: 1.1N.m
Output Rotational Speed of 1.1N.m: 28rpm
Rated current of 1.1N.m: 1A
Rated power of 1.1N.m: 12W
Maximum Driving Roller Weight of 1.1N.m: 4kg
Color: As Shown
Material: Metal

Package Contents:

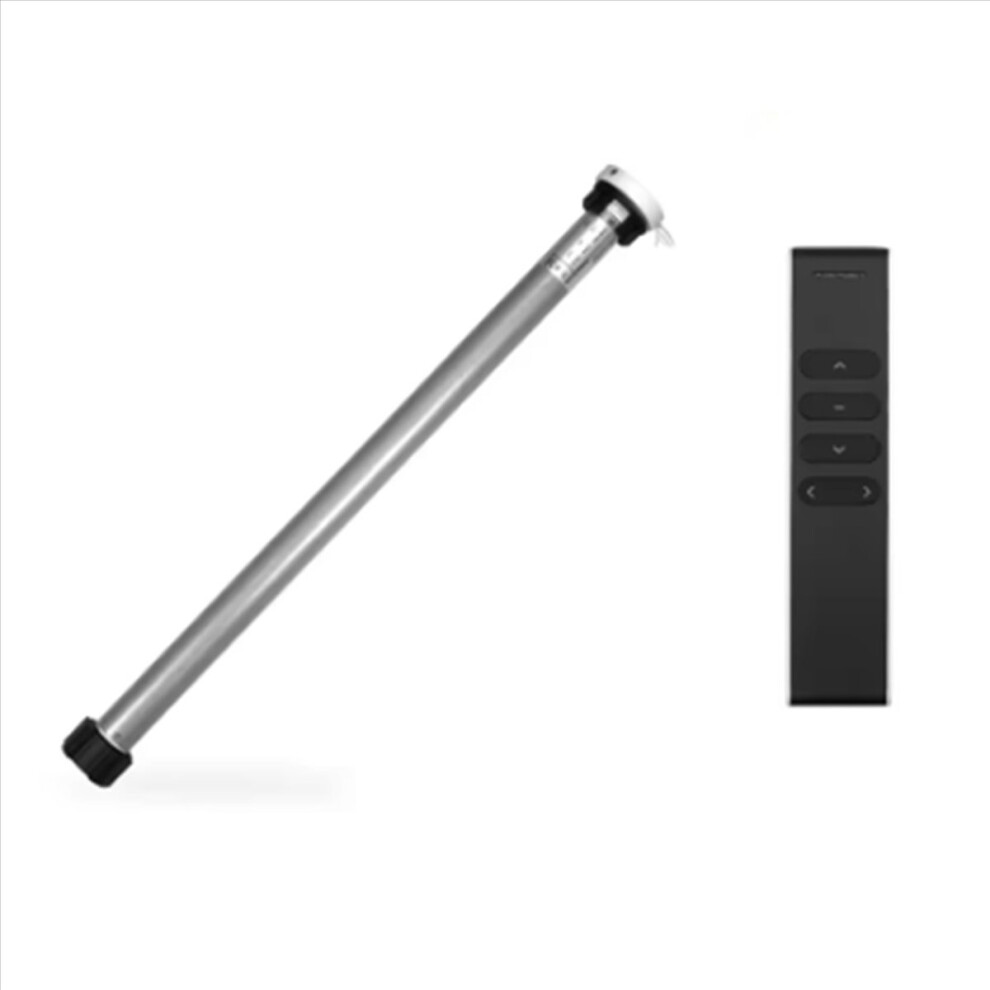

1 * Tuya Automatic Smart Zigbee Roller Shade Blinds Motor
1 * Remote control

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
