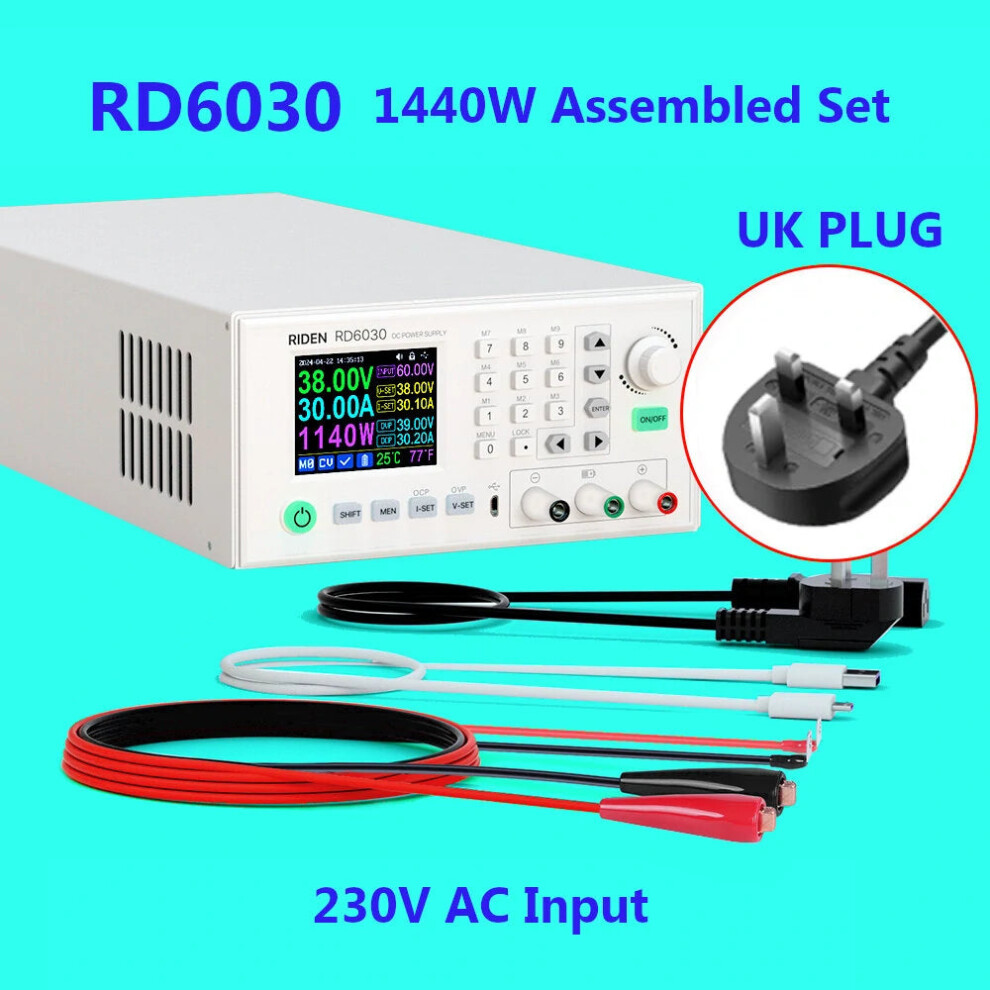

(UK Plug) Assembled Set 60V 30A DC Voltage Step-down Stabilized Lab Power Supply Module Buck Adjustable Converter Battery Charging

(UK Plug) Assembled Set 60V 30A DC Voltage Step-down Stabilized Lab Power Supply Module Buck Adjustable Converter Battery Charging Description

Features:

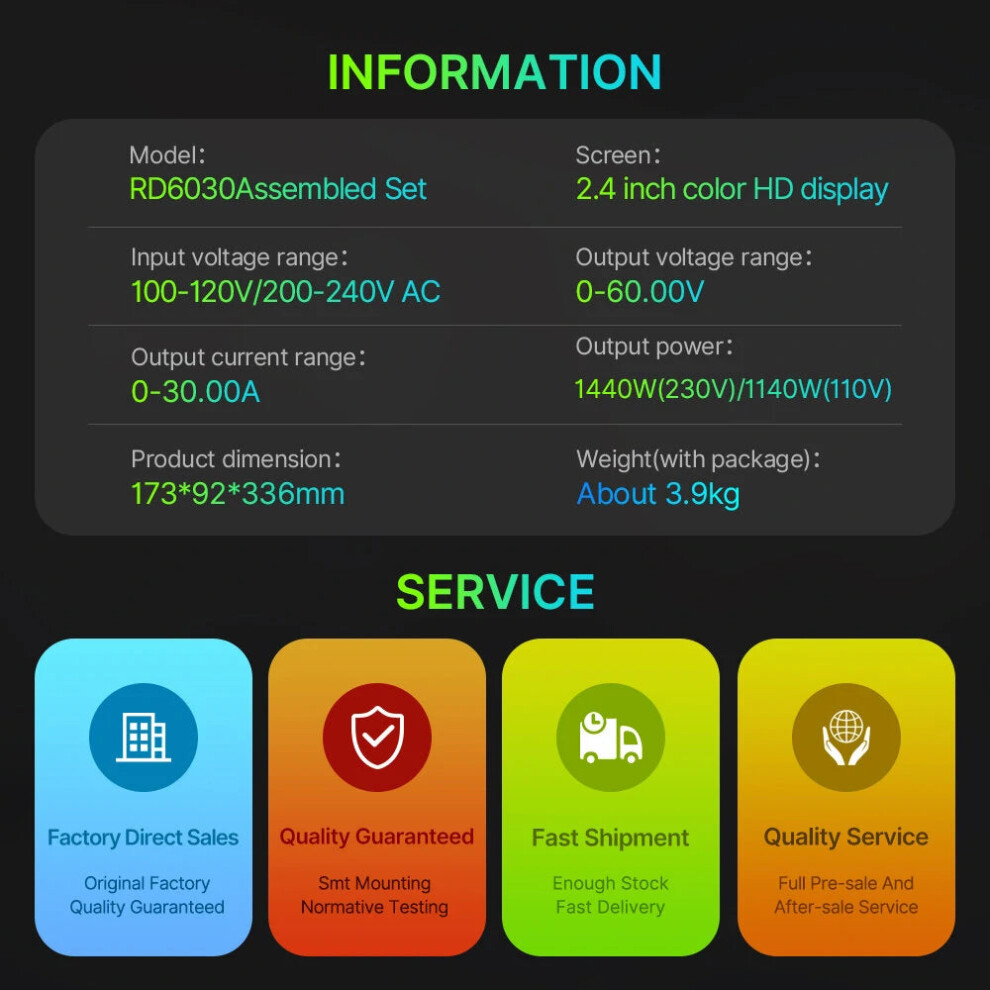

Input voltage range: 7-70.00V
Output voltage range: 0-60.00V
Output current range: 0-30.00A
Output power range: (AC220V)0-1440W/(AC110V)0-1140W
Input voltage measurement resolution: 0.01V
Output voltage resolution: 0.01V
Output current: 0.01A
Battery voltage resolution: 0.01V
Input voltage measurement accuracy: (1%+5 digits)
Output voltage accuracy: (0.3%+3digits)
Output currentaccuracy: (0.5%+5digits)
Battery voltage measurement accuracy: (0.5%+3 digits)

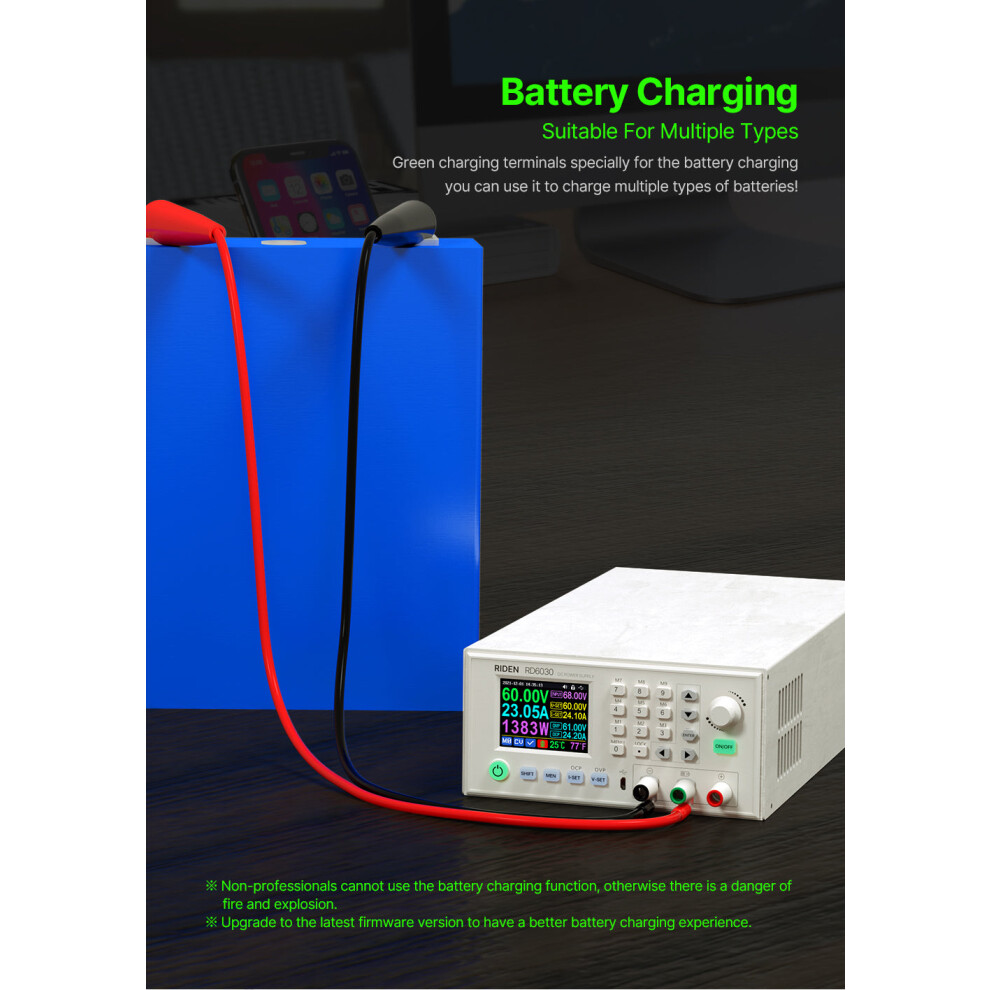

Default cutoff current value when charging: 100mA
Output ripple typical: 50mV@15A, 90mV@30A VPP
Working temperature range: -10~40
External sensor Temperature detection range: -10~100/0~200
External sensor Temperature detection accuracy: 3/6
Constant voltage moderesponse time: 2ms0.1A-5A Load
Constant voltage mode load regulation: (0.1%+2 digits)
Constant current mode load regulation: (0.1%+3 digits)
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
Capacity and energy statistical error: 2
Buck working mode: input voltage1.1-1

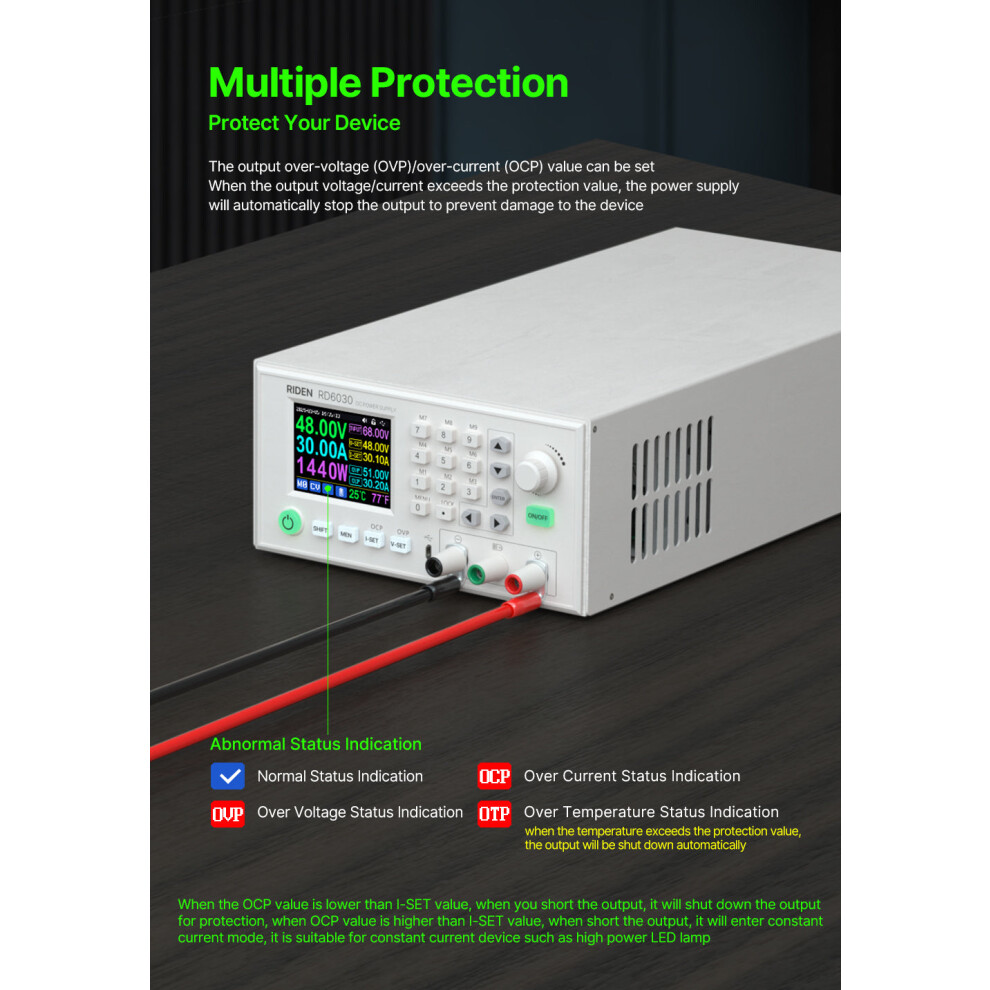

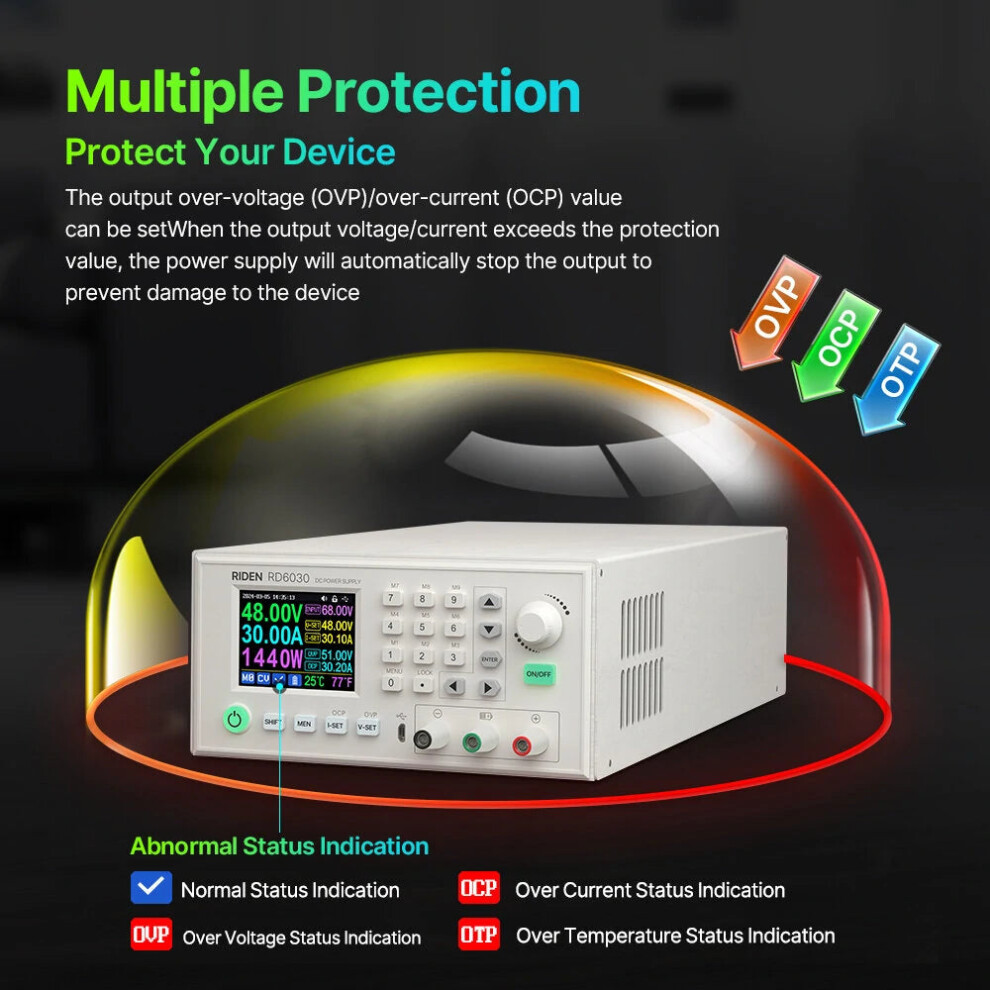

Over temperature protection: System temperature>80

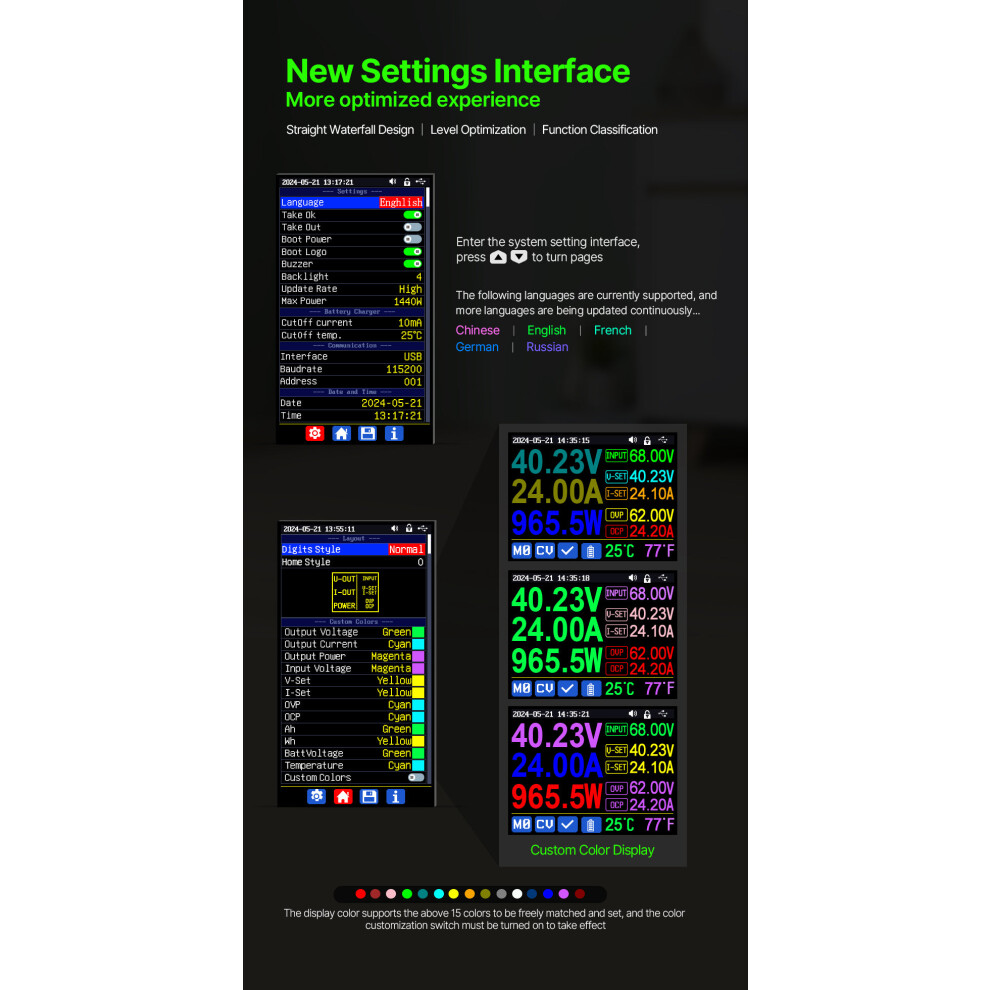

Screen brightness setting: 0-5(6 level in total)

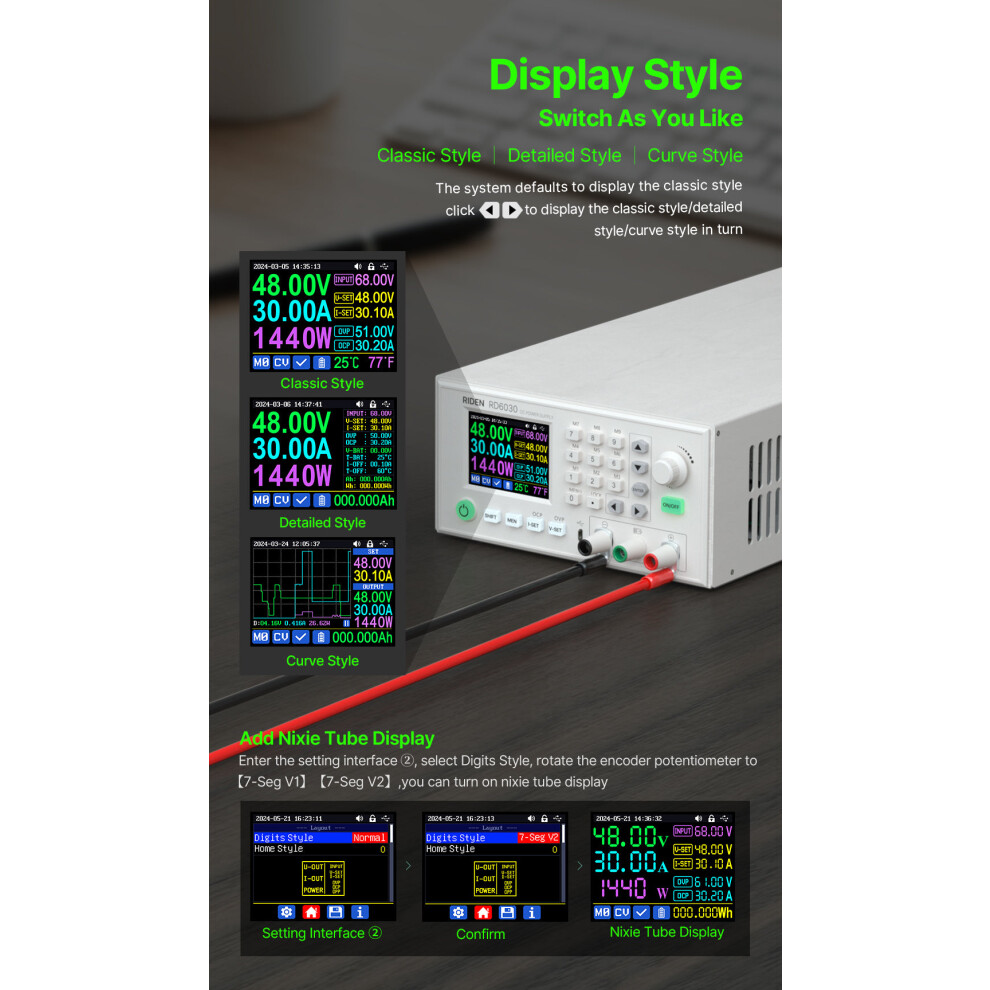

Screen: 2.4inch color HD display
Weight(with package): About 0.74kg

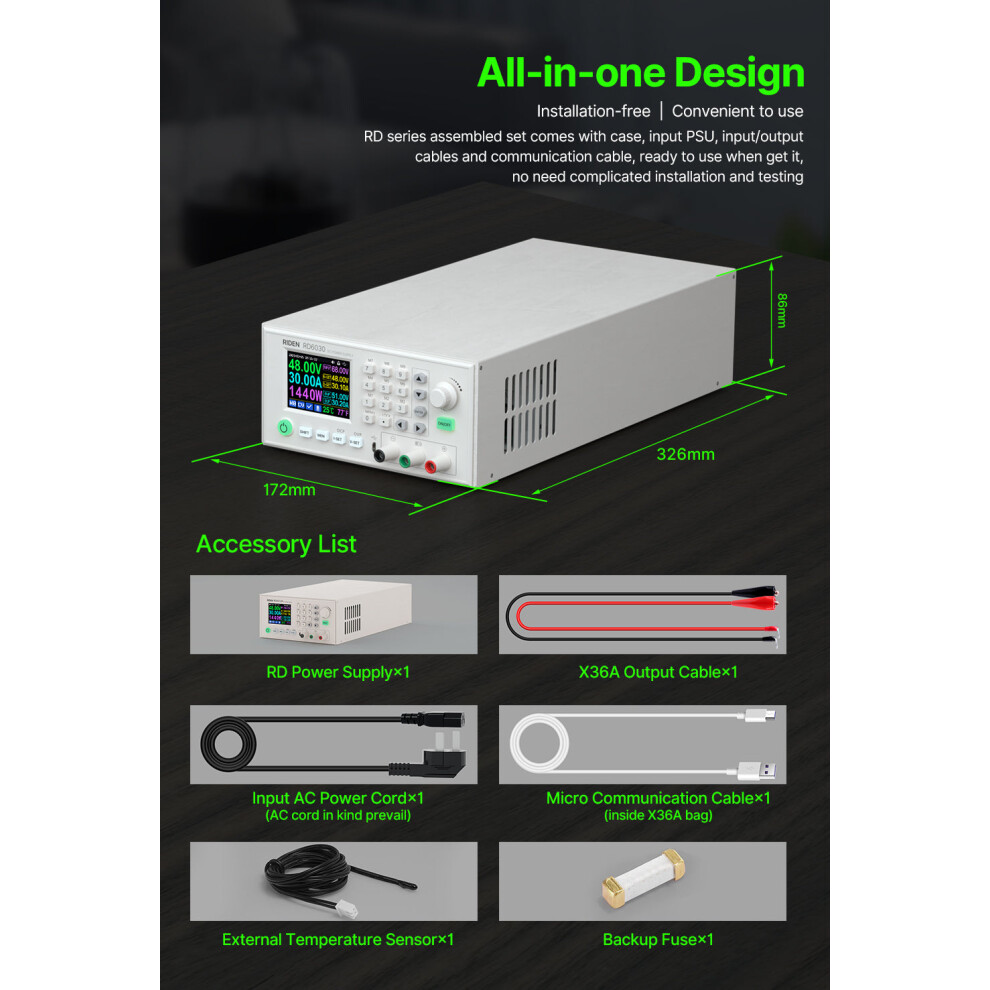

Product dimension: 167*81*69mm
Cooling fan start condition: Output current >8A or System temperature >45
Cooling fan shut down condition: Output current <7.9A and System temperature <40

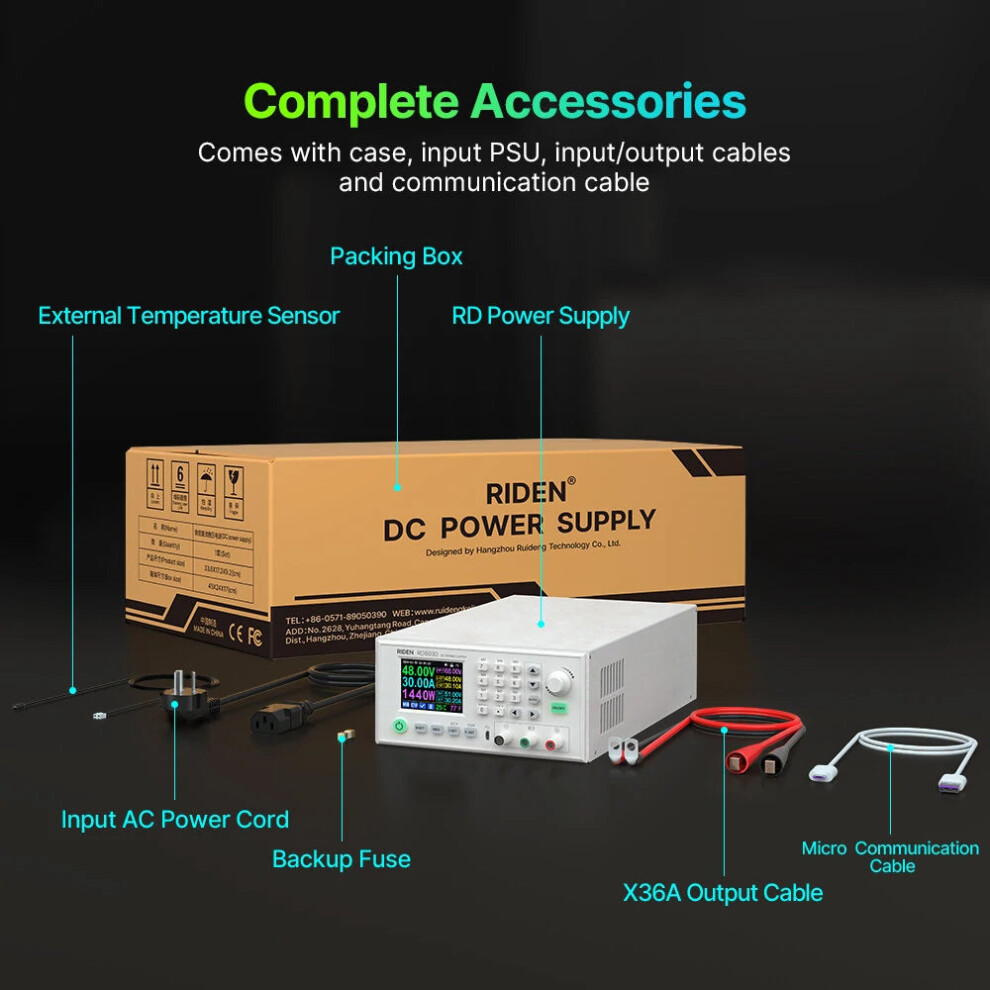

Package includes:

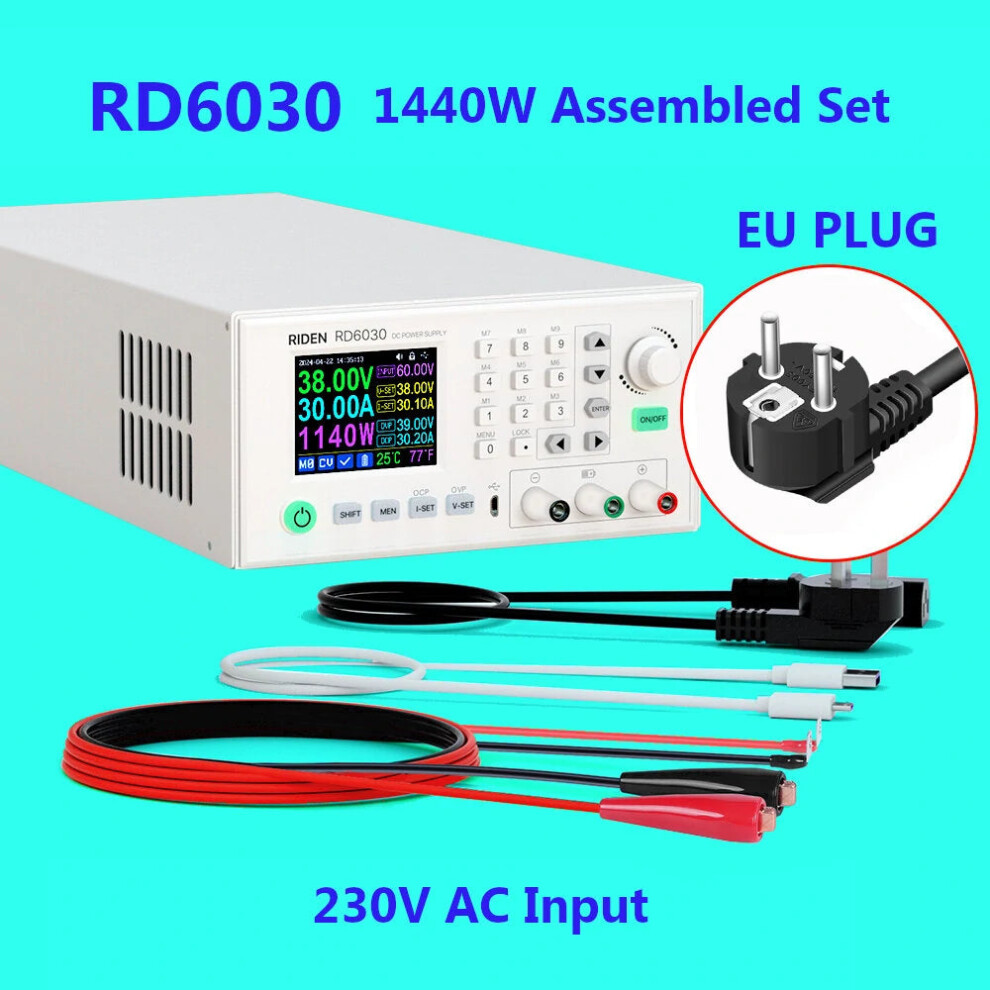

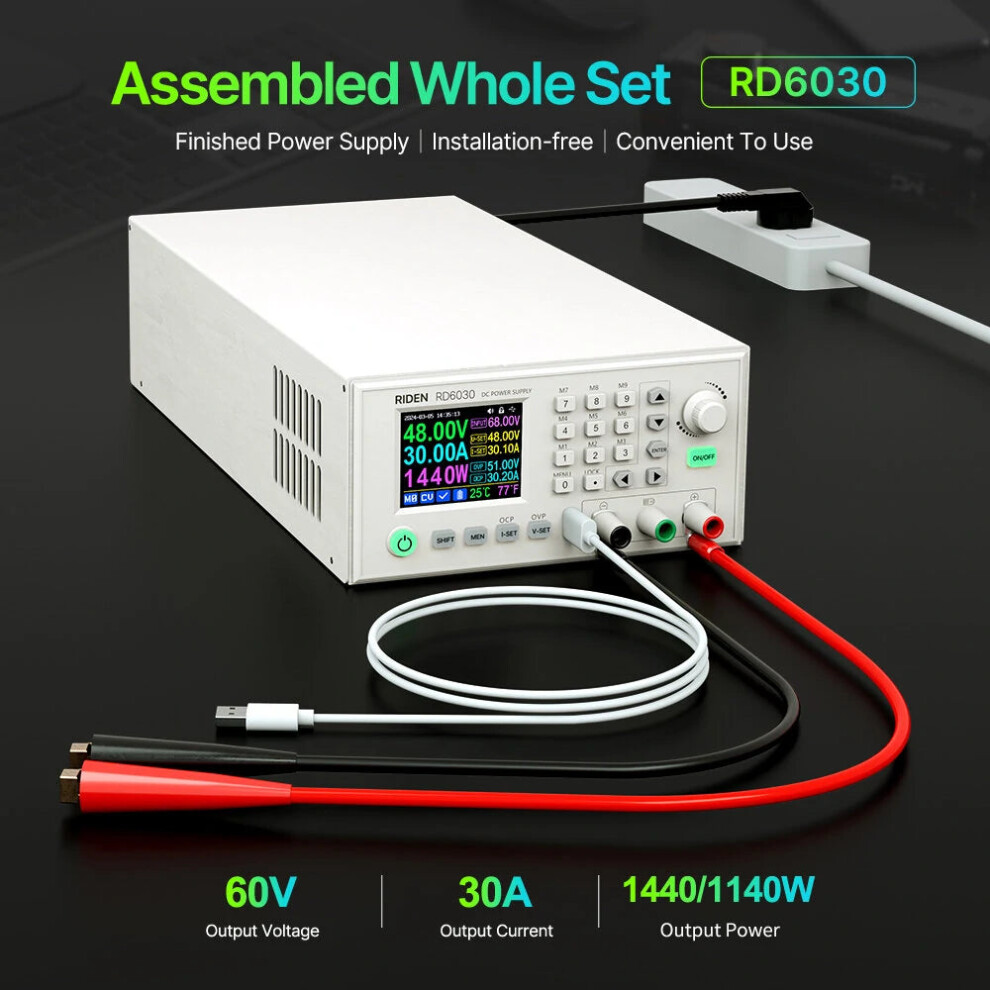

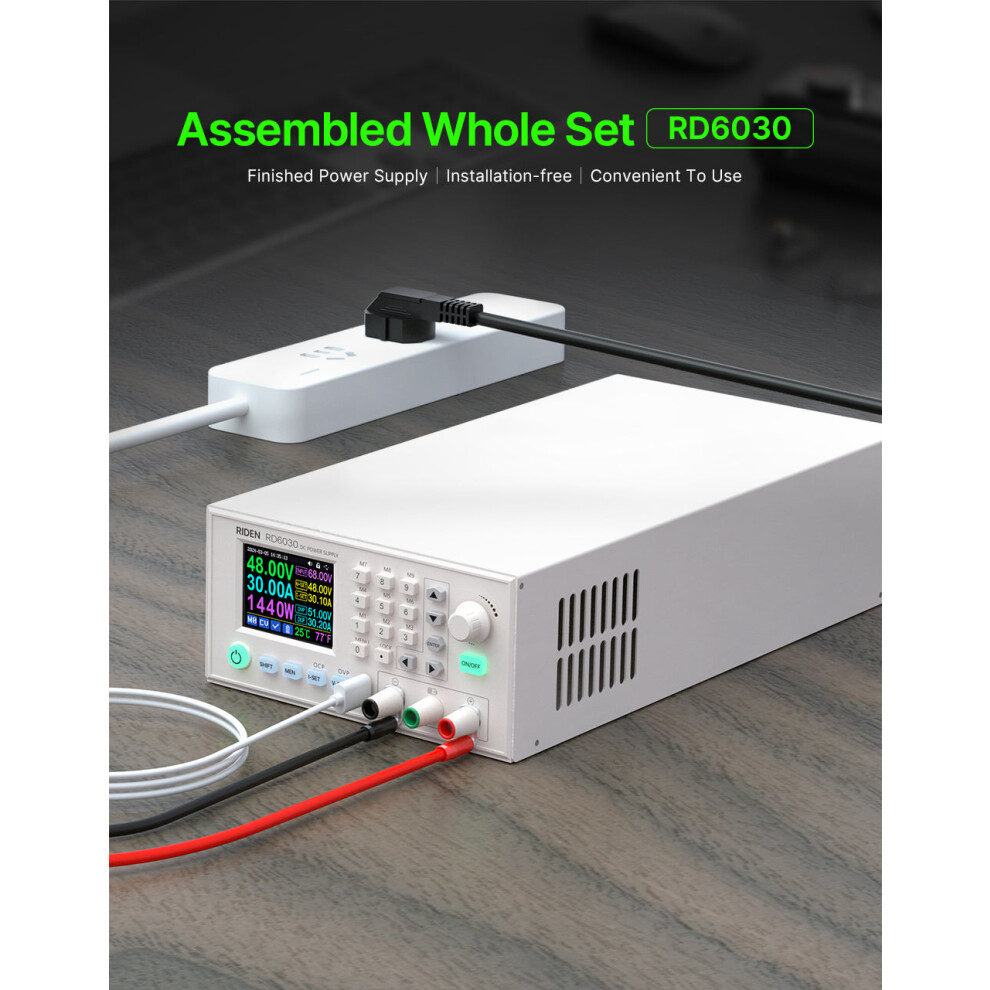

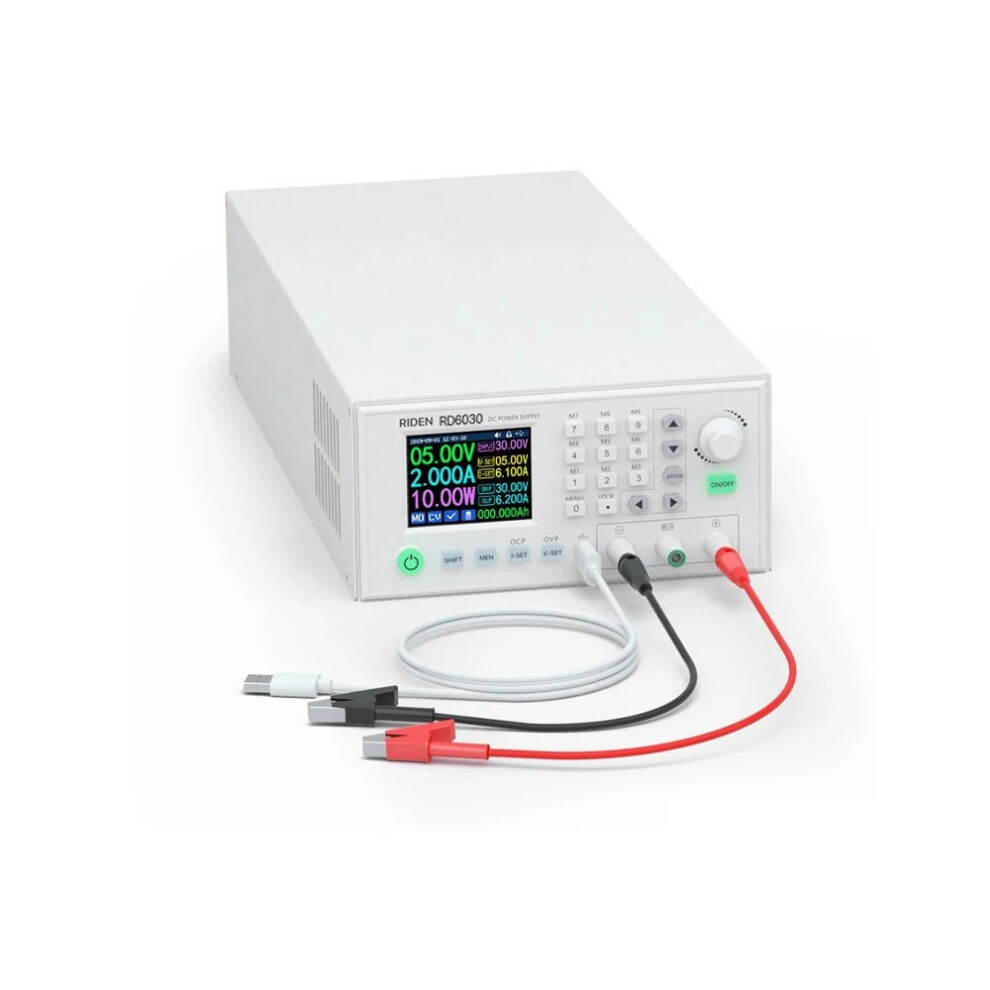

1 x RD6030 Assembled Set (No wifi board includes)
