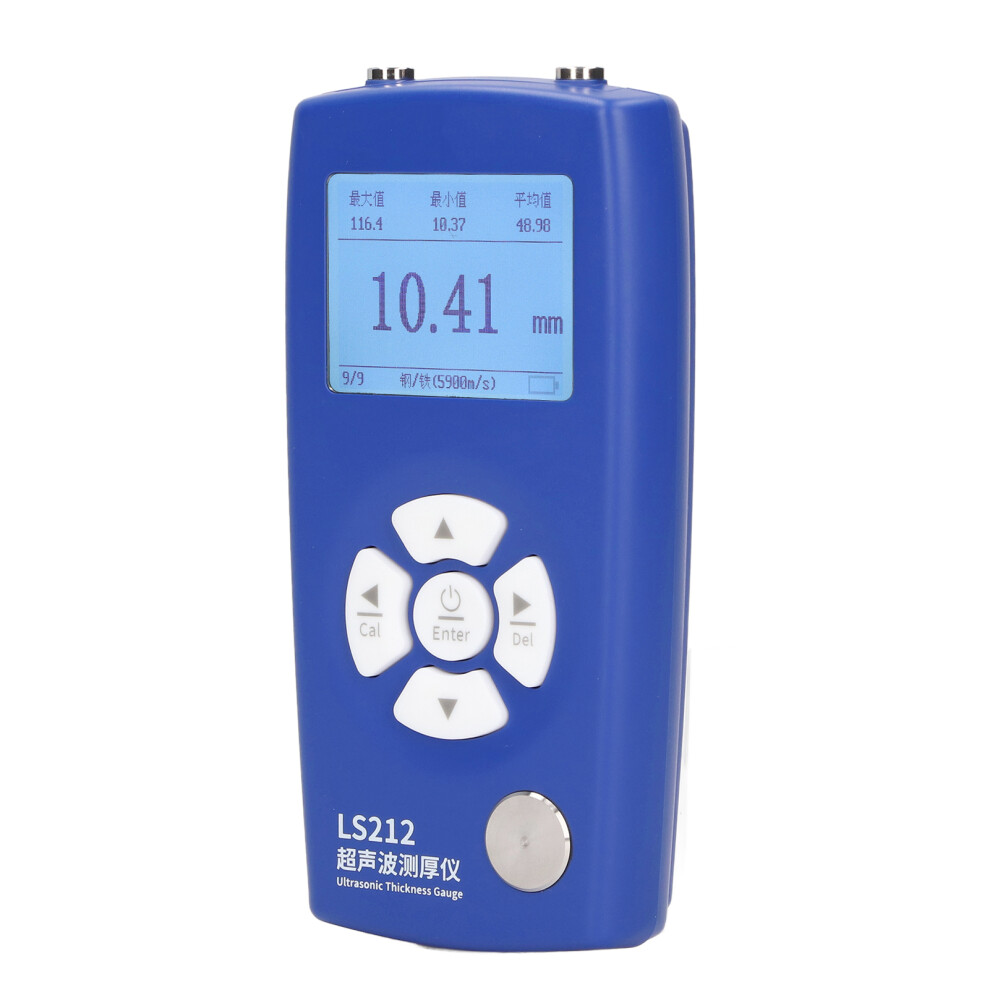

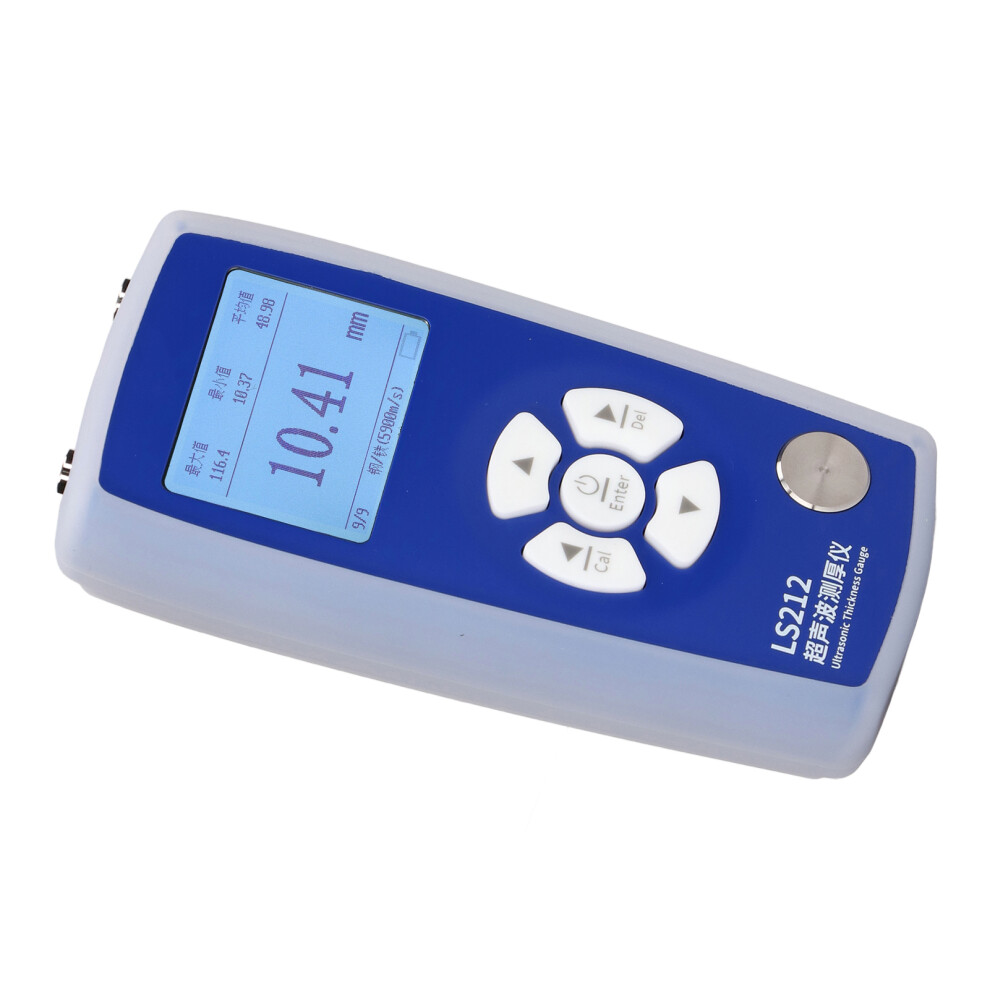

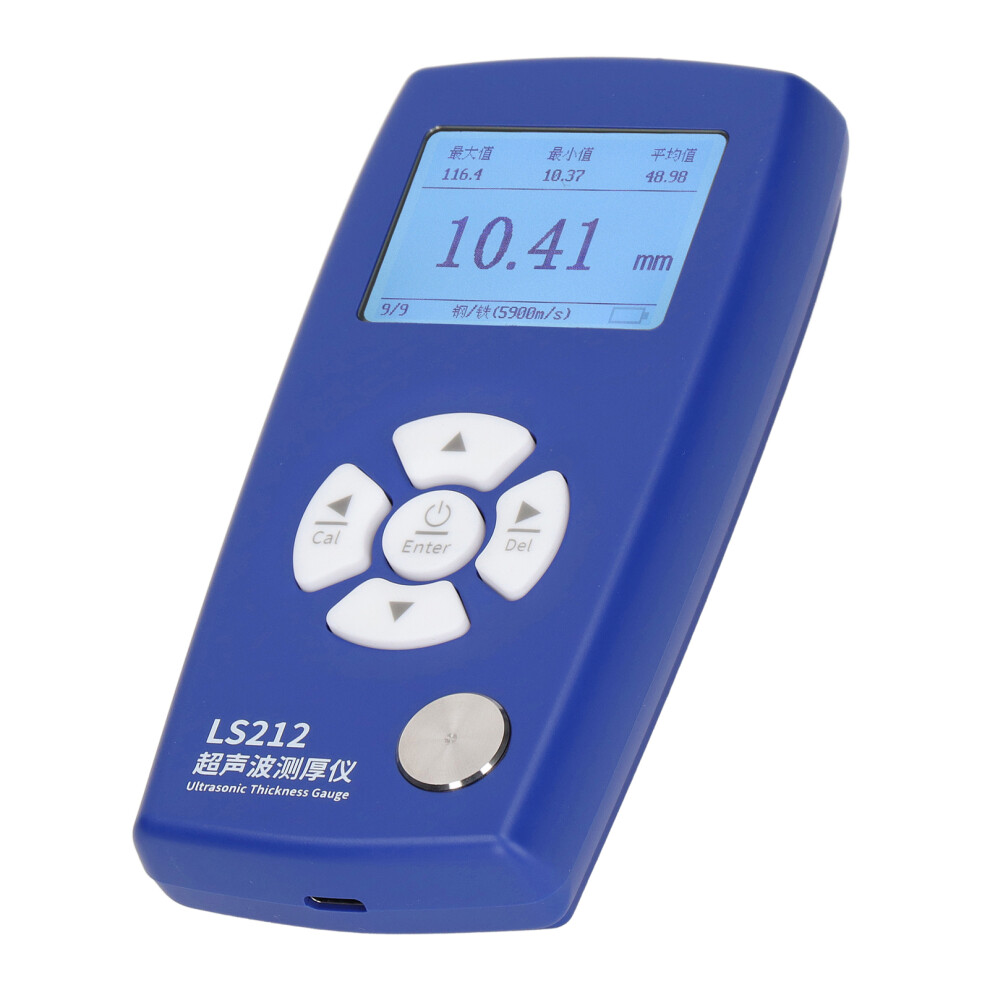

Ultrasonic Thickness Gauge Digital 0.001 Resolution 0.8-350mm

Ultrasonic Thickness Gauge Digital 0.001 Resolution 0.8-350mm Description

1、Smart Measuring: Measure the thickness of the material by calculating the propagation time of the ultrasonic pulse in the material under test, and the easy to adjust signal ensures the best effects. 2、Sensitive Probe: Equipped with stainless steel casing, the twin probe with high sensitivity can effectively reduce the clutter, which largely improves the accuracy and reliability in testing results. 3、2 Testing Modes: With 2 measurement modes of QC detection and statistics mode, the thickness gauge can automatically determine whether the thickness of the material to be tested is qualified or not. 4、Auto Data Store: The thickness meter can also auto store 9 sets of test data, meanwhile the digital display allows for a clear viewing on the maximum value, minimum value as well as average value. 5、Extensive Using: Can be widely applied to the thickness measurement of various structures and components, including ship hulls, pipes, pressure vessels, structural steels and so on, very practical.
Item Type: Thickness Gauge
Material: ABS, stainless steel, aluminium.
Measuring Range: Approx. 0.8 ~ 350mm / 0.03 ~ 13.78in, for C45 steel.
Measured Value: Approx.
0.8-10mm: 0.001mm
10-100mm: 0.01mm
100-350mm: 0.1mm
Accuracy:
0.8-10mm: 0.05mm
10-350mm: 0.5% of reading
Sound Speed Range: 1000~9999m/s
Probe: 5MHz, φ10 twin probe.
Display: 240 x 160 lattice LCD.
Unit: mm or in.
Power Supply: 2 x 1.5V AAA alkaline battery, delivery without battery.
Main Machine Size: Approx. 142 x 72 x 28mm / 5.59 x 2.83 x 1.1in
Weight: Approx. 230 g / 8.11 oz
Operating Temperature Range: -10~60, 0~85%RH (non condensing)
Storage Temperature Range: -10~60, 0~85%RH (non condensing)

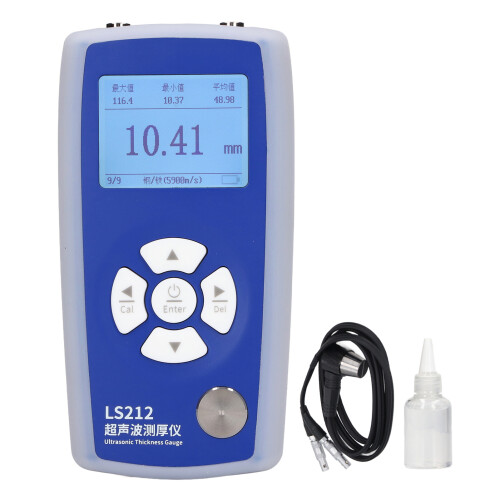

1 x Thickness Gauge
1 x Coupling Agent
1 x Test Probe
1 x User Manual
