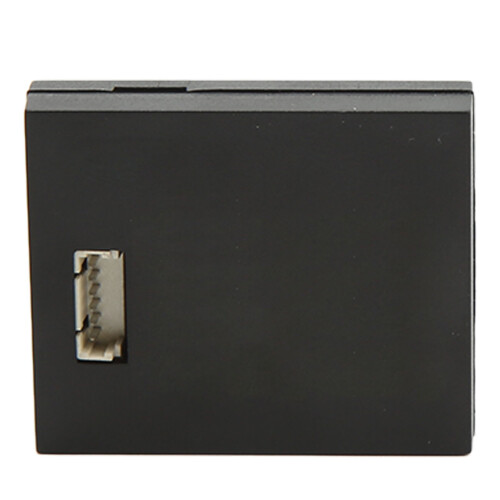

Universal Car Emulator SQU JULIE V96 IMMO ECU Tacho Support

Universal Car Emulator SQU JULIE V96 IMMO ECU Tacho Support Description

for SQU JULIE V96 Car Emulator Universal Supports IMMO Seat Occupancy Sensor Tacho Programs ECU Emulation Tool
Item Type: Car Emulator
Material: ABS
New V96 Universal IMMO Emulator for K-Line, Canbus
1. Replacement for Chrysler, Replacement for Citroen, Replacement for Daewoo, Replacement for Fiat, Replacement for KIA, Replacement for Mazda, Replacement for Cooper, Replacement for Opel, Replacement for Peugeot, Replacement for Seat, Replacement for Suzuki
2.If use this Emulator for Can-Bus cars, you need solder an 120Ohm resistance on the PCB.
for SQU OF96 Universal Car Emulator:
for SQU OF96 OF80 universal car emulator supports IMMO, Seat occupancy sensor, for Tacho Programs
Universal Car Emulator Features:
1. The LED behavior
no jumpers diagnostic mode it flashes every second
adjusting to the ecu flashing 0, 1 sec
after adjusting it lights constantly and blinks every other second
2. Tachometer tester programs
You can use it to tum on the instrument cluster on the table in order to diagnose faults. After connecting the emulator to instrument cluster, most of instrument cluster segments are displayed, making it easier to locate damaged areas.
3. This emulator is reusable, Tested on tacho
Immo Programs For OF96
1. For Automatic Immo OFF
Programs No. 1 and 2 enable the emulator to automatically remove immo from a car by identifying ECU type and selecting a relevant program.
Attention: Selection of programs no.1 and 2 eliminates the possibility e the remainder of the programs from 6 to 15.
2. For Automatic Immo ON
Programs No. 1 and 2 enable the emulator to automatically remove immo from a car by identifying ECU type and selecting a relevant program.
Attention! Selection of programs no.1 and 2 eliminates the possibility e the remainder of the programs from 6
3. without CAN
Replacement for Seat
W1 and W2 systems up to around 2001. EDC15 and 5 socket LT28 LT35 ECUs, when the chassis numbers are not entered - even up to 2006. Diesel and petrol Replacement for Ford cars with systems (the symbol is visible on the ECU).
4. For Hitachi
Replacement for Seat. It is suitable for group cars with for Hitachi ECU to about 1997.
5. For Valve Code
Replacement for Seat. To unlock the valve code on injection pump in vehicles 1.9 Diesel.
6. For EDC15 immo OFF (single use) Replacement for Seat Use: Engine capacity: 1.2, 1.4, 1.9, 2.5 with W2 and W3 systems, diesel engines from 2000 to 2004, some to 2006, and even 2008 (except for coded pump)
Suitable for vehicles with 2 socket ECUs.
7. For EDC15 immo ON (single use) replacement for Seat Use: Engine capacity: 1.2, 1.4, 1.9, 2.5 with W2 and W3 systems, diesel engines from 2000 to 2004, some to 2006, and even 2008 (except with coded pump)
Suitable for vehicles with 2 socket ECUs.
8. For EDC16 for K-LINE immo OFF (single use) replacement for Seat Use:
Suitable for vehicles with 2 socket ECUs
0 281 011 XXX
0 281 012 XXX
0 281 013 XXX
0 281 014 XXX
0 281 015 XXX
Engine capacity: 1.9 TDI 2.0 TDI 2.5 TDI
9. For EDC16 for K-LINE immo ON (single use) replacement for Seat Use:
Suitable for vehicles with 2-socket ECUs
0 281 011 XXX
0 281 012 XXX
0 281 013 XXX
0 281 014 XXX
0 281 015 XXX
Engine capacity: 1.9 TDI 2.0 TDI 2.5 TDI
10. For EDC16 with CAN 1.9 2.0 TDI immo OFF (single use) replacement for Seat Use: Suitable for vehicles with 2 socket ECUs 0 281 012 XXX
11. For EDC16 with CAN 1.9 2.0 TDI immo ON (single use) replacement for Seat Use: Suitable for vehicles with 2 socket ECUs 0 281 012 XXX
12. For EDC16 with CAN 2.7 3.0 TDI immo OFF (single use) replacement for Seat Use: Suitable for vehicles with 2 socket ECUs
0 281 012 XXX
0 281 013 XXX
0 281 014 XXX
13. For EDC16 with CAN 2.7 3.0 TDI immo ON (single use) replacement for Seat Use: Suitable for vehicles with 2 socket ECUs
0 281 012 XXX
0 281 013 XXX
0 281 014 XXX
14. For ME7 immo OFF (single use) replacement for Seat Use: Suitable for vehicles with ME7 for Bosch ECUs
Engine capacity: 1.4 1.8 2.0 2.4 2.6 2.8 3.0 3.5 4.2
Production year: from 1999 to 2008
15. For ME7 immo ON (single use) replacement for Seat Use: Suitable for vehicles with ME7 for Bosch ECUs
Engine capacity: 1.4 1.8 2.0 2.4 2.6 2.8 3.0 3.5 4.2
Production year: from 1999 to 2008
16. Replacement for Chrysler Use:
Replacement for Chrysler Voyager 2.5TD 1999-2001
Replacement for Dodge Caravan 2.5TD 1999-2001
Replacement for Jeep Cherokee 2.5TD 1999-2001
17. Replacement for Citroen, Replacement for Peugeot with CAN Use:
EDC16 1.4 1.6 HDI with CAN
EDC15 HDI with CAN
18. Replacement for Daewoo 1 Use:
ECU with 2 white, red sockets
ECU with a blue socket
19. Replacement for Daewoo 2 Use:
Replacement for Matiz for SIEMENS, for KEMSCO ECU
Replacement for Tacuma for KEMSCO ECU
Replacement for Lanos 1.4 for OHC hybrid ECU
Replacement for Kalos for SIRIUS D42 1.2 ECU
Replacement for Aveo 4R ECU 1.2 8V
20. Replacement for Fiat
