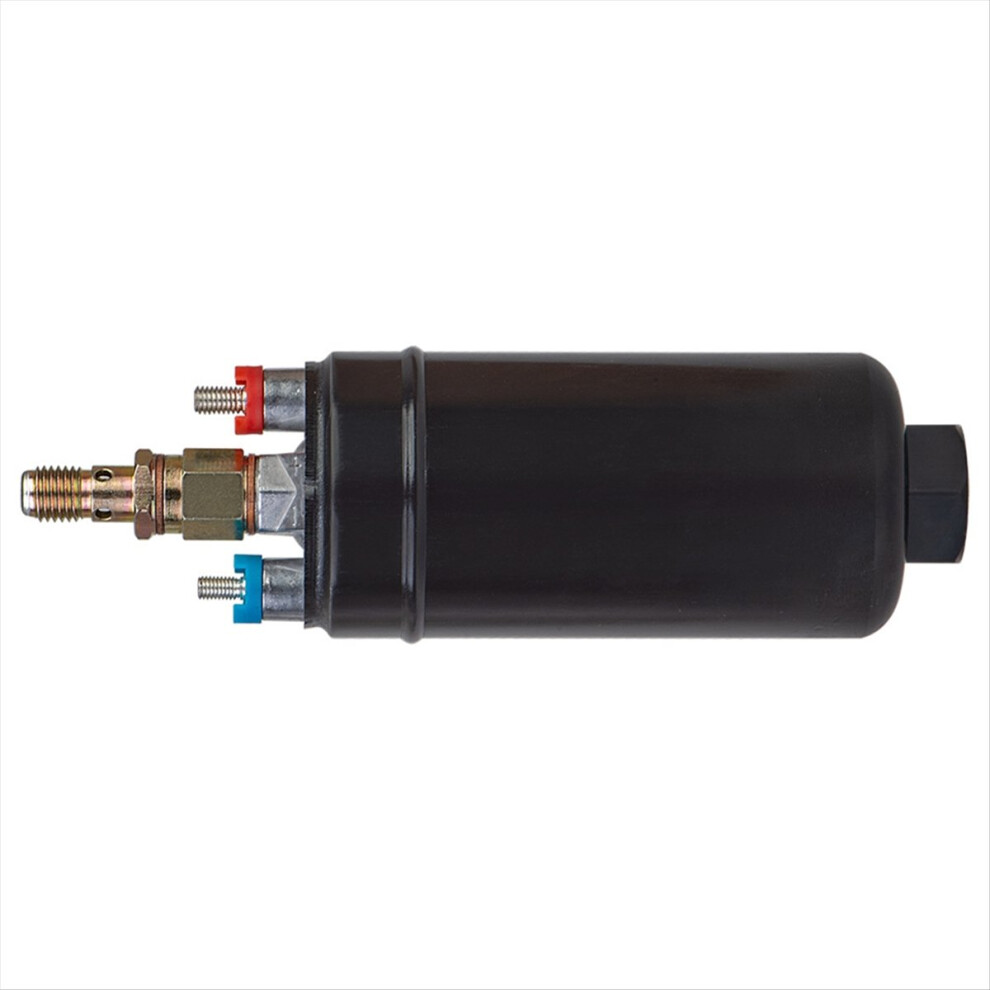

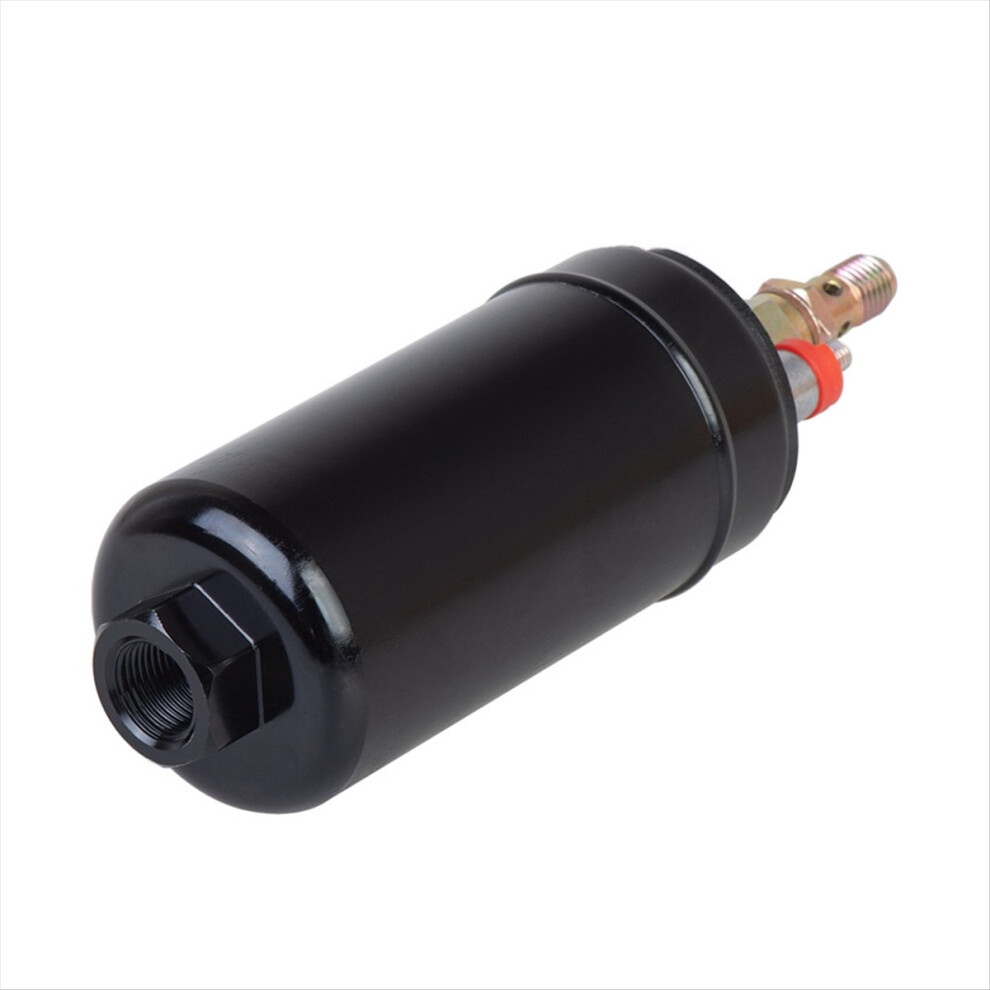

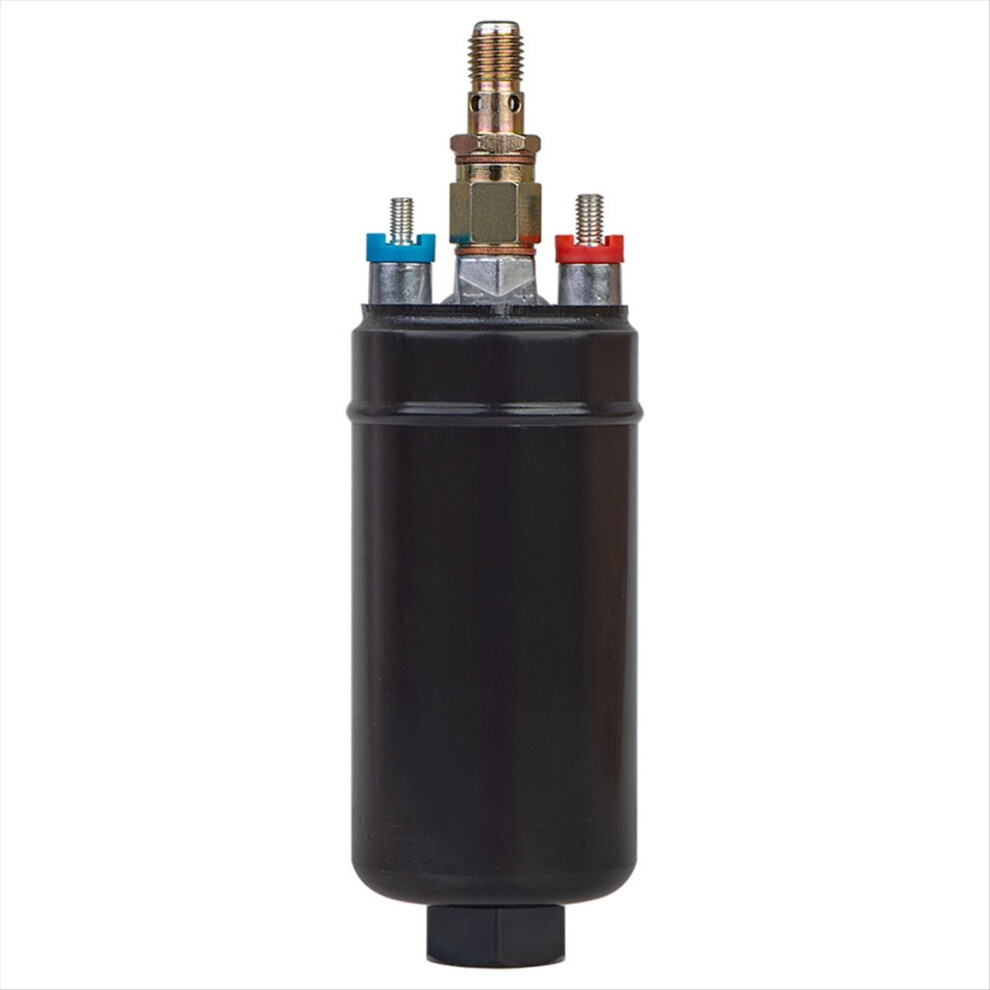

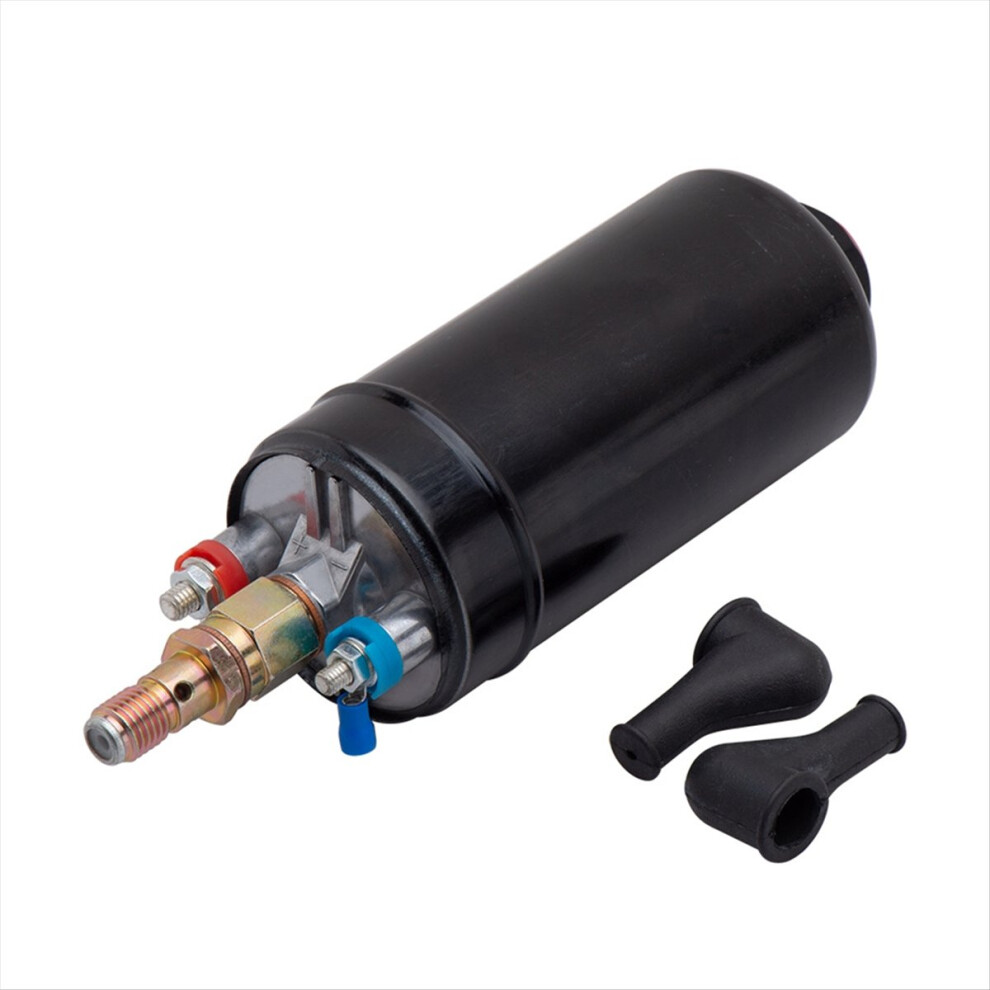

Universal EFI 300LPH Inline External Pump 05802540

Universal EFI 300LPH Inline External Pump 05802540 Description

Application:For Universal Car
Other Part Number:0580254044

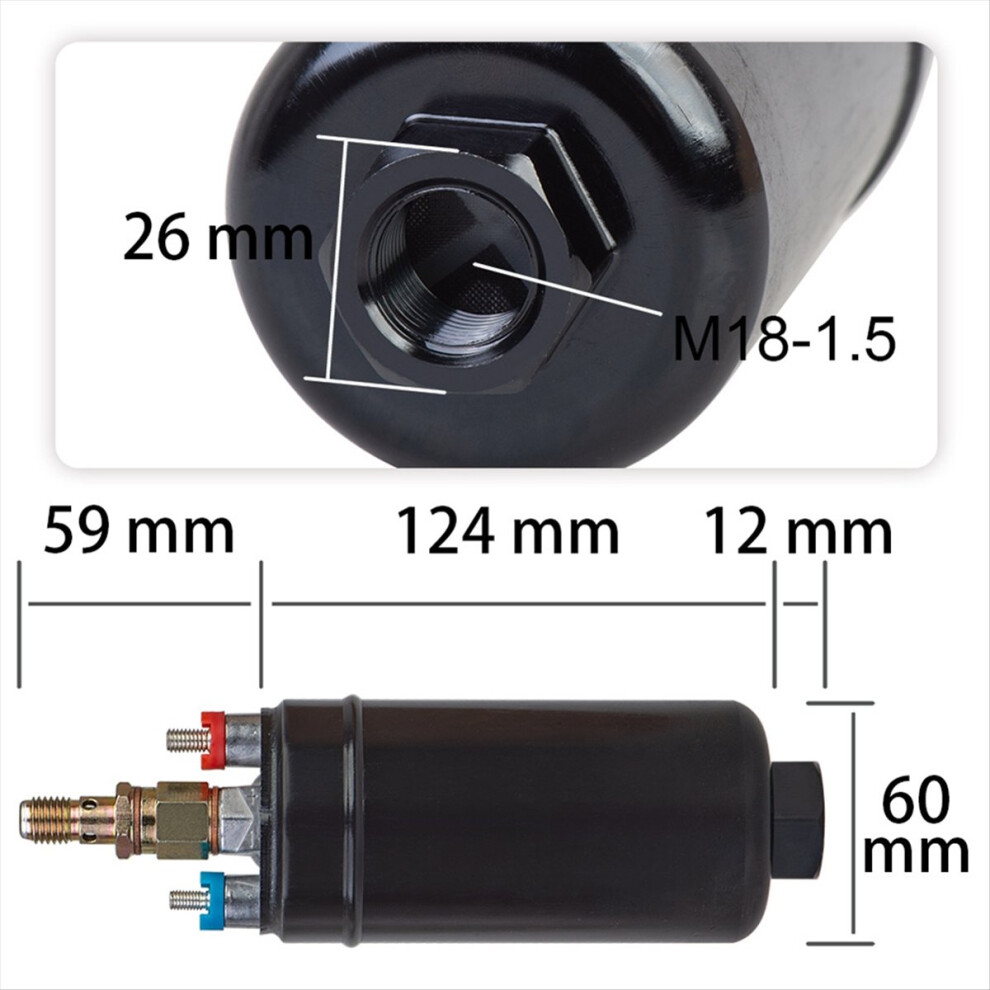

Inlet: M18x1.5 Metric Thread
Outlet: M12x1.5 Metric Thread

Operating Voltage:12V
Min Voltage:8V
Max Voltage:18V
Operating Pressure:75PSI(5.0Bar)
Activation ( 0-130PSI)
Fow Rate: 200 LPH(53 GPH) under 75PSI(5.0 Bar) & 12V
Flow rate: 300 LPH(80 GPH) under 43 PSI(3.0 bar) &12V
Flow rate: 300LPH(80 GPH) under 75PSI(5.0Bab) & 13.5V
Current:15A under 75PSI/12V
High Temperature Reduction: 30 LPH(8 GPH)
Operating temperature range: ( -68 F-194 F)
Storage temperature range: ( -104 F-158 F)
Recommended Horsepower Capabilities: up to 750HP for Naturally Aspirated engines & 650HP for Turbo/Supercharged engines
Can be installed along with a high performance pump or alone

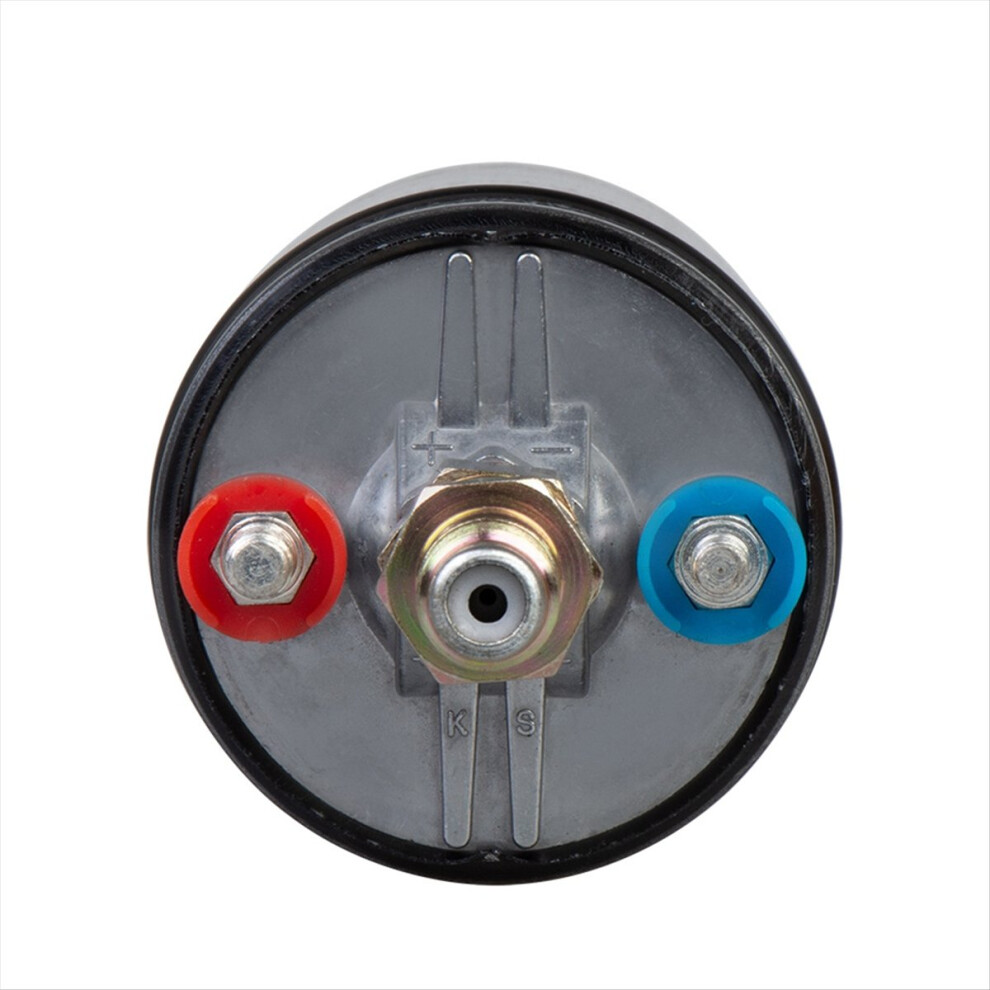

Positive terminal is M6, ground terminal is M5
Colour:Black
Material:Aluminum Alloy

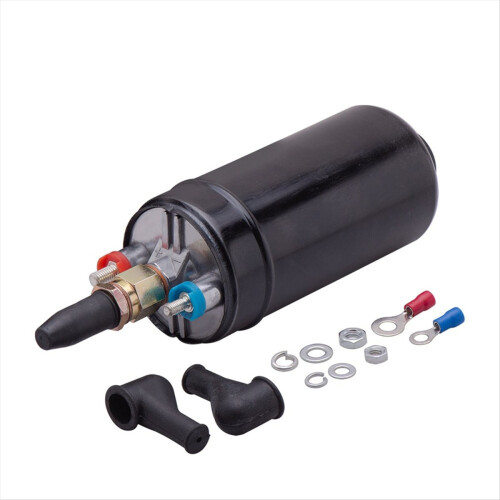

Package Contents:
1 set x External Pump

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
