Universal Fuel Injection Gauge Pressure Tester

Universal Fuel Injection Gauge Pressure Tester Description

Use:

for mechanical and electronic gasoline injection systems
Universal set with precision manometer 0-10 bar (0-140 psi) (tolerance +-2%), ink. 5 hoses, each on both sides with coupling
suitable by 30 adapters for almost all major European, Asian and American vehicle types, among others:For Mercedes, For BMW, For Audi, For Honda, For Mazda, For Renault,For Fiat,For Ford,For Volkswagen, For Peugeot and much more
for the following injection systems: K-Jettronic, L/LH-Jetronic, Motronic, Motronic-Jetronic,MPFI, TBI, EFI, DIGIFANT 1/2, CIS-Digital, Spi, Singlepoint, Multipoint
Simple check of tightness as well as system and control pressure by adjustable 3-way valve

Technical:

Material: Rubber + Metal Iron

Colour: red (as shown)

Scale: 0-140 PSI

Included in the scope of delivery:

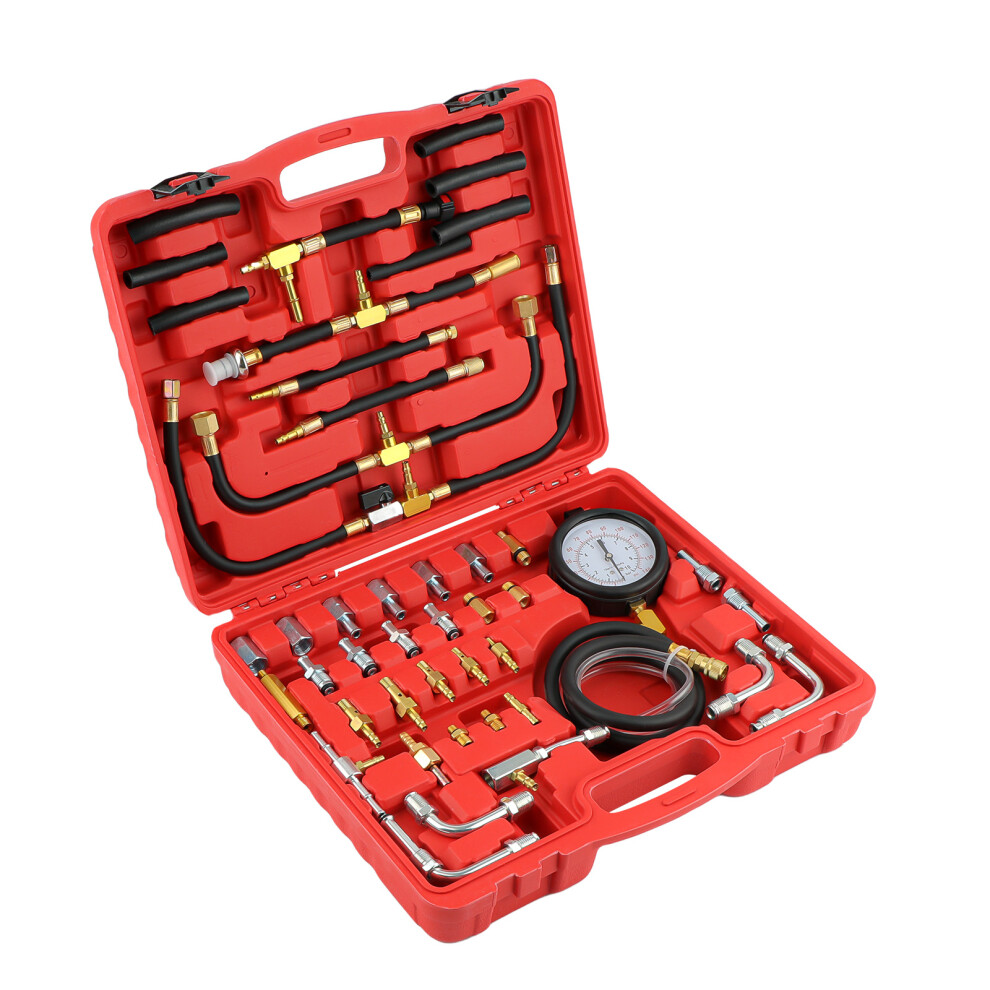

The package (1 X plastic case) contains:

-Precision manometer 90 mm with pressure drain valve and 150 cm connection hose

scale of 0-10 bar and 0-140 PSI

-Adapter hose with valve for CIS

-Adapter hose for GMC TBI

-Adapter for Ford EFI

-Adapter hose with M12 x 1.5 mm internal thread and quick coupling

-Adapter hose for standard Schrader valve 7/16" x 20 UNF internal thread

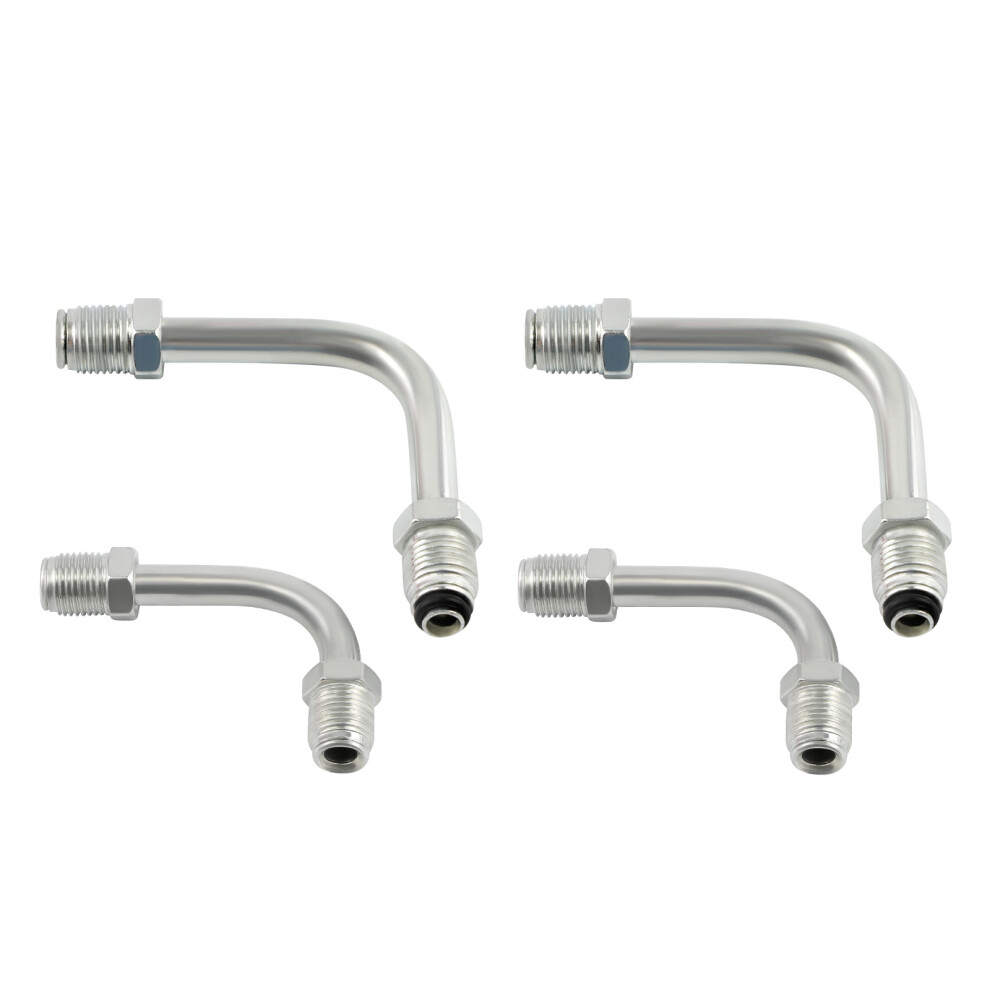

-Angled pipe 90° 10mm with 5/8"-18 external thread (2 pieces)

-Angled pipe 90° 10mm with 5/8"-18 and M16 x 1.5 mm external thread (2 pieces)

-Adapter piece with M16 x 1.5 mm and 5/8"-18 female thread (2 pieces)

-Adapter piece with M14 x 1.5 mm internal thread and 3/8" hose connection (2 pieces)

-Adapter piece with M16 x 1.5 mm internal thread and 3/8" hose connection (2 pieces)

-Adapter piece with M14 x 1.5 mm external thread and 3/8" hose connection (2 pieces)

-Adapter piece with M16 x 1.5 mm external thread and 3/8" hose connection (2 pieces)

-Intermediate piece with quick coupling 1/4" x 5-16"

-Intermediate piece with quick coupling 3/8"

-Quick coupling 90° angled

-Adapter tube straight 10 mm with 5/8"-18 and overlay nut (2 pieces)

1 * Suitcase

Benefits:

- Condition: brand new

- Withdrawal Guaranteed

- Manufacturer's warranty:24 months warranty

- ready to ship

Notes:

- It is an aftermarket tool, it serves as a replacement of the original tool.

- Instructions are not encased. We recommend a professional installation.

- If you have any questions, please feel free to contact us at any time.
