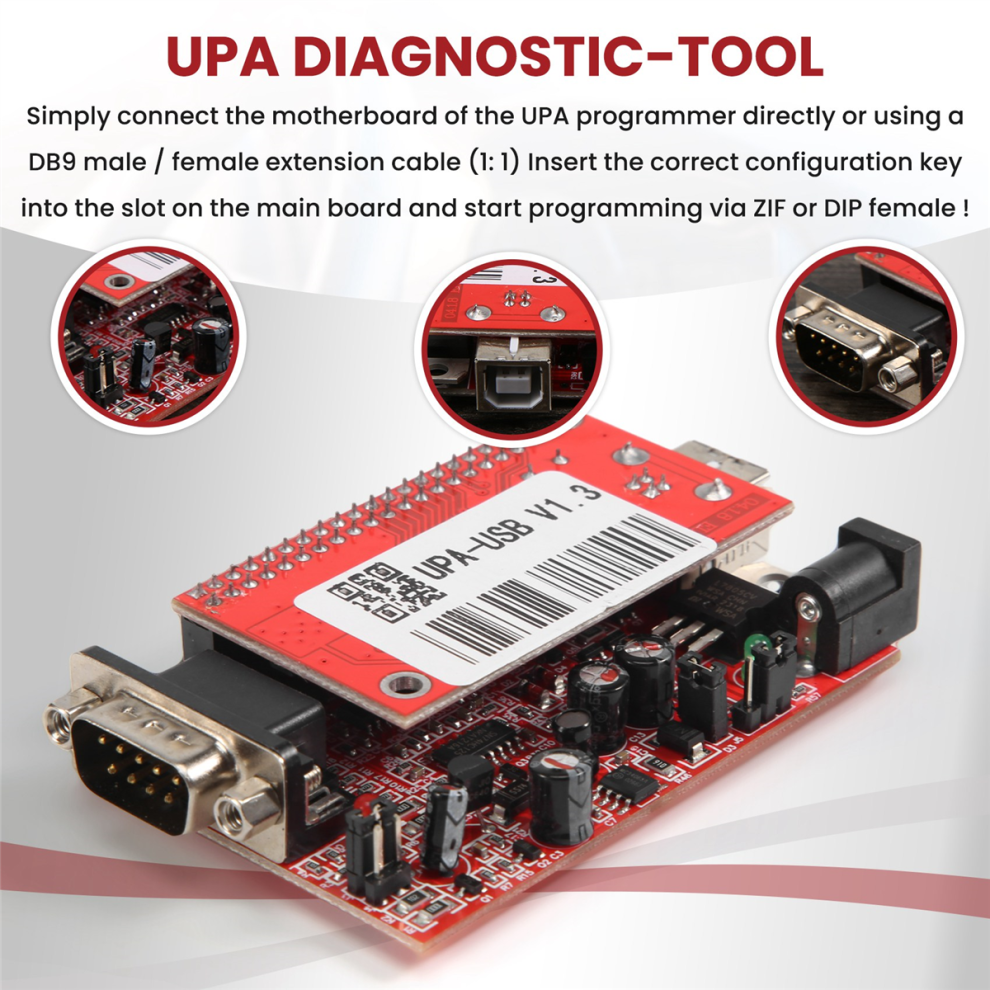

Simply connect the motherboard of the UPA programmer directly or using a DB9 male / female extension cable (1: 1) Insert the correct configuration key into the slot on the main board and start programming via ZIF or DIP female ! You can also use the included DIL to 10 flat ribbon pins, place it inside the ZIF plug and connect a clip or clamps for the use of ISP from there.
MCU. Choose the adapter you want to use, connect the flat cable for the adapter (PIN1 is always indicated on both the cable and the adapter) and also on the 10-pin ISP connector on the main board.

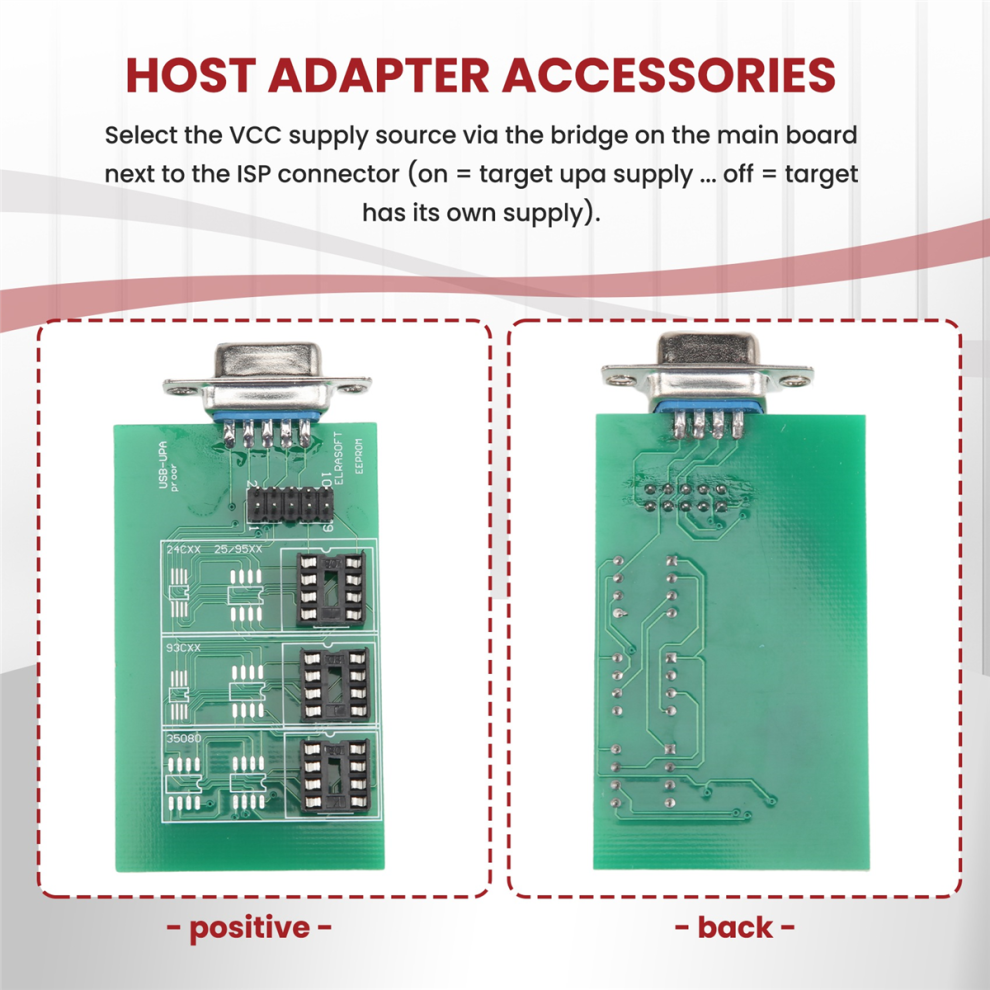

Select the VCC supply source via on the main board next to the ISP connector (on = target upa supply ... off = target has its own supply). Slide the adapter over the soldered PLCC MCU on the target PCB. (No welding, no pinout revision, no pin counting, saves a lot of time and problems and allows your work to be faster, more accurate and easier). Once your workshop is equipped with our set of adapters, you have a new UPA experience.
STMicroelectronics :ST62-40/45/49; NSC：CR16-HCS5(9)/MCS5(9)/MES5(9)/MFS5(9)/MCT5(9)/HCT5(9)
for : PIC12F-508/509/629/675,PIC16F-627(A)/628(A)/648A/72/73/74/76/77/818/819/83/84(A)/870/871/872/873(A)/874(A)/876(A)/877(A)

for :
MC68HC05-B6/B8/B16/B16/B32/E6/E6/H12/L28/P3/P3*/X16/X32
MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A, MC68HC11/A1/A8/E9/EA9, MC68HC11-E20/F1/K4/KA2/KA4/KG4/KS2/KS8/L6/P2/PA8/PH8
MC68HC912-B32/BE32/D60/D60A/DC128A/DG128/DG128A, MC9S12-D64/A128/DG128/DG256/H128/H256
8051 Architecture: AT89S-51/52/53/8252/8253
AVR 8-Bit Risk: AT90S-1200/2313/232/2333/2343/4433/4434/8515/8535, ATmega-8/16/161/162/163/323/64/103/128, ATtiny-12/15/2313
EEPROMs: 24C-01/02/04/08/16/32/64/65/128/256/512, 85C-72/82/92, BAW574252, -003/004/005, KKZ-06F, MCM2814, PCA8581, PCF85-81/82/94/98/102/116, SDA25-16/26/46, X24C-00/01,7002, 93C-06/14/46/56/57/66/76/86, 93S-46/56/66, GRN-001, -002, KKZ-01, S220, S2914, ST61907, XLS93C46
EEPROMs:
M35080, 25C-010/020/040/080/128/160/256/320/640, M25P-05/10/20/40/80, ST950-10/20/40/80, ST95-160/320/640, ST95P-02/04/08, X50-43/45
CXK-1011/1012/1013, M6M800-11/21/41, SDE2506, TC89-101/102
*EEPROM Only
..uDP780-828A/948/949/973/974
TMS...TMS370CX-02/32/36/42/56,78K0/HC912
TMS370CX58 78K0/HC912 TMS375C006
colour: red + green + blue
Material: plastic +metal

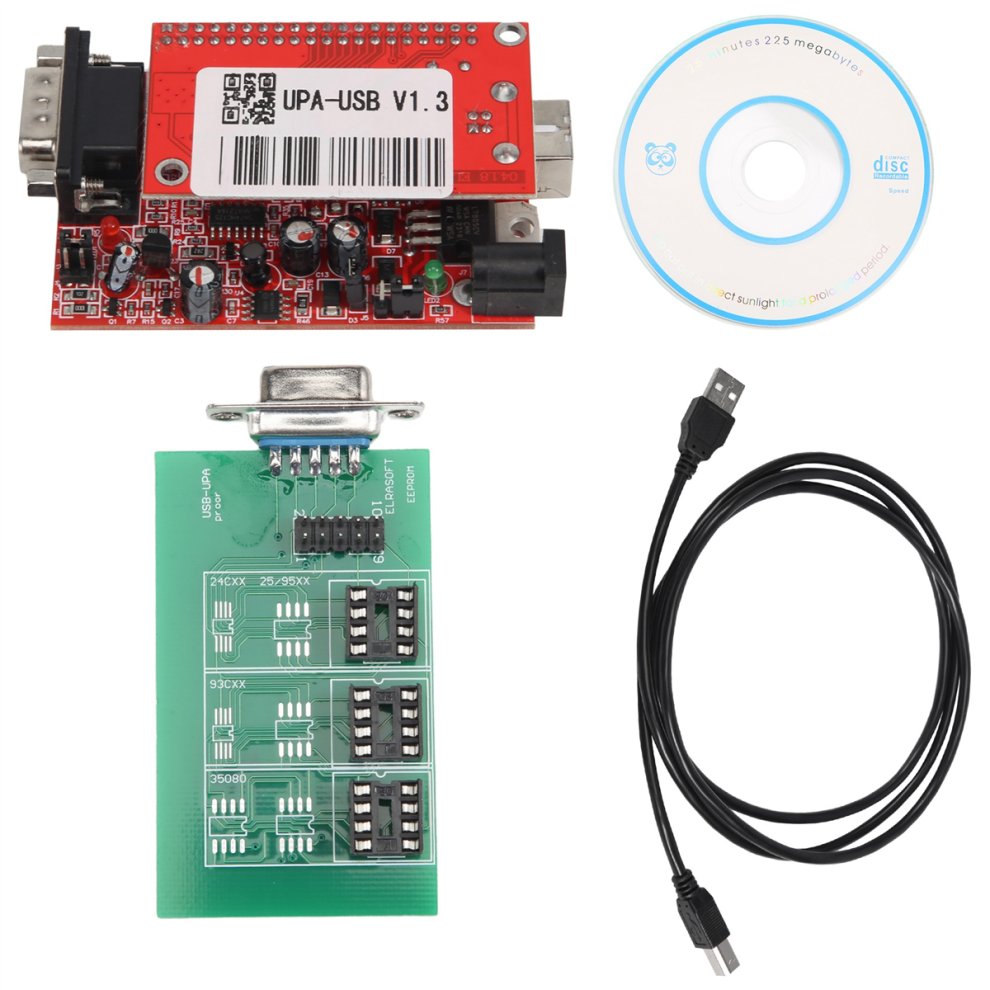

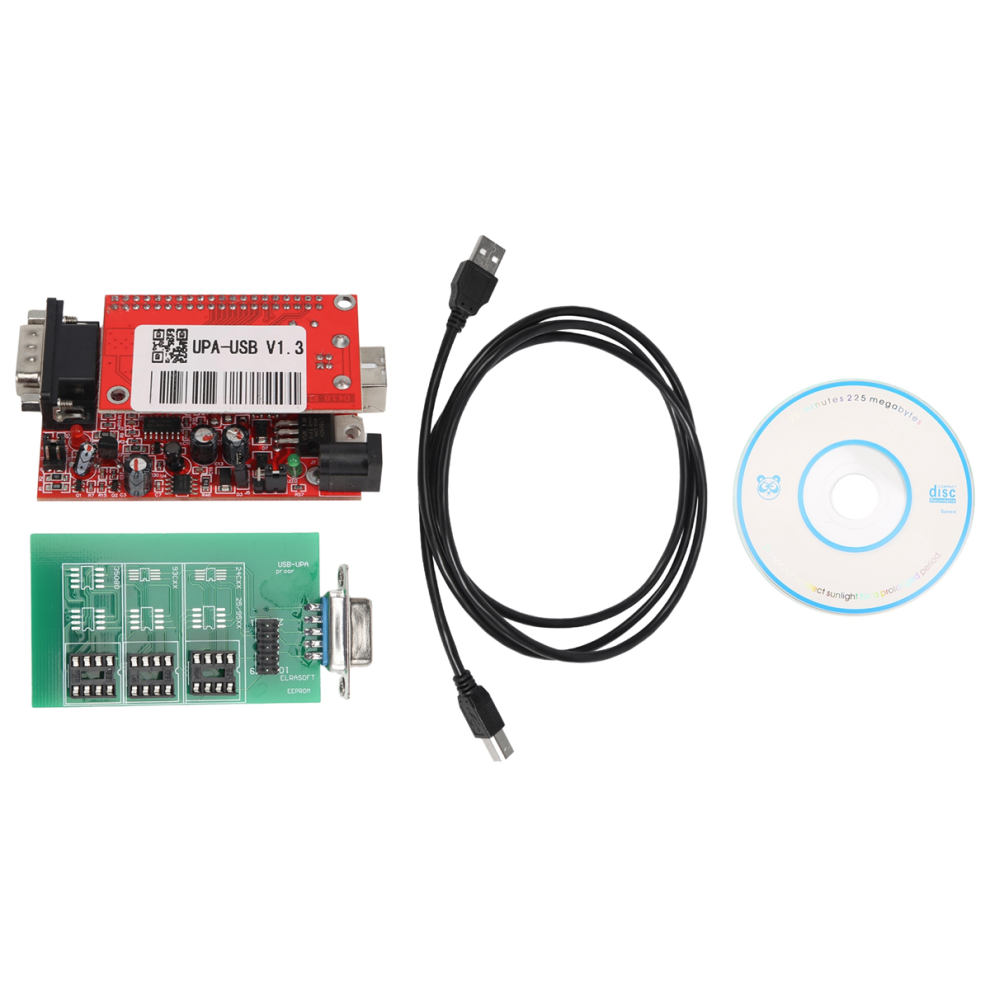

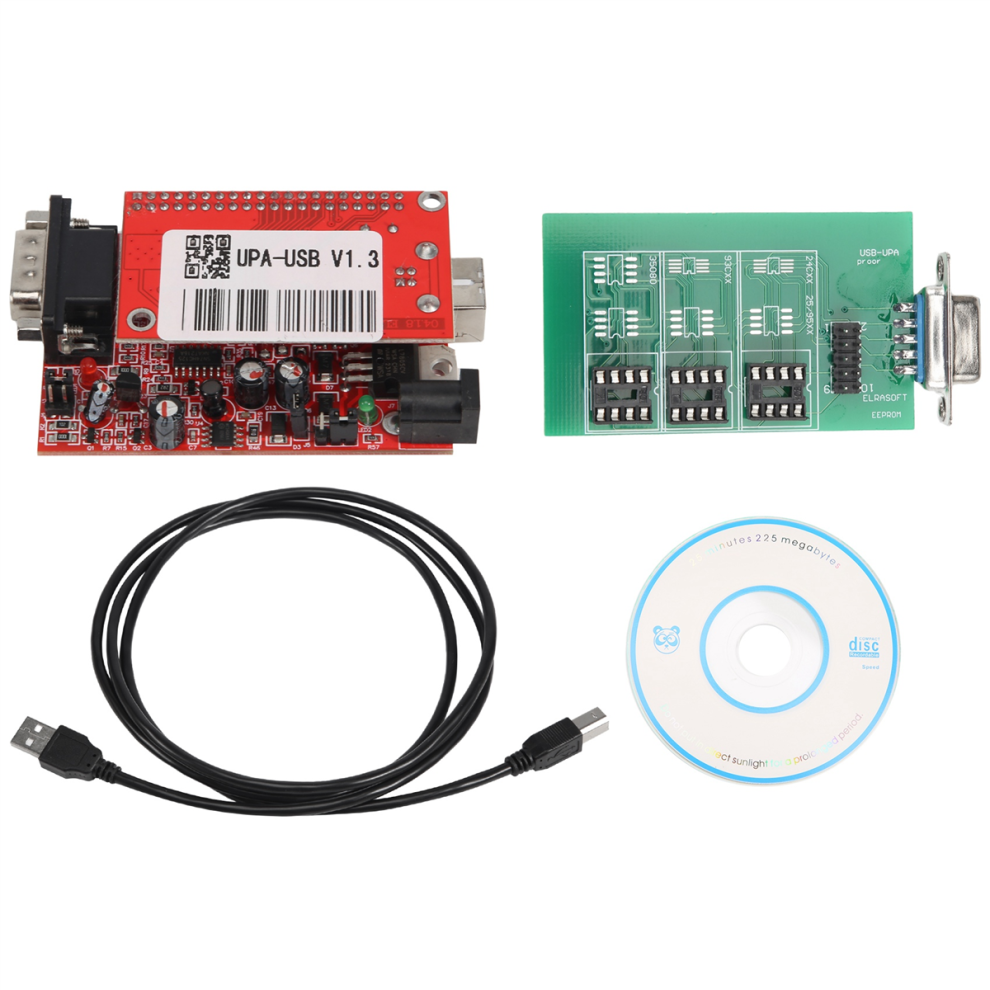

Package Contents:

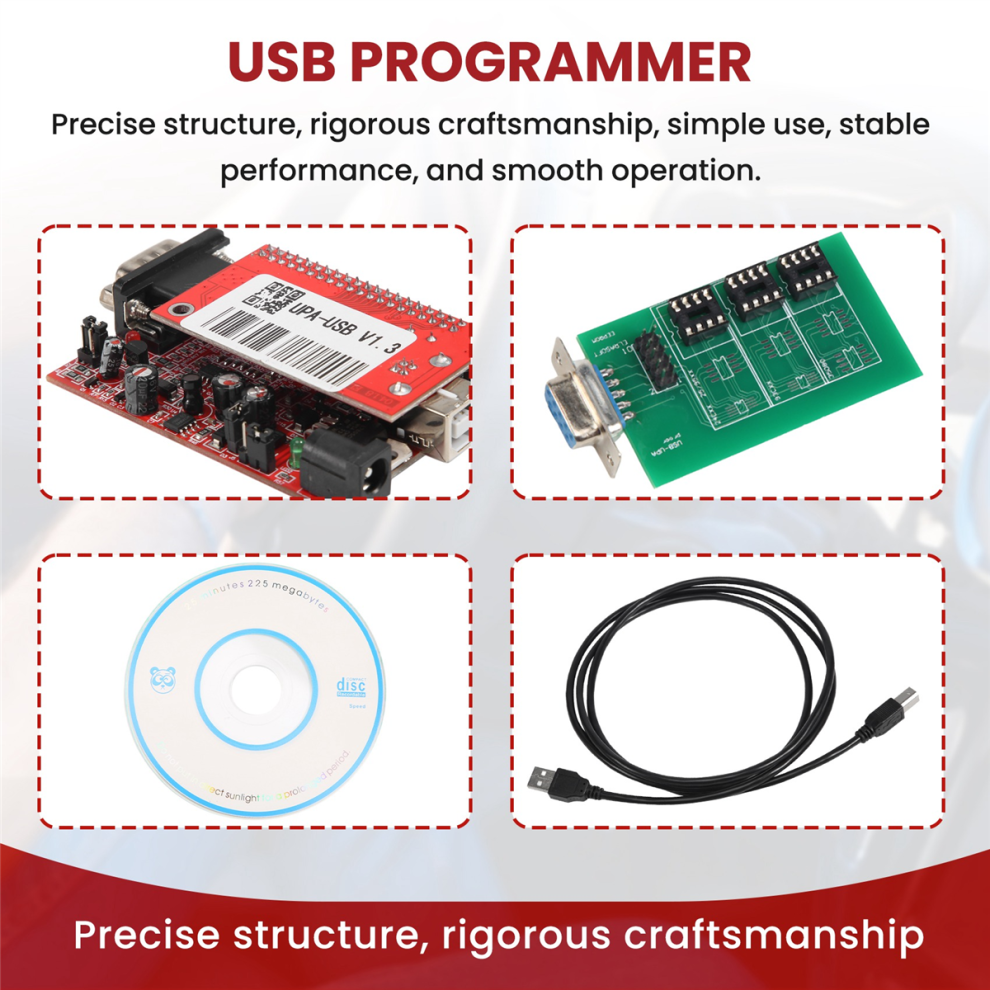

1x UPA programmer
1x USB cable
1 x Mainboard with 40pin DIL ZIF (600mil) socket and 14pin SOIC ZIF (150mil) socket

Only the above package content, other products are not included.
