Upgraded Version Plus Vector Network Antenna Analyzer 50KHz-2.7GHz MF HF VHF UHF with 32G SD Card

Upgraded Version Plus Vector Network Antenna Analyzer 50KHz-2.7GHz MF HF VHF UHF with 32G SD Card Description

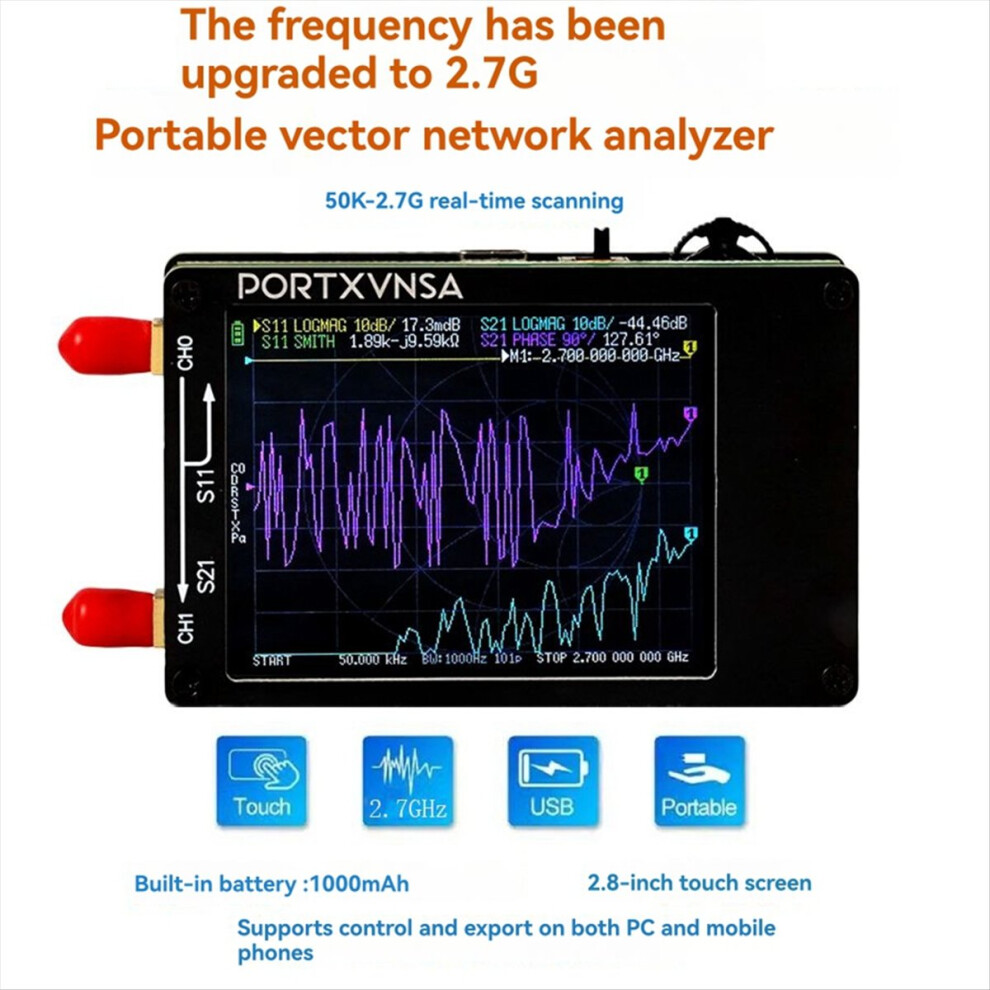

Plus is a portable handheld vector network analyzer (VNA) designed to measure reflection and transmission coefficients.
Originally designed by edv555. After several upgrades, Plus is the highest performance version at present, with the measurement frequency range upgraded to 50KHz-2.7GHz, and the performance is the previous 1.5GHZ old version

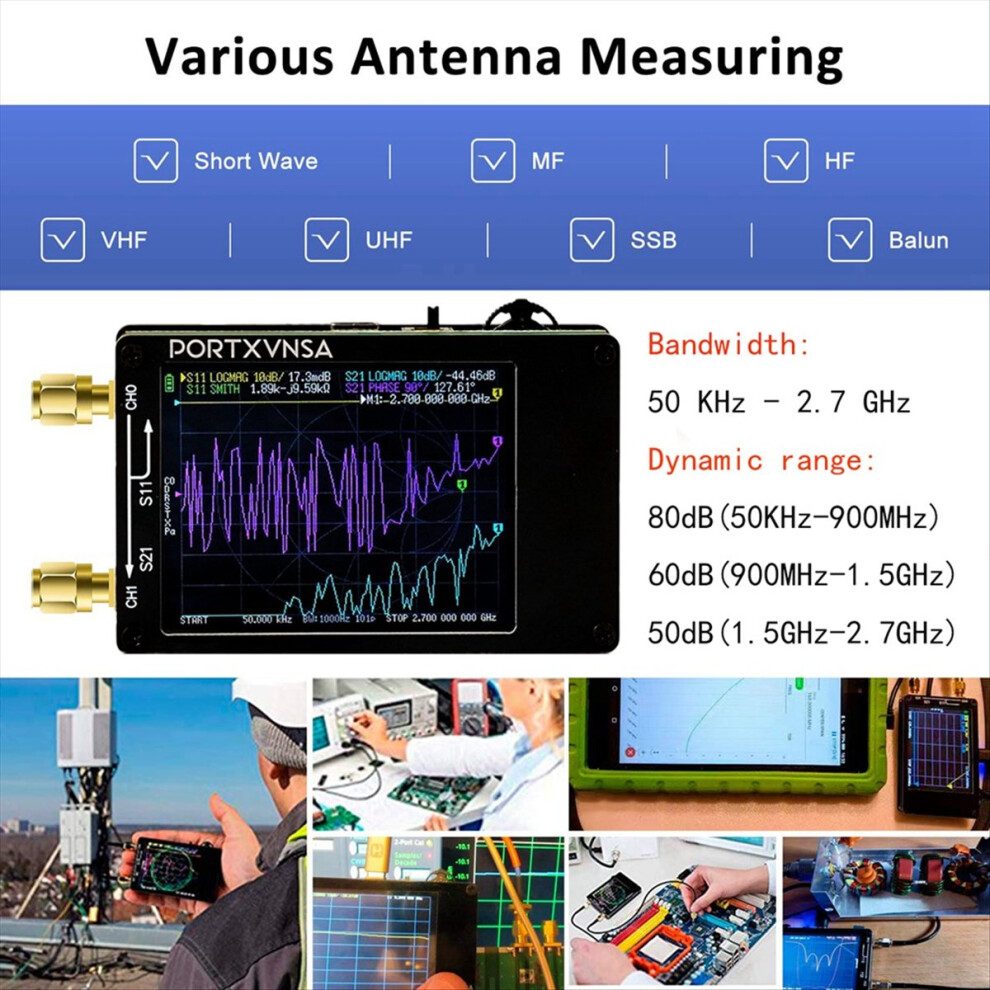

Bandwidth: 50KHz-2.7GHz
Dynamic range: 80dB (50KHz-900MHz) 60dB (900MHz-1.5GHz) 50dB (1.5GHz-2.7GHz)
Reflection coefficient: SWR: Less than 1.1
Frequency accuracy: Less than 0.5 ppm
Frequency stability: Less than 2.5 ppm
Scan points: 101

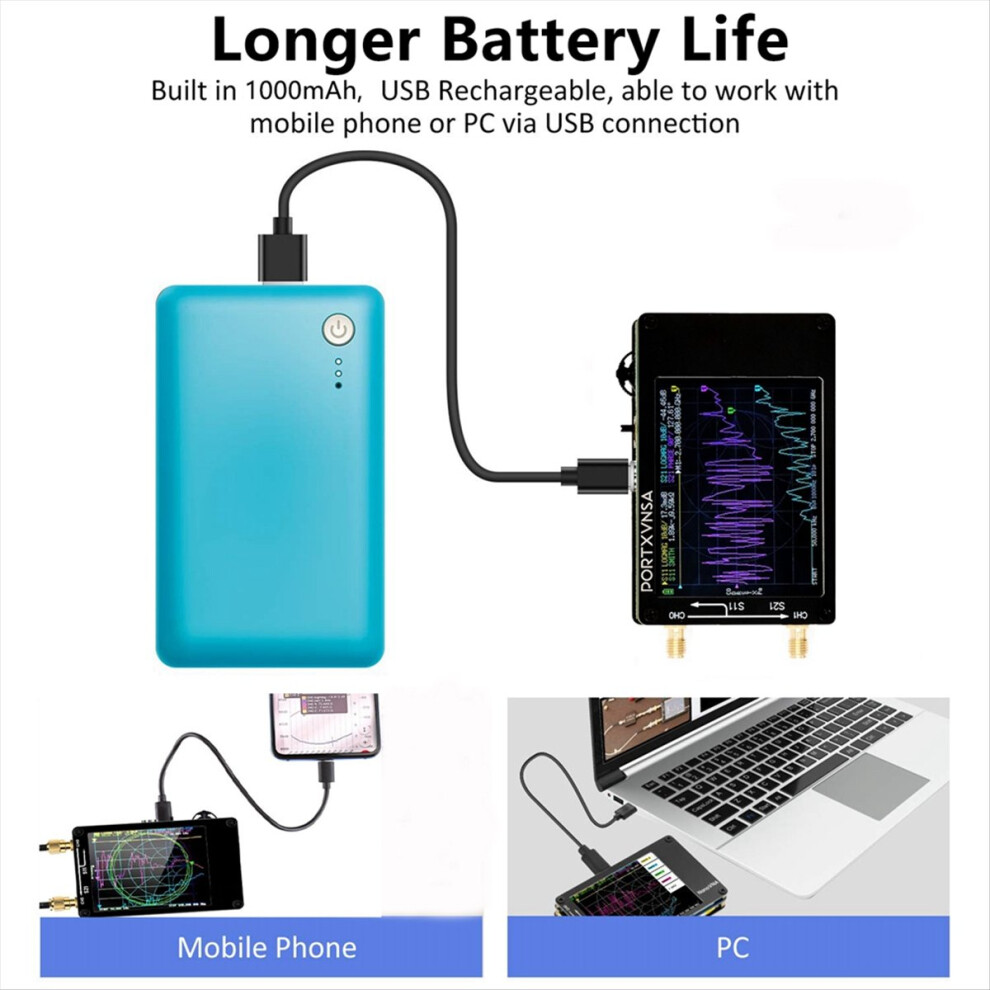

Built-in 1000mAh battery

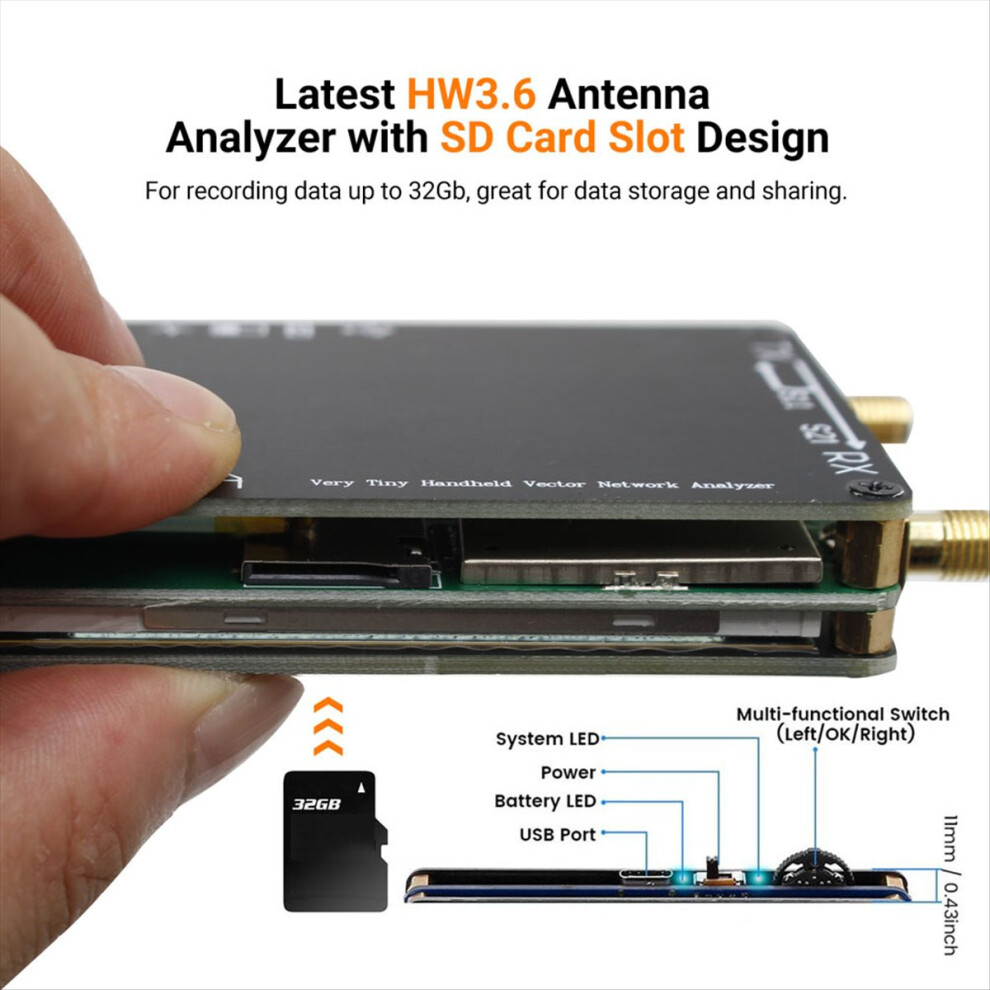

Micro-SD supports up to 32GB, and only supports SPI mode.
Add RTC support;
Change port names to Port1 and Port2
Measure S parameters, VSWR, phase, delay, chart, etc.
Color: Black
Material: plastic

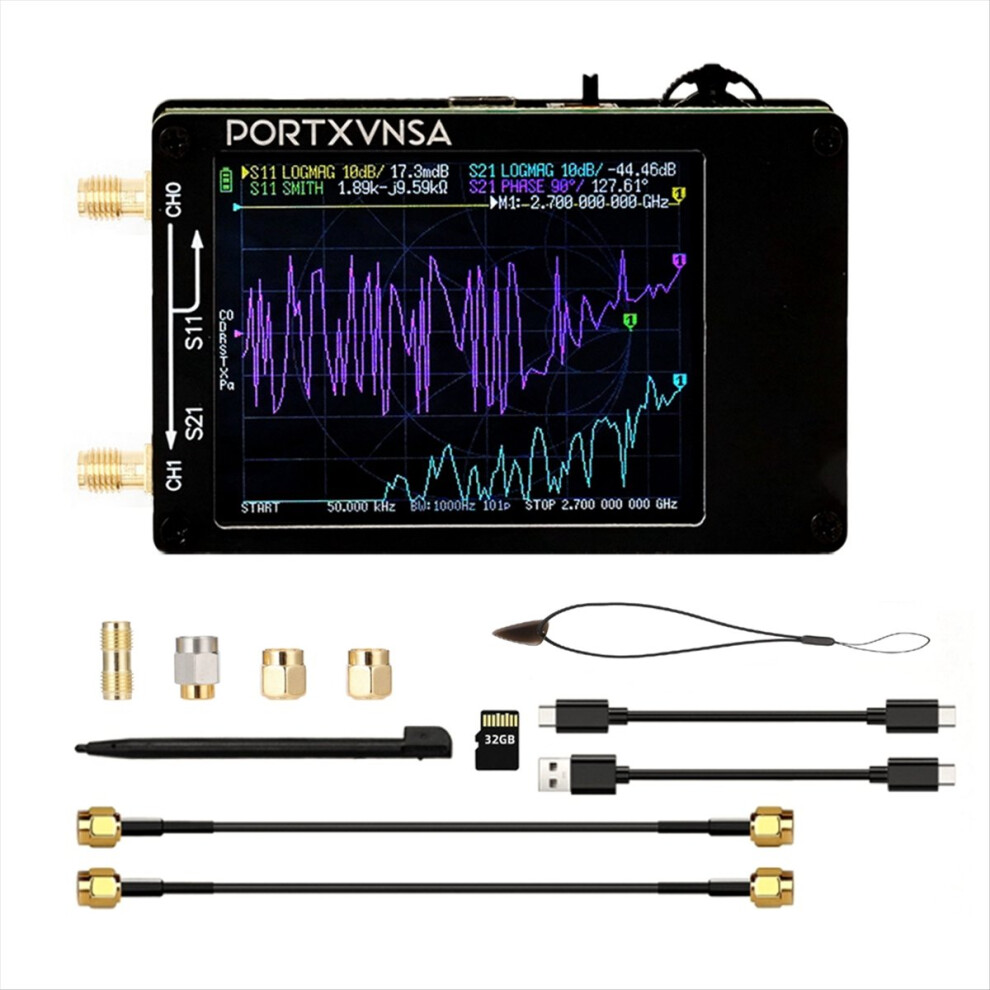

Package Contents:
1 x host (with 2.8-inch touch screen, 1000mAh battery)
2 x 20cm SMA male to male RG174 cable
1 x Type-C to Type-C cable USB Type-C data cable
1 x touch pen
1 x pick

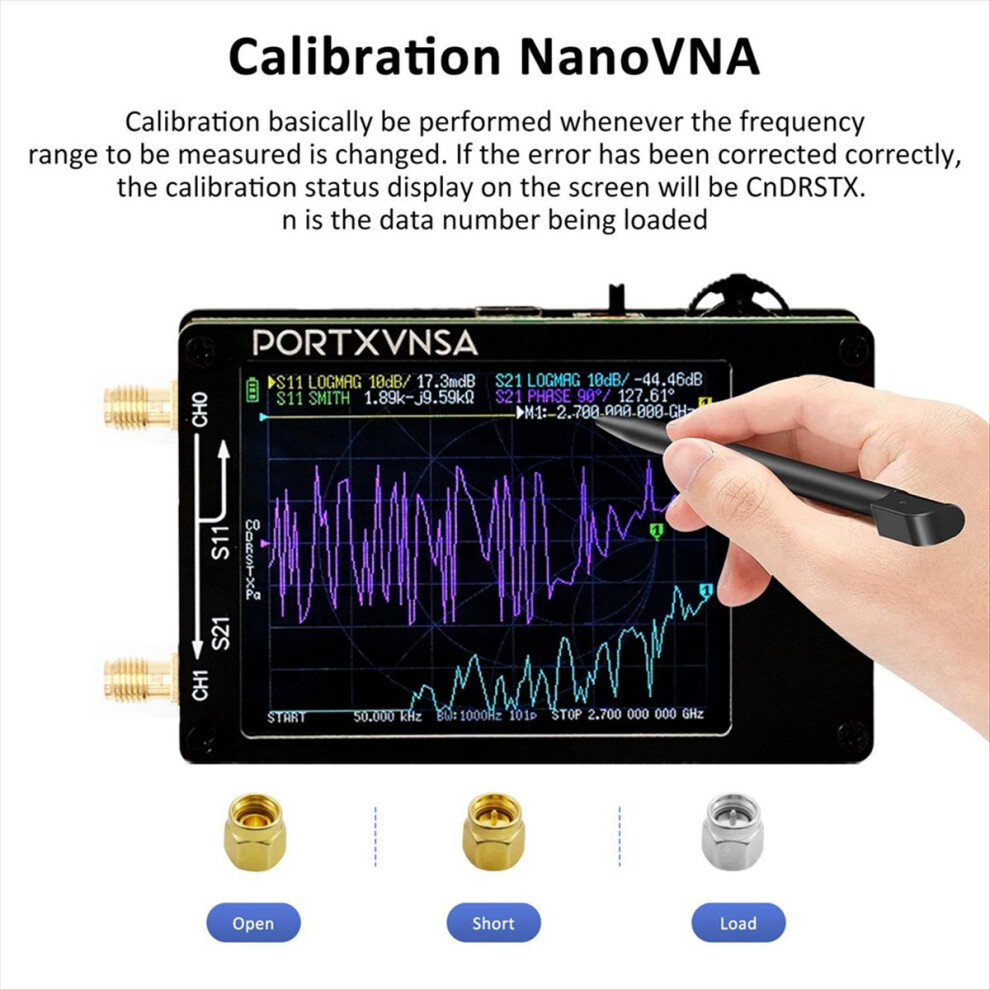

1 x SMA simple calibration kit LOAD
1 x SMA simple calibration kit OPEN
1 x SMA simple calibration kit SHORT
1 x SMA female to female connector
1 x memory card 32G
1 x Simple English Instruction Manual

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
