Upgrading R860T TCXO for Multipurpose Dipole Antenna Kit VHF/UHF

Upgrading R860T TCXO for Multipurpose Dipole Antenna Kit VHF/UHF Description

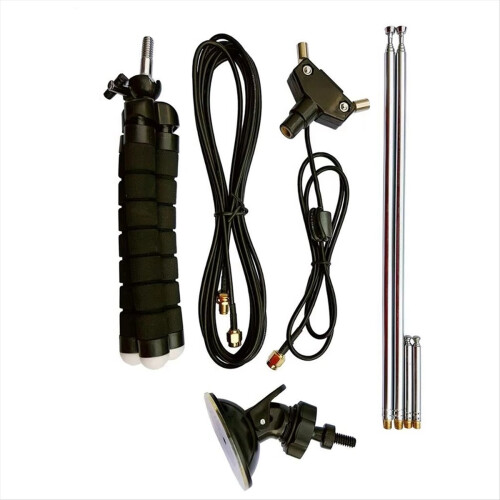

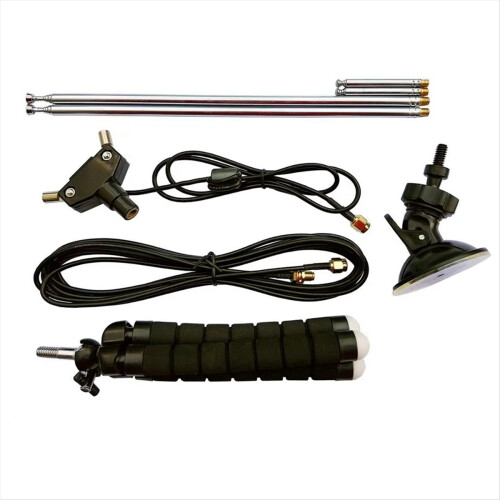

1 x dipole antenna base with 60cm RG174 cable and SMA Male connector. This is the dipole base where the telescopic antennas connect to. The short run of RG174 is decoupled from the base elements with a ferrite . This helps to prevent the feed line from interfering with the dipole radiation pattern.On the inside there is a 100 resistor to help bleed off any static.The dipole has a 1/4 inch female screw on the bottom, which allows you to use standard camera mount products for mounting.
1 x 3 meter RG174 coax cable extension. This coax cable extension allows you to mount the antennas in a place that gets better reception. E.g. outside on a window, or higher up. 2x 23cm to 1 m telescopic antennas (70 MHz - 300 MHz). The telescopic dipoles are detachable from the dipole base via a M5 thread which allows for greater portability and the ability to swap them out. These long telescopic antennas cover VHF to UHF.
2x 5cm to 13cm telescopic antennas (400 MHz - 1100 MHz). These smaller antennas cover UHF to 1090 MHz ADS-B, and even still work decently up to L-band 1.5 GHz frequencies.
1x flexible tripod mount with 1/4Inch male screw.This piece allows you to mount the dipole on a variety of different locations. E.g. a pole, tree branch, desk, door, window sill. The legs of the tripod are bendy and rubberized so can wrap securely around many objects.
1x suction cup mount with 1/4Inch male screw.With this mount you can mount the dipole on the outside of a window, on a wall, car roof/window, or on any other smooth . To use first clean the with window cleaner or isopropyl alochol.

A multipurpose dipole antenna kit. Great for those started with SDR.
Note:Designed for temporary outside usage only, not for permanent outdoor mounting.
Color:Black
Material:ABS

Package Contents:
1 set * Dipole Ante Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
