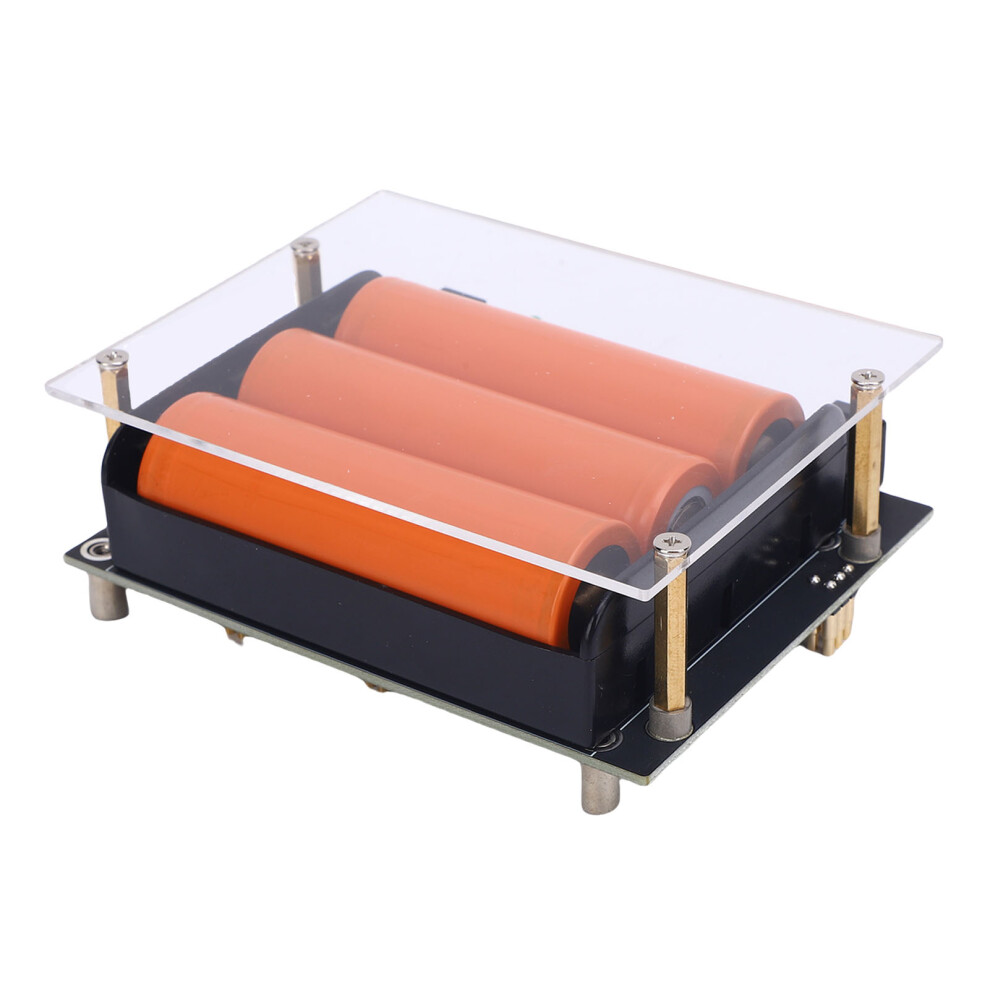

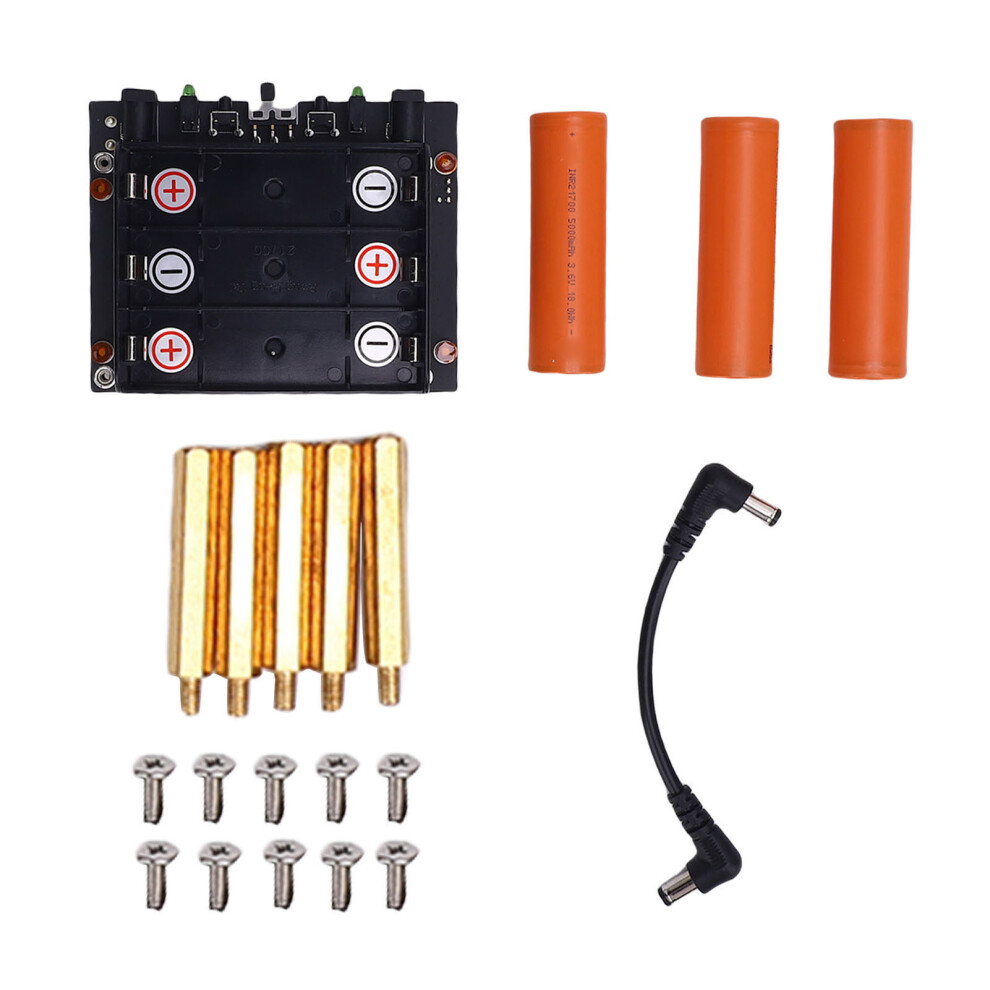

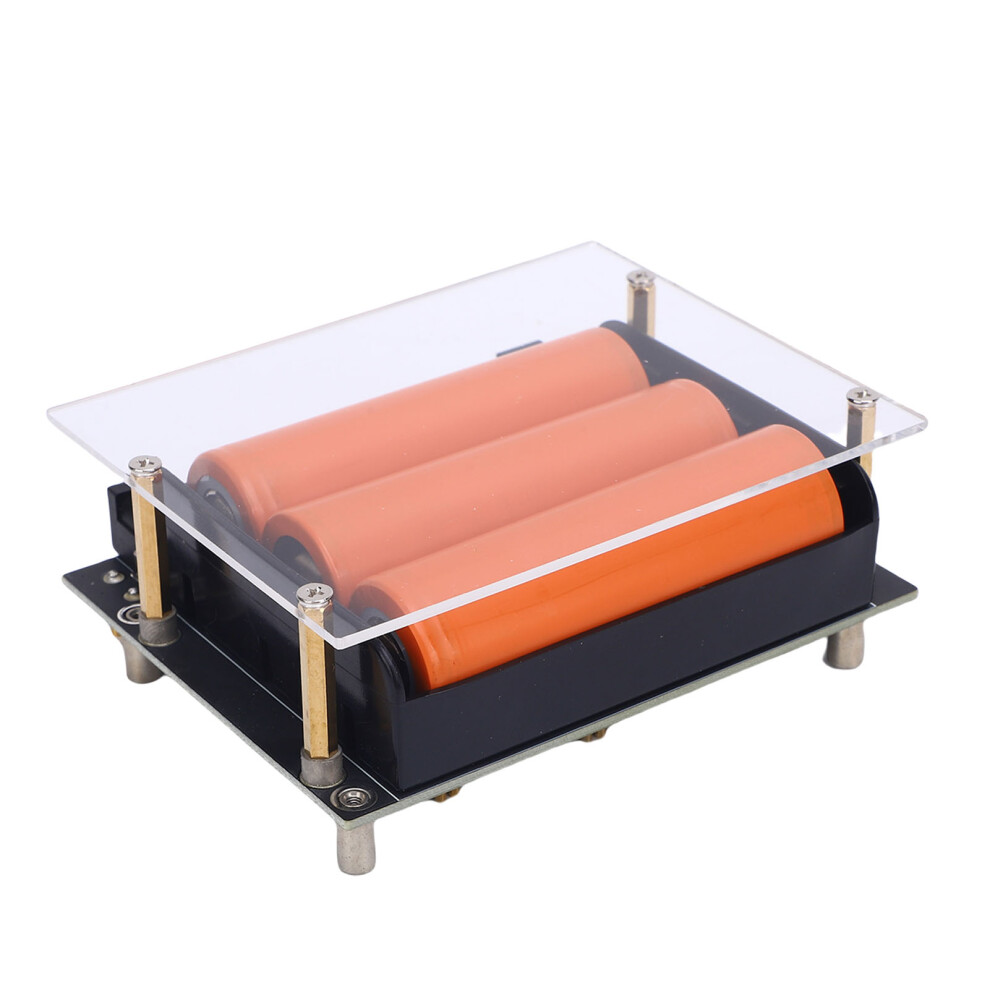

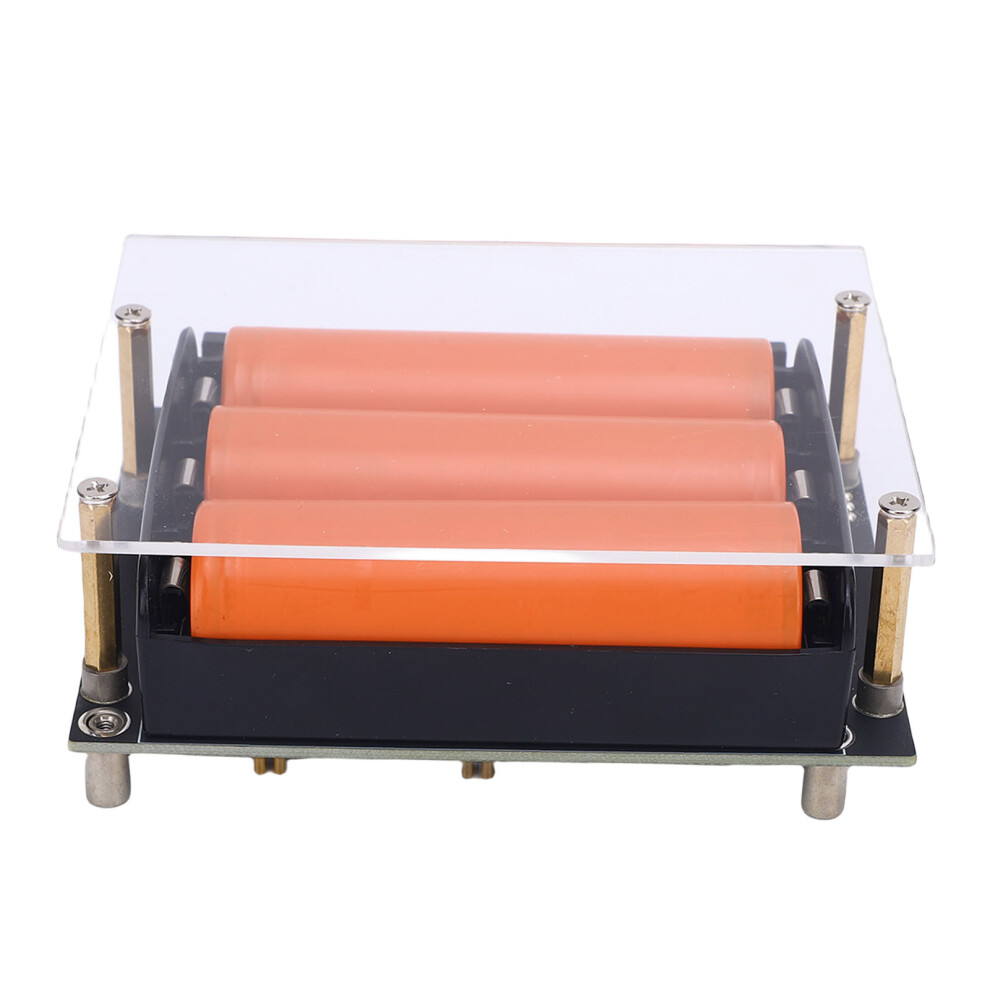

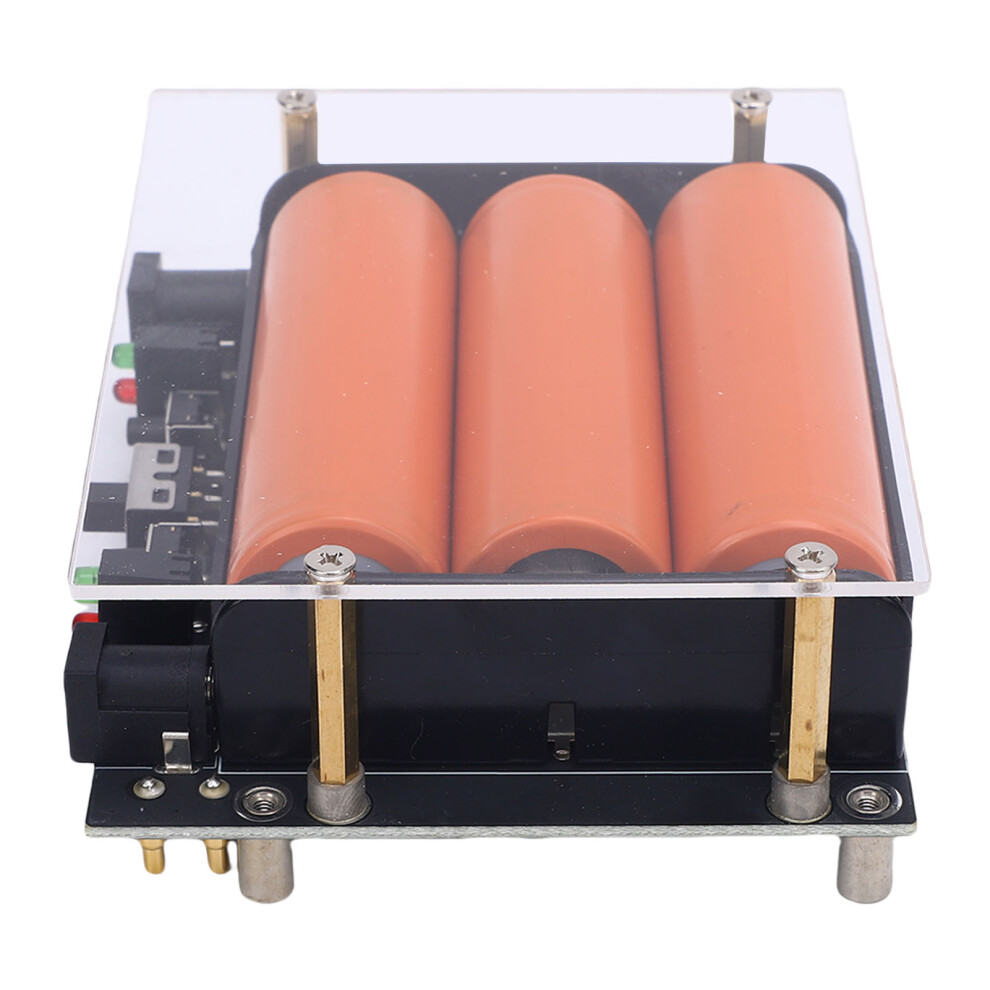

UPS Module with Battery Charging and Power Output for Orin

UPS Module with Battery Charging and Power Output for Orin Description

1、HIGH COMPATIBILITY: Supports simultaneous charging and discharging. Utilizes a spring loaded pin interface, ensuring compatibility with fit for Orin series motherboards for a seamless connection. 2、ENHANCED PERFORMANCE: Features an onboard battery charging chip that supports dynamic path switching, providing a more stable power supply for uninterrupted performance. 3、PRECISE MONITORING: I2C interface for real time monitoring of battery voltage, current, power, and remaining capacity, ensuring module status is always monitored. 4、ENHANCED SAFETY: Built in battery guard circuit for overcharge, overdischarge, overcurrent, short circuit, and reverse connection guard, with balanced charging for added safety. 5、MULTI FUNCTIONAL: Houses 3 onboard batteries, enabling extended standby time. There is also a warning indicator to check whether the battery is connected to the opposite side. Item Type: UPS Module Material: PCB Output Voltage: When there is input, it is input voltage, when there is no input, it is battery voltage (9V-12.6V) Input Voltage: 15V-19V Control Interface: I2C Battery: 5000mAh Battery x 3 (in series) (with matched battery included) Product Size: Approx. 100mm x 79mm / 3.94in x 3.11in Hole Diameter: 2.5mm 1 x UPS Expansion Board Module 1 x Acrylic Board 1 x Screw Pack 1 x Cord 3 x Batteries
