(US Plug) 5MP HD 9CH H.265 NVR Network Video Recorder ONVIF

(US Plug) 5MP HD 9CH H.265 NVR Network Video Recorder ONVIF Description

1、Support HDMI, VGA output, support 9 channels of 1080P HD input. 2、Support for ONVIF protocol and can connect to third-party devices. 3、High quality video is obtained at a lower bit rate using the standard H.265 high configuration compression format. 4、Support web, CMS, central platform management software MYEYE, provide SDK development. 5、An intuitive and user-friendly graphical user interface (GUI) for Windows-style operations with the mouse. 6、Support a variety of cloud technologies, to achieve network penetration, front-end docking, alarm information pushed to the phone and other functions. 7、Support multi-mode recording, manual / timer / dynamic detection / alarm. 8、Powerful network services, support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP search, alarm center, etc. 9、Support remote access, own domain name service function (ARSP), remote monitoring one-click enable. 10、Fast and flexible backups are performed via USB, network, and the like. 11、Support point search, calendar search, event search, channel search.
Condition: 100% Brand New
Item Type: Network Video Recorder
Material: Metal
Color: As Pictures Shown
Main Processing Chip: Hi3536D
Operating System: Embedded for LINUX Operating System
System resources: Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-channel multi-person network operation, USB backup
Operation Interface: 16-bit true color graphical menu operation interface, support for mouse operation
Screen Display: 1/4/9 screen
Video Access Mode: 9 channels 5M / 8 channels 1080P
Access Bandwidth: 64Mbps
Forwarding Bandwidth: 36Mbps
Image Decoding: H.265AI / H.265 + (compatible with H.265 / H.264)
Monitoring Quality: Maximum: 1560x1440
Playback Quality: 5M/1080P
Decoding Ability: 1 channel 5M / 2 channels 1080P
VR Function : Not Supported
Human Face Detection: Support (depends on front camera)
Audio Compression: G.711A
Voice Intercom: Not Supported
Recording Mode: Manual, Alarm, Dynamic Detection, Timing
Local Playback: 1 channel 5M / 2 channels 1080P
Video Query: Time point search, calendar search, event search, channel search
Recording Save: Local hard disk, network
Backup Method: Network backup, USB mobile hard disk, USB burning, SATA burning

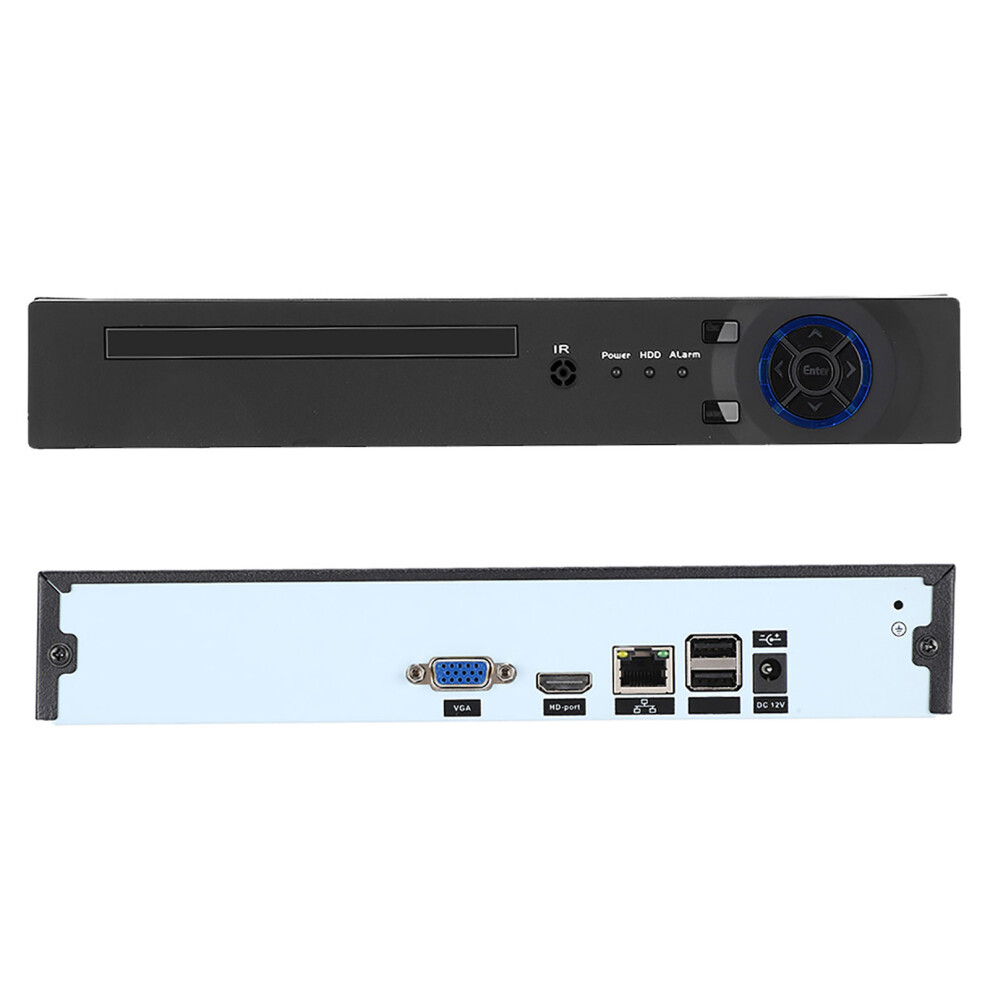

Video Output: 1 HDMI HD output, 1 VGA output
Audio I/O: 0/1 (3.5mm / 0.14in interface)
Alarm I/O: 0/0
Network Interface: 1 RJ45 10M/100M adaptive Ethernet port
USB Interface: 2 USB2.0 interfaces
Hard Disk Interface: 1 SATA interface (maximum 8T each)
ESATA : No
Serial Interface : No
For ONVIF: Support
Power: 12V/2A
Power Consumption:
