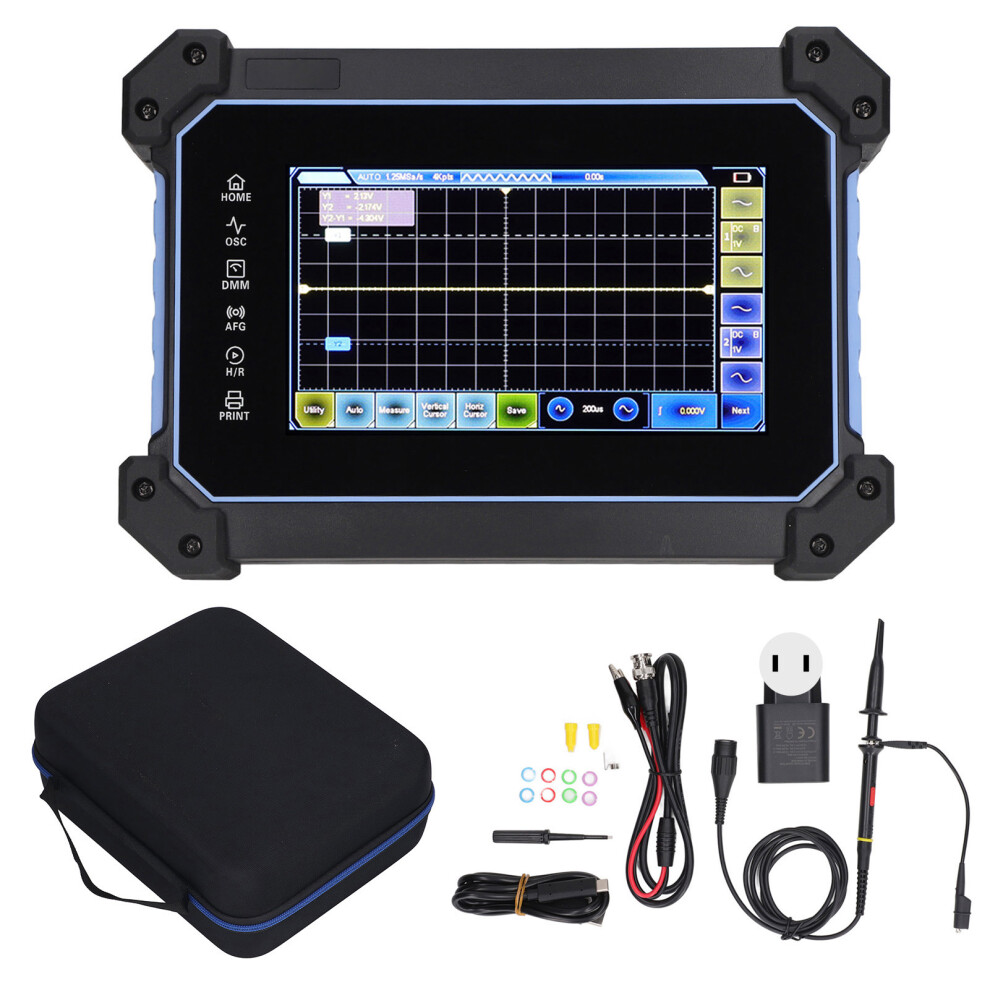

(US Plug) Digital Oscilloscope 2 Channel 110MHz 250MSa/s Touch Screen

(US Plug) Digital Oscilloscope 2 Channel 110MHz 250MSa/s Touch Screen Description

1、Large Touch Screen: Multi point large touch screen, resolution up to 800 x 480, UI friendly and easy to use, bring a wonderful interactive experience. 2、High Performance: Standard 2 channel oscilloscope, with a maximum bandwidth of 110MHz, a maximum sampling rate of 250MSA/s, and 8M large storage. 3、User Friendly Design: One click for waveform storage, hangable leg design, multi angle adjustable, anti falling and vibration, convenient and safe. 4、Long Endurance: Built in super large capacity lithium battery, the oscilloscope is full of power, support standby for up to half a year. 5、Type C Charging: With standard 18W charger, support Type C fast charging, and can share a set of charging equipment with mobile phones.
Item Type: Digital Oscilloscope
Material: ABS
General Technical Specifications:
Display Screen Type: 7in diagonal TFT LCD
Display Resolution: 800 (horizontal) x 480 (vertical) pixels
Display Type: Point, vector
Waveform Brightness: Adjustable
Grid Type: Solid line, dotted line, none
Grid Brightness: Adjustable
Screen Brightness: Adjustable
Afterglow: 1s, 5s, 10s, 30s, unlimited, off
Standard Interface: USBHost, USBDevice
Power Supply: DC100-240V, 50-60Hz, DC input 5V3A 9V2A 12V1.5A
Power Consumption: Less than 8W
Fast Charging: Support fast charging
Battery: 3.7V rechargeable lithium battery 2600mAh x 2 (built in)
Environment:
Operating Temperature: 0 to 50
Storage temperature: -20 to 70
Humidity:
+104 (+40): Relative humidity 90%
106 to 122 (+41 to 50): Relative humidity 60%
Cooling Mode: Convection
Altitude:
Operation and Without Operation: 3000m (10000ft)
Random Vibration: 0.31gRMS at 50Hz to 500Hz, 10 minutes per axial direction
Without Operation: 2.46gRMS at 5Hz to 500Hz, 10 minutes per axial direction
Mechanical Part:
Oscilloscope Size: Approx. 248x176x54mm/9.8x6.9x2.1in (length x width x height)
Horizontal:
Horizontal Scale Range: 2ns/div-100s/div1, 2, 5 steps
Incremental Time Measurement Accuracy (Full Bandwidth):
Single, "sampling" mode
(1 sampling interval + 100ppm x Reading + 0.6ns)
>16 times average
(1 sampling interval + 100ppm x Reading + 0.4ns)
Sampling interval = seconds/grid 200
Vertical:
AD Converter: 8 bit resolution, sampling for each channel at the same time
Vertical Scale Range of Oscilloscope: 10mV/div-10V/div at input BNC
Vertical Resolution: 8bit
Vertical Sensitivity Range: 10mV/div-10V/div
Offset Range:
1Vmaximum(100mV/div)
10Vmaximum (1V/div)
50Vmaximum (10V/div)
Dynamic Range: 5div (8bit)
DC Gain Accuracy: 3% FullScale
Inter Channel Isolation: 40dB, DC to the maximum rated bandwidth of each model
Note: When using X1 probe, the bandwidth is reduced to 6MHz
Acquisition:
Sampling Rate Range: 250MSA/s
Acquisition Mode: Normal, average, peak, high resolution
Waveform Interpolation: (sinx)/x
Single Sequence:
Acquisition Mode: Acquisition stop time
Normal and Peak Detection: All channels conduct single acquisition at the same time
Average: All channels conduct N acquisition at the same time, N can be taken as 2, 4, 8, 16, 32, 64, 128, 256
Storage Depth: 8Mpts
Trigger:
Mode: Automatic, normal, single time
Level: CH1/CH2 4 divisions from the display center
Release Range: 8ns-10s
Trigger Level Accuracy: CH1/CH2
Trigger Sensitivity:
0.87div (2mV/div)
0.78div(5mV/div)
0.69div(10mV/div)
0.52div(20mV/div)
0.47div(50mV/div)
0.26div(100mV/div)
0.26div(200mV/div)
0.47div(500mV/div)
0.26div(1V/div)
0.26div(2V/div)
0.26div(5V/div)
0.26div(10V/div)
Edge Trigger:
Slope: Rising edge, falling edge, double edge
Data Source: CH1/CH2
Pulse Width Trigger:
Polarity: Positive, negative
Condition: , !=, =
Data Source: CH1/CH2
Pulse Width Range: 8ns-10s
Video Trigger:
Signal Standards: NTSC, PAL, HDTV720p, HDTV1080p, HDTV1080i
Data Source: CH1-CH2
Synchronization: Scan line, line number, odd field, even field, all fields
Slope Trigger:
Slope: Up, down
Condition: , !=, =
Data Source: CH1/CH2
Time Range: 8ns-10s
Timeout Trigger:
Data Source: CH1/CH2
Polarity: Positive, negative
Time Range: 8ns-10s
Input:
Number of Channels: 2 analog channels
Input Coupling: DC, AC or grounding
Input Impedance: 1MΩ 2%
Input Capacitance: 18pF3pF
Probe Attenuation: 1X, 10X
Support Probe Attenuation Coefficient: 0.01X-10000X
1 x Digital Oscilloscope
2 x Test Line
1 x Adapter Plug
1 x USB Cable
1 x Manual
12 x Accessory
1 x Storage Box
