(US Plug) T-80S Panel Test Tool LED LCD Screen Tester For TV/Computer/Laptop Repair Tool

(US Plug) T-80S Panel Test Tool LED LCD Screen Tester For TV/Computer/Laptop Repair Tool Description

Special reminder:
1. Please do not plug in the device, first connect it and then power on it. Otherwise, it may burn the device or screen. Burning the device will charge a certain cost. The screen voltage interface is fully protected, but if the screen voltage is adjusted incorrectly, To burn the screen, that is, if it is a 3.3V or 5V screen, the screen voltage is adjusted to 12V, the screen will be burned directly, please be sure to pay attention to this friend, there is one more special reminder Please use 12V-19V 4A or 5A power supply for power supply. Do not exceed 19V. Otherwise, the screen will be burned off.
2. Please use the standard LVDS screen line on the universal board or the universal board. Do not use the screen line on the original board. Otherwise, the equipment or screen will be burned out and the equipment manufacturer will not burn it. Because even if the same model of the screen, the board produced by different manufacturers is not the same, it also determines the interface definition of the driver board screen line is not the same, so the line order of the screen line is not the same, for example, the same 32 of Haier and Hisense LCD TV, the same screen, but the board is not the same, which determines the definition of the screen interface of these two brands is not necessarily the same, so the two screen lines are not universal, not the standard LVDS screen line, this must pay attention to.
3. T-60S, there are 60 display parameters
Upgraded version T-80S, there are 80 display parameters
The 8th generation is updated on the basis of the 6th generation. The 8th generation has 20 more screen parameters than the 6th generation. The supported display types must be more than 1000 types, and the 8th generation has further optimized the resolution code. Support more displays, better and more stable, exclusive resolution code power-off memory function, 10-digit resolution code and digit units are set separately instead of small to large, and the actual 80 kinds of screen parameters 24 to 55 or 60 kinds of display parameters are not changed, 14 kinds of test patterns, comprehensive protection of the interface to ground short circuit.

Product overview:
T-60s universal LVDS screen tester, built-in with up to 100 kinds of screen parameters, factory-level built-in professional test screen, perfect short-circuit protection design, it is the most compatible screen on the market, the most compatible, the operation simpler. The universal tester supports almost 5.6-84 inch 95% LVDS displays and can support vertical screen resolution testing of common small-size LVDS interfaces, such as Google's first-generation 800x1280 screen.
1.Support LVDS interface horizontal screen resolution and vertical screen resolution screen, maximum support 2048x1536 resolution, 8-bit (24-bit) dual channel;
2 Built-in constant current LED backlit LCD display, the default constant current is 120mA, adaptive boost, the maximum boost voltage is 30V, support positive and negative LED + / LED-short circuit protection alarm, 30V overvoltage protection. The default current adapts to the screen size (5.6 inches-17.3 inches);
3.Build a variety of factory-level professional LCD screen detection screens, very convenient to detect various kinds of defective LCD screens;
4 Internal integration of a variety of resolution programs, according to the resolution of the screen to illuminate the LCD test;
5The tester's output interface is short-circuit protected. Each interface corresponds to a short-circuit code. When they are short-circuited, the buzzer will alarm, the power indicator will flash, and the digital tube will show which interface is short-circuited.
6.Screen parameter selection, the digital tube digital display will be automatically reminded, supports one-digit digital tube and ten quick settings;
Appearance size: 155mm X 105mm X 22mm, aluminum alloy shell oxidation process;
8.Input power: 12V-19V input (current size can be selected according to the general power consumption of the screen), select 12V / 3A-4A below 27-inch, 32-inch TV screen, the source Select a 19V / 2A input or more. TV screens larger than 32 inches, 12V-19V / 2A-5A power supply can be selected. (12V 5A full current can also be, the country for the new version of the interface protection chip, there is voltage drop across the interface protection core, 12V power supply in output voltage of drive screen about 10V, 19V in 12V drive screen voltage, Usually the 12V unit screen voltage above 9.5V can work normally, please don't worry).

Unique Skills: (other screens are not available)
1. The actual 60 kinds of screen parameters, each kind of screen parameters have been tested, instead of copying a resolution of three kinds and four kinds of 60 kinds or more.
2. The lowest resolution of 640X480, the highest resolution of 2048X1536, surpassing any current screen tester on the market (the highest resolution of 1920X1080 for common screen testers). Laying the foundation for testing 4K displays in the future.
3. 14 kinds of professional test screens of the new LCD screen tester, and currently there are only 8 test screens on the market.
4.The new LCD screen measuring instrument sets the resolution code, which is one digit and ten digits respectively. The current display measuring instrument on the market is from small to large, for example code 56, the latter only needs to be set to 5. The ten digits can be set to 6 or not. But the current screen measuring device on the market needs to be adjusted 56 to 56 and 56 times.
5. The new LCD screen measuring instrument comes with LED amplifier, which is DC controller board, the output voltage is up to 35V 120MA current, and the current display measuring instrument on the market has no DC controller board, which is the reinforcing plate.
6. The new LCD screen measuring instrument LVDS screen line interface has a professional card slot, which can be inserted and removed several times to avoid bending the needles, but there are currently no screen measuring instruments on the market, only 30 double row needles.
7. The new LCD screen measuring instrument adopts full interface circuit short circuit protection, opens a new era of LCD screen protection, not only screen line short circuit protection, high voltage plate, the booster plate and other short circuits interface will also protect, different places different code short circuit notice, The protection era is fully open, and currently the screen detectors on the market only have screen line protection, and can not really not burn the screen.
8. The new LCD display detector built-in display parameters are quickly set up and automatically saved. The function is not just the code that fits this time. When the power is turned off and then turned on, the last code screen parameter is automatically restored and the current screen is on the market. The instrument does not have this function.
9. The new LCD screen monitor supports our LVDS to 4K adapter board and LVDS to EDP adapter board.
10. The new PCB circuit board LCD screen measuring instrument uses military grade circuit board design, the capacitor uses solid capacitor, works well, with enough material, more than any LCD screen tester on the market.
11.The new LCD screen detector can adjust the resolution code directly in the power-on state, the signal source chip is automatically reset, and the other code on the market has to press the switch ,. Turn it on and off again, restart manually to show the test. Photo

12. The new screen detector supports square screen, wide screen and strong screen. The screen detector on the market is not compatible with the screen.

The 6th generation newest LED LCD panel tester tool are getting more refined with new hardware driver and software programs.
1.Easy and convenient to operate,there is a builtin procedure with 55 kinds of Lvds screen resolutions.
2.With digital number display indicator,you can choose corresponding resolution by swifting button.
3.Make screen cable in proper position and prevent driver board from damage with LCD power supply short circuit protection function. The digital number display indicator will show flickering'00'and buzzer will sound if the screen cable is short-circuited.
The digital number display indicator will return to normal after removing short circuit.(More than 10 minutes' short circuit is not allowed).
4.More convenient, durable, convenient, high efficiency and practical.
5.There are a variety of built-in standardized testing charts ,powerful and applicable.
6.The screen will show external VGA input signal when plug external VGA cable.
7.Support to test LCD and LED screen with LVDS Interface from 7 inches to 84 inches.
8.Suitable for LVDS interface LCD screen test with 55 kinds of resolutions.

Attention:
To use this tool, you need to know the resolution of the LCD/LED screen,screen voltage and the bit number of the LVDS cable for that screen, then check them against the list of screen parameter on the panel to find the right parameter and input it with the "+" key and "-" key on the panel digital tude.
(You can know your panel information in http://www.panelook.com/)
Then connect the LVDS cable and inverter. Choose the right screen voltage.Press the power key to turn on the power.During the test procedure, if you want to test another screen, you don't need to unplug the power adapter, just press the power key on the panel to turn the power off.

Precautions for Use
LCD tester (Fifth Edition) has done a sound encryption and security protection, unauthorized removal of the test instrument program will automatically remove the lock, and re on the digital tube display '88', a long ring. In this case we refuse to guarantee,please know!

Detailed information about LVDS cables:
FPC-30Pin 8 only (left feed)
FPC-30 Single Pin 8 (Correct Supply)
FIX-30Pin only 6
FIX-30Pin Double 6
FIX-30Pin single 8 (25CM correct power supply)
FIX-30Pin single 8 (40CM correct power supply)
FIX-30Pin single 8 (left power supply 40CM)
FIX-30Pin double 8
IPEX 20453 40P only 6
IPEX 20453 40P Double 6
DF14-20Pin only 6
DF14-20Pin 8
FI-RESIS-HF double 8 (left power supply 55CM)
FI-RESIS-HF double 8 (correct power supply 55CM)
Totally: 14pcs

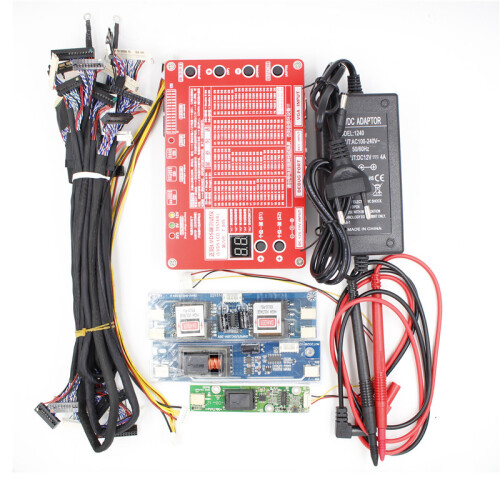

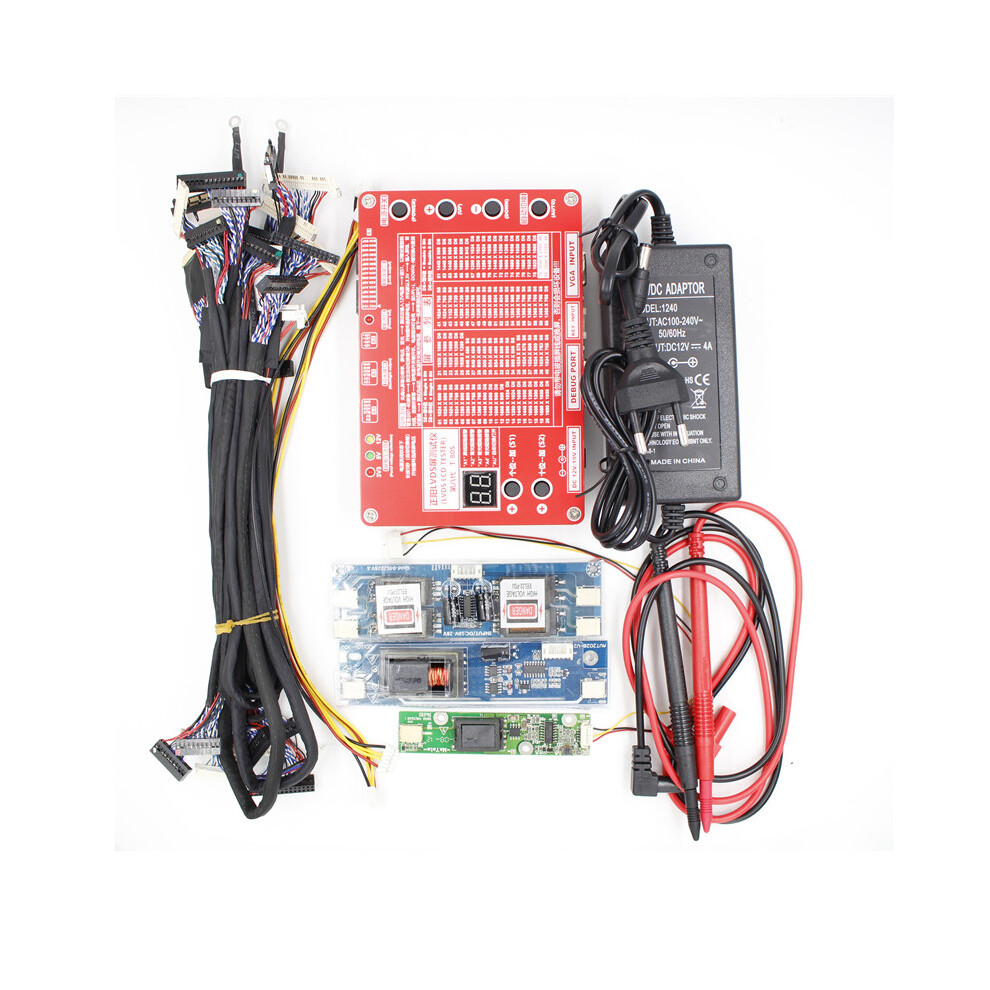

Package Included:
1 x T-80S Panel Tester
14 x Display test line
3 x High voltage board
1 x 12V4A Adapter(US/EU Plug)

Note: We do not provide technical assistance. Please make sure you are a maintenance person before purchase, and you can use it yourself. Thanks
