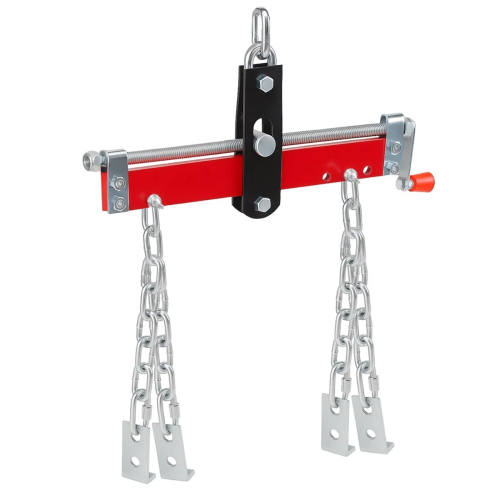

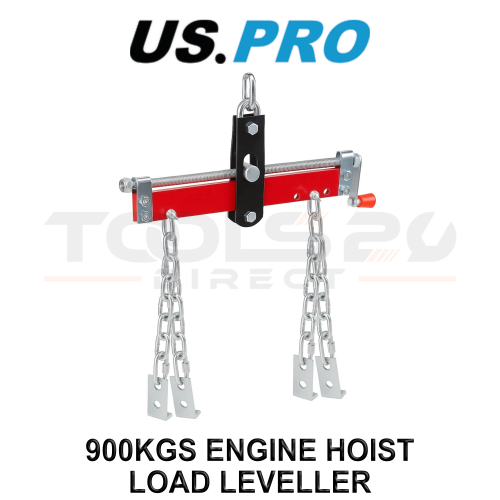

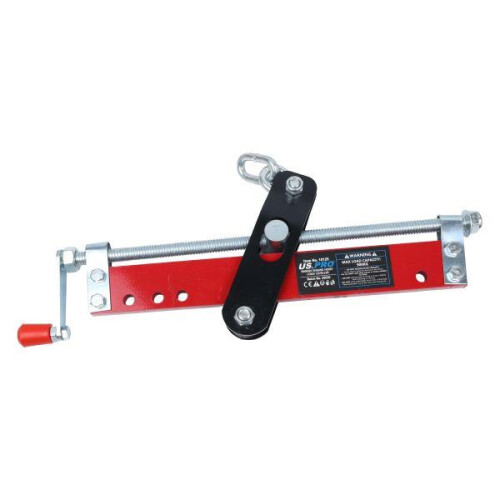

US PRO Tools 900kg Engine Hoist Load Leveller with Chains for Cranes 10125

Engine hoist load leveller designed to quickly and easily balance off-centre heavy loads.

The load is attached using the four chains and brackets, then levelled by turning the adjustment handle until the assembly is stabilised.

Three mounting positions on the cross bar allow different engine sizes and load positions to be accommodated.

The heavy duty steel frame has a durable powder-coated finish and is capable of carrying up to 900 Kgs.

This load leveller is suitable for use with hydraulic engine cranes that have a minimum load capacity of 1000 Kgs.

Each chain has an approximate length of 330mm and the body of the leveller is compact for easy storage when not in use.

The unit is CE marked.

Key Features:

• Engine hoist load leveller for off-centre heavy loads
• Simple handle adjustment to set and maintain load level
• Four chains and brackets for secure attachment to engines and components
• Three cross bar positions to suit different engine sizes
• Heavy duty steel frame with powder-coated finish
• Maximum load capacity of 900 Kgs
• Suitable for use with engine cranes rated at 1000 Kgs or more
• CE marked

Specifications:

• Maximum load capacity: 900 Kgs
• Chain length: 330mm (30cm / 13 Inches) each
• Adjustment: handle operated load level control
• Frame material: heavy duty steel
• Finish: powder-coated
• Overall size (length/width/height): 550 x 190 x 50mm (55 x 19 x 5cm / 22 x 8 x 2 Inches)
• Minimum crane capacity required: 1000 Kgs
• Certification: CE
