USB 3.0 5.0MP Industrial CMOS Vision Microscope Camera Electronic Digital Soldering Eyepiece C Mount Video Microscopy

Brand Exogio
New

In stock

Smart shoppers OnBuy it!

  • Earn Cashback on every purchase – spend it instantly on your next order
  • Free delivery – on millions of items across the site
  • Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating

See full product description & details

£102.81
£125.38 18% off!
FREE Delivery
1% Earn £1.03 instantly Learn More
Add to Basket

Interest-free payment options available

See full product description & details

Delivery: Priority (Free) | Thu 8th - Sat 10th Oct

Sold by: JKSYshop

Returns: 30 days

180-day payment protection

Add to Basket

You might also like

£9.95FREE Delivery
£11.77FREE Delivery
£10.38FREE Delivery
£64.85FREE Delivery
£9.95FREE Delivery
£11.77FREE Delivery
£10.38FREE Delivery
£64.85FREE Delivery
Description & Details

Summary

  • High-speed USB3.0 interface, up to 625 MB/s. Large area array CMOS progressive scan image sensor. Support for static and dynamic image capture. 8bit uncompressed raw image data, software implementation Bayer color conversion plug and play installation. Support Windows 2000, XP, WIN7 WIN10 operating system. The image is stable and reliable, after a long period of rigorous testing performance indicators.
  • Can be widely used in pattern recognition, industrial testing, medical microscopy and traffic management and machine vision and other fields. More widely used in various fields of microscope and image acquisition of various occasions. Video Output:USB3.0. Sensor:5.0MP,Micron 1/2.5 inch. Sensor Model:SONY IMX335 Sensor. Sensor Size:1/2.5 inch. Maximum Resolution:2592 x 1944. Pixel Size:2.2 x 2.2μm
  • Target Size:1/2.5 inch. Exposure Mode:Rolling Shutter. Signal to Noise:35dB. Dynamic Range:64dB. Sensitivity:2V/Lux.S
  • Frame Rate MJPG:2592 x 1944@25FPS,1920 x 1080@60FPS,1280 x 720@60FPS,640 x 480@60FPS
  • Frame Rate YUV422:2592 x 1944@25FPS,1920 x 1080@60FPS,1280 x 720@60FPS,640 x 480@60FPS. Adjustable Parameters:Brightness, Contrast, Saturation, Sharpness, Gamma, White balance, Exposure, Gain

USB 3.0 5.0MP Industrial CMOS Vision Microscope Camera Electronic Digital Soldering Eyepiece C Mount Video Microscopy Description

High-speed USB3.0 interface, to 625 MB/s. Large area array CMOS scan image sensor. Support for static and dynamic image capture. 8bit uncompressed image data, software implementation Bayer color conversion plug and installation. Support Windows 2000, XP, WIN7 WIN10 operating system. The image is stable and reliable, after a long period of rigorous testing performance indicators.
Can be widely used in pattern recognition, industrial testing, medical microscopy and traffic management and machine vision and other fields. More widely used in various fields of microscope and image acquisition of various occasions. Video Output:USB3.0. Sensor:5.0MP, 1/2.5 inch. Sensor Model: IMX335 Sensor. Sensor Size:1/2.5 inch. Maximum Resolution:2592 x 1944. Pixel Size:2.2 x 2.2μm
Target Size:1/2.5 inch. Exposure Mode:Rolling Shutter. Signal to Noise:35dB. Dynamic Range:64dB. Sensitivity:2V/Lux.S
Frame Rate MJPG:2592 x 1944@25FPS,1920 x 1080@60FPS,1280 x 720@60FPS,640 x 480@60FPS
Frame Rate YUV422:2592 x 1944@25FPS,1920 x 1080@60FPS,1280 x 720@60FPS,640 x 480@60FPS. Adjustable Parameters:Brightness, Contrast, Saturation, Sharpness, Gamma, White balance, Exposure, Gain

Measuring Function:Straight , Circle, Rectangle, Angle, Broken , etc
Image Output:USB3.0 UVC
Hardware Interface:USB3.0 Cable
Working Temperature:Environment Temperature-20 ~ 70
Storage Temperature:-40 ~ 85
Image adjustment:Brightness, contrast, saturation, color temperature,Gamma,White balance,Sharpness
Image Quality Adjustment:Exposure, gain, color adjustment
Camera function:Mirror, flip, freeze, black and white
UI interface:Support user-friendly mouse and touch operation
Photo, video:Support 1920 x 1080 image capture and 1080P video
Storage:Instant photo and video recording, picture preview
M

Details

OPC PPFKXMJ
Brand
Exogio
Codes 6032081109918 (EAN)

Product Images

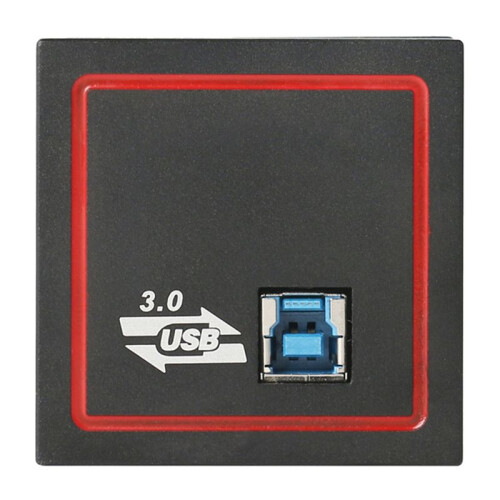

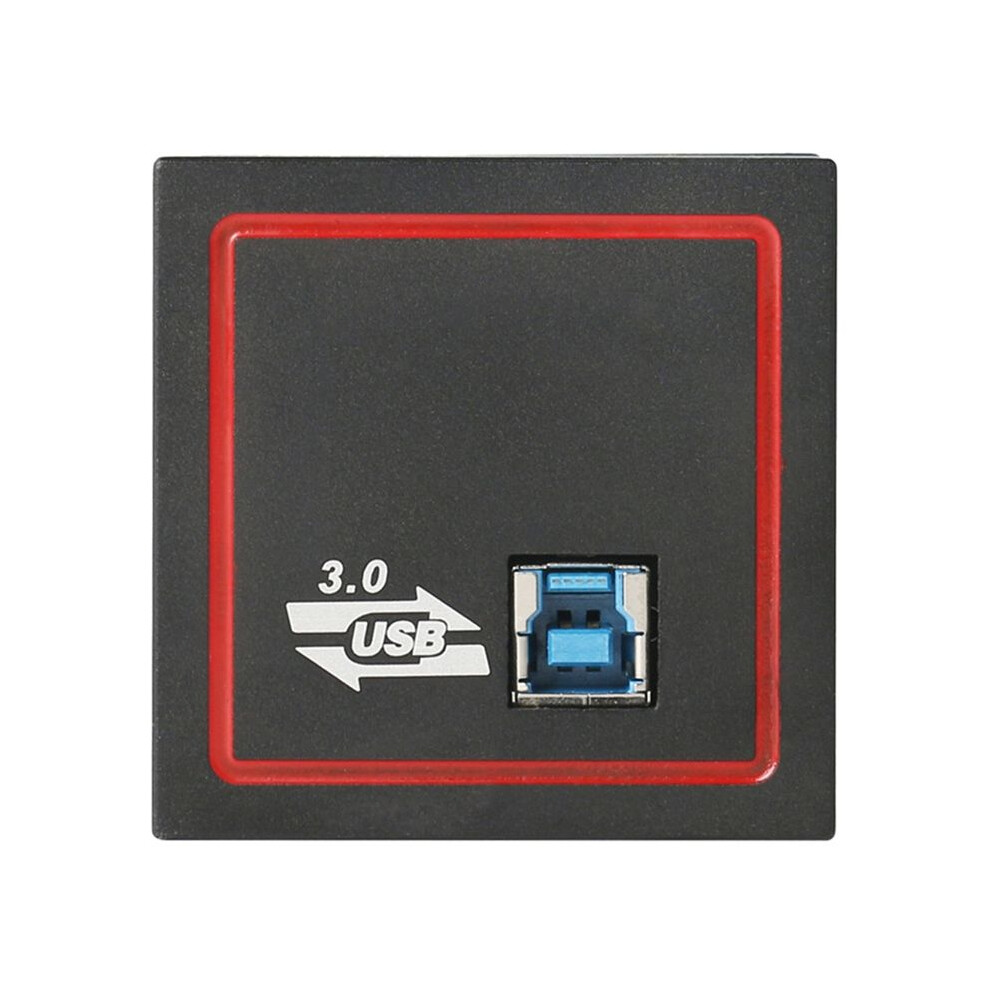

USB 3.0 5.0MP Industrial CMOS Vision Microscope Camera Electronic Digital Soldering Eyepiece C Mount Video Microscopy 1

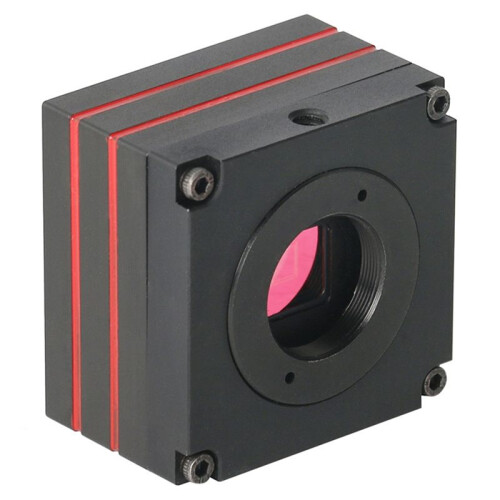

USB 3.0 5.0MP Industrial CMOS Vision Microscope Camera Electronic Digital Soldering Eyepiece C Mount Video Microscopy 2

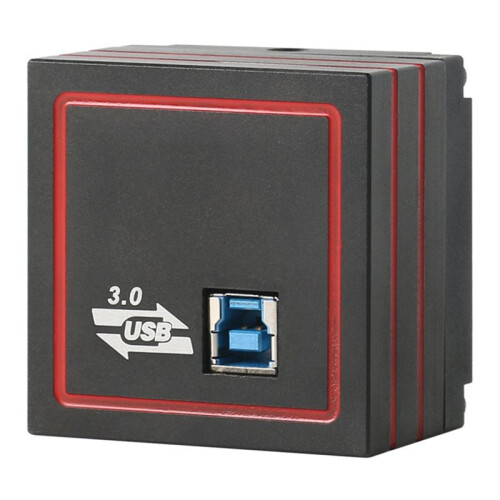

USB 3.0 5.0MP Industrial CMOS Vision Microscope Camera Electronic Digital Soldering Eyepiece C Mount Video Microscopy

Product Data

Height8cm
Width15cm
Length12cm
Weight0.36kg
ColourAs Shown
MaterialAluminum Alloy
