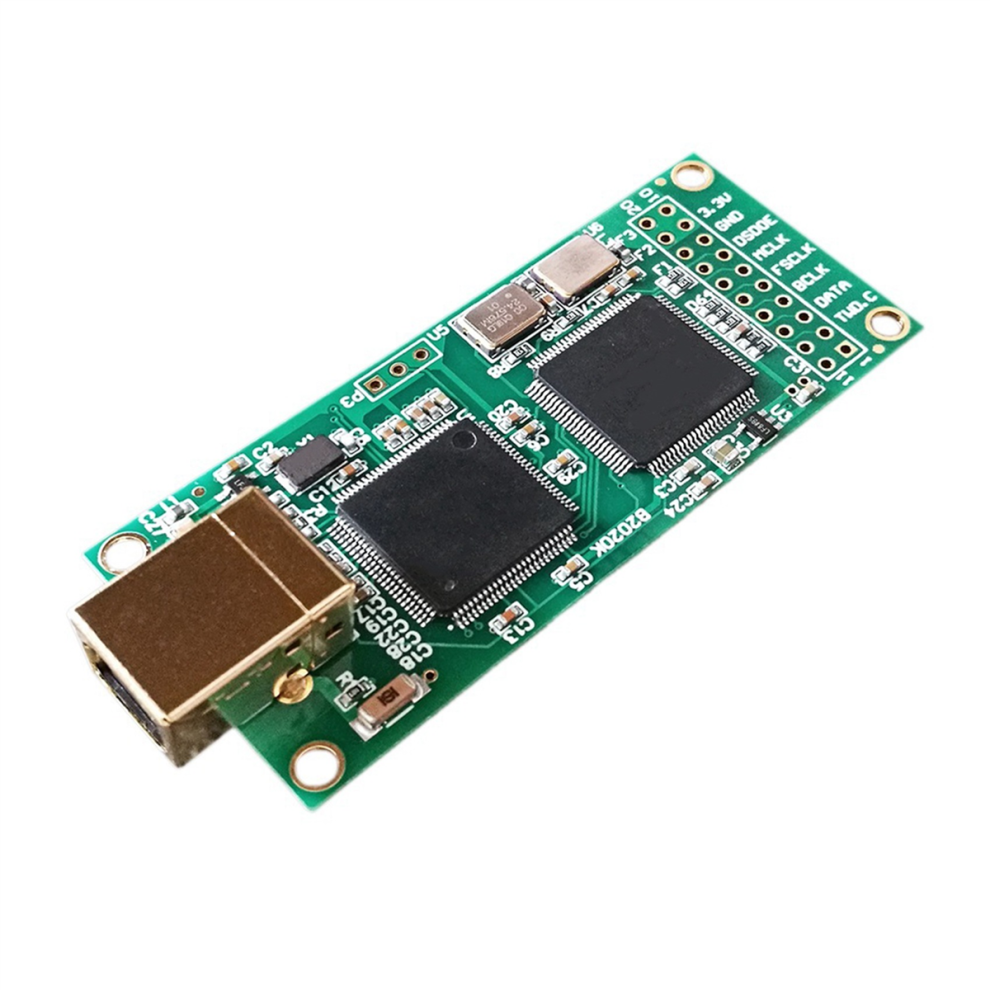

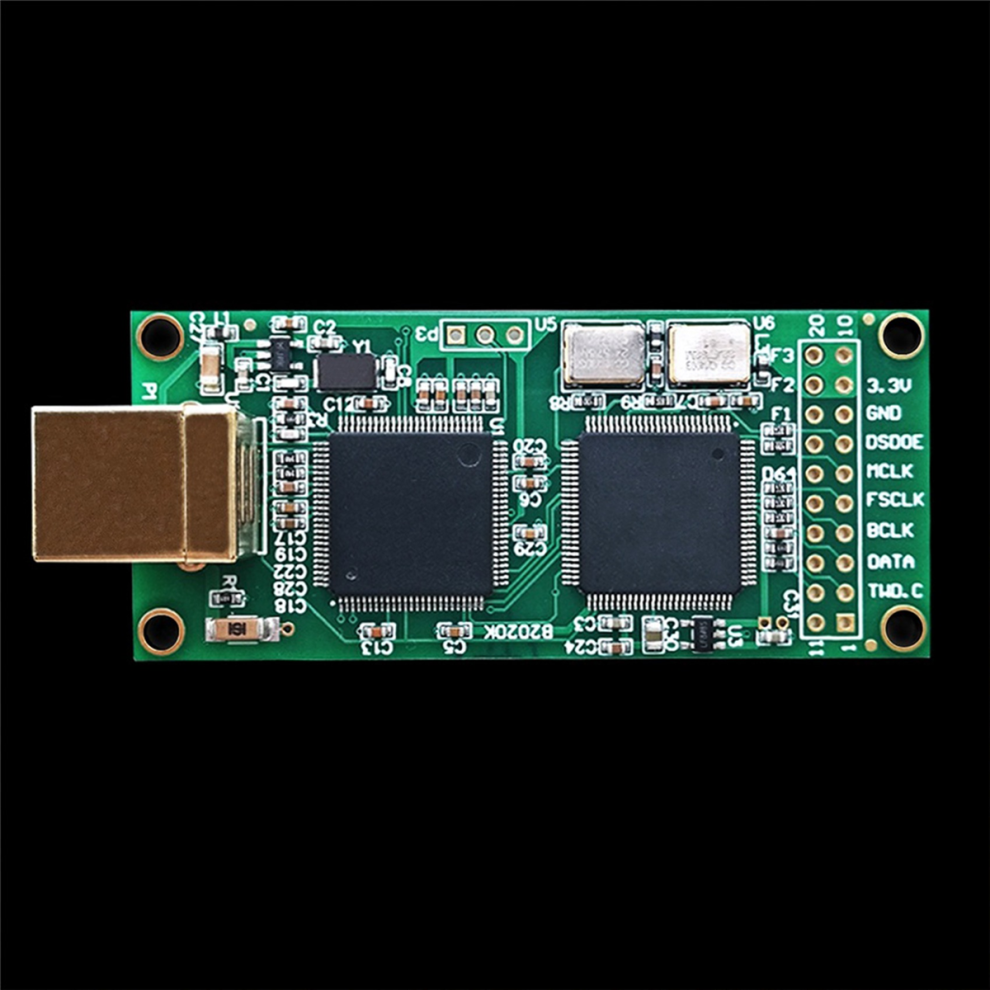

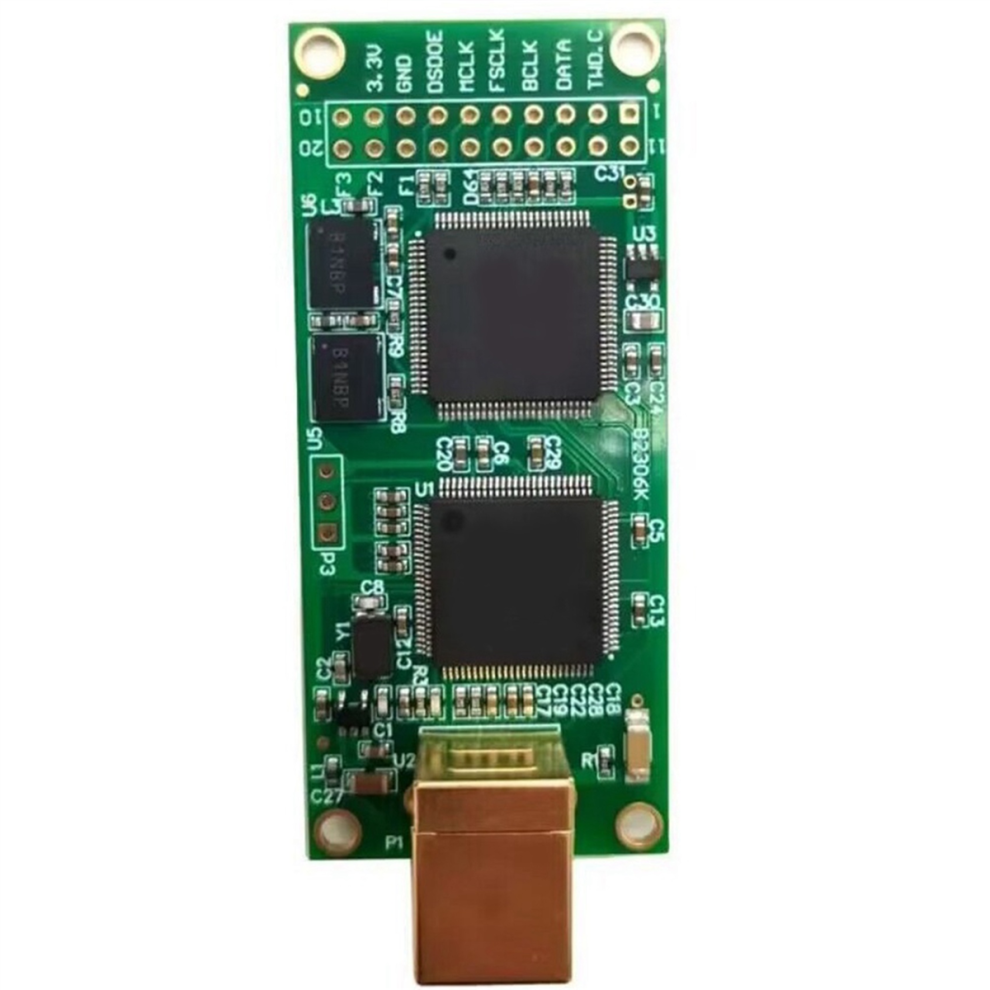

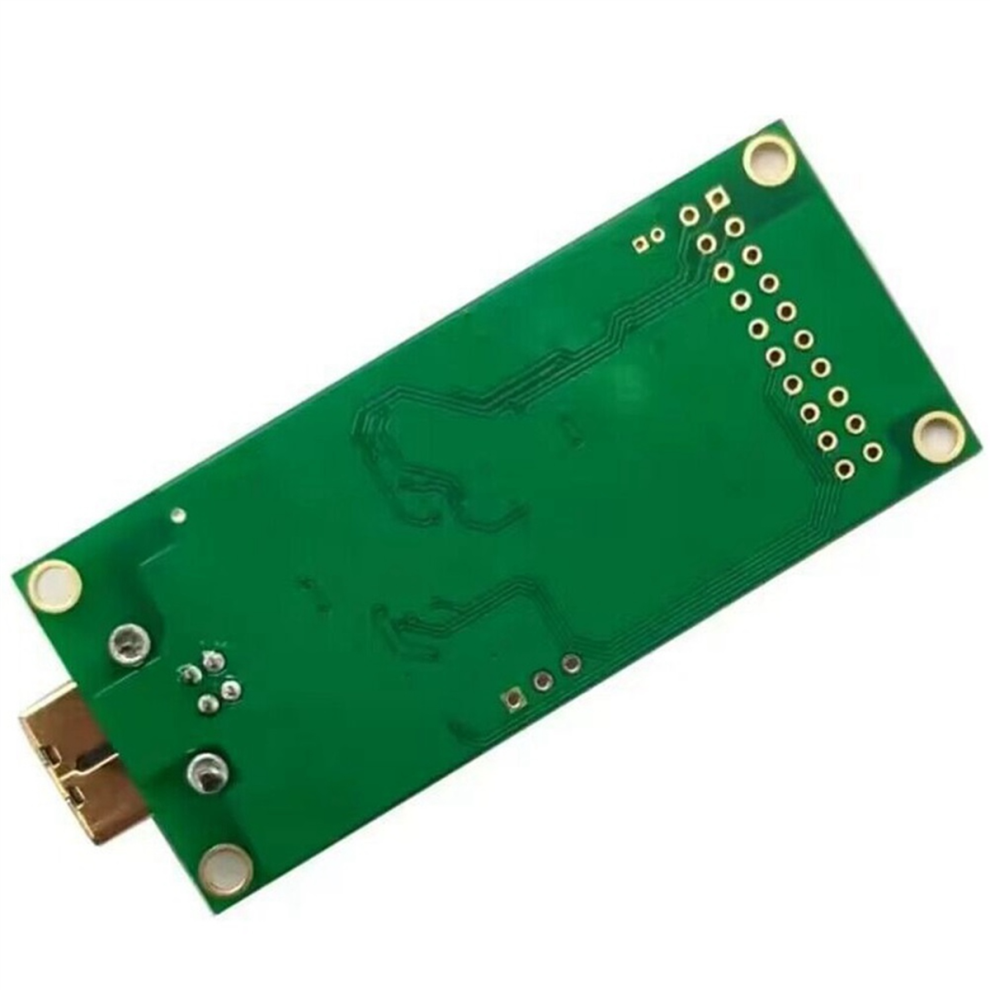

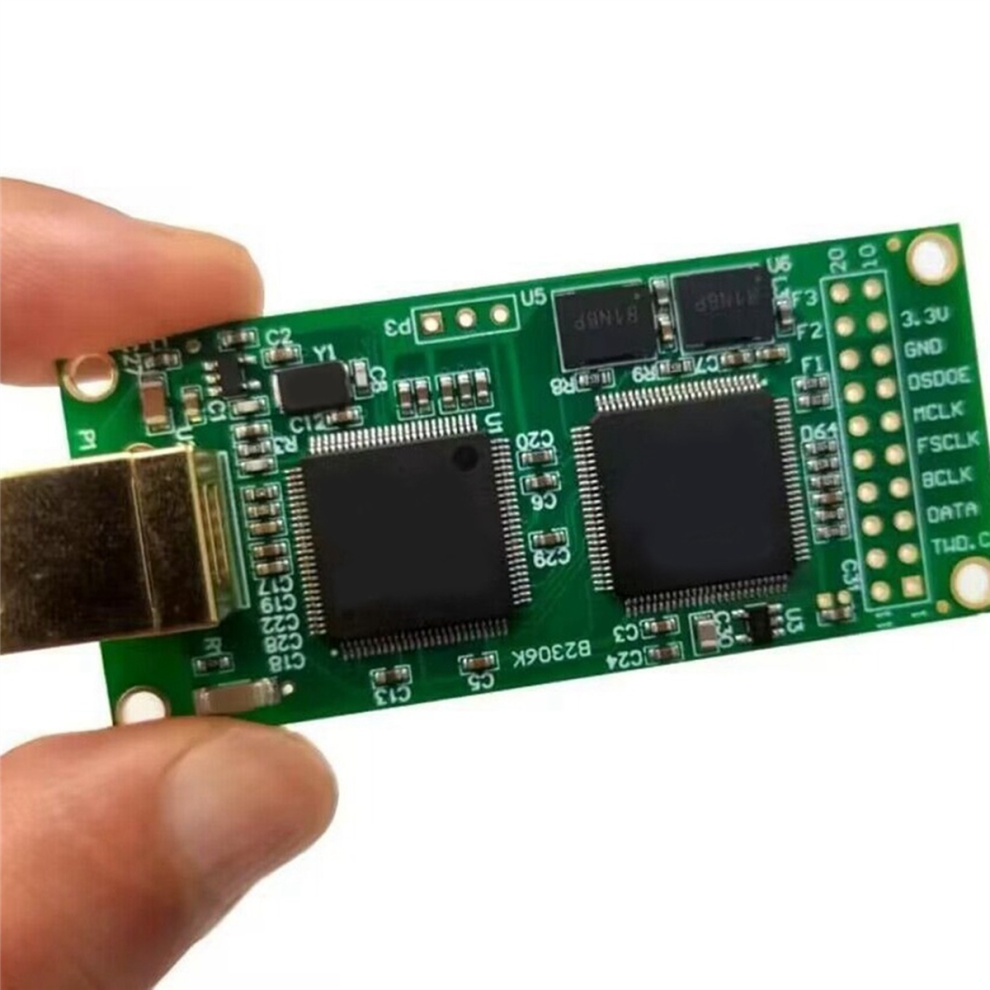

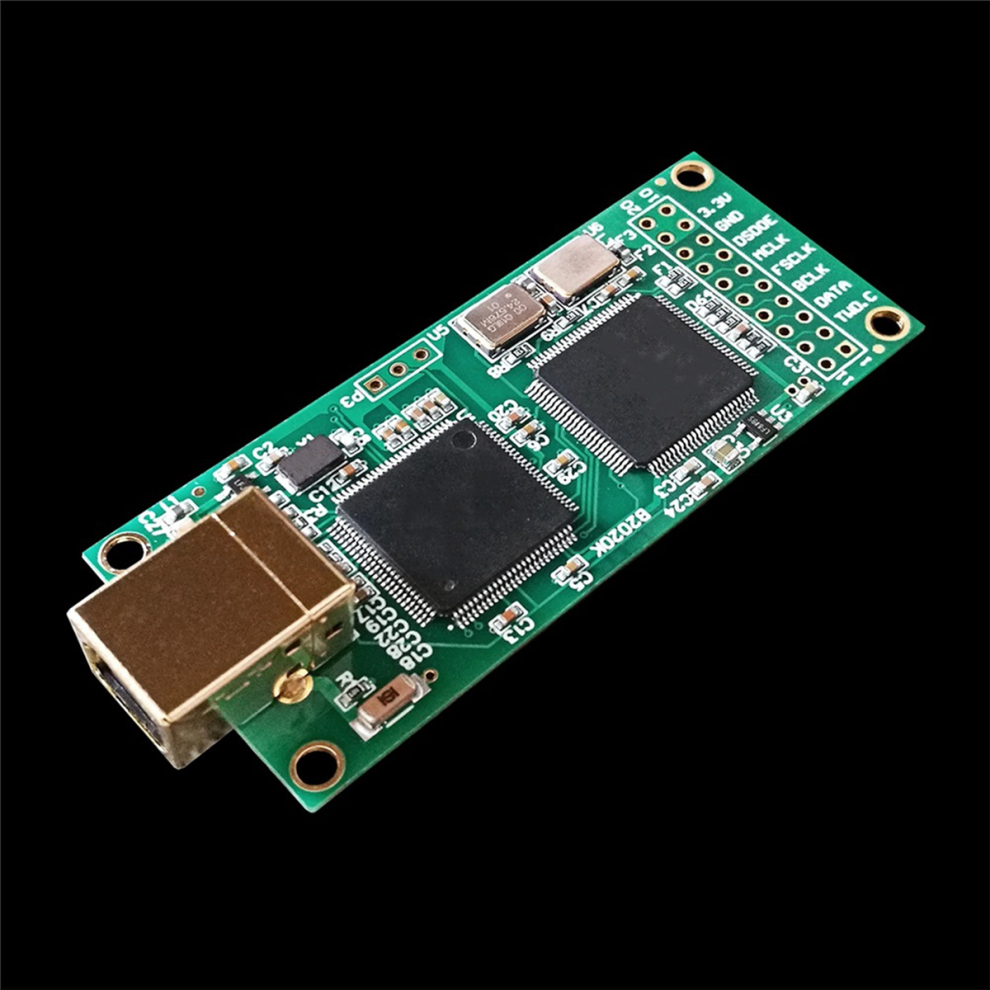

USB Amanero Combo384 Module DSD512/PCM384 32Bit

USB Amanero Combo384 Module DSD512/PCM384 32Bit Description

USB audio interface supporting USB Audio Class 2
The interface is suitable for sampling rates from 44.1 to 384kHz. 32-bit I2S or DSD output. DSD output supports DSD64 (2.82MHz) and DSD128 (5.64MHz). In the environment, you can use the ASIO driver to support DSD256 (11.29MHz) and DSD512 (22.58MHz).
The PCB is designed with a double-layer gold deposition process to good performance in passing large and small currents
High quality active crystal oscillator
Adopting MCU optimization control scheme to fully optimize USB data chip, resulting in better signal integrity and less signal distortion

OS confirmed operation: Vista, 7, 8.1, 10; MacOS X 10.6 or above; Linux
Computer sampling rate
PCM: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384kHz
DSD: 2.82(64), 3.07, 5.64(128), 6.14MHz
DSD 11.29(256), 22.58MHz(512) (only when using ASIO driver in )
Output format: 32bit I2S or DSD
Power supply: USB5V

Depending on the batch, the appearance of the electronic components on the board may be different from the picture, but the functions are the same and do not affect use.
Colour:green
Material:PCB+electronic components

Package Contents:
1 x USB Amanero Combo384 Module

Only the above package content, other products are not included.

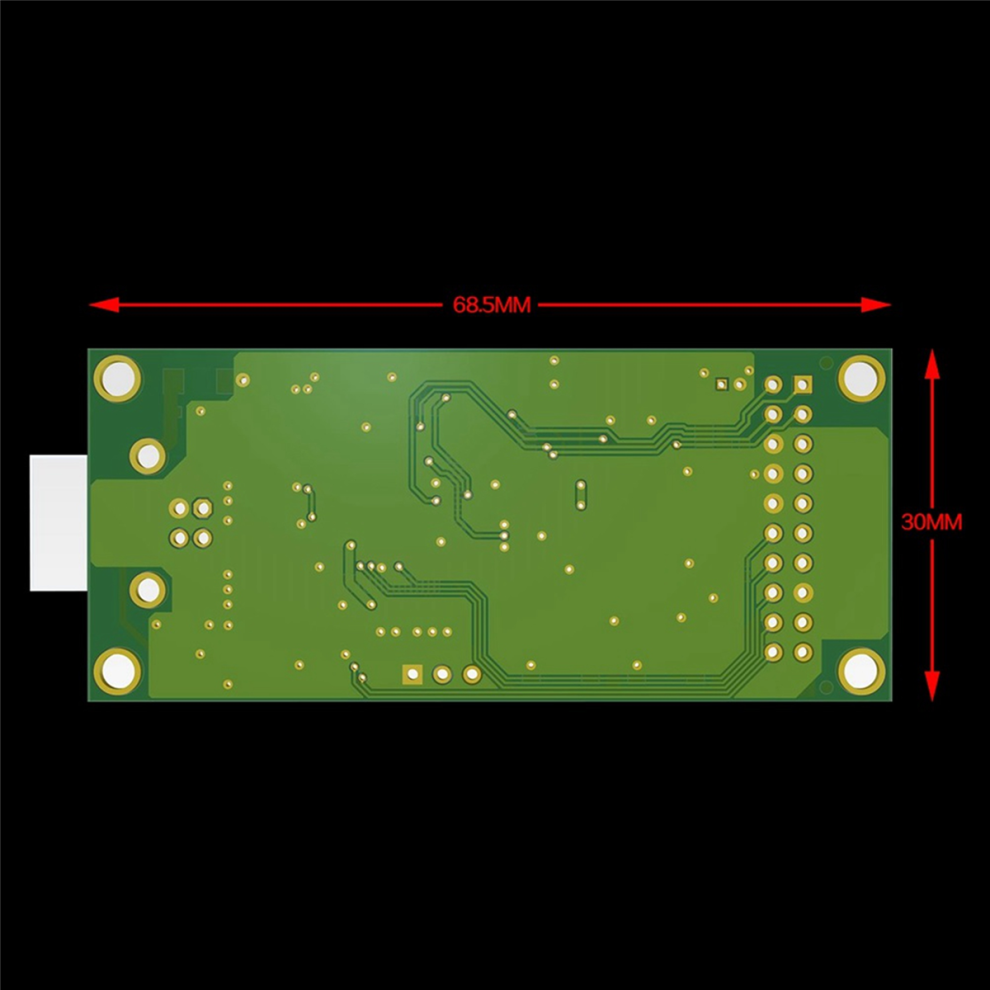

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
