USB C Power Meter

USB C Power Meter Description

Features:

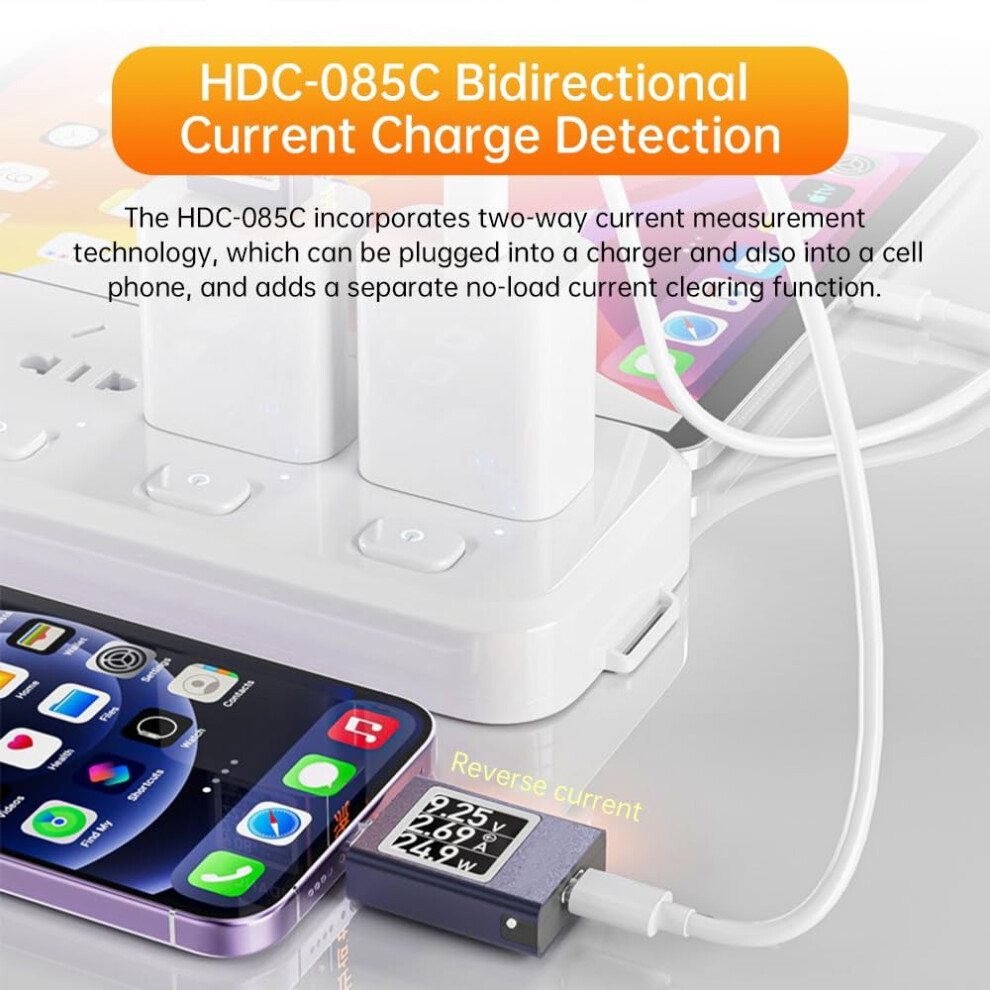

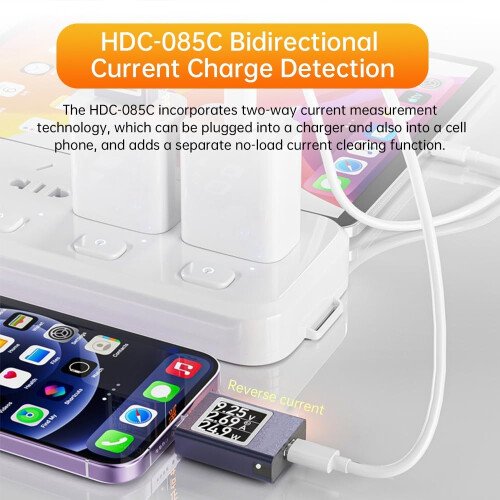

Multifunctional USB C Power Meter:Usb c tester Designed to detect the charging status and process of USB-C devices. Supports PD3.1 48V, PD2.0, PD3.0, PPS, OC2.0, QC3.0, FCP, SCPAFC, PE, DASH VOOC, SuperV00C and more protocols.

Support to detect charging performance of USB-C chargers, cables, power banks, wireless chargers, laptops, smartphones, and other USB-C devices.

With a measurement accuracy comparable to professional-grade instruments at ??0.1%, it is an essential tool for testing USB-C ports.

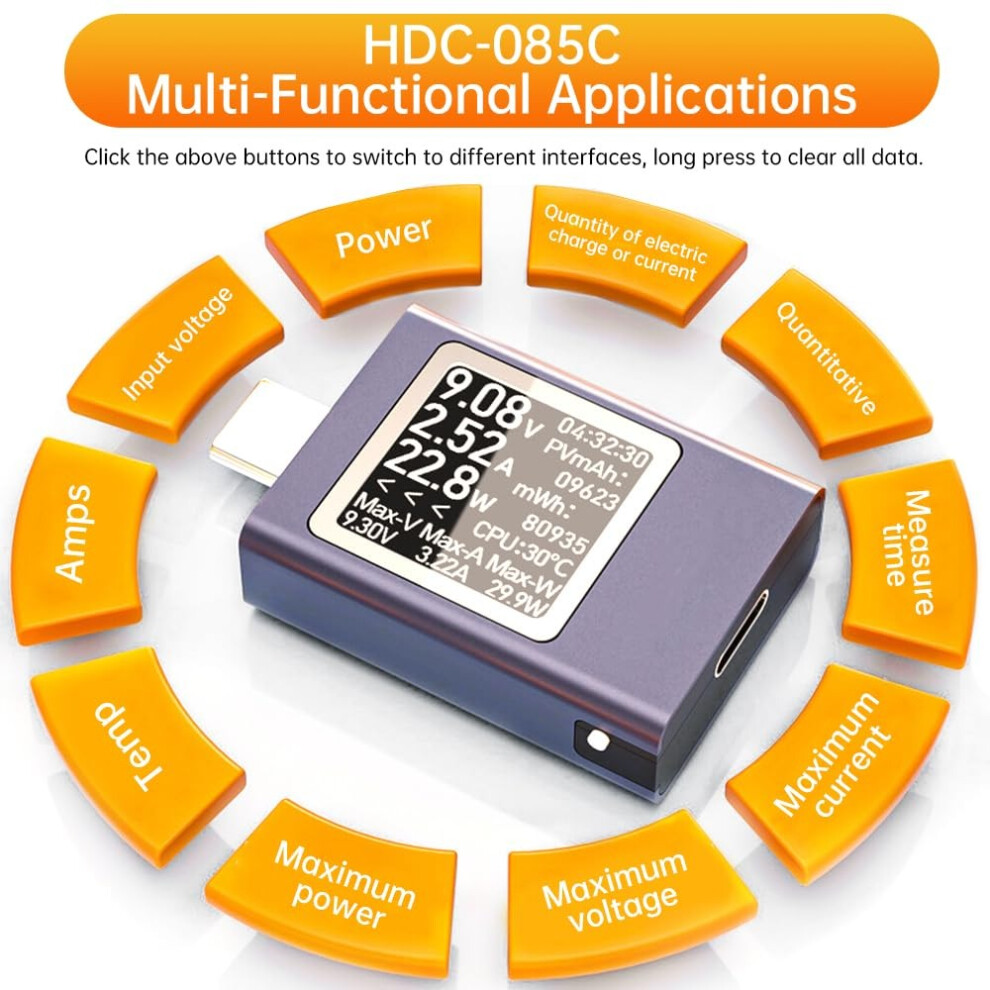

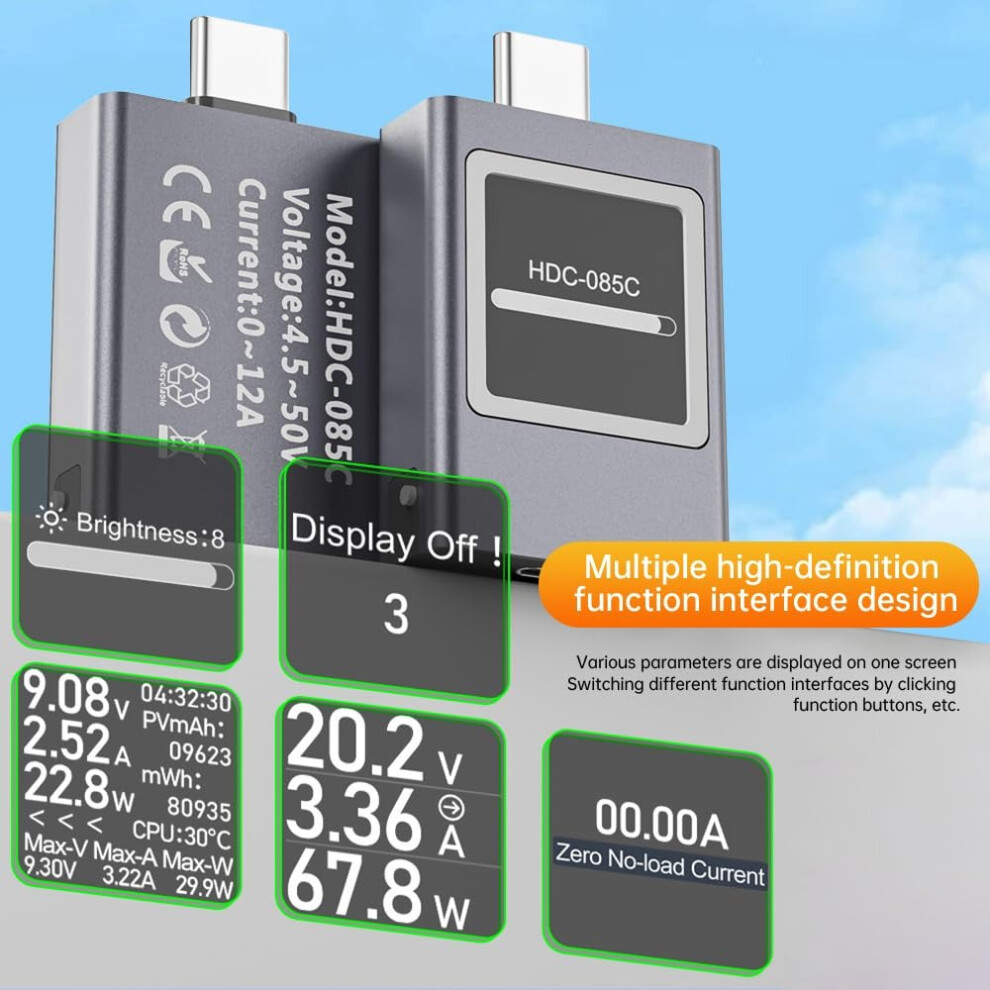

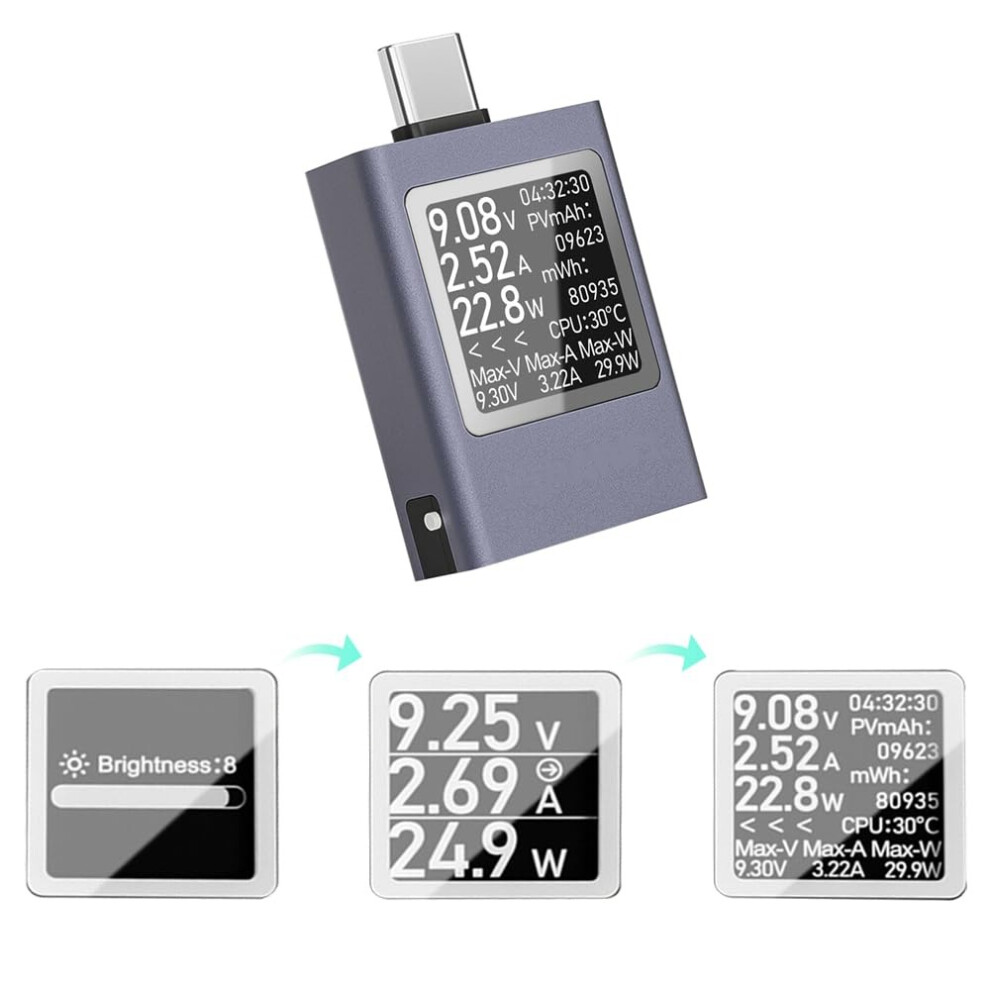

Multiple Color Display Modes:Usb power meter upgraded version offers 6 LCD primary color display interfaces, support to monitor real-time voltage, current, capacity, power, and CPU temperature of USB-C devices,

while also recording peak current/voltage/power and time.Real-time voltage and current curve page allows you to instantly observe fluctuations and changes during charging; To analyze the curve over a specific period,

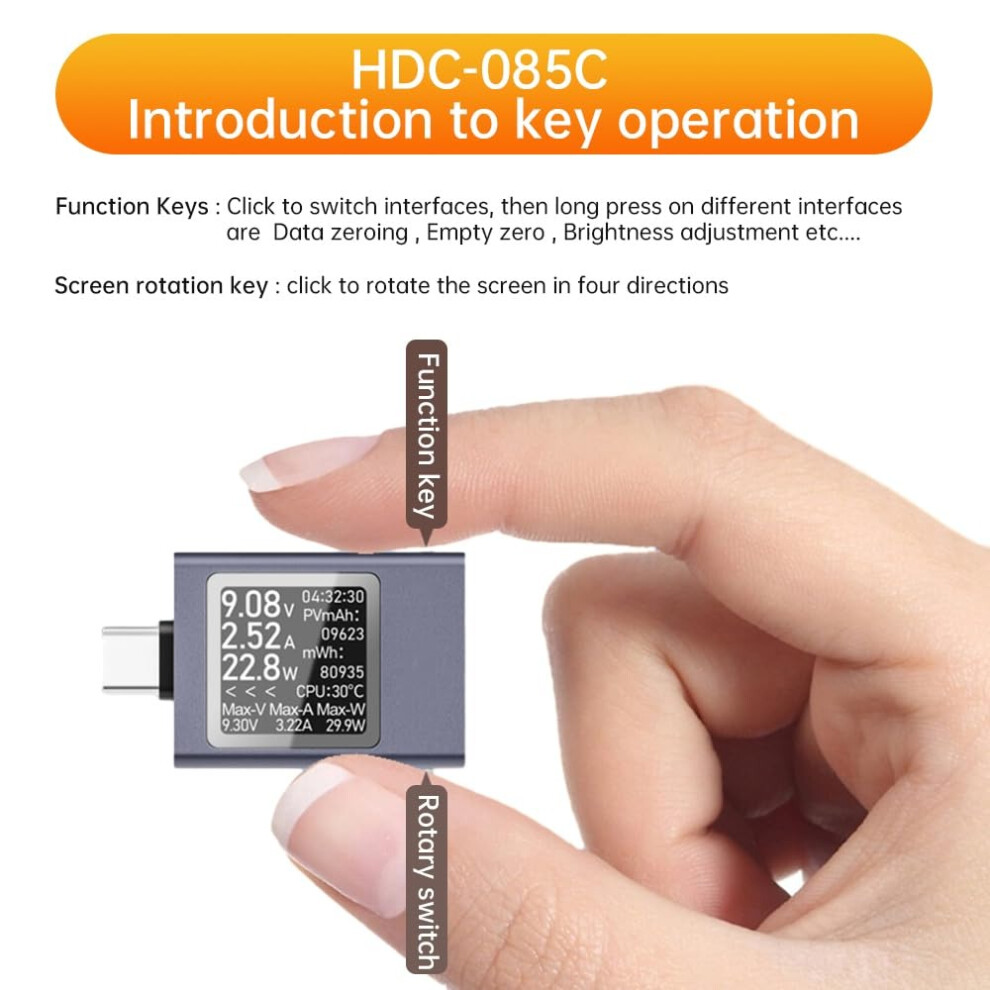

you can long-pressing the confirmation key on this page to pause and resume the curve.

Battery Capacity Calculation:Usb c meter according to the step high-voltage charging power quasi-value data for the battery voltage and conversion rate of the logic through the software to calculate the internal battery capacity of the device,

to avoid the high-voltage test can not be tested due to the disadvantages of the battery capacity of the machine, so as to accurately derive the value of the internal battery capacity of the device, and the battery capacity of the device.

Real-Time Peak Value Recording:USB-C tester allows you to check the max-voltage, max-current, and max-power values during charging period, easily to determine the extreme charging power of phones, chargers, power bank etc.

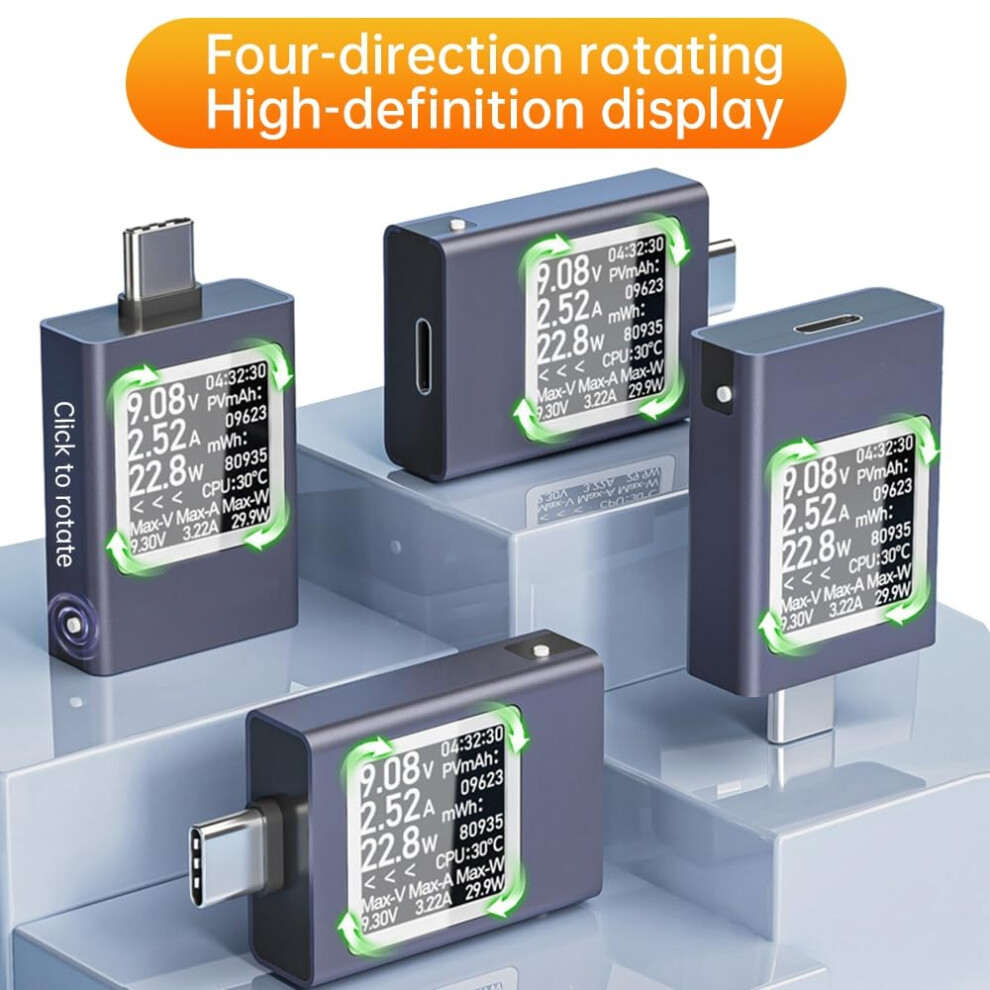

The AT085 USB-C tester adds a gravity acceleration sensor and the display can automatically rotate the screen in 4 directions to provide you with the better reading experience(Note: Press the confirmation button 5 times consecutively to enter direction lock mode).

Specification:

Product Name??Type-C detector

Working Voltage??DC4.5~50V

Working current: 0~6A (short time peak 12A)

Data retention period: TA=55C 20 years

Power display: 0~9999WH

Power consumption of this meter: <0.15W

Power display: 0~600W

Sampling resistance: 0.001R

Capacity display: 0~99999mAh

Operating temperature: 0~45C/32~113??F

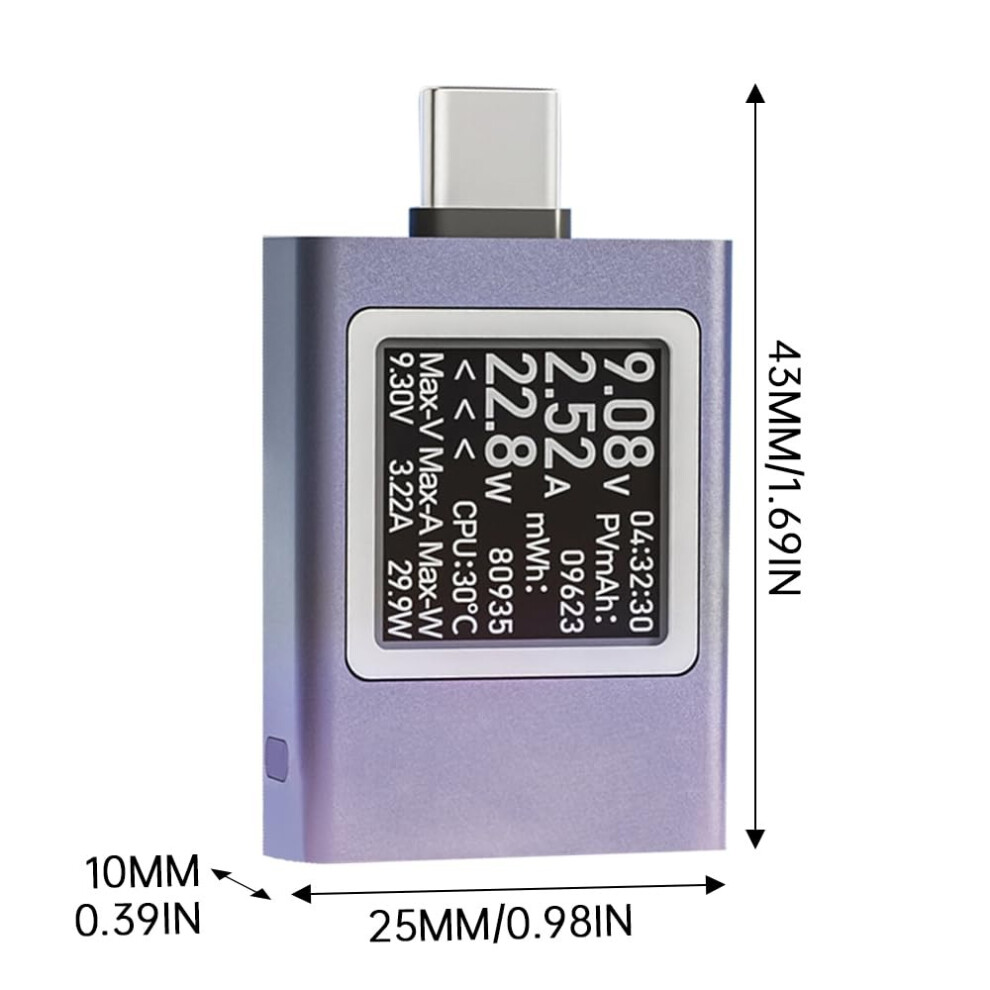

Product size: 43*25*10 (L*W*T)

Package Included:

1*Charge Tester (others not included)
