USB CNC Motion Control Card, 9.8x6cm, 12-24V, Windows 10

USB CNC Motion Control Card, 9.8x6cm, 12-24V, Windows 10 Description

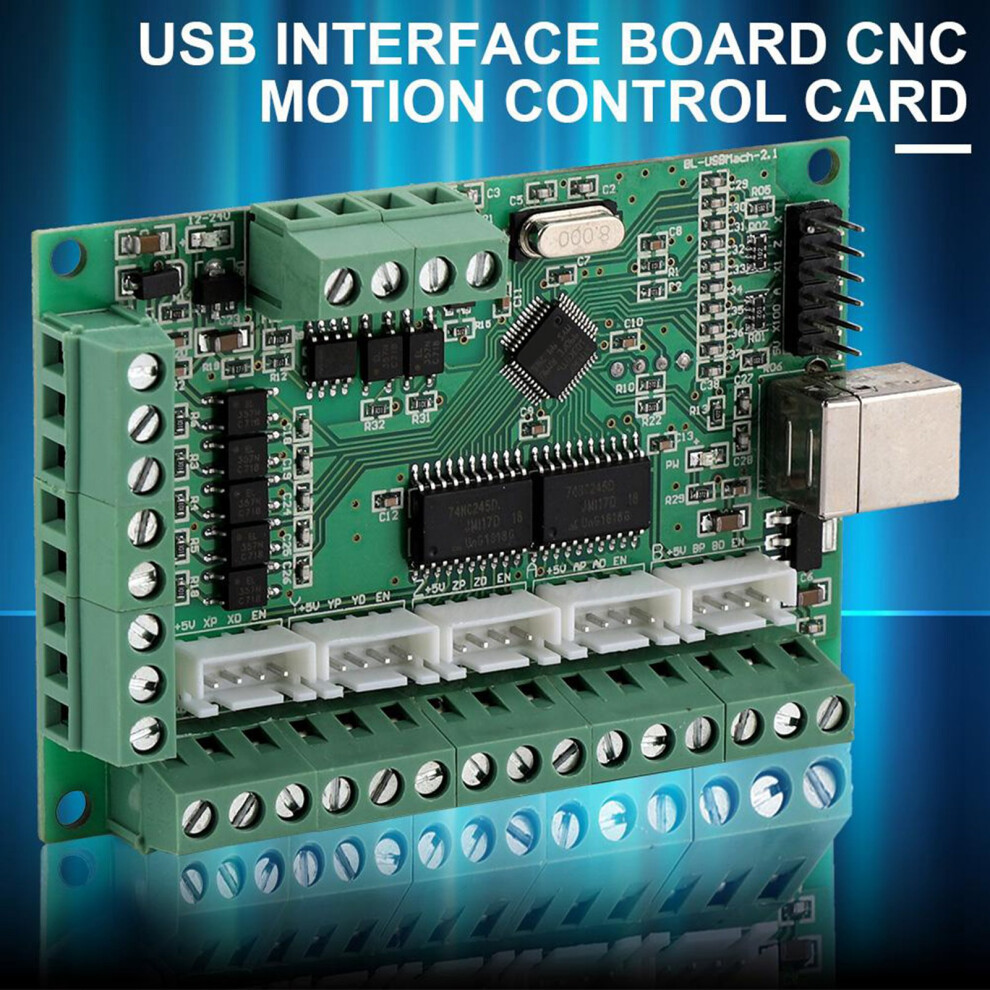

USB Interface Board CNC Motion Control Card For Engraving Machine

Features:

The
frequency converter interface (AVI+, AVI-) is isolated from the
computer and the main control circuit, Strong anti-interference ability

Support for Windows XP, WIN7, WIN8, WIN10, support for 64-bit systems,
support for laptops, support for tablets.


The external wide voltage input, 12-24V, and anti-reverse function.

Can be accessed by
emergency stop, the knife, limit, back to zero, etc., to ensure computer
security.


All the way through the optocoupler isolated 0-10V analog voltage output, you
can control the input voltage from 0-10V analog voltage converter to control the
spindle speed


To provide PWM output (5V level), can be controlled by the PWM spindle
control.


Provide 4 output port (5V level), can be connected with the relay module
optocoupler, water control, spray and so on.

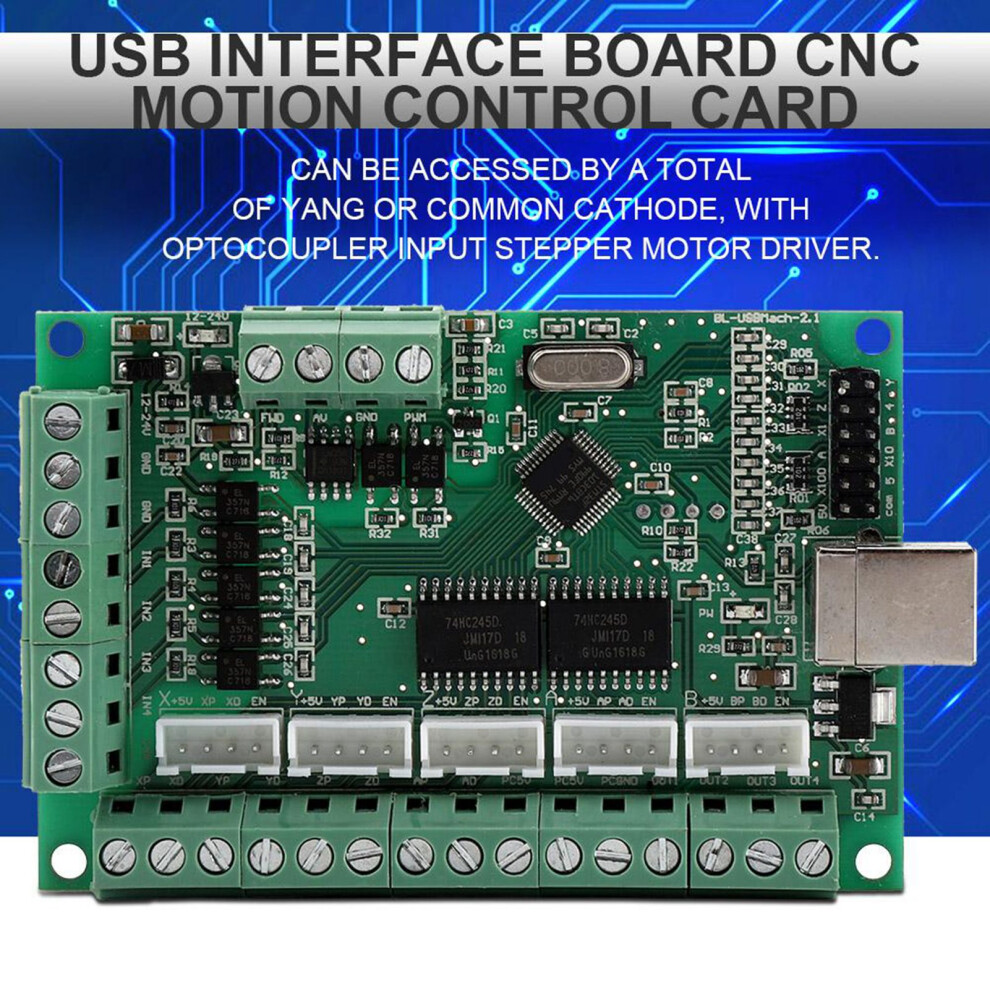

Can be accessed by a total of yang or common cathode, the input level of 5V,
with optocoupler input stepper motor driver.


To provide electronic hand wheel interface.


Specifications:

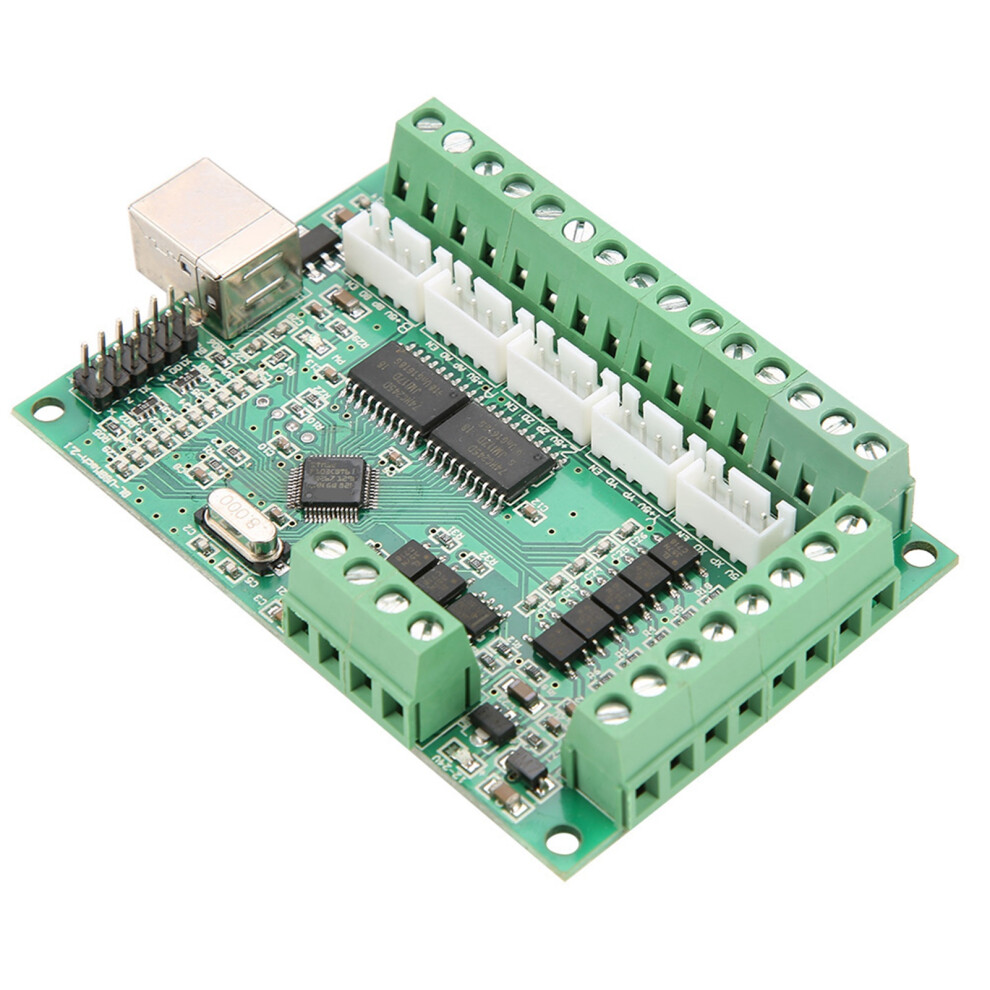

Type:USB Interface Board

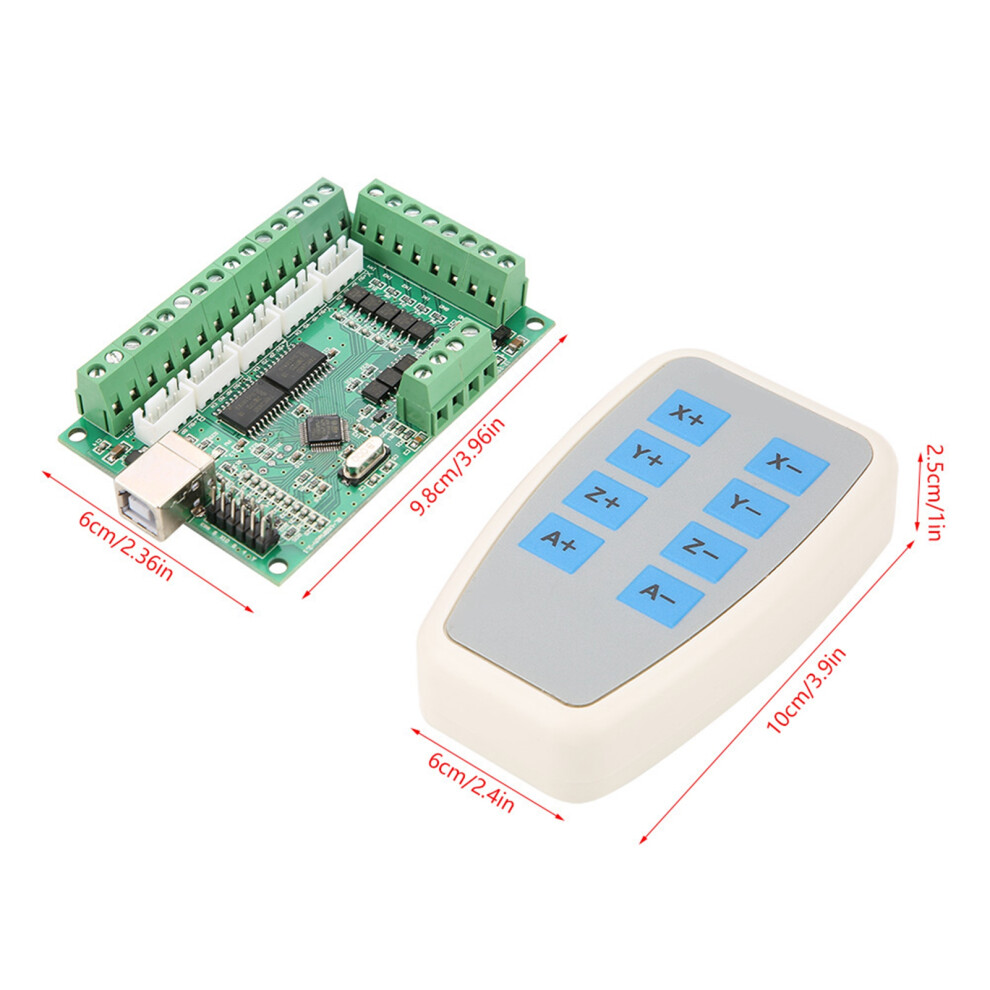

Board Size: 9.8 x 6cm / 3.96 x 2.36in

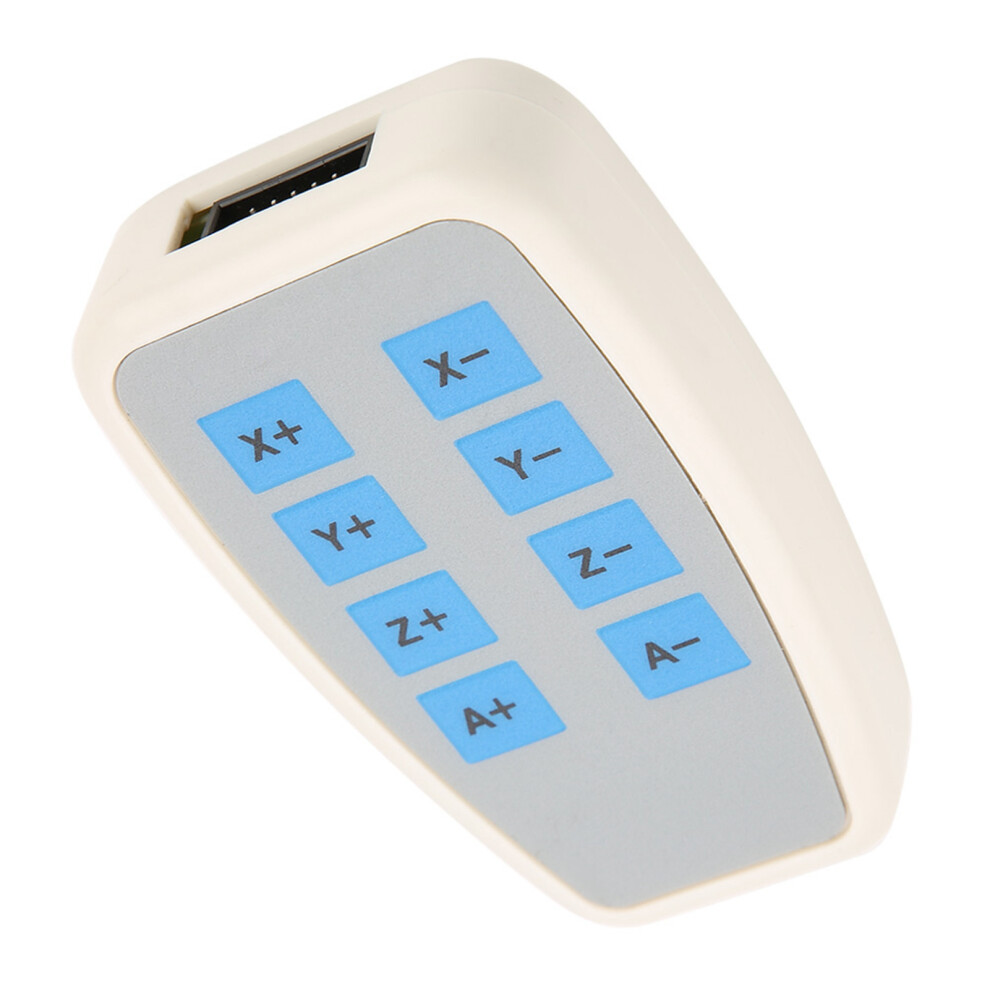

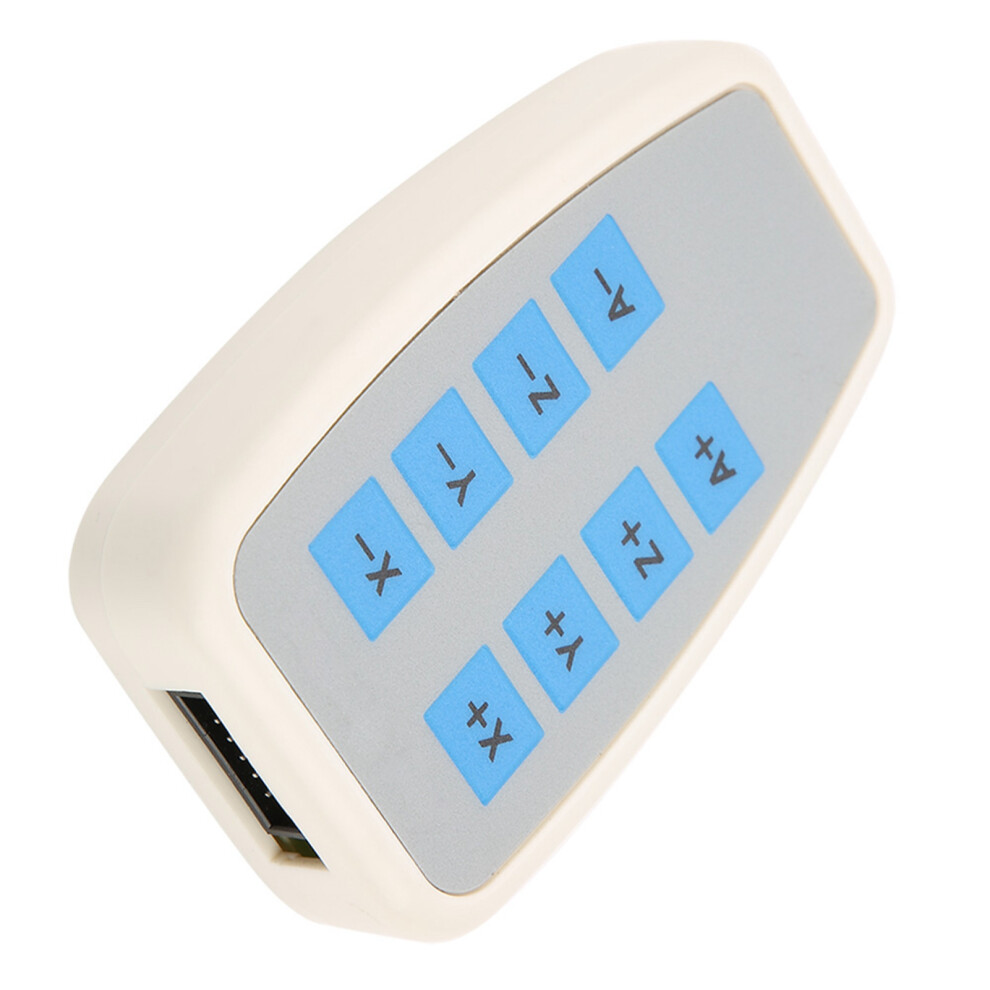

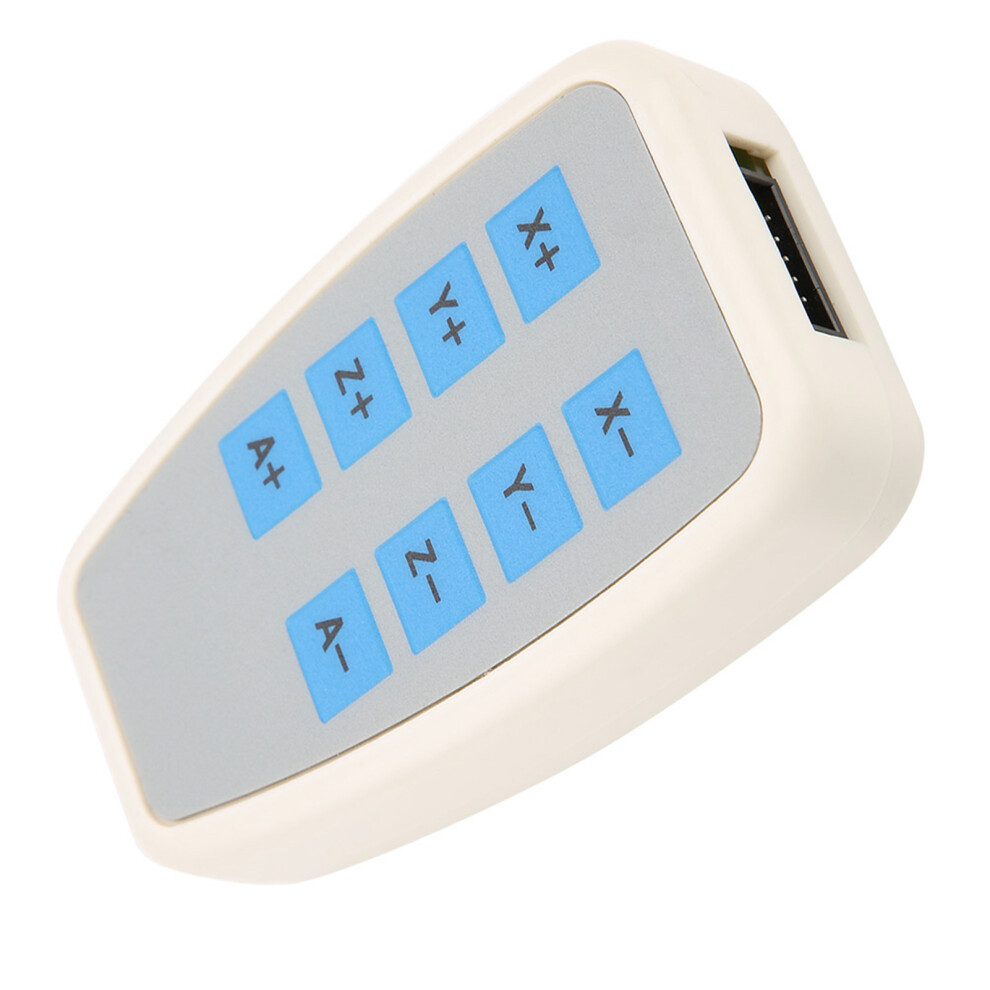

Jog handler size:10*6*2.5cm/3.9*2.4*1in
Weight: Approx.229g/8.1oz

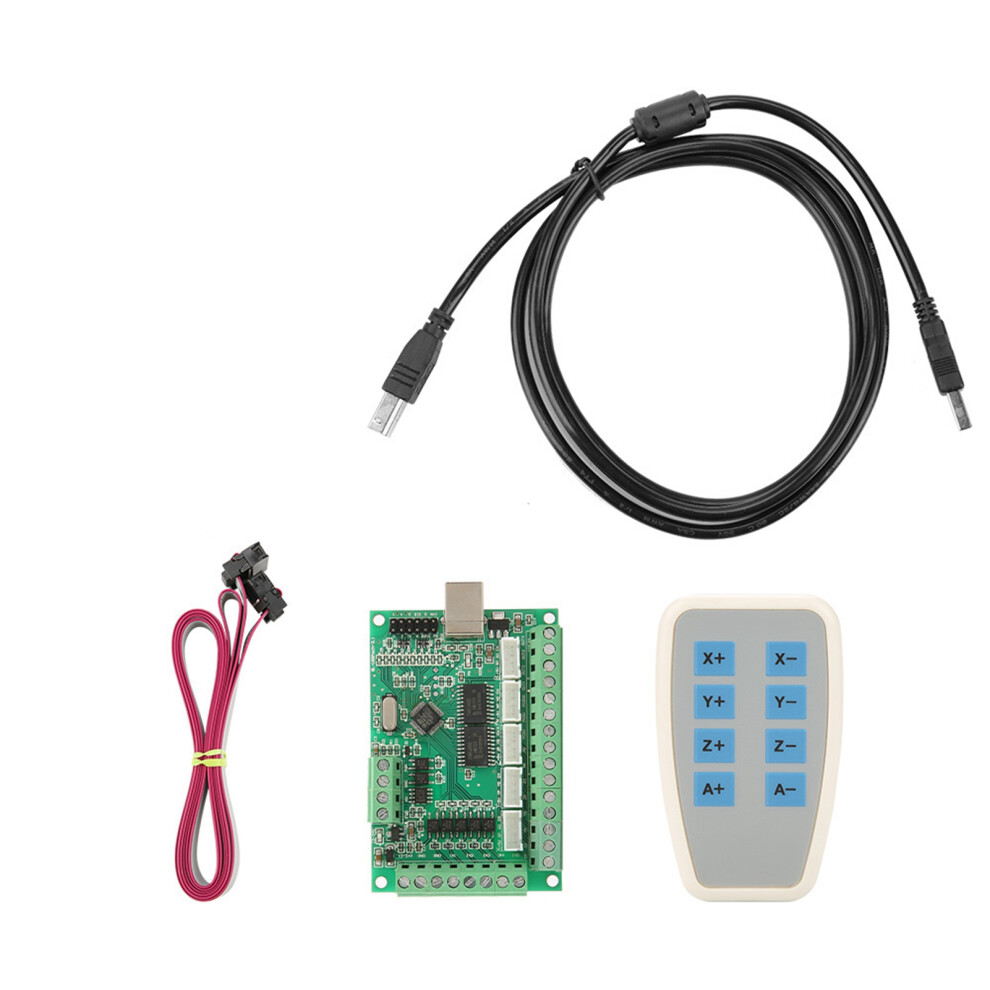

Package list:

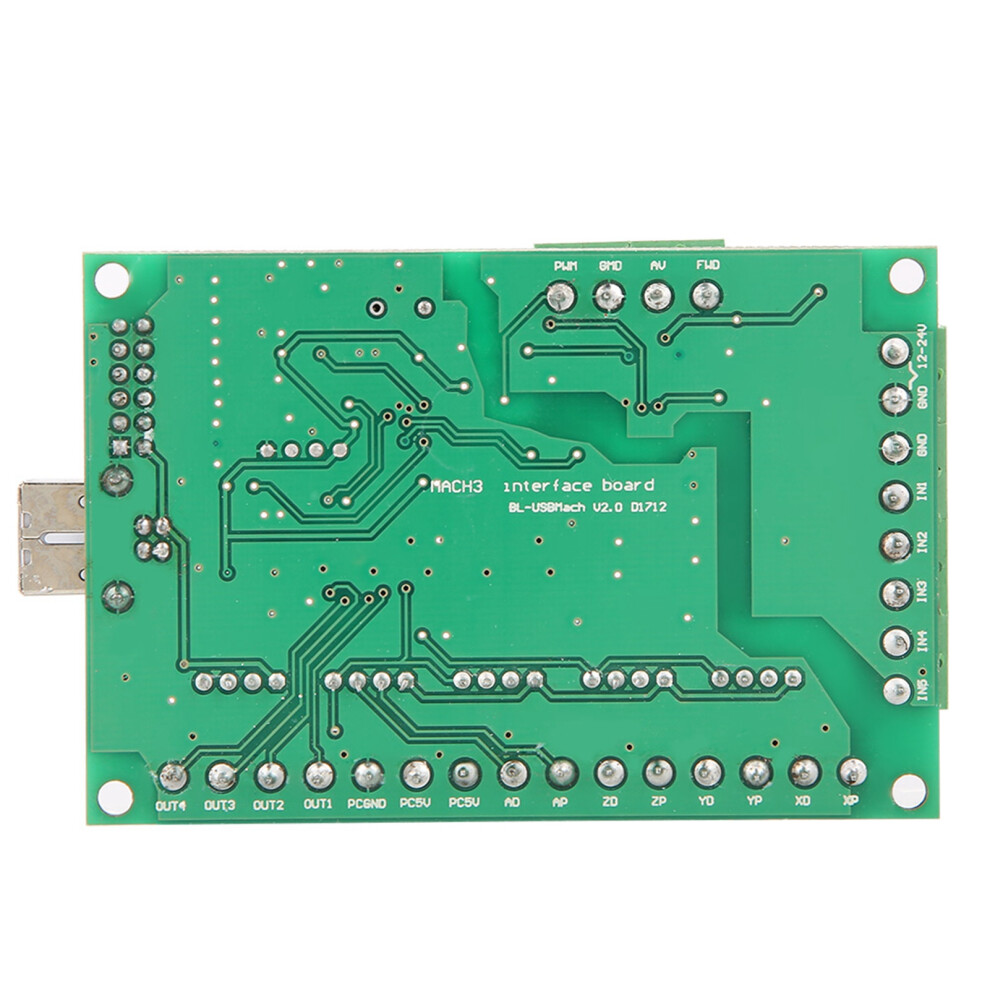

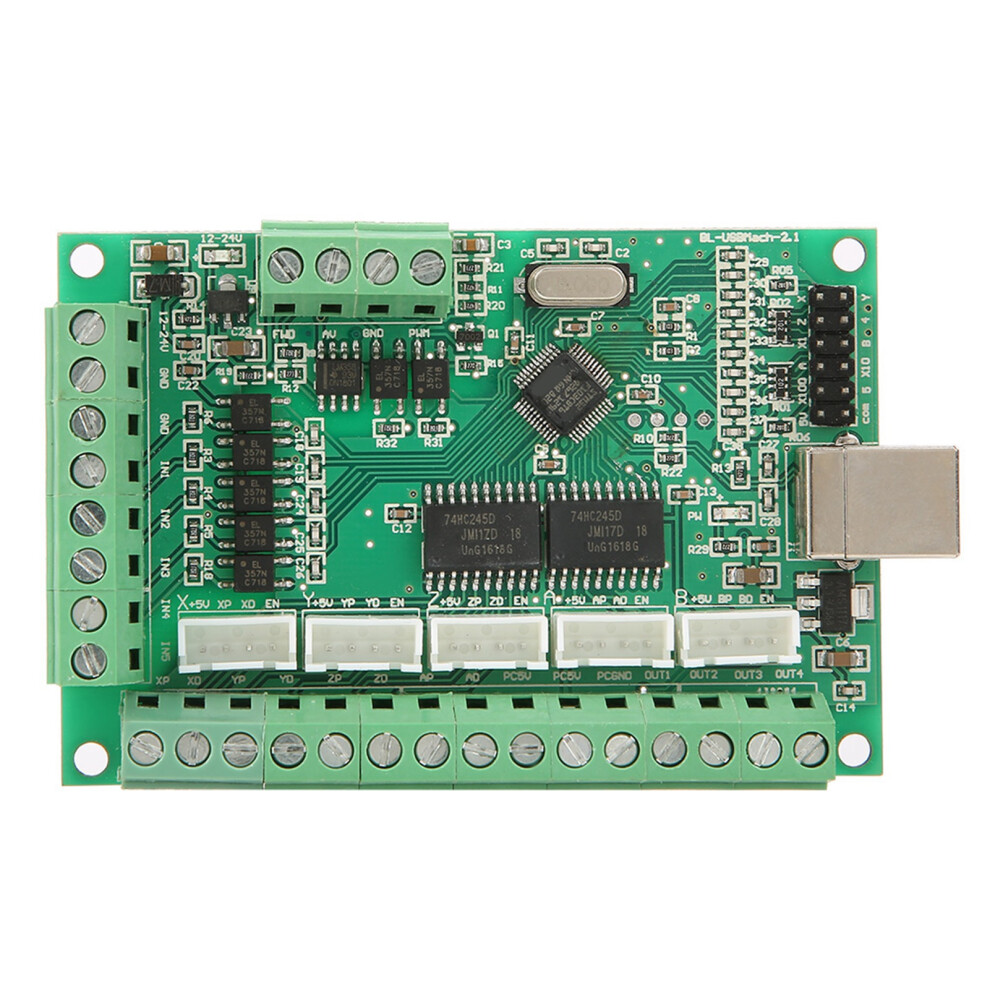

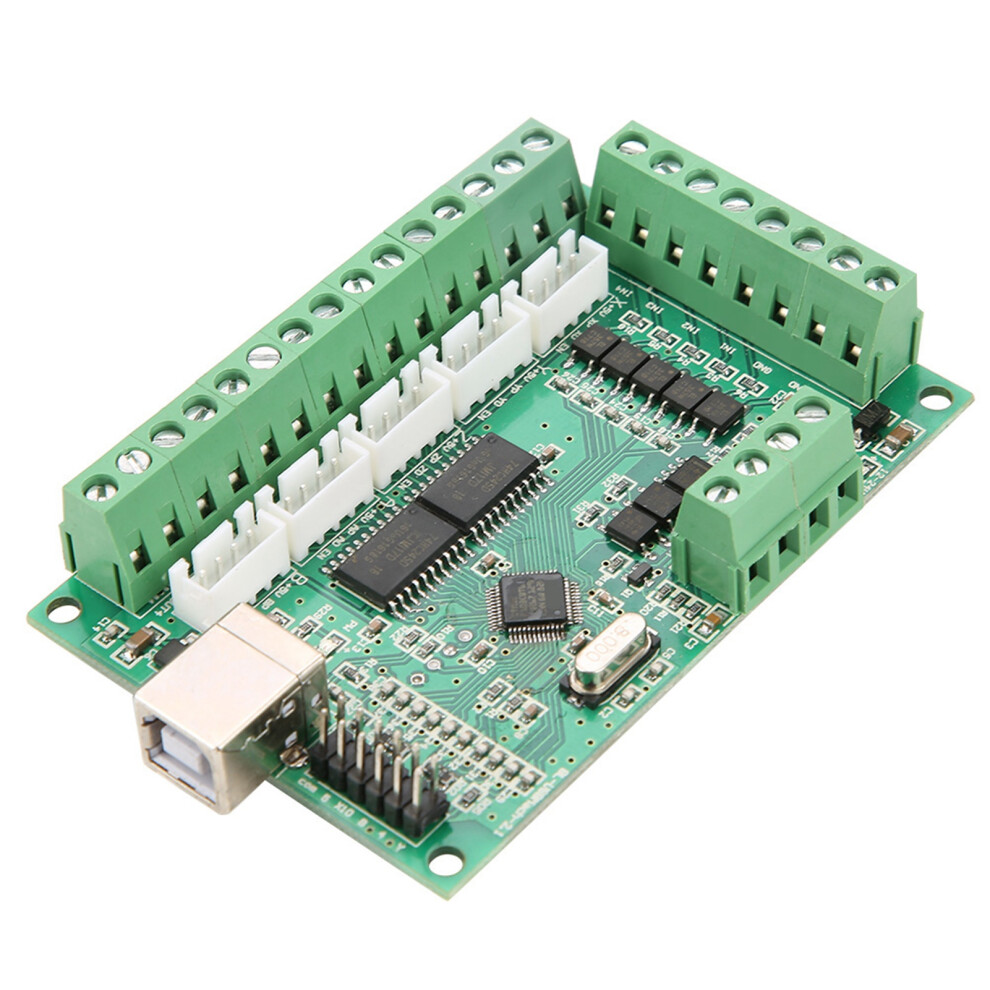

1 x interface board

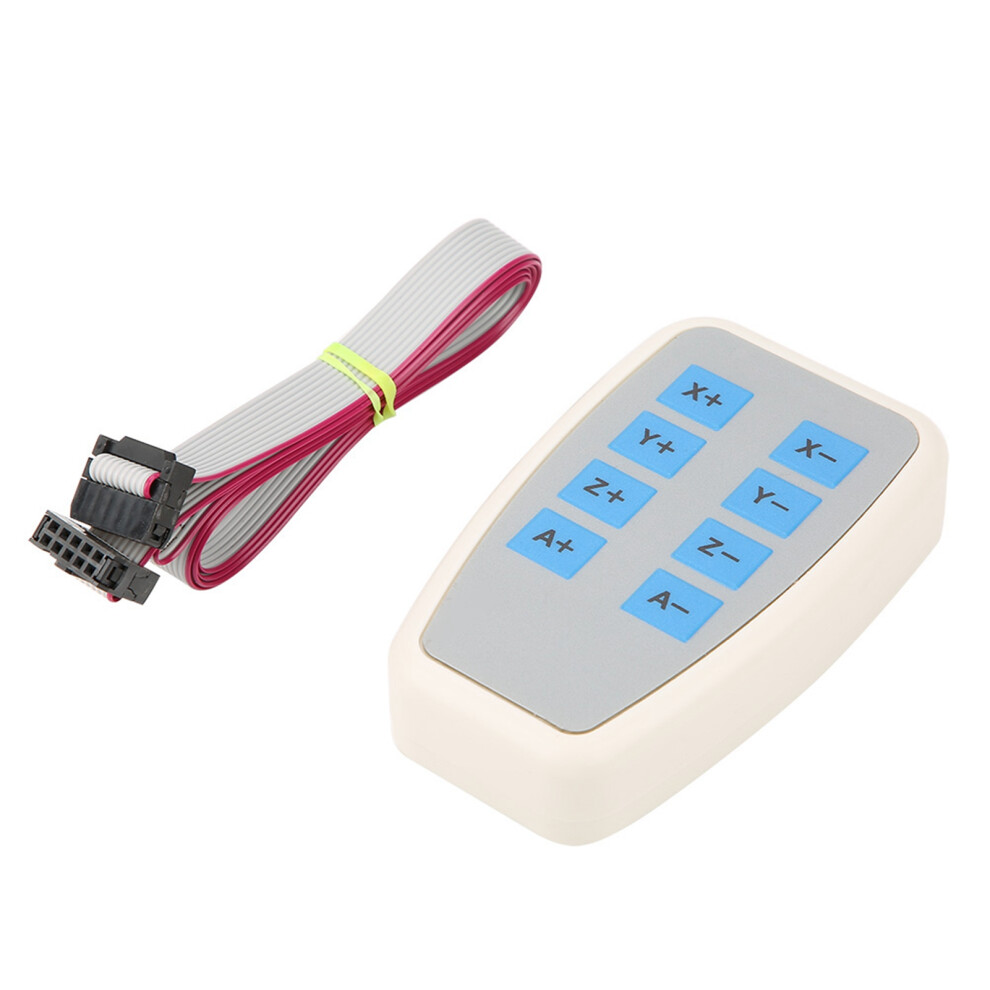

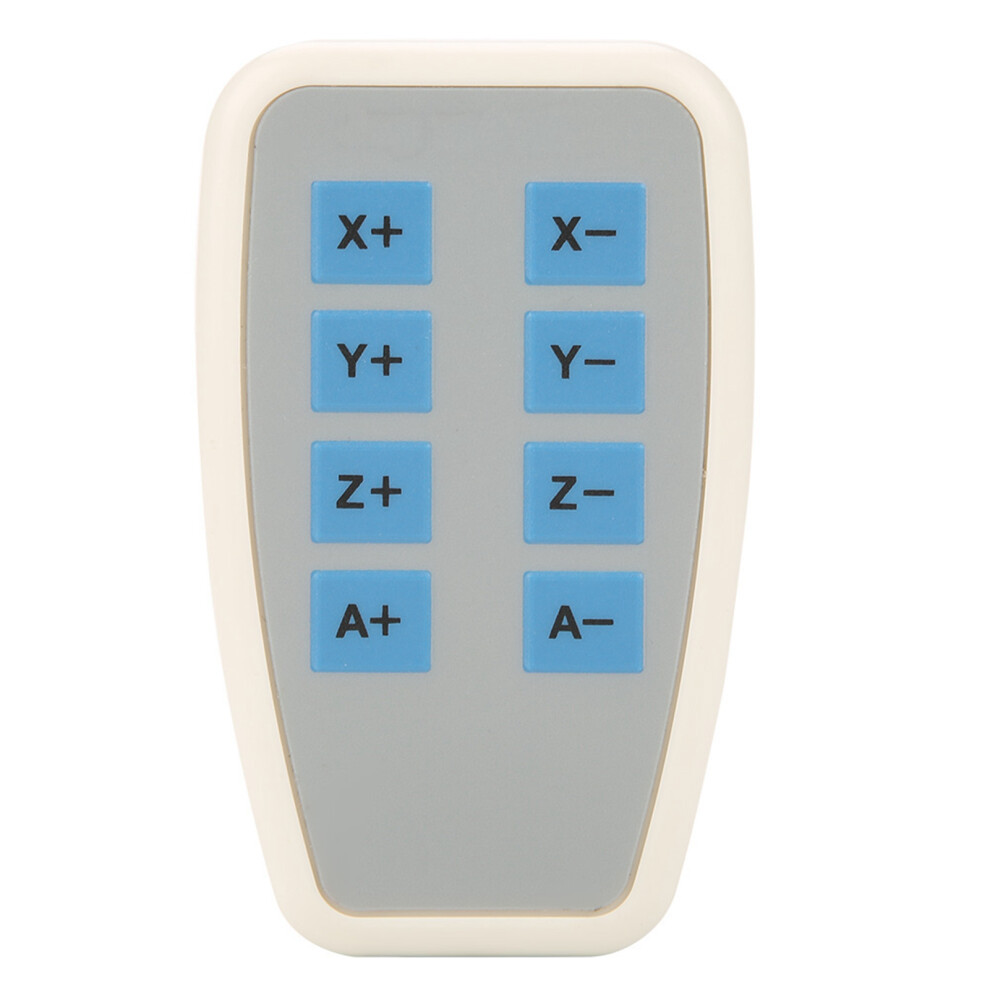

1 x Jog handler

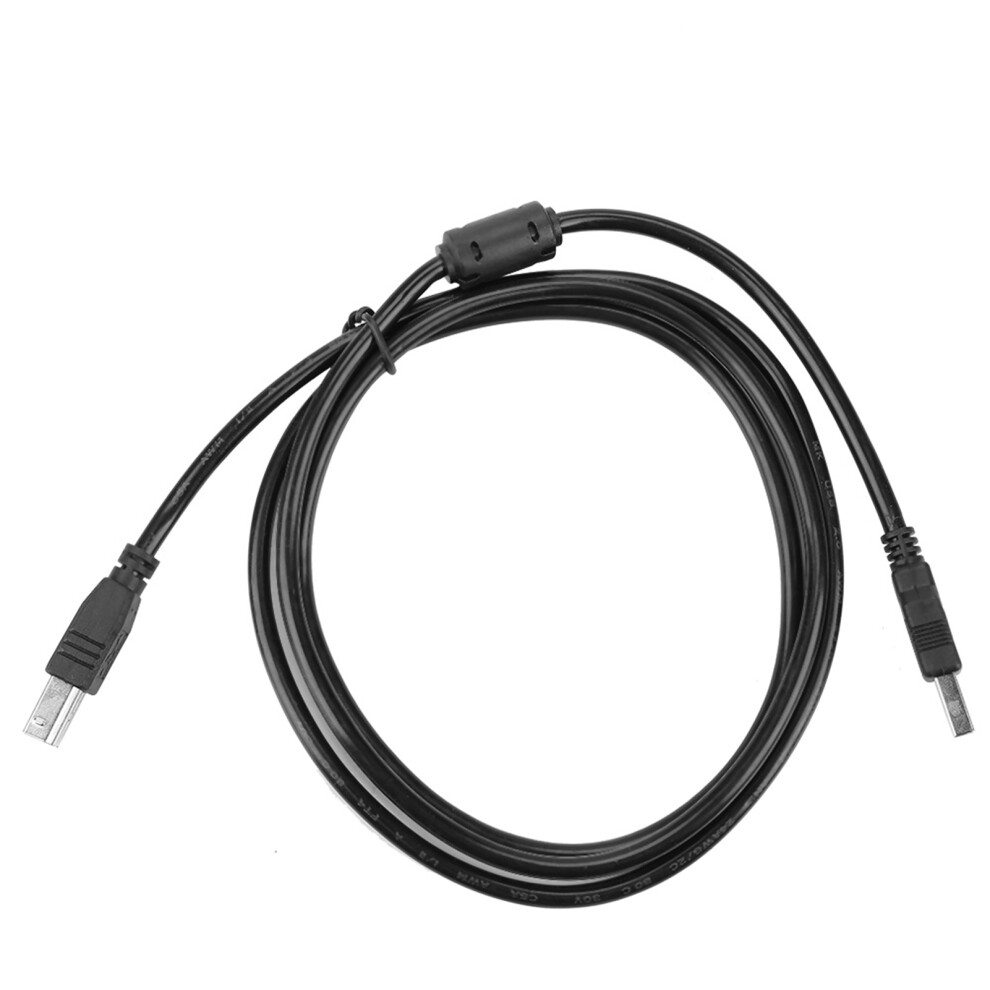

1 x USB cable

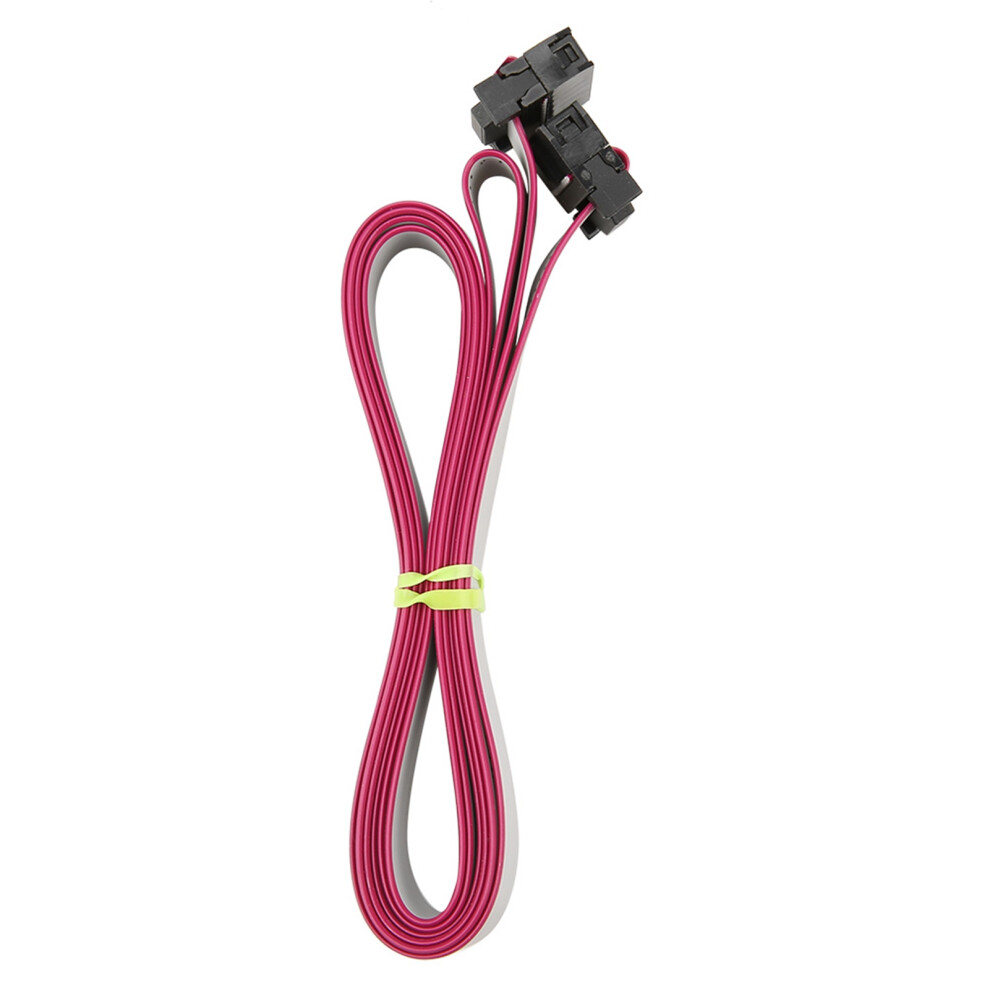

1 x flat cable
