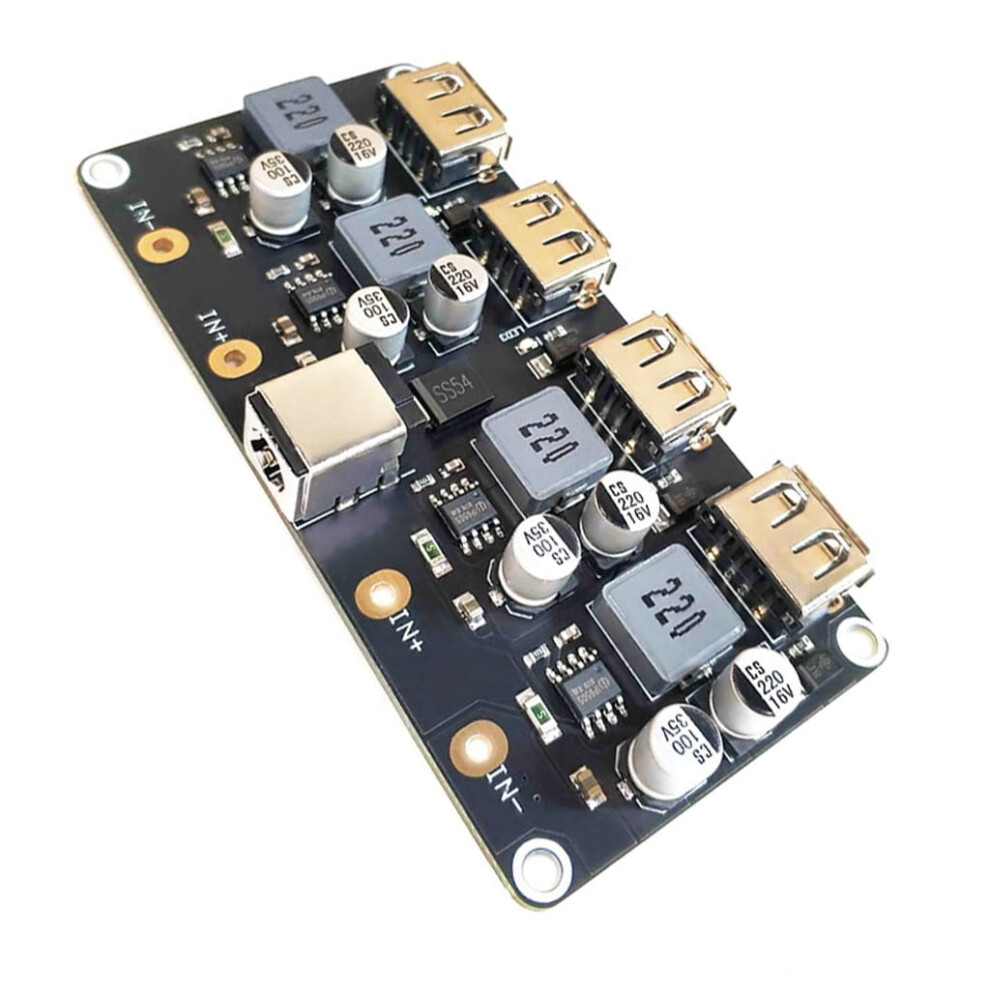

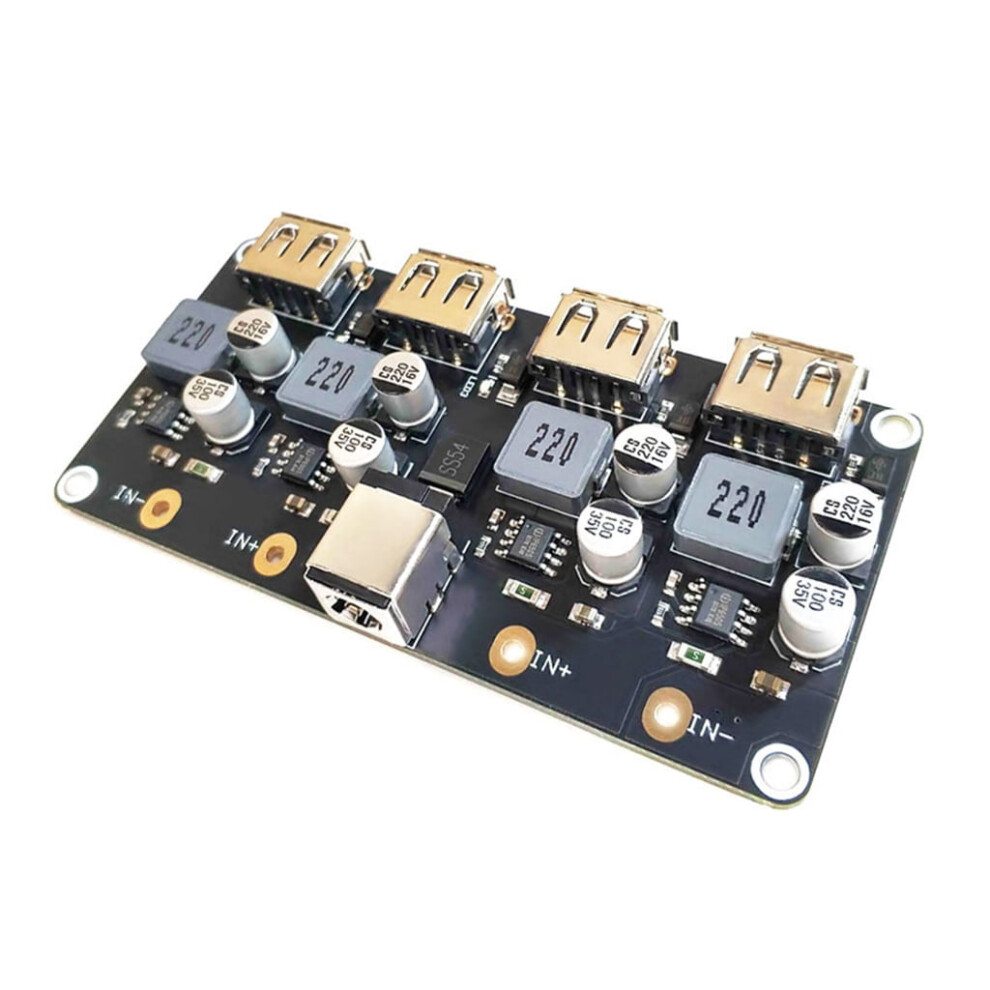

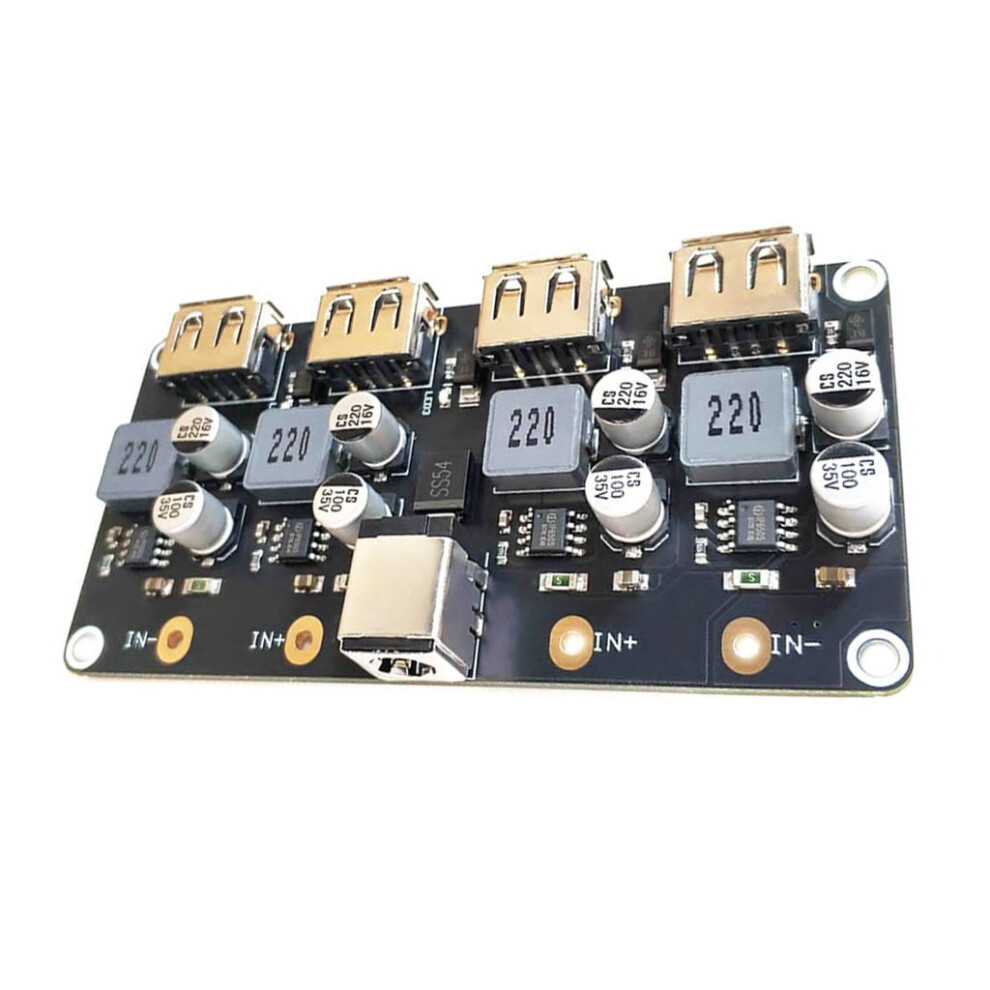

USB Quick Charge Down Converter Module 12V 24V Input

USB Quick Charge Down Converter Module 12V 24V Input Description

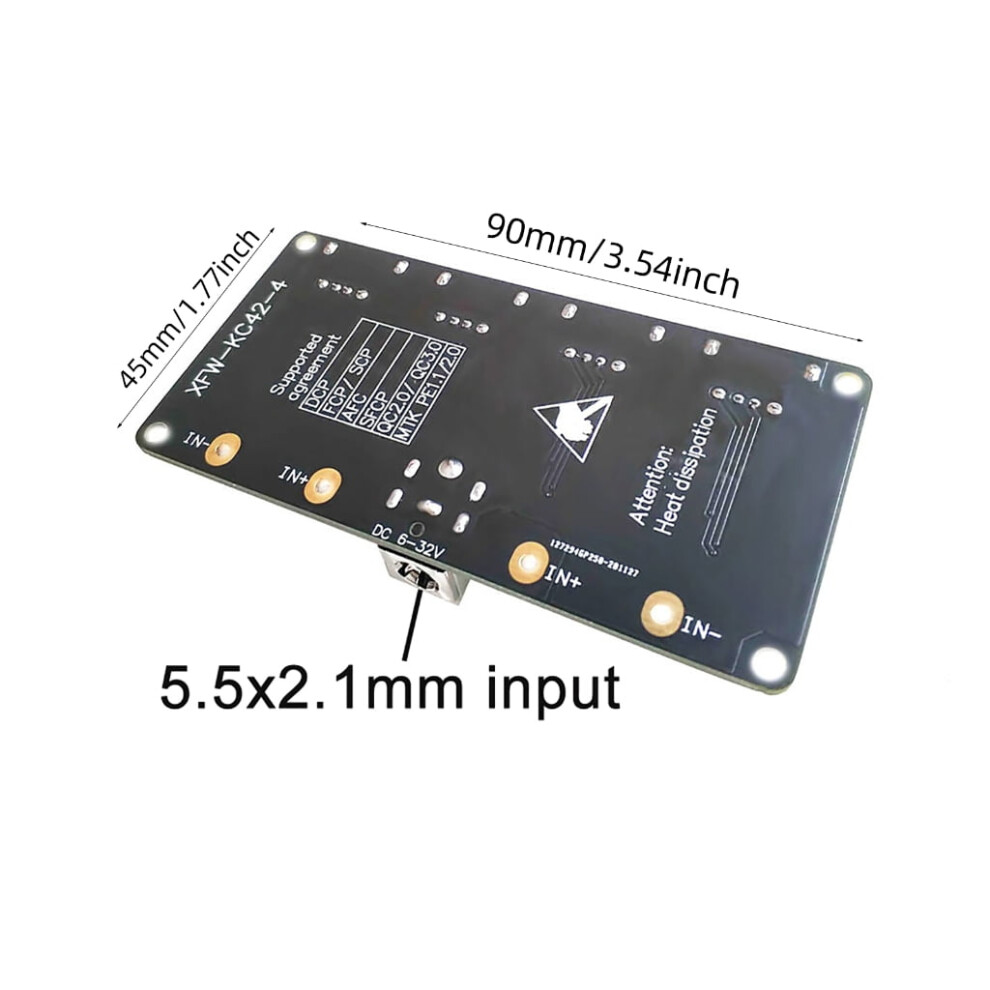

Features: :Input over-voltage protections, input under-voltage protections; output over-current protections; output short-circuit protections; Input voltage ranges 4.5V-32V;(The input voltage must be high than the output voltage because it is Down Converter); Output voltage ranges: 3V to 12V, automatically adjusted according to fast charging protocol Output power: Up to 24W（ [email protected], [email protected], [email protected], 12V@2A Etc The output hasCV/CCcharacteristics (if the output current is less than the set value, output CVmodes; if the output current is greater than the set value, output CCmodes); Conversion efficiency reaches 97%;220Khz switching frequency; Specifications: Material:PCB Size:Approx.90x45mm/3.54x1.77in 5.5x2.1mm (Inner positive poles, outer negative poles) Input:12V-24V; USB Output:5V3.4A,9V2.5A,12V2A; Supports BC1.2 protocols, Supports QC2.0 QC3.0, SupportsMTK PE1.1/PE2.0, Supports Fast Charge Protocol,SFCP, Input voltage: 4.5V to 32V (input voltage must be high than output voltage as it is a voltage drop module) Output voltage: 3V to 12V, automatically adjusted according to fast charging protocol Output power: up to 24W（ [email protected], [email protected], [email protected], 12V@2A Etc Note: Please allow 1-2cm errors due to manual measurement,please make sure that you do not mind before you order. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Package includes: 1xUSB Charge Module
