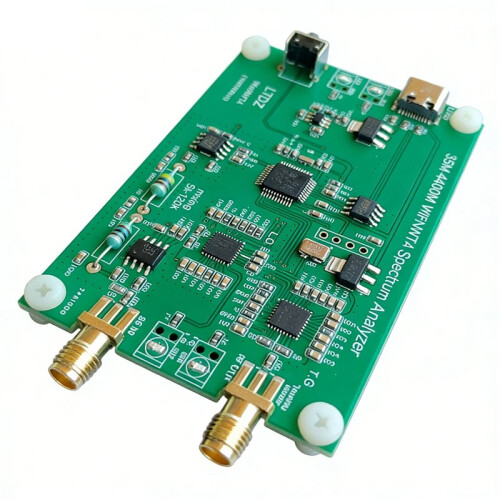

USB Spectrum Analyzer NWT4 35mHz-4400mHz Spectrum Signal Source Vector Analysis Signal Generator
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
£60.21
£112.86
47% off!
+£1.50 Delivery
1%
Earn £0.60 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.50) | Fri 23rd - Thu 29th Oct
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- Highly Integrated: One device combines the functions of a spectrum analyzer and signal source, saving cost and space.
- Portable Power Supply: Powered and communicated via a USB Type-C interface, requiring no external power supply; plug and play.
- Excellent Performance: Fast scanning speed (2800 points/second), dynamic range >50dB, and low noise floor down to -60dBm.
- Wide Frequency Coverage: Multiple versions available, supporting a wide range of testing from very low frequencies up to 6GHz.

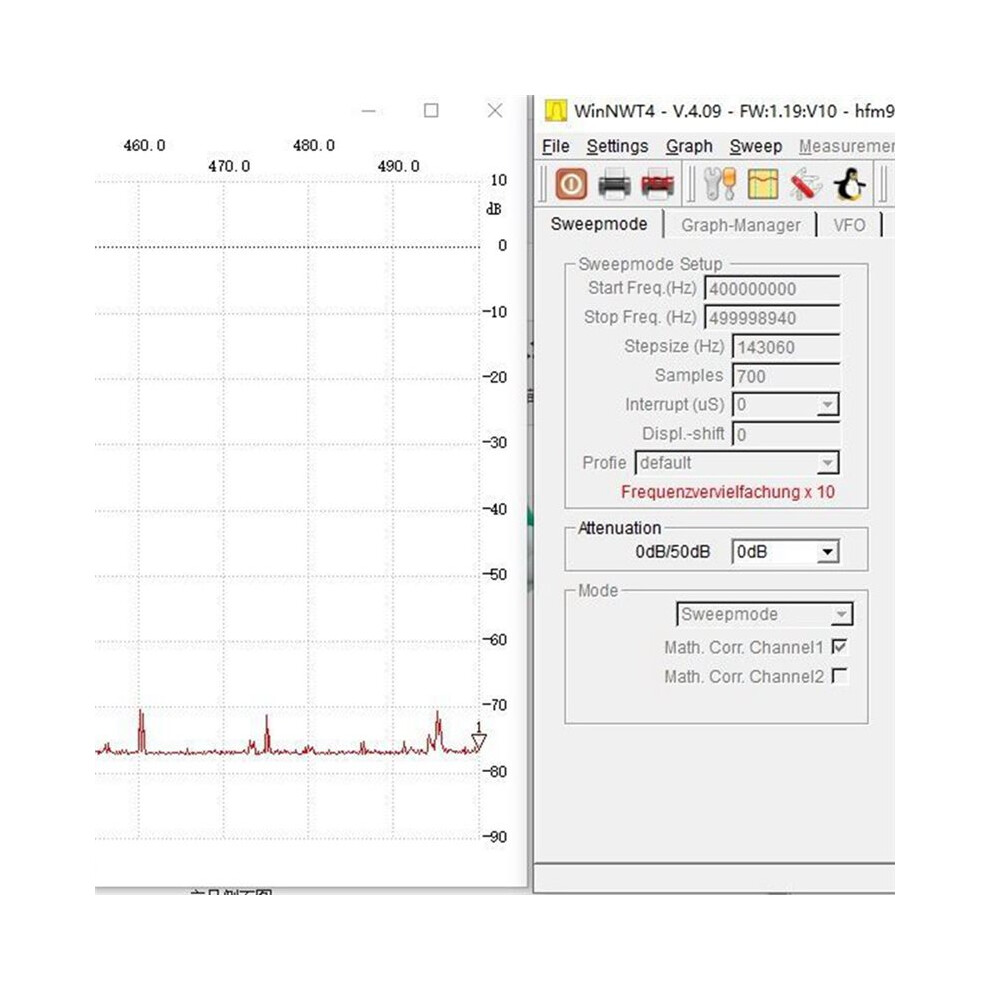

- Easy Operation: Comes with professional WinNWT4 PC software, featuring an intuitive interface and powerful functions.
USB Spectrum Analyzer NWT4 35mHz-4400mHz Spectrum Signal Source Vector Analysis Signal Generator Description
Highly Integrated: One device combines the functions of a spectrum analyzer and signal source, saving cost and space.
Portable Power Supply: Powered and communicated via a USB Type-C interface, requiring no external power supply; plug and .
Excellent Performance: Fast scanning speed (2800 points/second), dynamic range &50dB, and low noise floor down to -60dBm.
Wide Frequency Coverage: Multiple versions available, supporting a wide range of testing from very low frequencies to 6GHz.
Easy Operation: Comes with professional WinNWT4 PC software, featuring an intuitive interface and powerful functions.
Interface and Power Supply: USB Type-C (communication and power supply)
Power Consumption: Standby 100mA, Scanning 350mA
Accompanying Software: WinNWT4 for Windows 7/10
Scanning Speed: Approximately 2800 points/second
Resolution Bandwidth (RBW): 120KHz (dynamic scanning)
Dynamic Range/Scan Record Ratio: > 50 dB
Output Power (Signal Source): Approximately 0 dBm
Maximum Input Level (Spectrum Analyzer): +10 dBm
Background Noise Floor: Approximately -60 dBm
Spectrum Analysis Range: 35 MHz - 4400 MHz
RF Signal Output Range: 35 MHz - 4400 MHz
Recommended Applications: Mainstream wireless communication (such as LTE, WiFi 2.4/5G), general RF testing
Color: Green
Material: PCB
Package Contents:
1*USB Spectrum Analyzer
Details
| OPC | PQBVB8Z |
|---|---|
| Codes | 6031650275450 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 8cm |
| Length | 12cm |
| Weight | 0.06kg |
| Colour | Green |
| Material | PCB |
