USB to 8 Way TTL Serial Adapter 3.3V CH348 1200bps-6Mbps Type C

USB to 8 Way TTL Serial Adapter 3.3V CH348 1200bps-6Mbps Type C Description

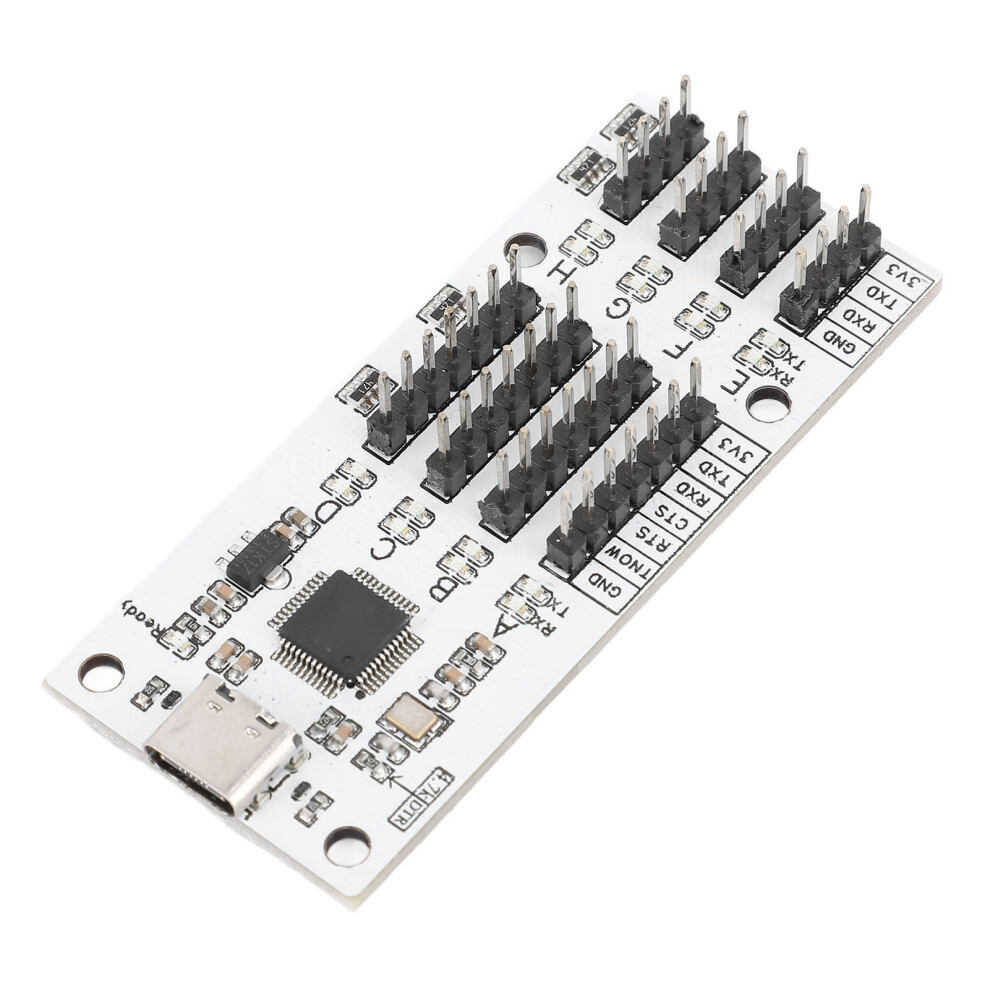

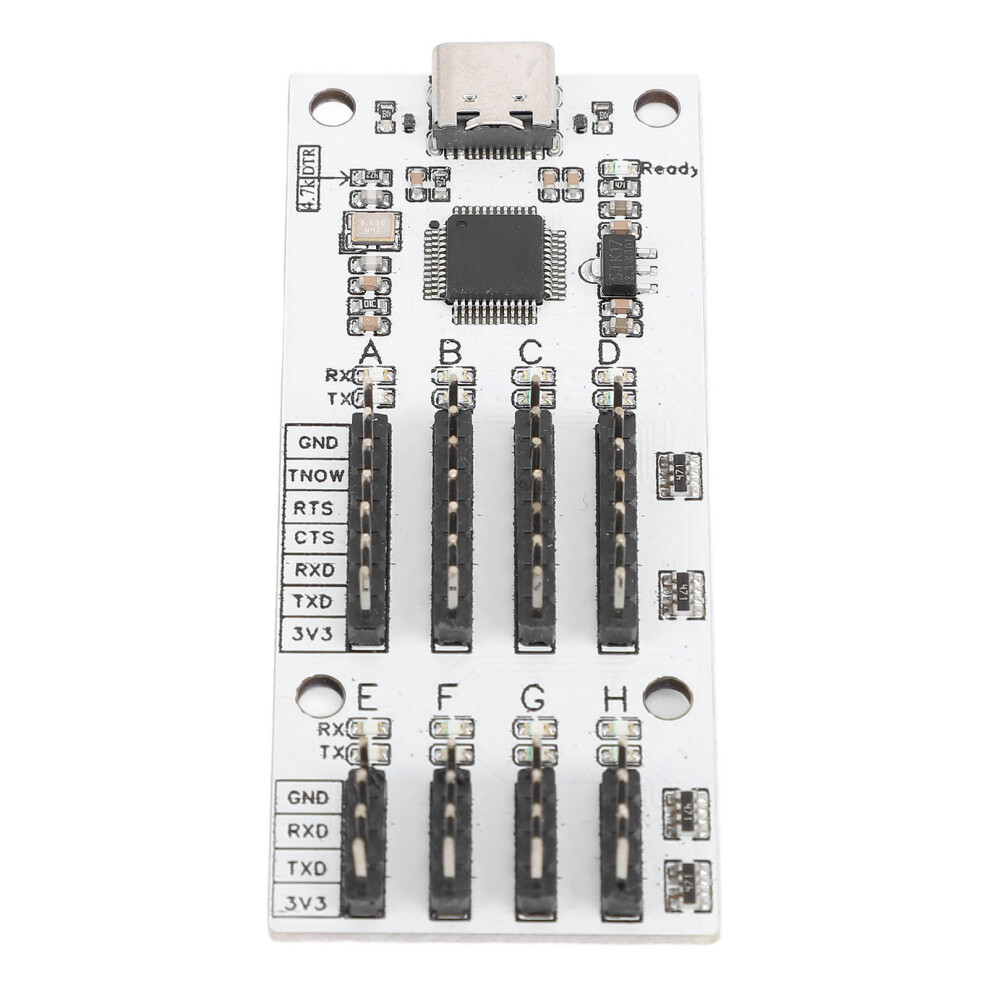

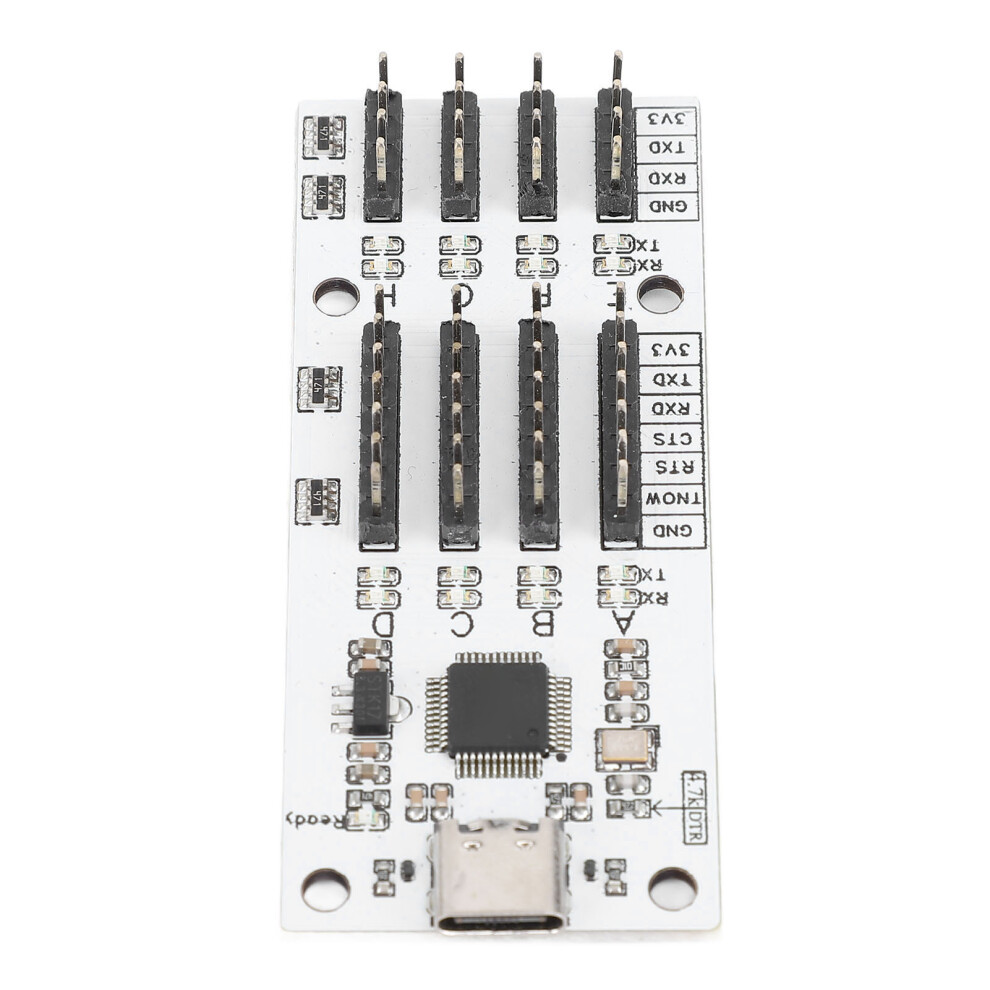

1、480Mbps USB Interface: The module is equipped with 480Mbps high speed USB device interface and external 8M crystal oscillator for optimal stability, ensuring enhanced performance. 2、8 Way Independent Control: The adapter module features 8 way serial (A-H) ports that work independently and do not interfere with each other, each port is equipped with a corresponding 3.3V and GND output. 3、Hardware Flow Control: 4 way (A-D) are equipped with hardware flow control functions, supplemented by TNOW status indicators for control over receiving and transmitting data. 4、Multiple Indicator Light: The power indicator light, as well as the 8 way signal send receive indicator light, ensure clear visual feedback. When data is transmitted, the TX flashes, and when data is received, it flashes. 5、Power Efficient: The USB to TTL serial adapter converter module supports 3.3V output voltage, with total power output within 800mA, making it stable and power efficient.
Item Type: USB to 8 Way TTL Serial Adapter Module
Material: PCB
Signal Level: 3.3V
Supported Baud Rate Range: 1200bps - 6Mbps
Supported Systems: For Win, For Linux

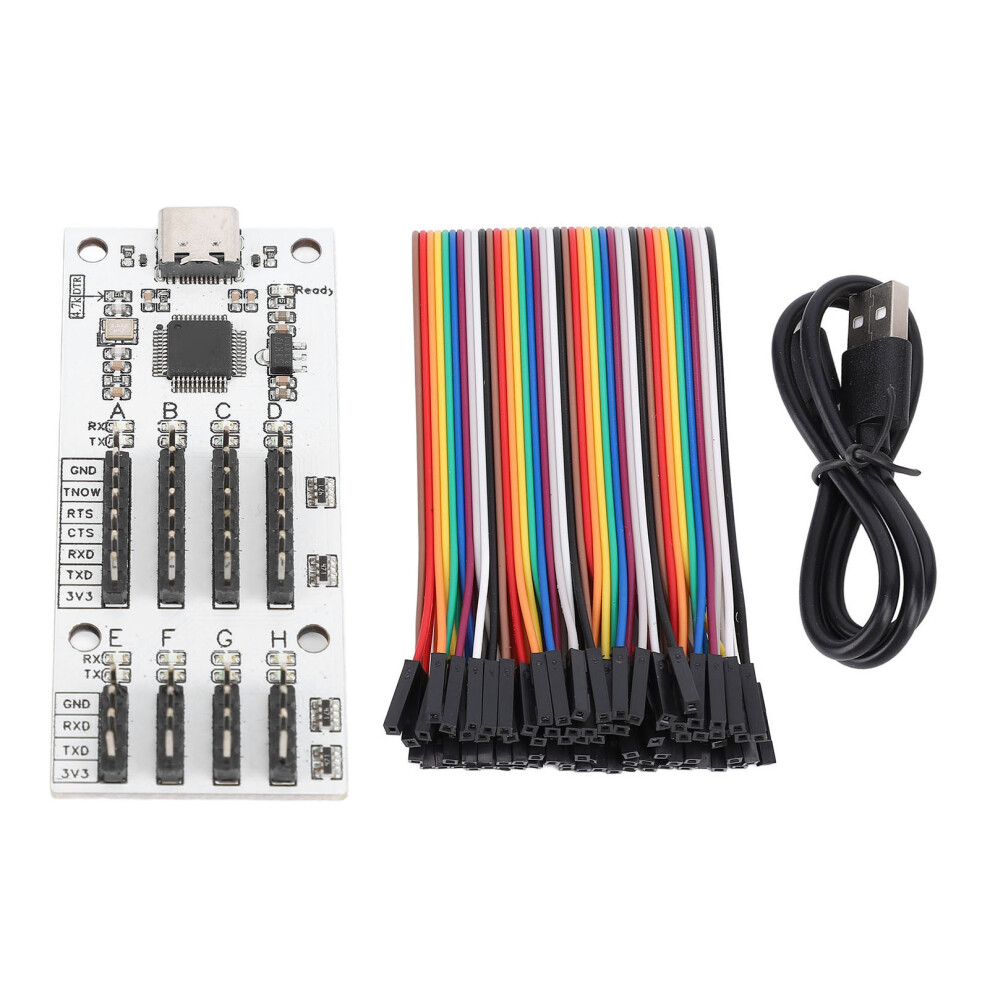

1 x USB to TTL Serial Adapter Module
1 x Connecting Cable
1 x Cable
