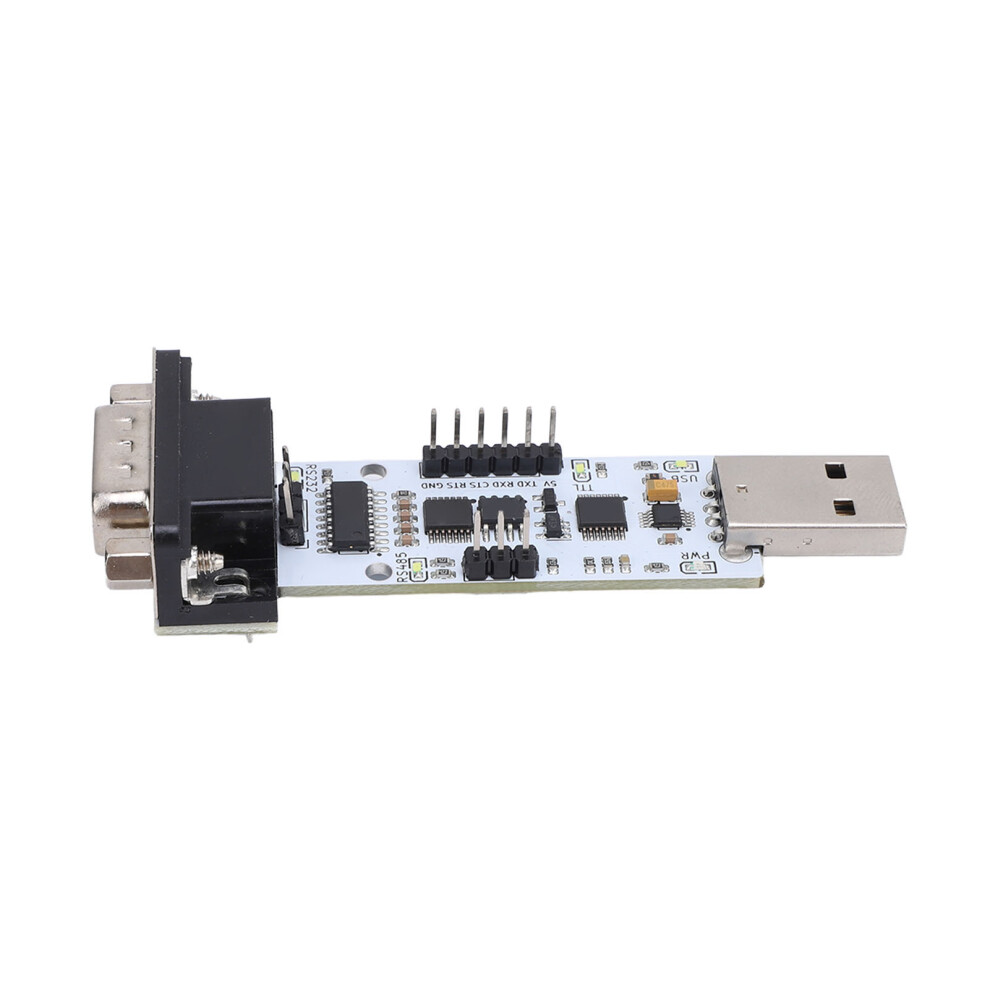

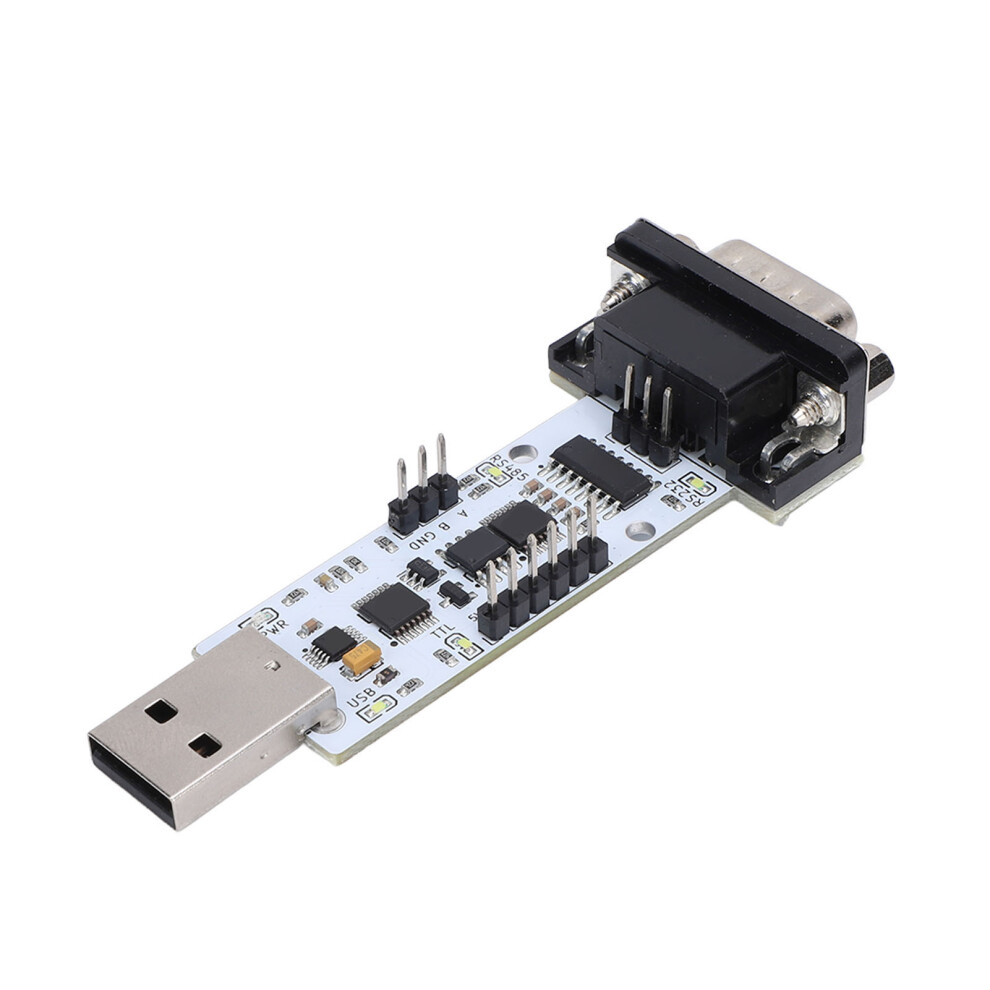

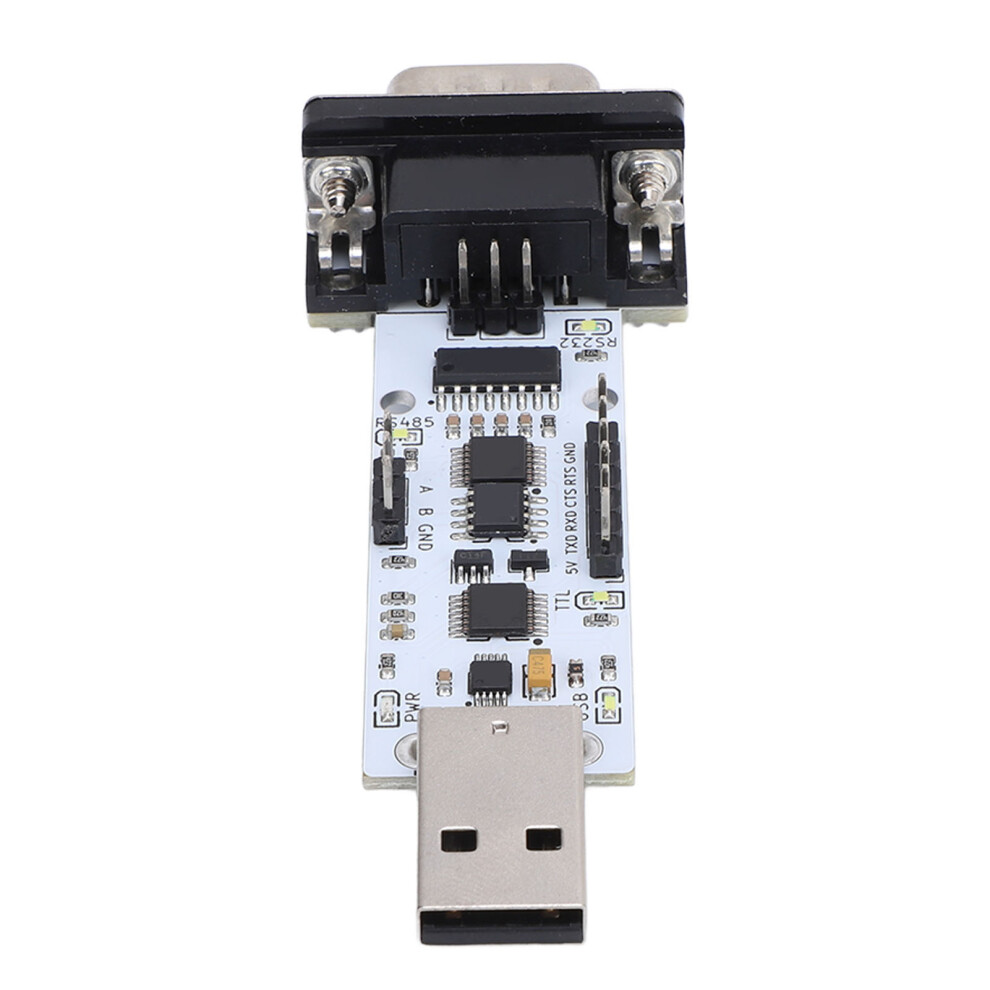

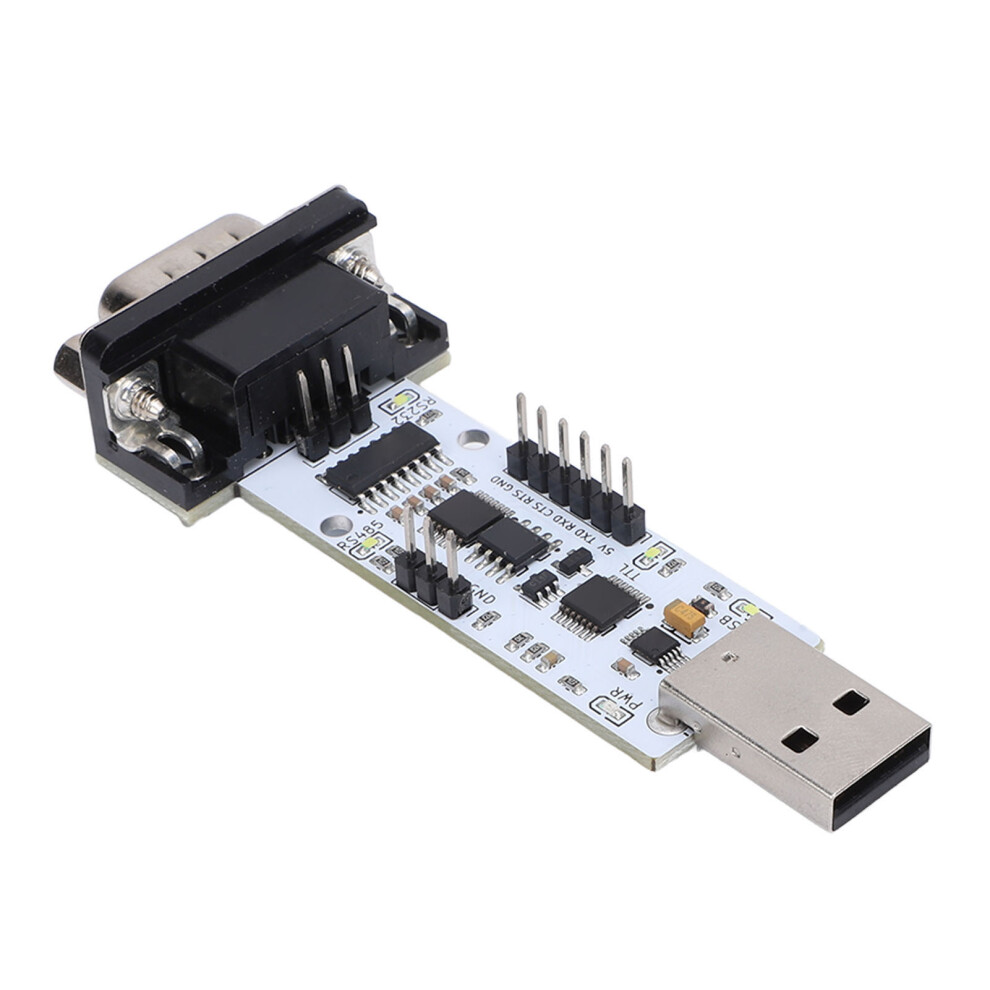

USB to Serial Module 4-Level Auto Conversion Plug and Play 6-in-1

USB to Serial Module 4-Level Auto Conversion Plug and Play 6-in-1 Description

1、Usb to Serial Module: Achieve data conversion between computer USB interface and physical serial port. Add a serial port to computers or other USB hosts without serial ports, turns traditional serial devices into plug and play USB devices. 2、Onboard Level Conversion Chip: Convert freely between USB, TTL, RS232, and RS485 with unique circuit design. No need to adjust with DIP switches, simply connect the wires for immediate use. 3、Automatic Resettable Fuse: Intelligent protection with 500mA automatic resetting fuse. Protects devices and USB ports by automatically disconnecting when current exceeds 500mA. Resumes connection once circuit is normal. 4、LED Indicator Lights: Equipped with one way power indicator light and four ways status indicator lights to display the module's operating status. Clear indication of data transmission based on the status of the indicator lights. 5、Compact Design: Usb to serial module board measures 8.3cm X 3.0cm, small size and incredibly easy to install, eliminating complex set up procedures.
Item Type: USB to Serial Module
Material: PCB
Conversion Mode: Automatic Conversion
Serial Port Type: USB TTL RS232 RS485
Function Support: USB to TTL RS232 RS485/TTL RS232 RS485 Dual Conversion
Supported Systems: For Win 11/10/8/7 for Linux, etc.
Serial Port Protection: Automatic Recovery Fuse; Automatically disconnects when current exceeds 500mA
USB TTL 232 485:
In USB to TTL mode, the maximum baud rate can reach 2M
In USB to 232 mode, the maximum baud rate can reach 1M
In USB to 485 mode, the baud rate is less than 2M
1 x USB to Serial Module
1 x Jumper Wire
