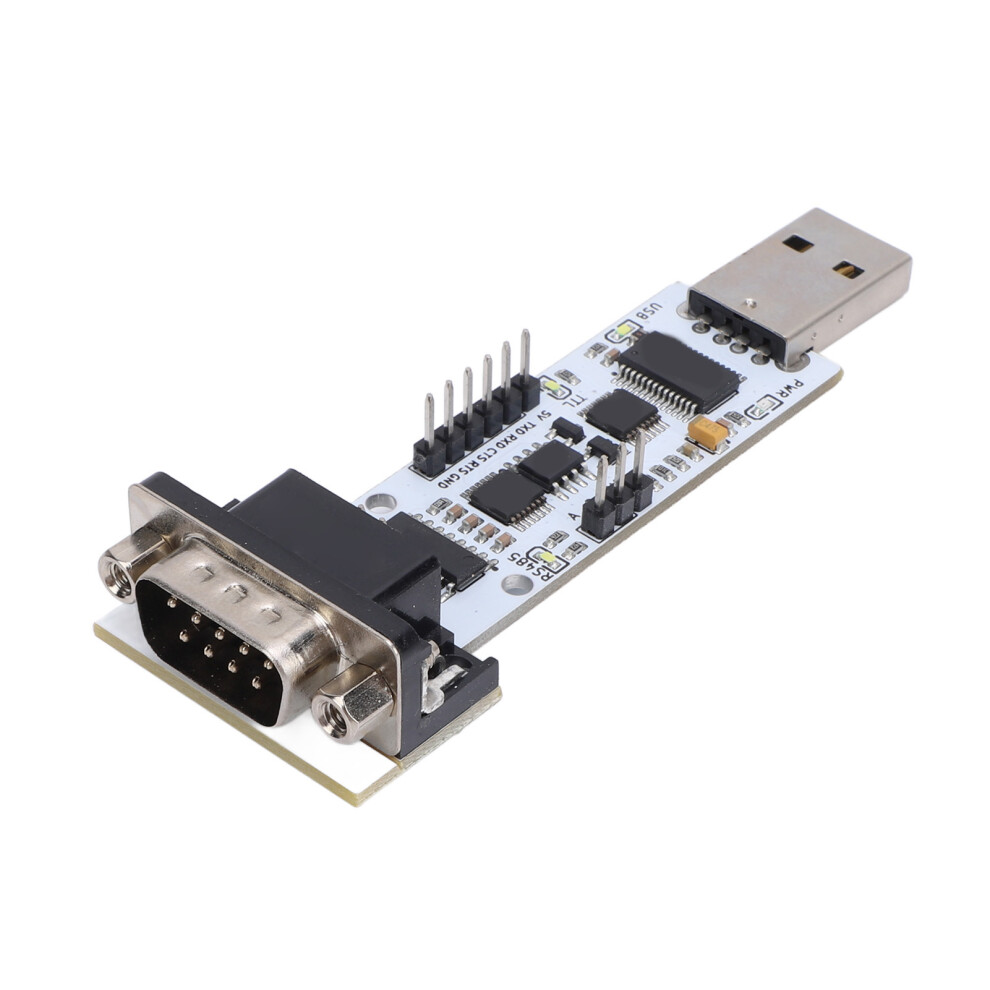

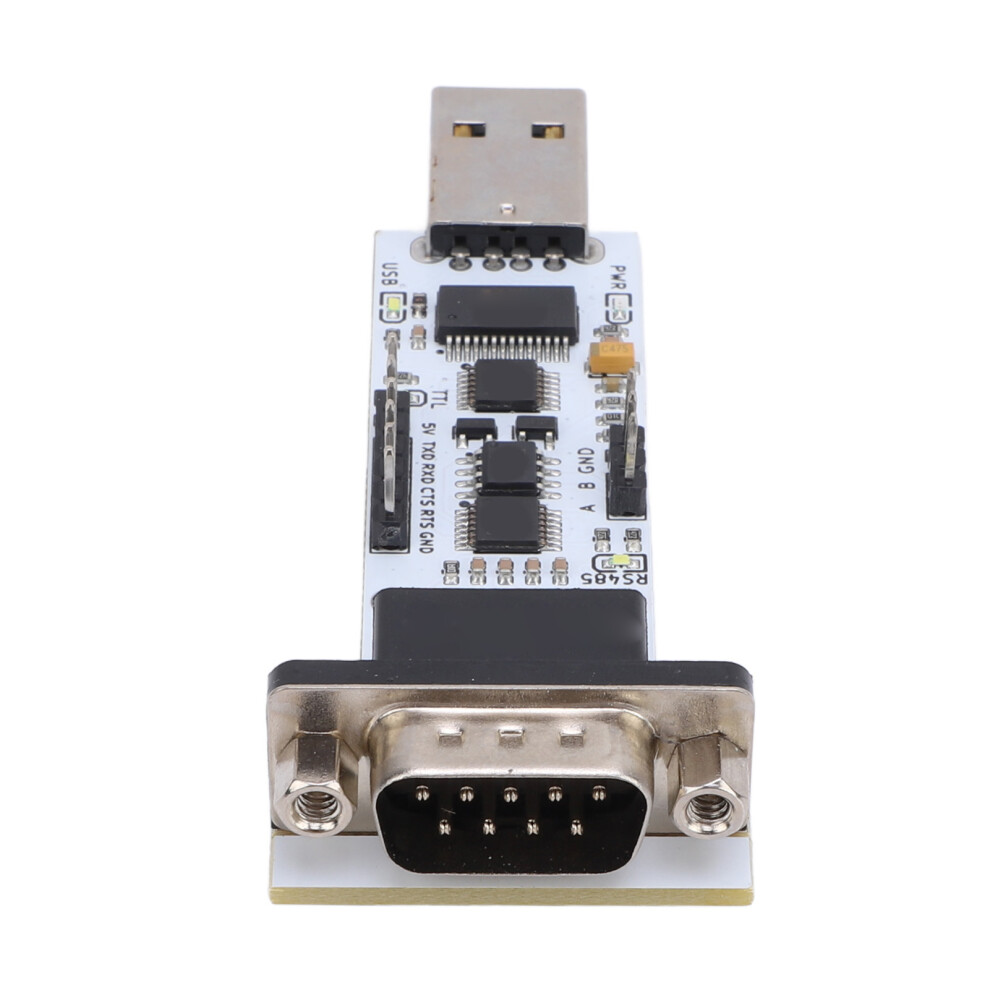

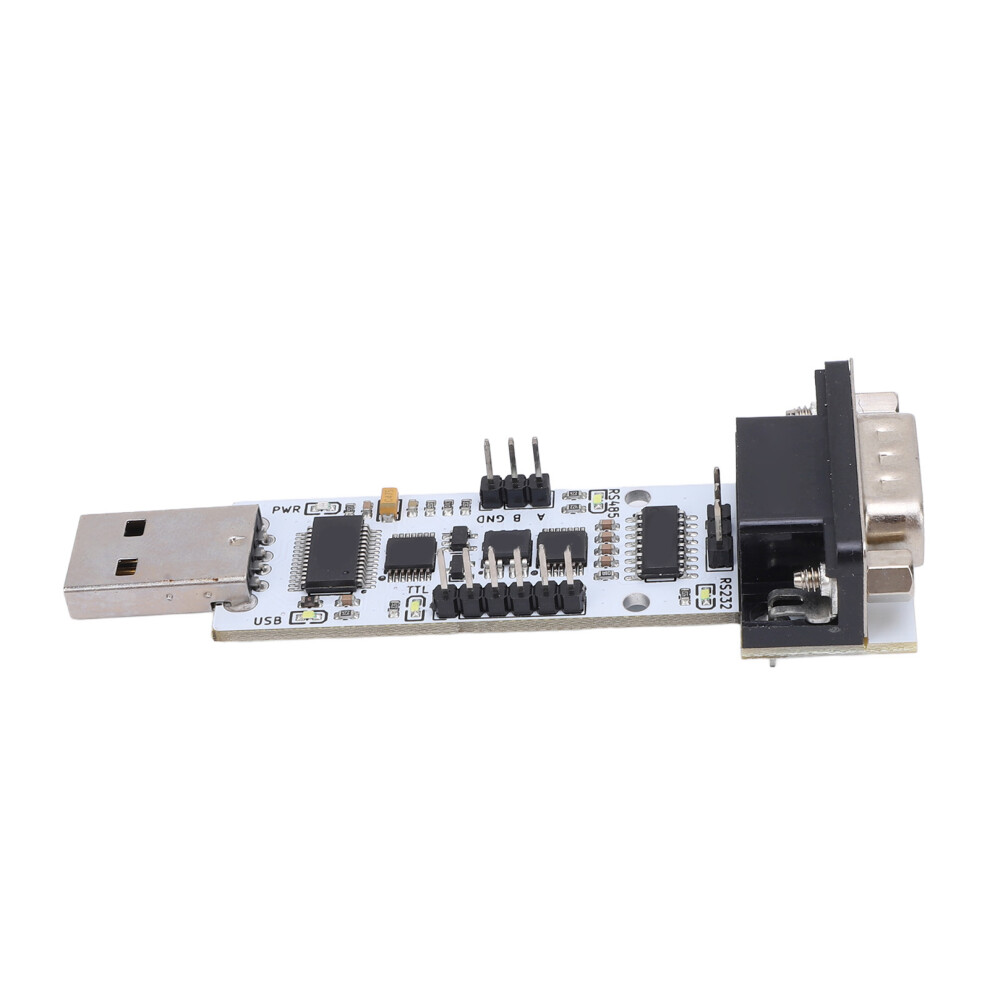

USB to TTL RS232 RS485 Module FT232 Auto Converter with LED

USB to TTL RS232 RS485 Module FT232 Auto Converter with LED Description

1、[USB to Serial module] This USB to TTL RS232 RS485 module enables data conversion between computer USB interface and physical serial port, adding serial port to computer or other USB host without serial port. 2、[Multi Functional] Equipped with onboard level conversion chips, this module supports conversion between USB, TTL, RS232, and RS485 voltage levels, providing flexibility. 3、[Convenient to Use] Featuring a unique circuit design, this USB to serial port module eliminates the need for dip switches for adjustment, wiring can be used. 4、[Safety Fuse] With 500mA automatic recovery fuse, this module automatically disconnects when the current exceeds 500mA, safeguarding your devices and USB port from damage, the connection can be restored once the circuit is back to normal. 5、[LED Indicators] The module is designed with a power indicator and four status indicators to clearly display the operational status, allowing users to easily see data transmitting based on the status of the LED indicators.
Item Type: USB to TTL RS232 RS485 Module
Material: PCB
Conversion Mode: Automatic conversion
Main Chip Model: FT232
Serial Port Type: USB TTL RS232 RS485
Function Support: USB to TTL RS232 RS485, TTL RS232 RS485 pairwise conversion
System Support: for WIN11 10 8 7, for Linux, etc.
Serial Port Protecting: Automatic recovery fuse; Automatically disconnects when current exceeds 500mA
USB TTL 232 485（FT232）
The baud rate can achieve up to 2M in USB to TTL mode
The baud rate can achieve up to 1M in USB to 232 mode
The baud rate can achieve up to 2M in USB to 485 mode
Circuit Board Size: Approx. 8.3x3cm / 3.27x1.18in

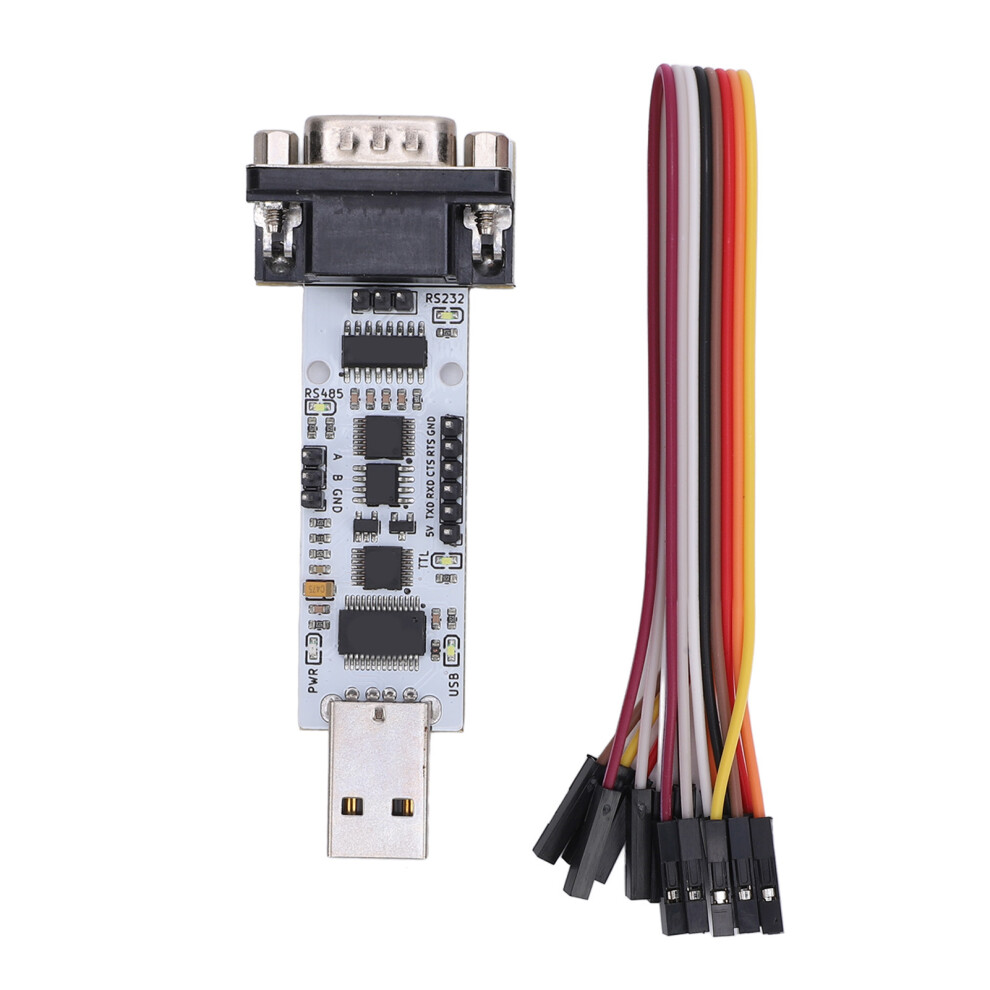

1 x USB to TTL RS232 RS485 Module
1 x Wire
