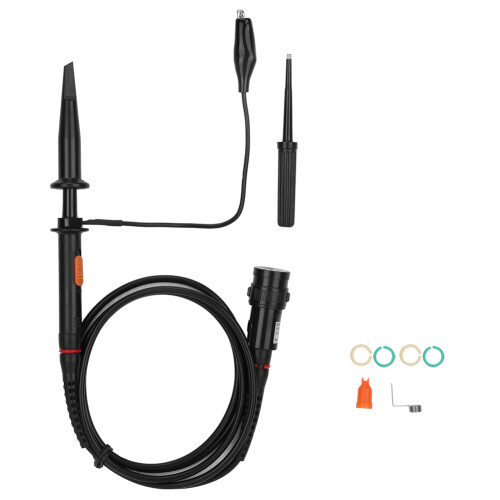

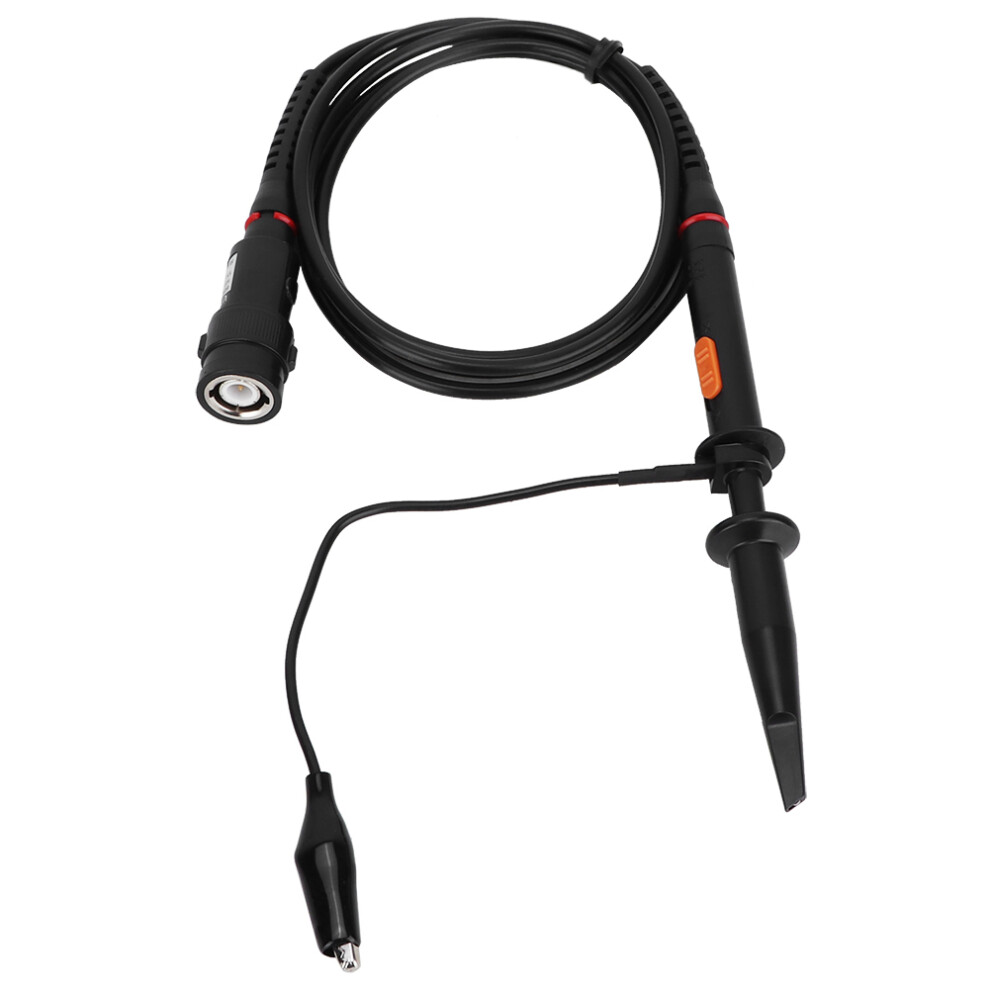

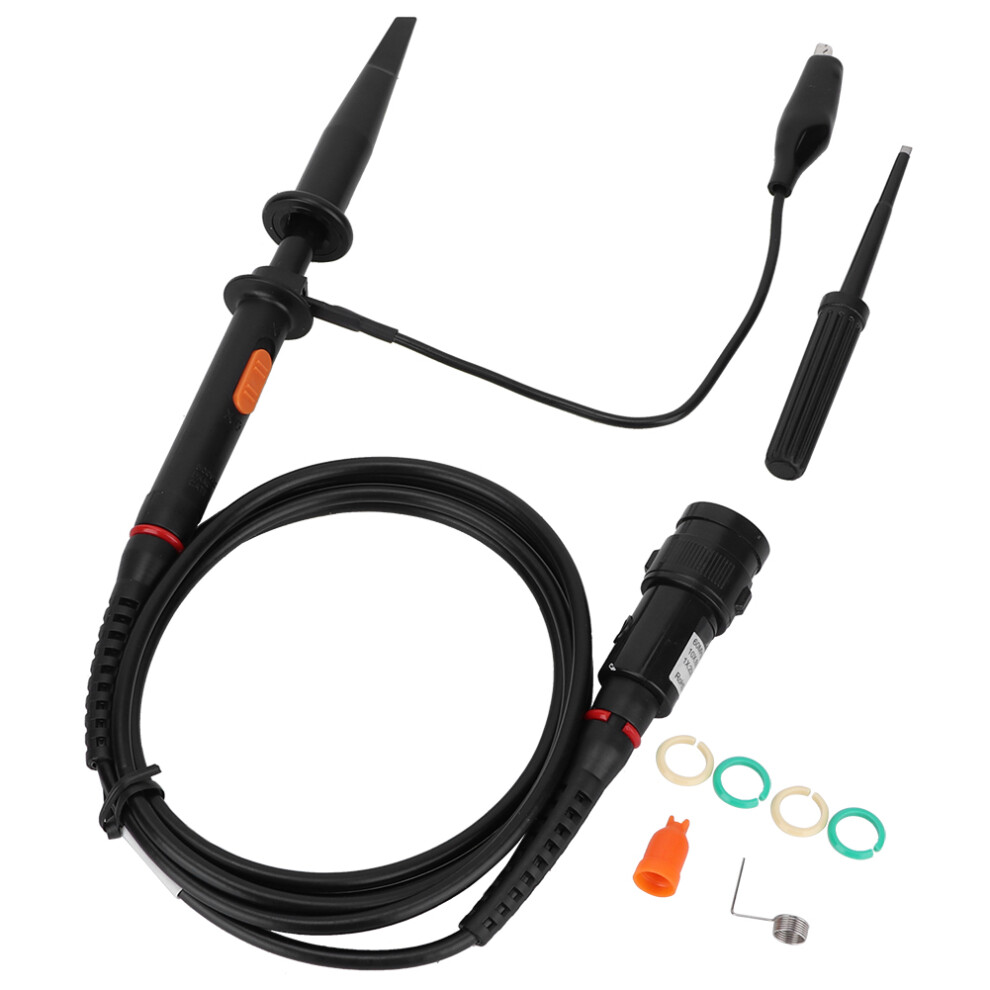

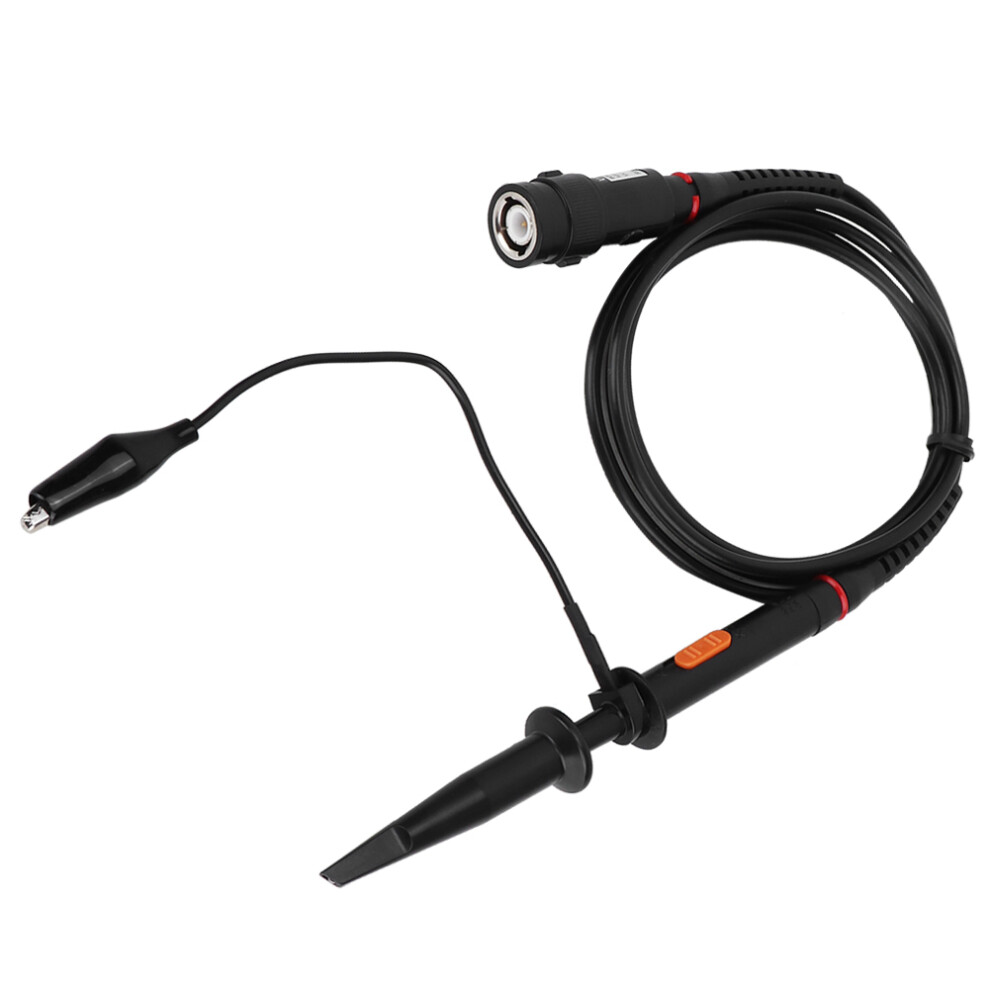

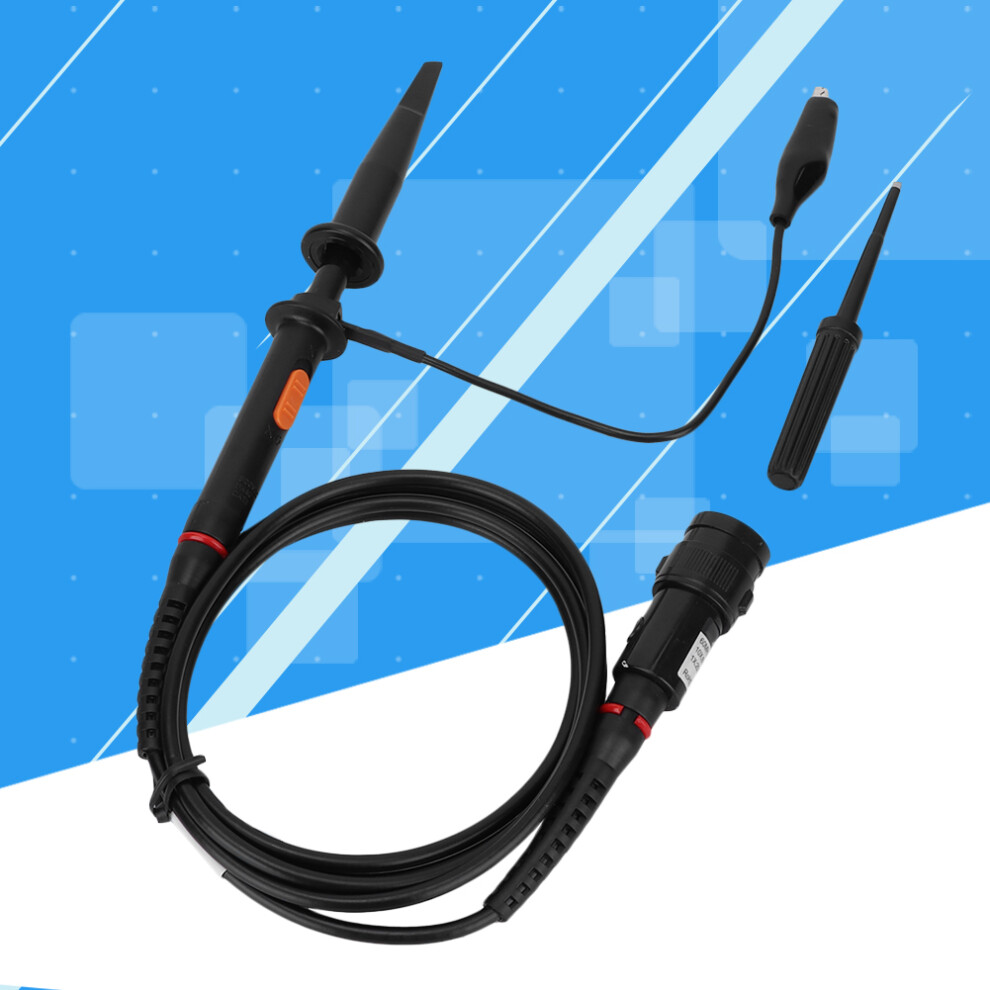

Ut P03 60MHz Oscilloscope Probe for UTD2000 Series

Ut P03 60MHz Oscilloscope Probe for UTD2000 Series Description

1、The product is suitable for UTD2000 series oscilloscopes. 2、It is manufactured with high-quality electronic components and has stable and reliable performance. 3、The compensation range of the product is 8pF-35pF. 4、The product has a bandwidth of 60MHz and is a passive probe. 5、Perfectly adapted to the corresponding type of oscilloscope.
Feature:
The product is suitable for UTD2000 series oscilloscopes.
It is manufactured with high-quality electronic components and has stable and reliable performance.
The compensation range of the product is 8pF-35pF.
The product has a bandwidth of 60MHz and is a passive probe.
Perfectly adapted to the corresponding type of oscilloscope.
Specification:
Model: UT-P03
Passive probe: 1:1/10:1
Bandwidth: 60MHz
Input resistance: 1x: 1MΩ2%, 10x: 10MΩ2%
Input capacitance: 1x: 100pF~150pF, 10x: 18.5pF~22.5pF
Compensation range: 8pF~35pF
Weight: 115g / 4.1oz
Package list:
1 * Passive Probe
Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
