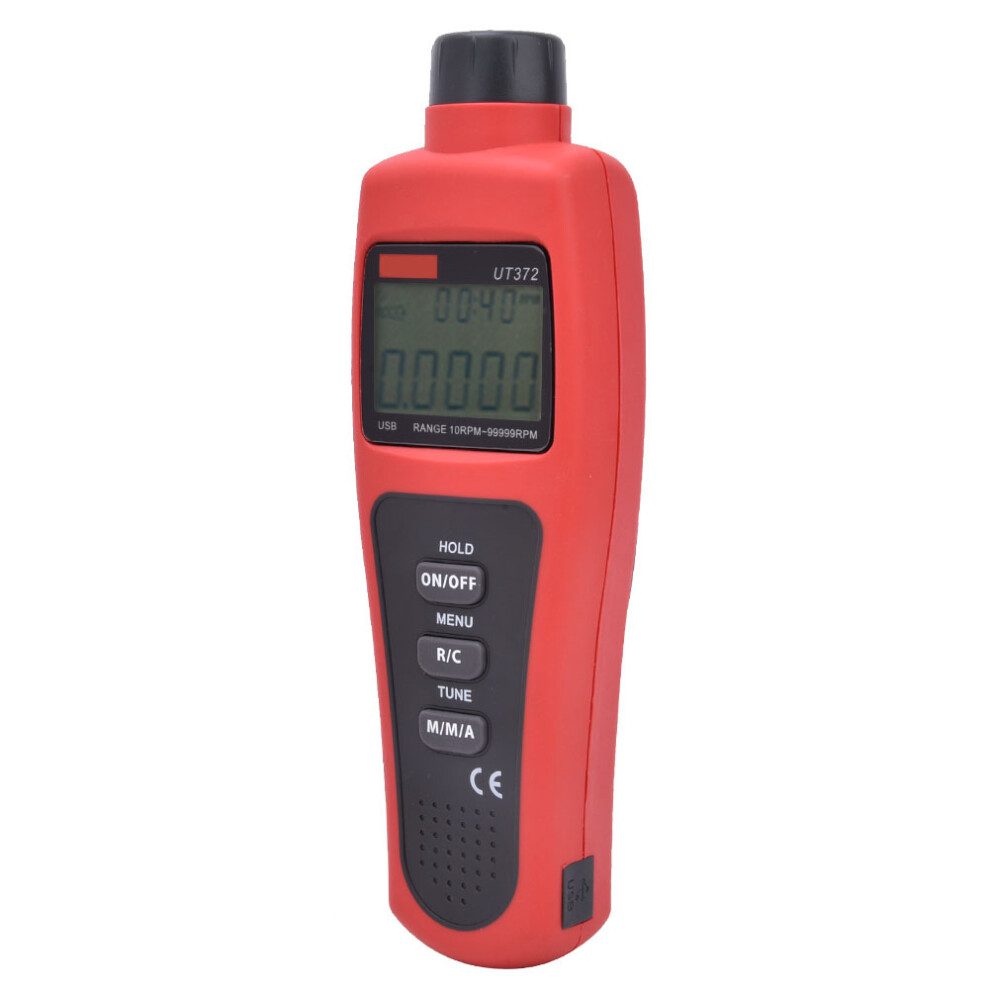

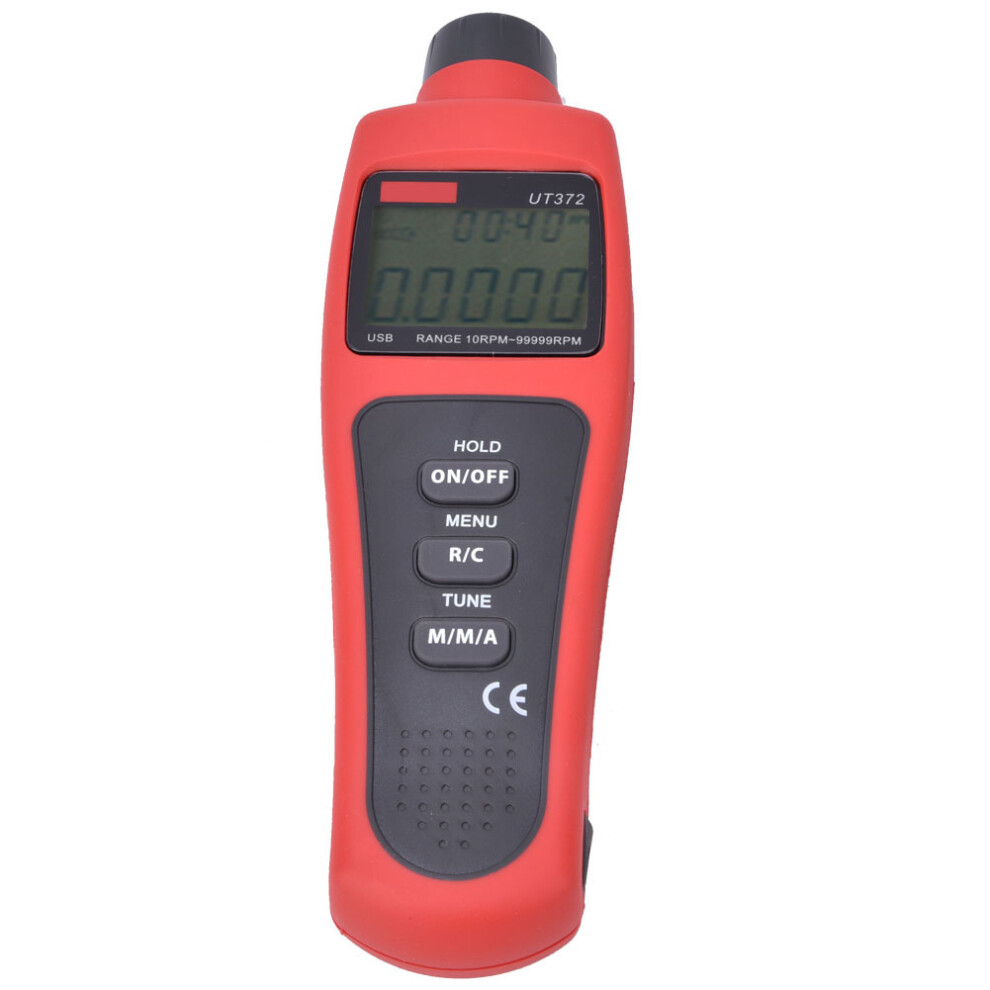

(UT372) UNI T UT371/UT372 Non Contact Tachometer Rotation Meter

(UT372) UNI T UT371/UT372 Non Contact Tachometer Rotation Meter Description

1、It can be accurately measured without touching object with high accuracy. 2、It features automatic power off control without operation within 15min to keep safety, you don't worry if you forget to turn it off. 3、When the voltage is above 4.8V, you will be prompted to guarantee the long service life. 4、It is applicable to schools, factories, environmental protection bureaus, laboratories, research institutes, automobile maintenance testing and other fields. 5、The measuring range of rotational speed of this product can be as low as 10RPM and as high as 99999RPM to meet general needs. 6、The circuit design of the whole machine is based on single chip microcomputer and adopts photoelectric rotational speed sampling processing.
Condition: 100% Brand New
Item Type: Tachometer
Material: ABS
Optional Type: UT371, UT372
Basic Function
Range
Basic Accuracy
Model
UT371
UT372
Rotational Speed Measurement（RPM）
10RPM99RPM
(0.03%）
(0.03%）
100RPM999RPM
(0.04%2）
(0.04%2）
1000RPM9999RPM
(0.04%2）
(0.04%2）
10000RPM99999RPM
(0.04%2）
(0.04%2）
Count
Range: 099999


Maximum Input Frequency：10KHz,Pulse Width 5%
Object Distance
50mm 200mm


Special Function
Maximum Display
99999
99999
Data Hold


Auto Power -Off
About 15min


Low Voltage Display
4.8V


Maximum


Minimum


Average Value


USB Data Transmission

General Features
Power
1.5V Alkaline Battery（AA） 4 (not included）
LCD Size
53x41mm/ 2.1x1.6in
Color
Red+Grey

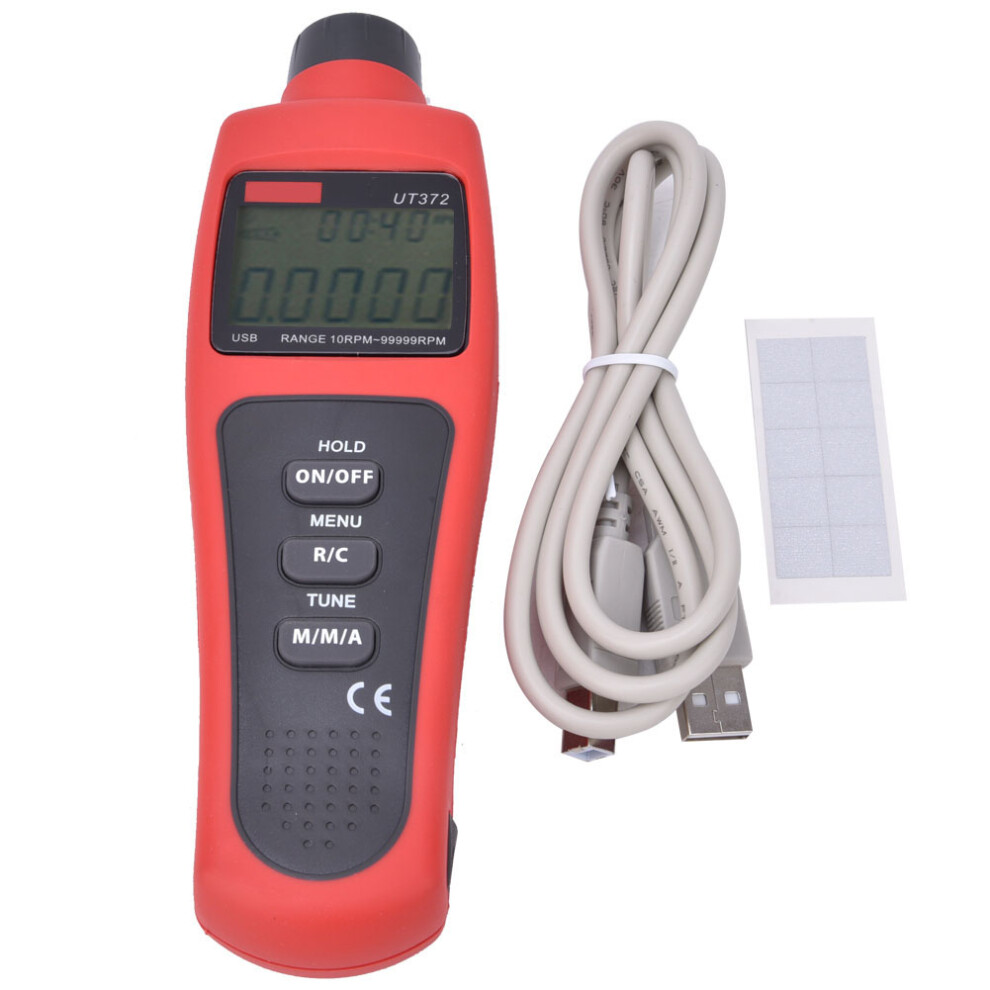

1 x Tachometer
1 x Data Cable
1 x Reflective Sheet
1 x Instruction
