V Mount Battery Plate Power Supply FW50 Dummy Battery

V Mount Battery Plate Power Supply FW50 Dummy Battery Description

1、Quickly Disassemble and Install: Press and hold the black button on the battery plate to quickly disassemble and install the battery. Through the plate, the battery can be converted into different output voltages to supply power to various external devices. It is a practical and efficient multi function V mount battery power supply system. 2、Wide Range of Applications: With multiple output interfaces, DC15V, DC12V, DC8V, DC5V, USB and Type C, of which DC15V can power cameras, BMPCC 4K, 6K, DC12V can power monitors, and DC8V can power SLR, mirror cameras power supply, DC5V can supply power to radio equipment, microphones and other equipment, USB and Type C can charge mobile phones and tablets. 3、Type C Interface: The Type C interface is both an output interface and an input interface. It has rich QC and PD fast charging protocols, and can charge the V port battery. The side has an independent power switch and power indicator, which can turn on or off all devices. 4、With a 15mm Rod Clamp: Designed with a 15mm rod clamp, through the blue knob, you can quickly install the gusset and adjust the angle of the gusset 5、Multi Functions: With overvoltage, overcurrent protection, low standby power consumption, high efficiency conversion rate and other functions, using ABS and aluminum alloy materials, high durability. 6、Applicable Models: With FW50 full decoding fake battery, spring wire design can stretch 1.2 meters, DC5.55x2.1mm interface, suitable for A7 A7S A7R A7II A7SII A7RII A6000 A6100 A6300 A6500 cameras.
Item Type: V Mount Lock Battery Plate
Material: ABS, Aluminum alloy
Color: As Pictures Shown
Weight: Approx. 703g / 24.8oz
Input:
Type C Input: PD3.0 5V, 9V, 12V, 15V, 20V(MAX.60W) and FC 5-12V, 24W
Support for Smart Charger, Detect Adapter Protocol BC1.2, for IOS Divider, Type C, FC etc.
Output:
USB 5-12V, 24W (Compatible for IOS, BC1.2, for Samsung Galaxy, FC)
Type C Output: PD3.0 5V, 9V, 12V, 15V, 20V(MAX.60W) and FC 5-12V, 24W
Support for Smart Charger, Detect Adapter Protocol BC1.2, for IOS Divider, for Type C, FC etc.
5V Output: DC 5V, 3A (DC5.5x2.1mm, Inside Positive and Outside Negative)
8V Output: DC 8V, 3A (DC5.5x2.1mm, Inside Positive and Outside Negative)
12V Output: DC 12V, 3A (DC5.5x2.5mm, Inner Positive and Outer Negative)
15V Output: DC 15V, 5A (DC5.5x2.5mm, Inside Positive and Outside Negative)
Catheter Clip Diameter: Approx. 15mm / 0.6in
Total Power: 180W
Power Supply Board Size: Approx. 185x120x40mm / 7.3x4.7x1.6in
Applicable Battery: V Mount Battery
FW50 Fake Battery DC Interface Specification: 5.5x2.1mm / 0.2x0.08in
Applicable Models: for A7 A7S A7R A7II A7SII A7RII A6000 A6100 A6300 A6500 etc.

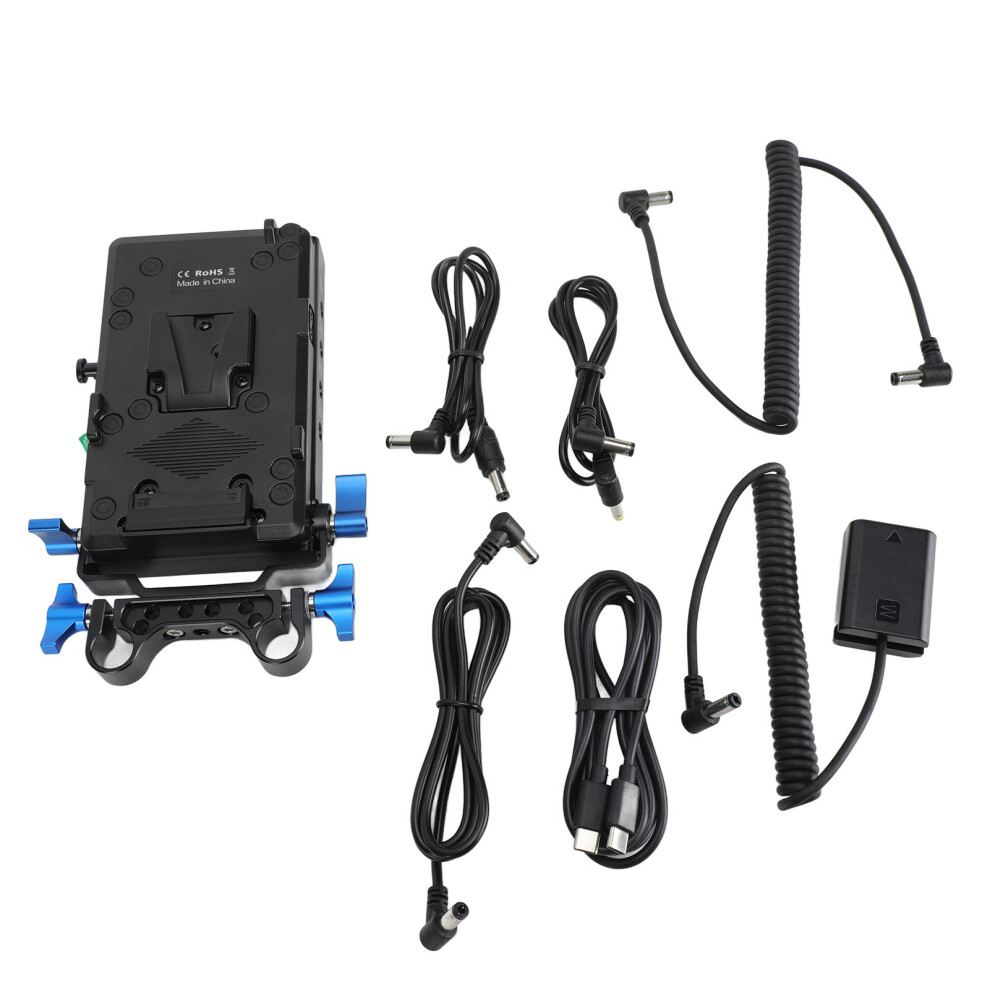

1 x V Type Gusset Power Supply System
1 x DC5.5x2.1mm Straight to DC5.5x2.1mm Elbow Line
1 x DC5.5x2.1mm Elbow to DC4.0x1.7mm Elbow Line
1 x DC5.5x2.5mm Elbow to DC5.5x2.5mm Elbow Line
1 x DC5.5x2.5mm to DC5.5x2.5mm Spring Wire
1 x Type C Male to Male Cable
1 x FW50 Fake Battery
1 x Manual
