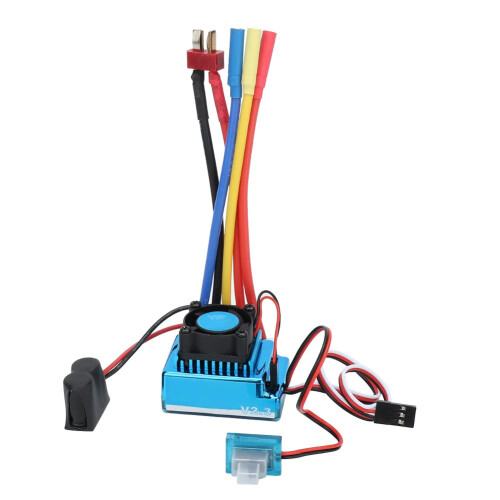

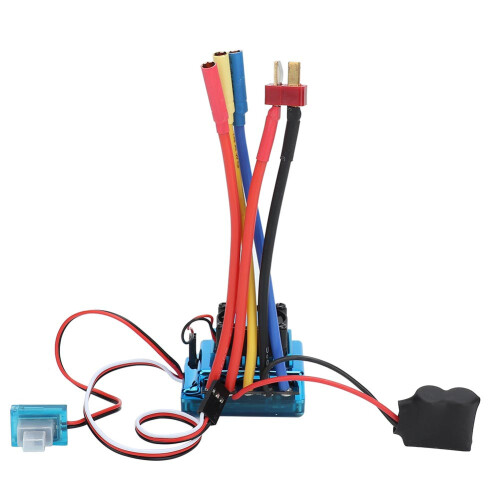

V2.3 Brushless ESC 45A for RC Car (45A)

V2.3 Brushless ESC 45A for RC Car (45A) Description

1、Waterproof and dustproof, suitable for all - weather competition. 2、External programming interface, easy to connect to program card when setting ESC.(compatible with 2.3v programming card only) 3、Proportional braking, 4 steps of maximum braking force adjustment, 8 steps of braking force adjustment, 4、9 steps from "soft" to accelerated (punch) adjustment 5、Strong power, suitable for different types of car, tires and tracks.
Features:
Waterproof and dustproof, suitable for all - weather competition.
External programming interface, easy to connect to program card when setting ESC.(compatible with 2.3v programming card only)
Proportional braking, 4 steps of maximum braking force adjustment, 8 steps of braking force adjustment.
9 steps from "soft" to accelerated (punch) adjustment
Strong power, suitable for different types of car, tires and tracks.
Protection/motor lock protection.
Single button (the "SET" button on ESC) sets the ESC and easily resets all parameters to factory default settings.
Specifications:
Condition: 100% Brand New
MODEL
45A
60A
80A
Cont.Current/Burst Current
45A/180A
60A/320A
80A/480A
Motor Type
sensorless brushless motor
sensorless brushless motor
sensorless brushless motor
Suitable Car
1/16,1/14,1/10 car
1/16,1/14,1/10 car
1/14,1/10 car
Suitable brushless motor
>=9T
>=9T
>=5.5T
Resistance
0.0014ohm
0.0007ohm
0.0005ohm
Battery
2~3cells Lipo
2~3cells Lipo
2~4cells Lipo
BEC Output
5.8V/3A(switch mode)
5.8V/3A(switch mode)
5.8V/3A(switch mode)
Package List:
1 * ESC
1 * Manual
Note:
Before using ESC in water, remove the cooling fan: clean and dry the ESC immediately after use to prevent the connector from rusting.
The brushless power system of RC model is very powerful and dangerous, so please read the product instructions carefully.Since we can't control the installation.
Under no circumstances shall we be liable for the use, use or maintenance of this product damages, losses, or expenses.
