V3.25 USB Driver Controller 5 CNC Board Z Tool Setter

V3.25 USB Driver Controller 5 CNC Board Z Tool Setter Description

1. Comaptible with software.
2. Support XP, WIN7, WIN8, WIN10, support tablet computers, as well as 64-bit systems.
3. External wide voltage input, 12-24V, and anti-reverse connection function.
4. All input signals are isolated by optical coupling, which can be connected to emergency stop, tool setting, limit, return to zero, etc., to computer safety.
5. It provides 0-10V analog voltage output isolated by optocoupler, and can control the frequency converter input by 0-10V analog voltage to control the spindle speed.

Provide PWM output (5V level) isolated by optocoupler to control other PWM controlled spindle speed controllers.
Provide 4 output ports (5V level), which can be connected to a relay module with optocoupler to control water cooling, , etc.
It can be connected to a stepping motor driver with a common anode or common cathode input, a level of 5V, and an optocoupler input.
At the same time, a 5- interface cable socket (HX2.54) is provided, which is convenient for connecting the stepper motor driver.
Set inverter:
1. Set the inverter to external terminal start.
2. Set the frequency control mode of the inverter to analog (0-10V) input control.
Caution!
Please mind the power polarity and drivers direction.

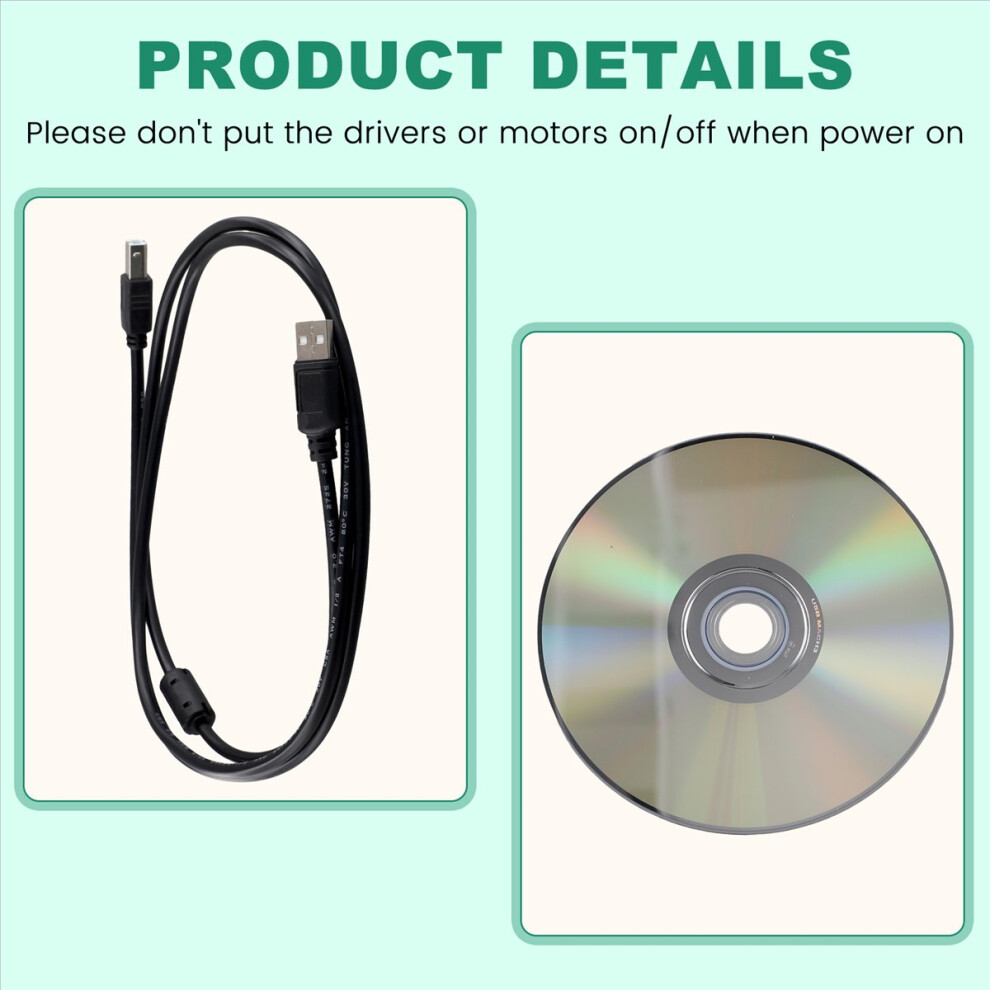

Please don' put the drivers or motors on/off when power on.
Please disconnect all motors when adjust driver current.
The colors and styles of cables and CDs are random and cannot be specified, which not affect their use.
Colour:Green
Material:Plastic

Package Contents:

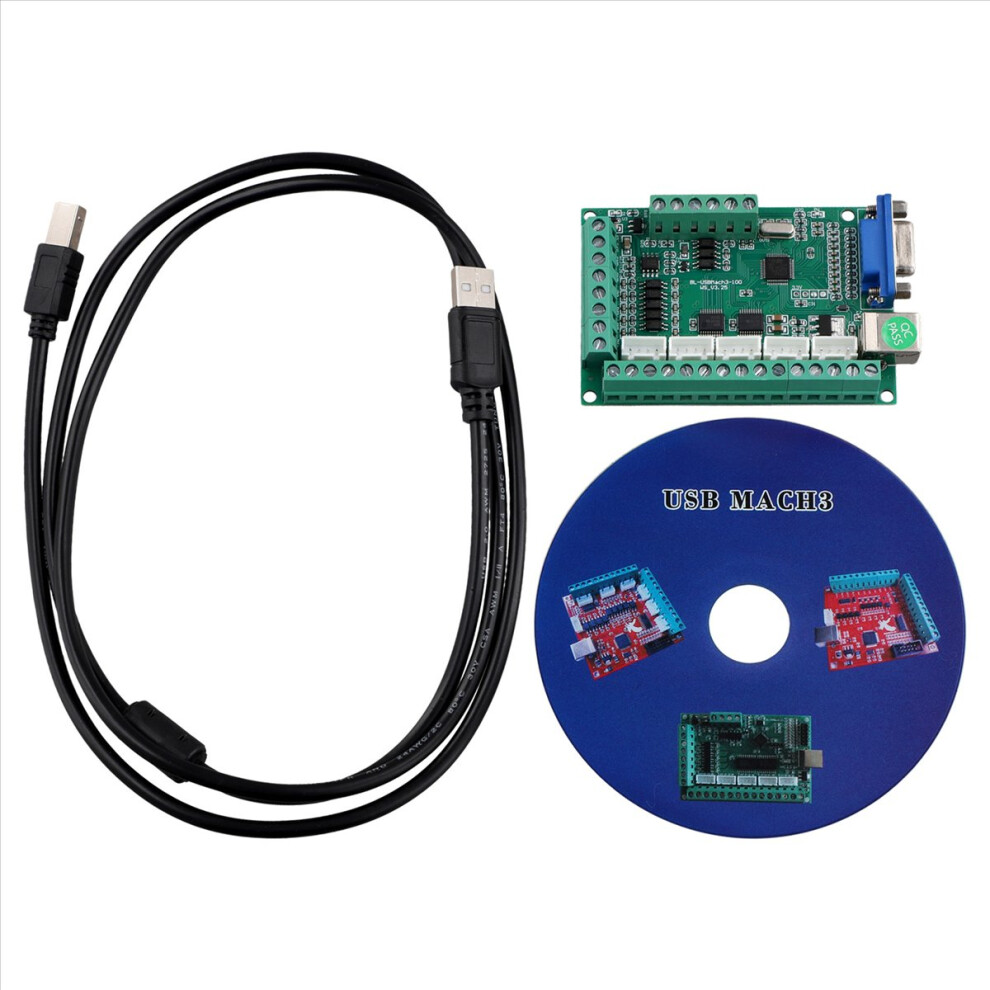

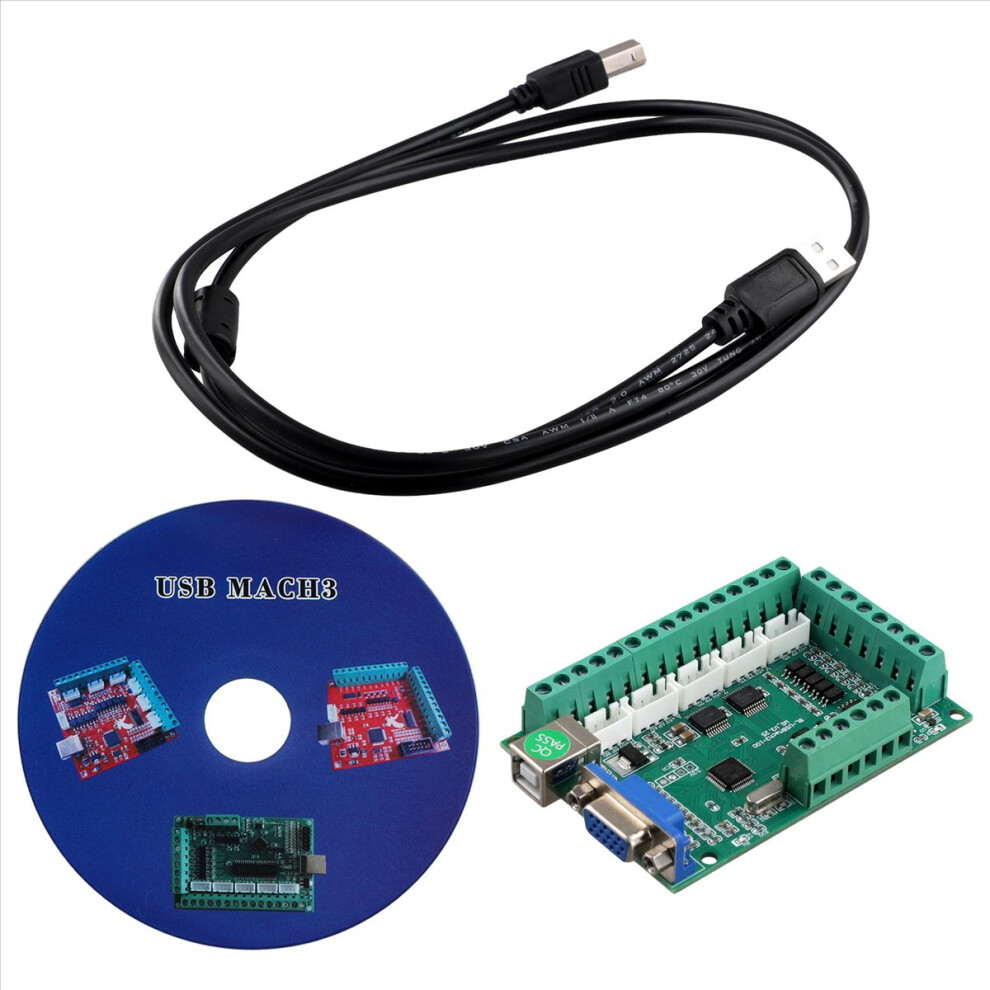

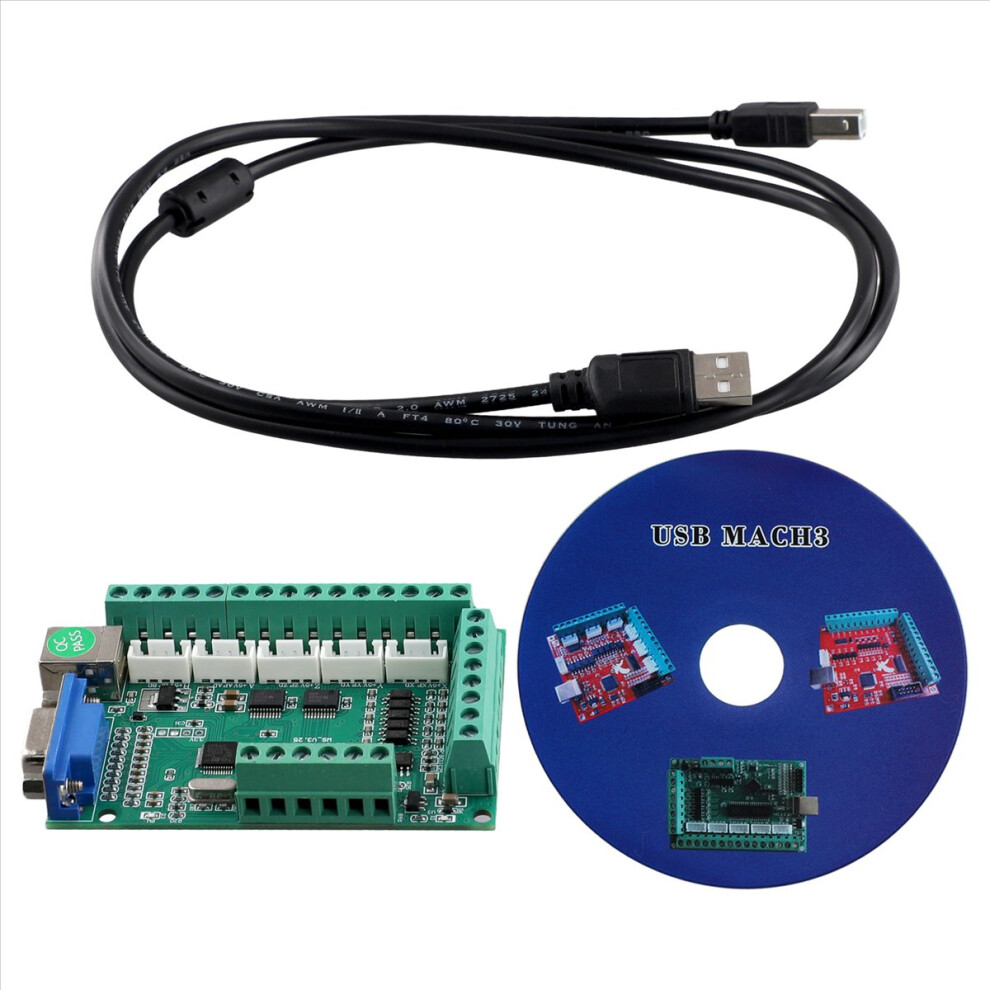

1 x V3.25 5- control card
1 x USB Cable
1 x CD

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
