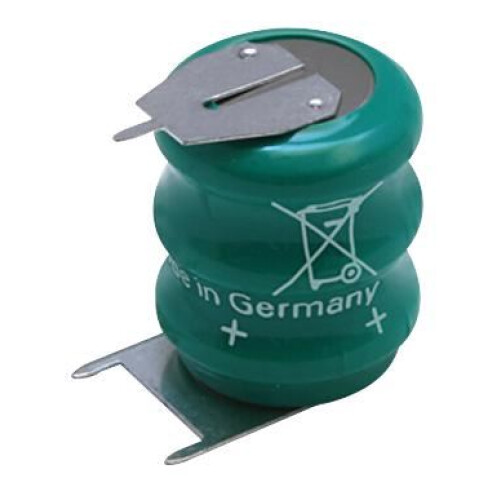

VARTA - 3.6V 80mAh V80H PCB Mount Memory Protection Battery

VARTA - 3.6V 80mAh V80H PCB Mount Memory Protection Battery Description

The 55608303059 from Varta is a rechargeable nickel metal hydride button cell with PCB terminal pins. This button cell features excellent overcharge capability due to patented GCE electrode, low self discharge of 20% at RT after 1 year, flat and stable discharge voltage, long life of typical 500 full cycles and slim design. Mainly used for RTC backup, memory backup and sensor network supply.

UL BBET2.MH13654 recognized

Good recovery characteristics

Can be operated in any position

Charging temperature range of 0C to 65C

Discharging temperature range of -20C to 65C

Nominal Voltage of battery is 3.6V

Typical capacity of battery is 80mAh

Maximum discharge current of 140mA

Standard dimension of 16mm(diameter) x 19.9mm(height) x 19.3mm(length)

Typical weight of battery is 13g

Applications

Power Management, Portable Devices, Consumer Electronics, Industrial

Contents

Battery only

Warnings

Do not incinerate or mutilate, this may burst or release toxic materials.

Battery Voltage: 3.6V

Battery Technology: Nickel Metal Hydride

Battery Capacity: 80mAh

Battery Size Code: Button Cell

Battery Terminals: PCB Pins

External Diameter: 16mm

External Height: 19.9mm

External Width: 16.5mm

External Depth: 19.3mm

Pack Quantity: 1

Weight: 13g

Product Range: V 80 H Series
