VC99 6000 Count Multimeter LED Digital NCV High Accuracy Durable

VC99 6000 Count Multimeter LED Digital NCV High Accuracy Durable Description

1、NCV non contact voltage detection, no close contact is required during measurement, making the measurement safer 2、Large LCD display, clear imaging, easy to read and record, maximum display 6000, equipped with backlight function, easy to use in dark environments 3、The automatic range operation is simple, supports manual and automatic free switching, meets the needs of different scenarios, and improves work efficiency 4、Made of high quality ABS, drop proof, wear resistant and durable, the back of the protective case comes with a teat lead storage compartment and hanging hole protection design 5、Equipped with low battery reminder, automatically shut down after 15 minutes of inactivity, saving power
Item Type: Multimeter
Model: VC99
Material: ABS
Power Supply: 2 x 1.5V AAA(battery not included)
Purpose: Electricity Numerical Test
Applicable fields: electronic laboratories, power equipment, electronic factories, car repairs, wireless enthusiasts, home appliance repairs
Function
Range
Accuracy
DCA
600mV/6V/60V/600V/1000V
(0.5%+5)
ACV
6V/60V/600V/750V
(0.8%+10)
DCA
600μA/6000μA/60mA/600mA/6A/20A
(1.0%+5)
ACA
600μA/6000μA/60mA/600mA/6A/20A
(1.5%+10)
Resistance
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
(0.8%+2)
Capacitance
60nF/600nF/6μF/60μuF/600μF/6mF/60mF
(2.5%+5)
Frequency
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
(0.5%+4)
Temperature ()
-40-1000
(0.8%+4)
Temperature ()
-40-1832
(1.0%+5)
Special Function
VC99
NCV

True Effective Value

Backlight display

Diode/hFE measurement

Analog Strip

Duty Cycle Measurement

Continuous alarm
50Ω10Ω
Low Battery Indicator
2.4V
Data Retention
Maximum, Minimum
Automatic Shut Down
After about 15 minutes of inactivity
Functional Protection

Input Resistance
10MΩ
Sampling Rate
3times/sec
AC Rresponse Frequency
40-400Hz
Method of Operation
Auto Range
Maximum Display
6000
LCD Display Size
65 x 41mm / 2.56 x 1.61in

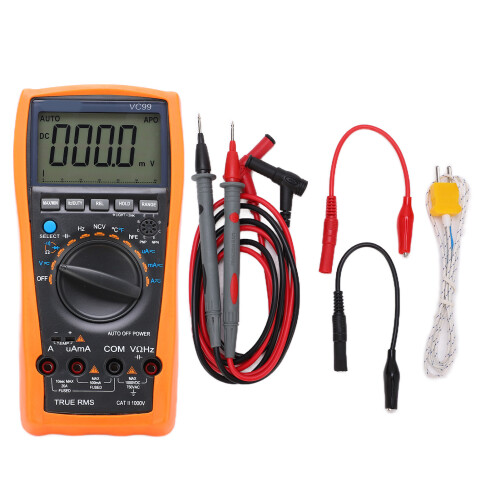

1 x
Multimeter(battery not included)
2 x Test Lead
2 x Clip
1 x Thermal Contact
1 x Manual
