Description:

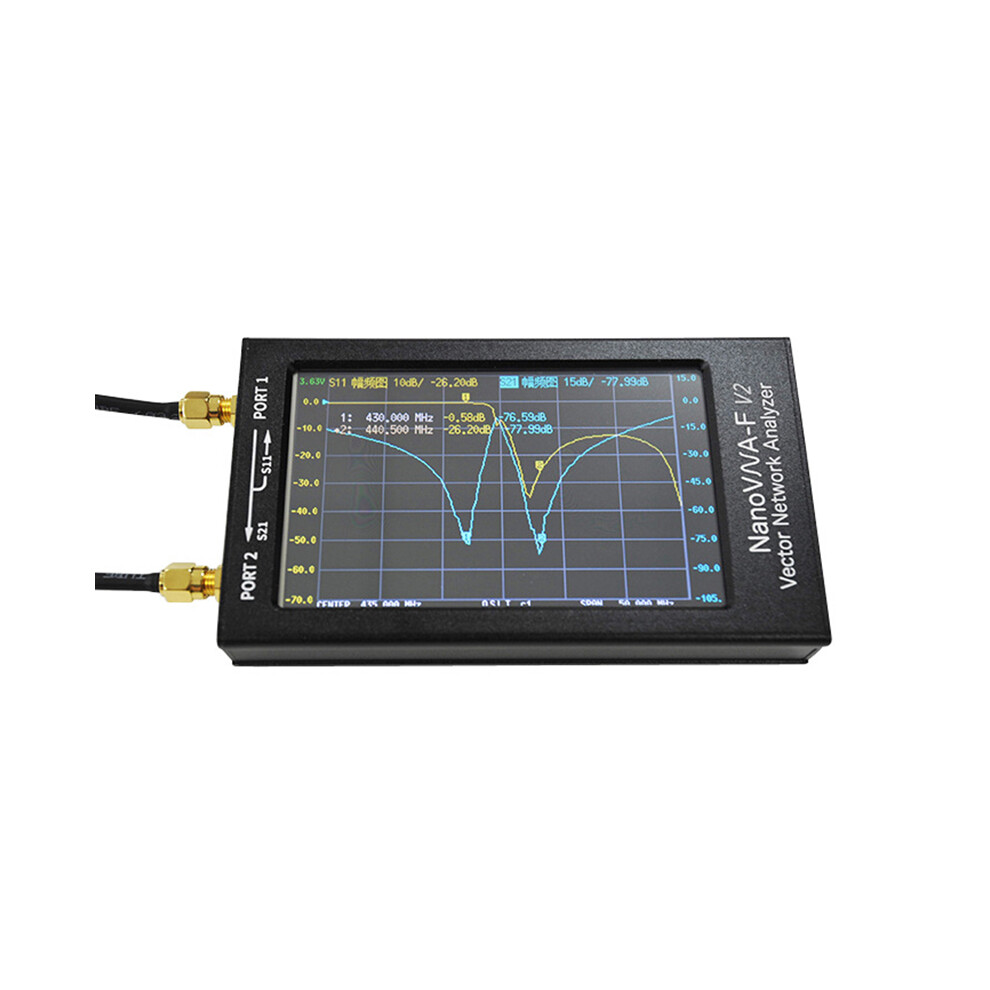

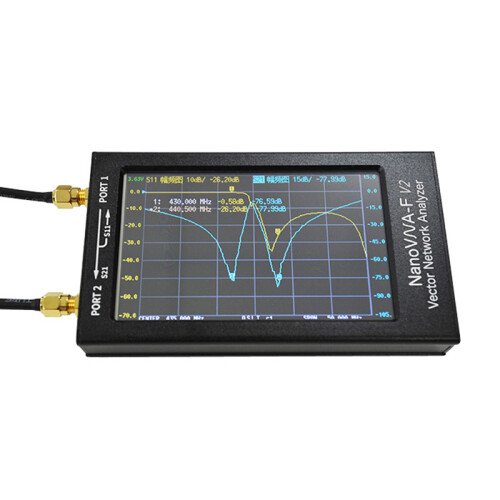

NanoVNA-F V2 portable vector network analyzer is a new generation product developed based on NanoVNA-F. It uses a 4.3-inch IPS LCD screen and aluminum alloy. It is equipped with a 5000mAh large capacity lithium battery as standard. The battery life can reach 7 hours. Support touch screen and side button operation, support Chinese and English interface. The design of this product is based on edy555's NanoVNA and OwOcomm's SAA V2, and deep optimization of the software is made based on the previous generation product NanoVNA-F. The operation interface is compatible with NanoVNA-F, the measuring range is extended to 3GHz, and the dynamic range is wider. The measurement is more accurate and the operation is more convenient.

Feature:
1. 4.3-inch IPS LCD screen, resolution 800 * 480, ultra-wide viewing angle, long-term use does not hurt your eyes;
2. All aluminum alloy, sturdy and durable, effectively shielding electromagnetic interference to ensure measurement accuracy;
3. The body size is about 125mm * 75mm * 20mm, compact and portable;
4. The radio frequency interface is SMA, which is convenient for connecting various tested parts;
5. 5000mAh large capacity lithium battery, battery life up to 7 hours;
6. Full touch screen design, with 3 side buttons at the same time, flexible and comfortable operation;
7. Support Chinese and English interface;
8. Optimized UI design, convenient for users to perform measurement operations;
9. Support screen brightness adjustment;

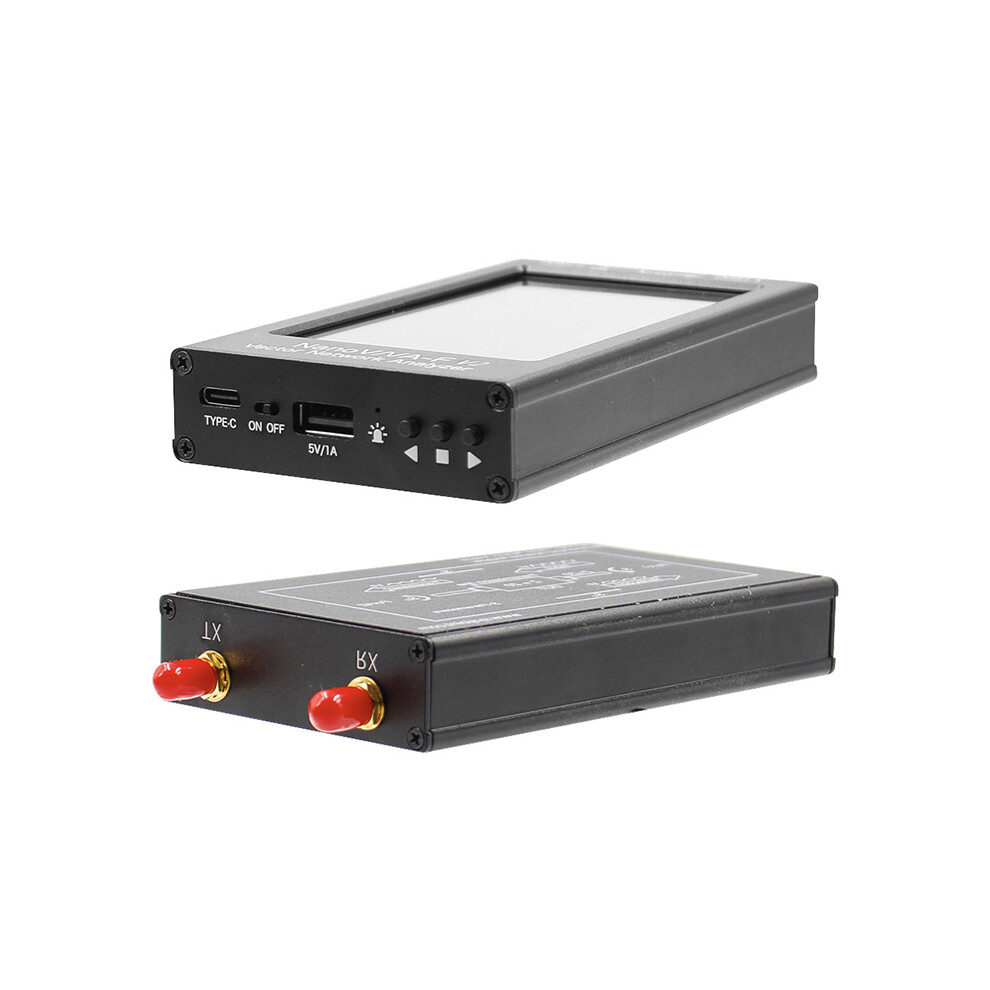

10. The firmware can be upgraded via a virtual U disk, no programmer is required, and the firmware can be upgraded via the supplied USB type-c data cable;
11. Standard high-quality calibration parts and RG405 phase-stable cable ensure calibration accuracy;
12. Designed with USB output, which can support 5V / 1A power;
13. Use 2A high current charging IC, the charging time is shorter;
14. Supporting host computer software, the host computer supports Chinese and English interfaces;
15. The image of the device can be obtained by taking a screenshot from the host computer;

Specification:
Frequency range: 50kHz-3GHz
RF output power: -9dBm (error within 1GHz: ?? 1dB)
Frequency Accuracy: <0.5ppm
S21 dynamic range: 70dB (1.5GHz), 60dB (3GHz)
S11 dynamic range: 50dB (1.5GHz), 40dB (3GHz)
2-port return loss: 20dB typ (1.5GHz), 13dB min (3GHz)
Number of calibration points: 101 points
Number of scanning points: 101 points
Number of tracks: 4
Number of mark points: 4 (the mark point bar can be moved up and down on the screen)
USB interface: USB Type-C communication mode: CDC (serial)
Save setting: 5 groups (after saving, it can be instantly recalled when used next time, no need to calibrate, and the saved parameters before last shutdown will be recalled automatically when it is turned on next time)
Support calibration result interpolation, can measure without recalibration after adjusting the measurement frequency band
Scan Time: About 1.9s / 1 Time (50kHz ~ 3000MHz Full Frequency Band)
Can measure S parameters, voltage, standing wave ratio, Smith graph, phase, group delay, etc.

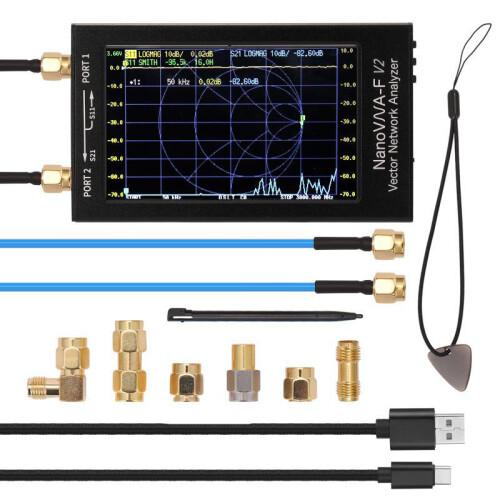

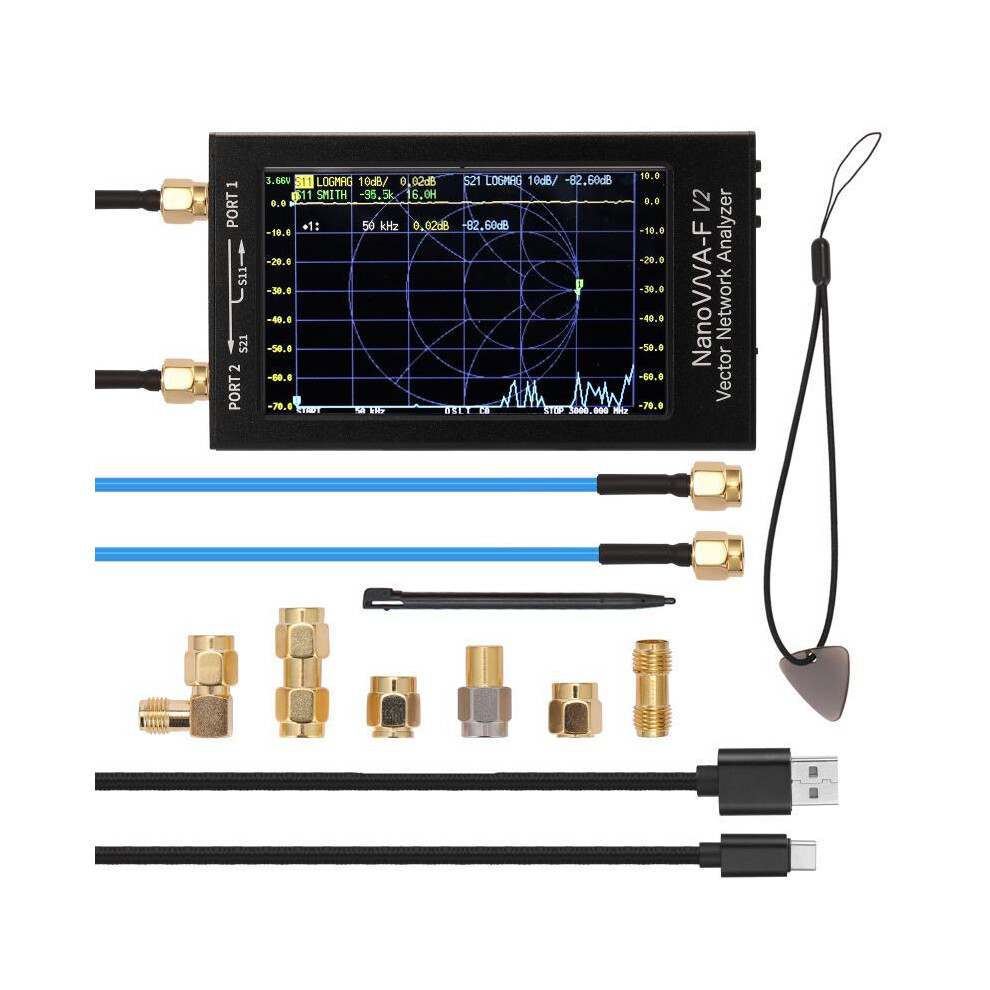

Package included:
Host x1
SMA open calibration kit x1
SMA short circuit calibration kit x1
SMA 50?? load calibration kit x1
SMA-KK double head female hole adapter x1
SMA-JJ double head male pin adapter x1
SMA-JKW elbow outer screw inner hole to inner screw inner needle adapter x1
20cm SMA-JJ RG405 RF cable x2
USB type-C data cable x1
Stylus x1
