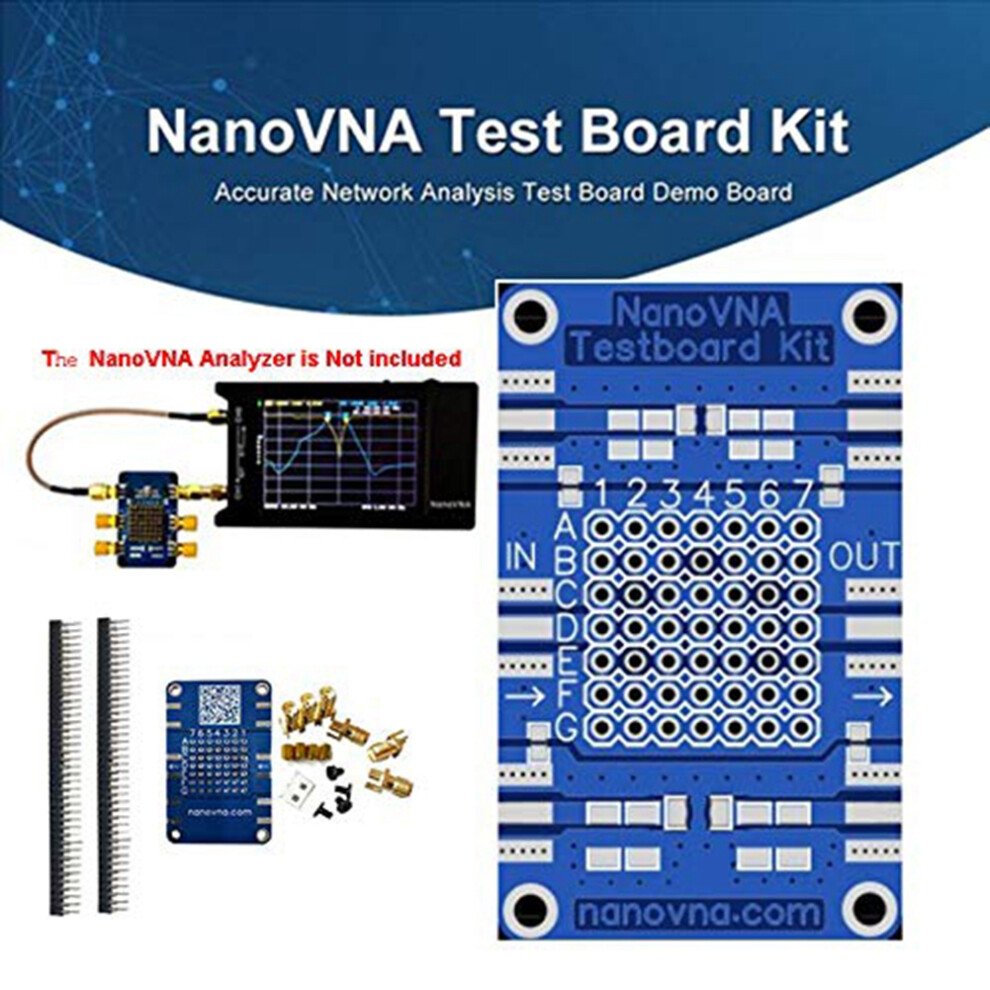

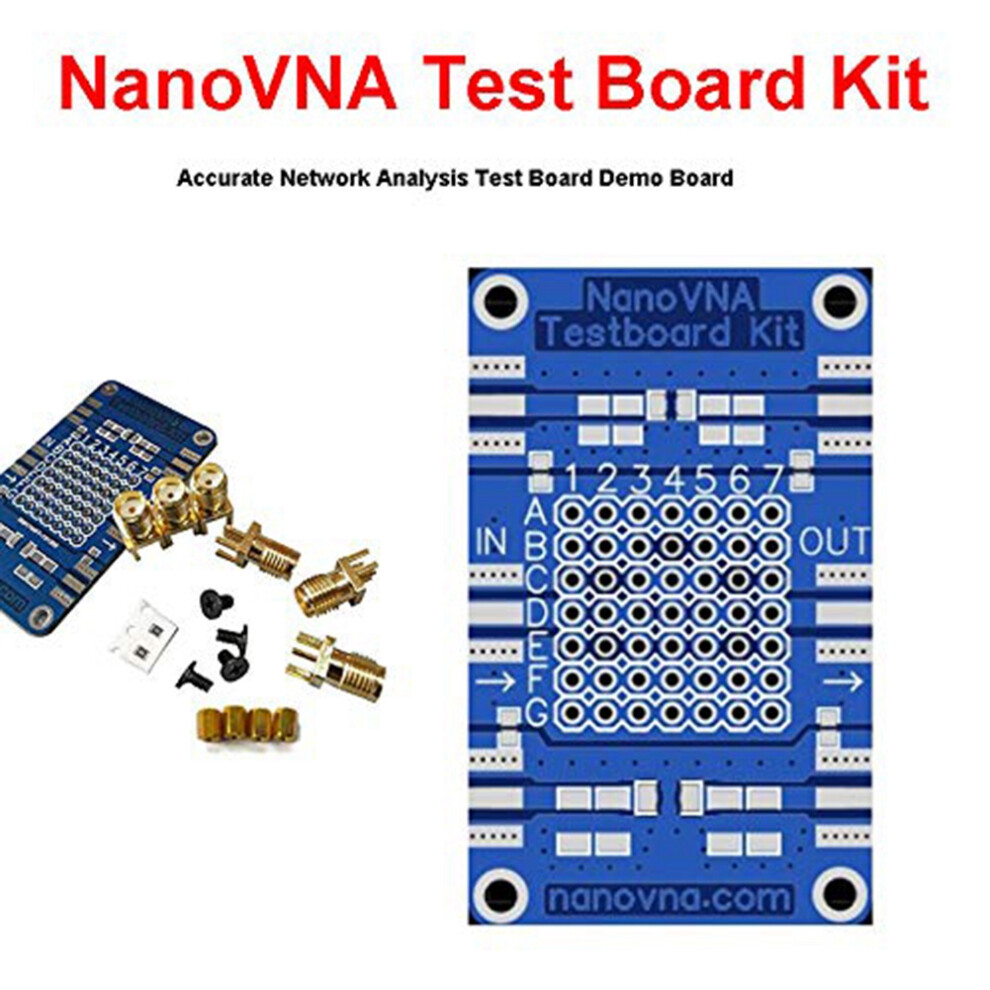

Vector Network Analyzer Test Board Kit for Analysis Demo

Vector Network Analyzer Test Board Kit for Analysis Demo Description

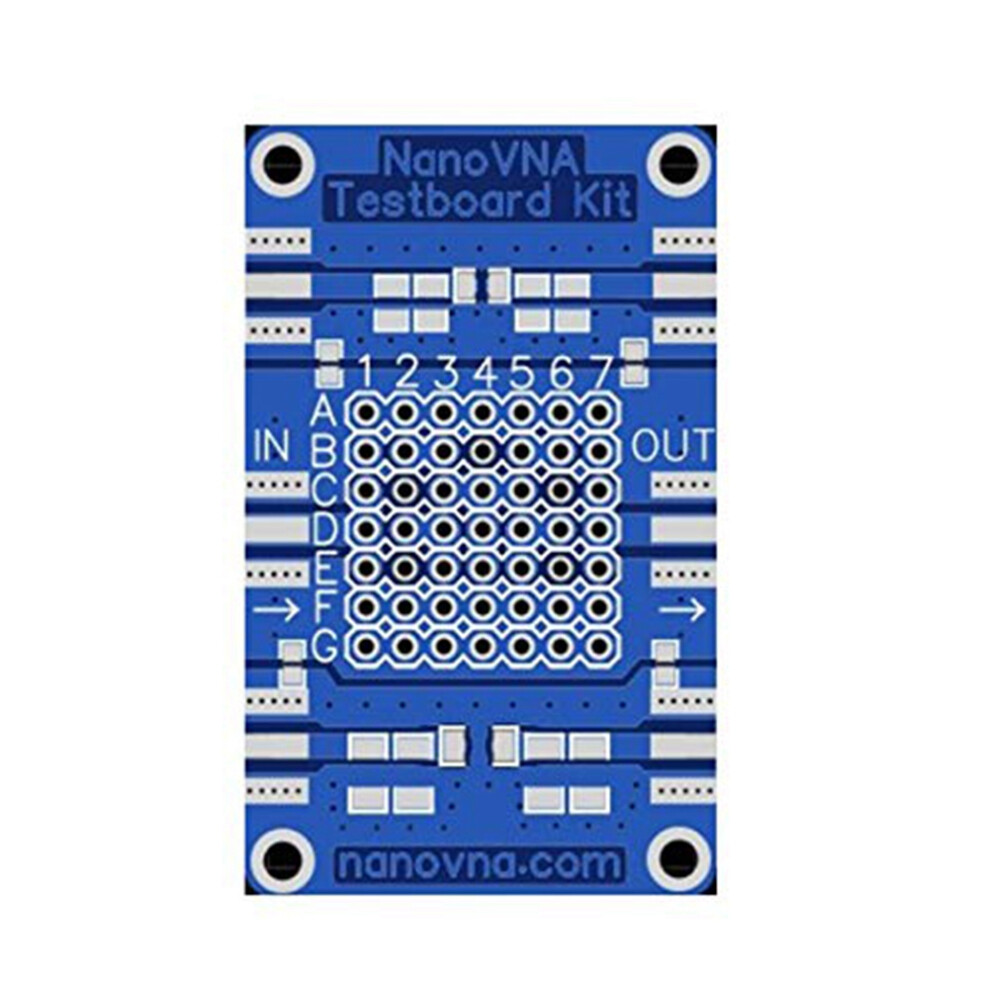

This test board contains a plug-in test circuit suitable for VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added.

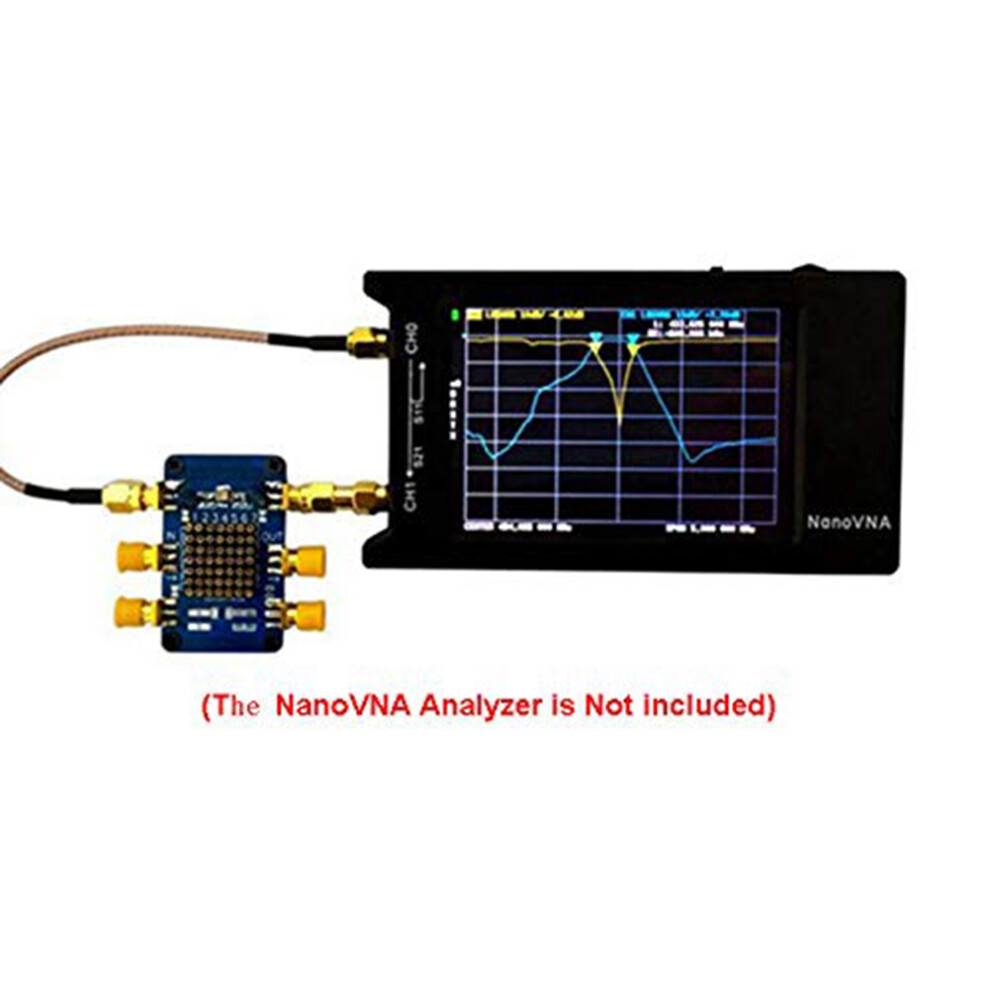

Suitable Model: This test board kit is used for -H -H4 -F series vector network analyzer user-friendly measurement plug-ins and SMT devices.
DIY kit,stable performance, high accuracy, high sensitivity.Made of fine quality material, has a long service life.
Please Note: Due to the SMT circuit cannot fully consider all kinds of test situations, some parts of the test may need to be cut over. Please that you have sufficient hands-on capabilities.

Material:plastic
colour:blue

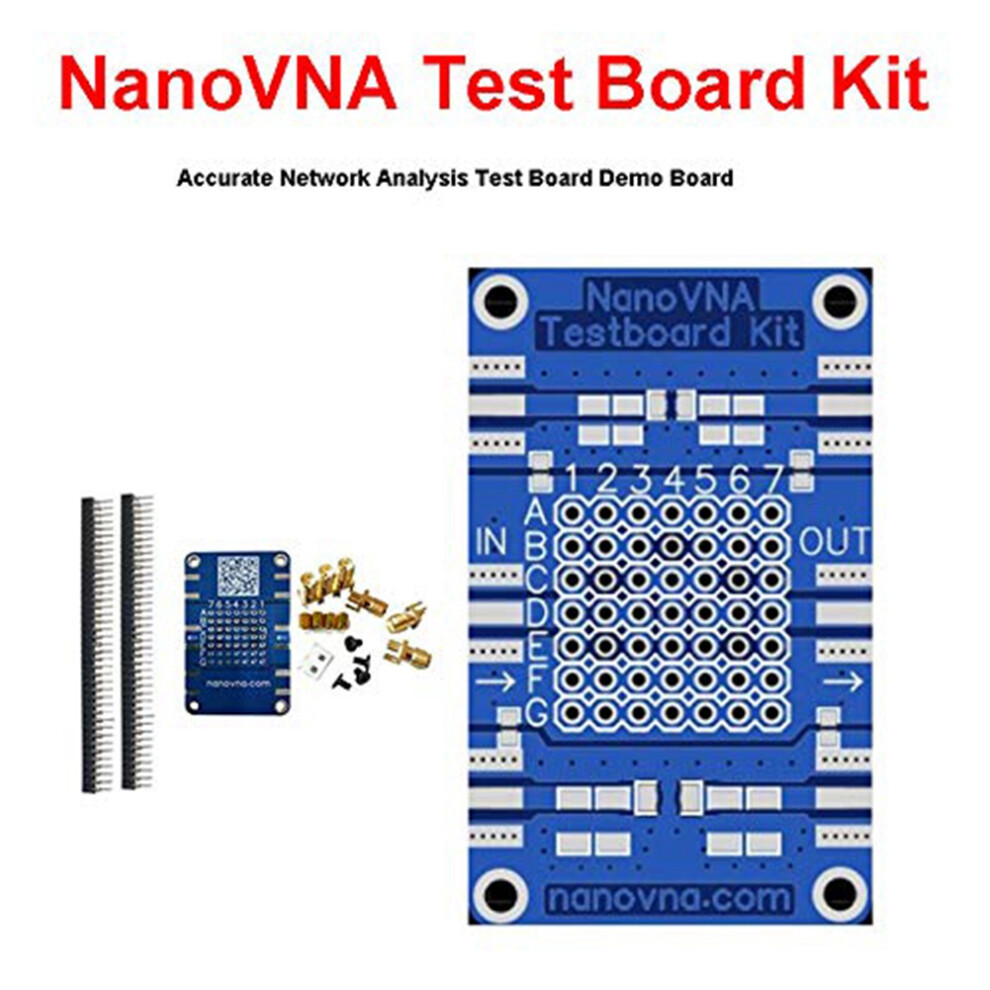

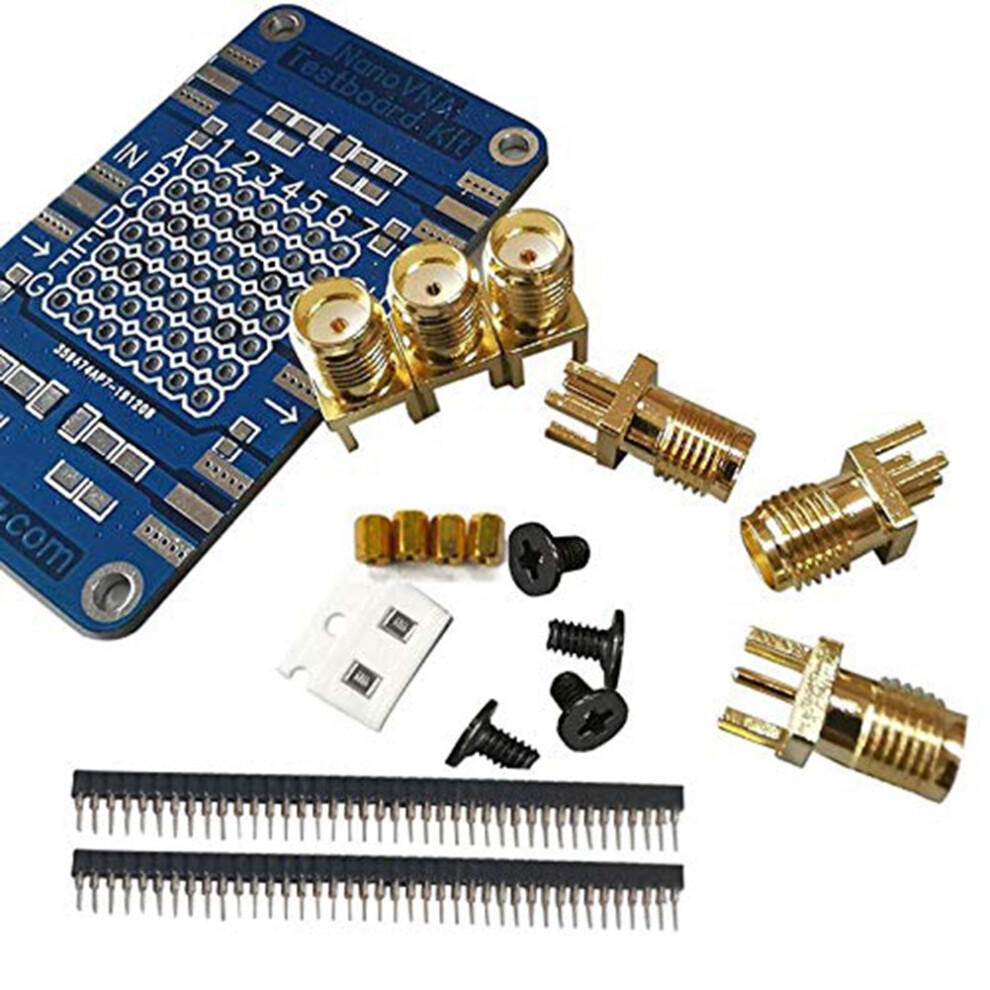

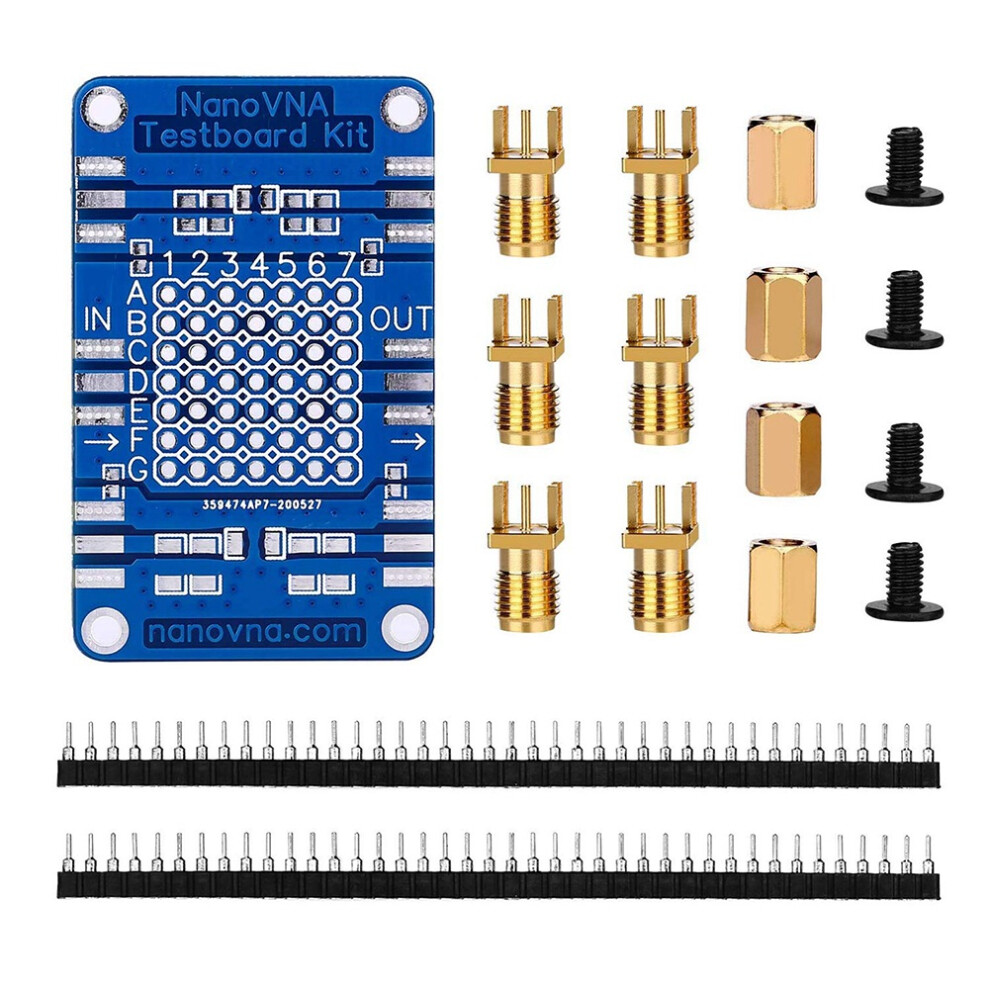

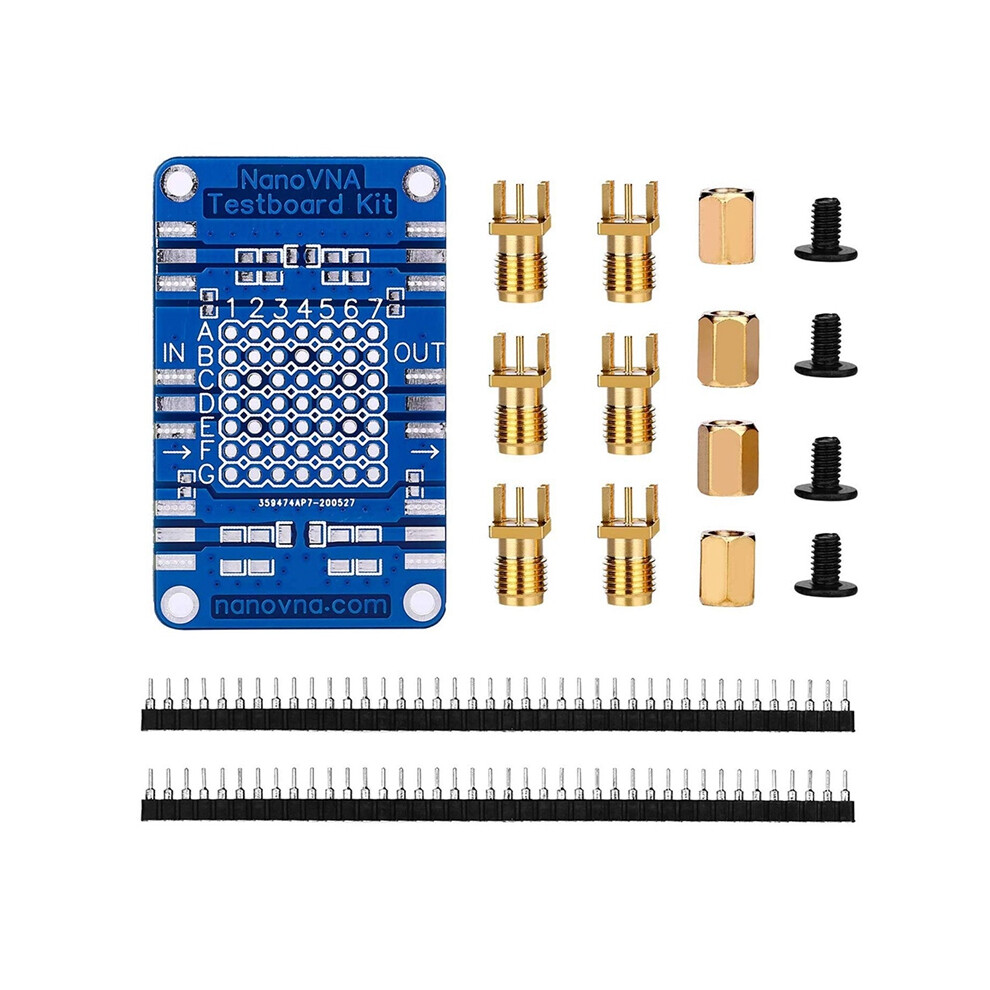

Package Contents:
1 * Testboard Main Board
6 * SMA Female Head
4 * 6mm Copper Stud
4 * M2.5 Screw
2 * 40pin Round Row Seat
2 * 0805 49R9 Calibration Resistance

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
