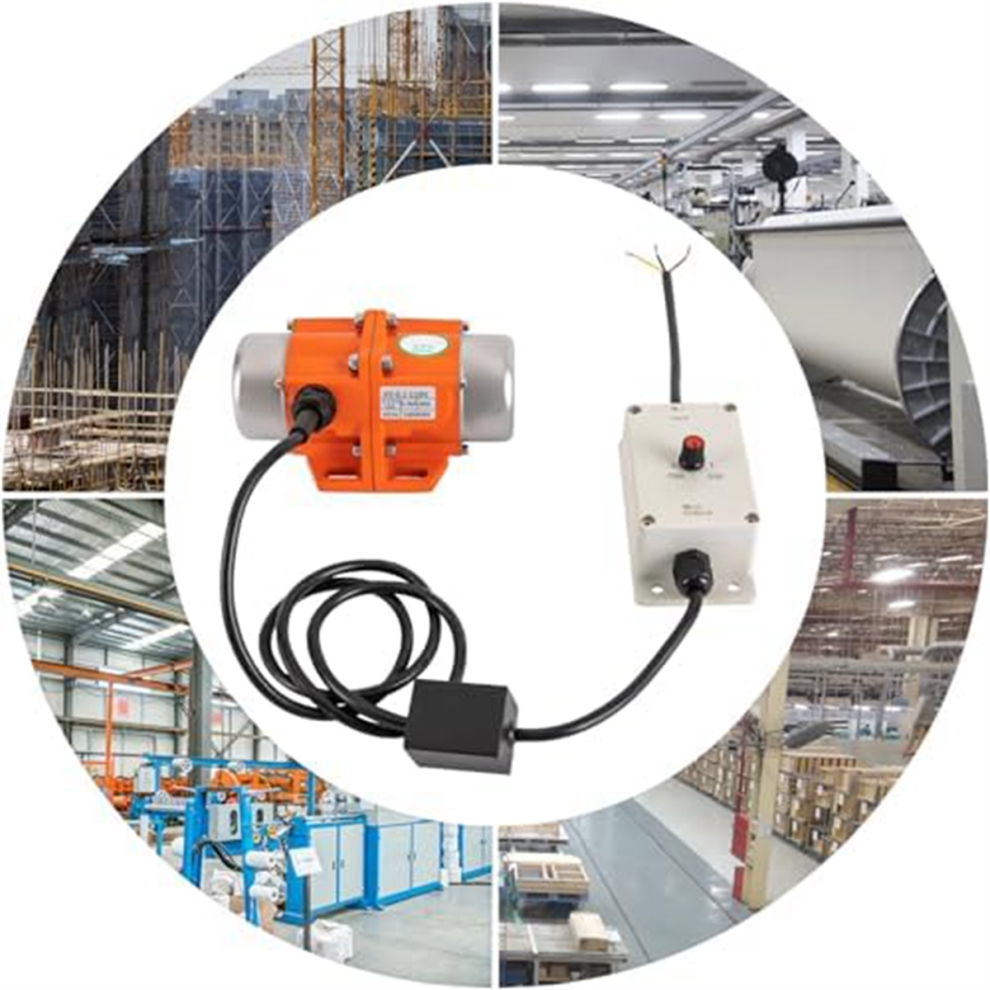

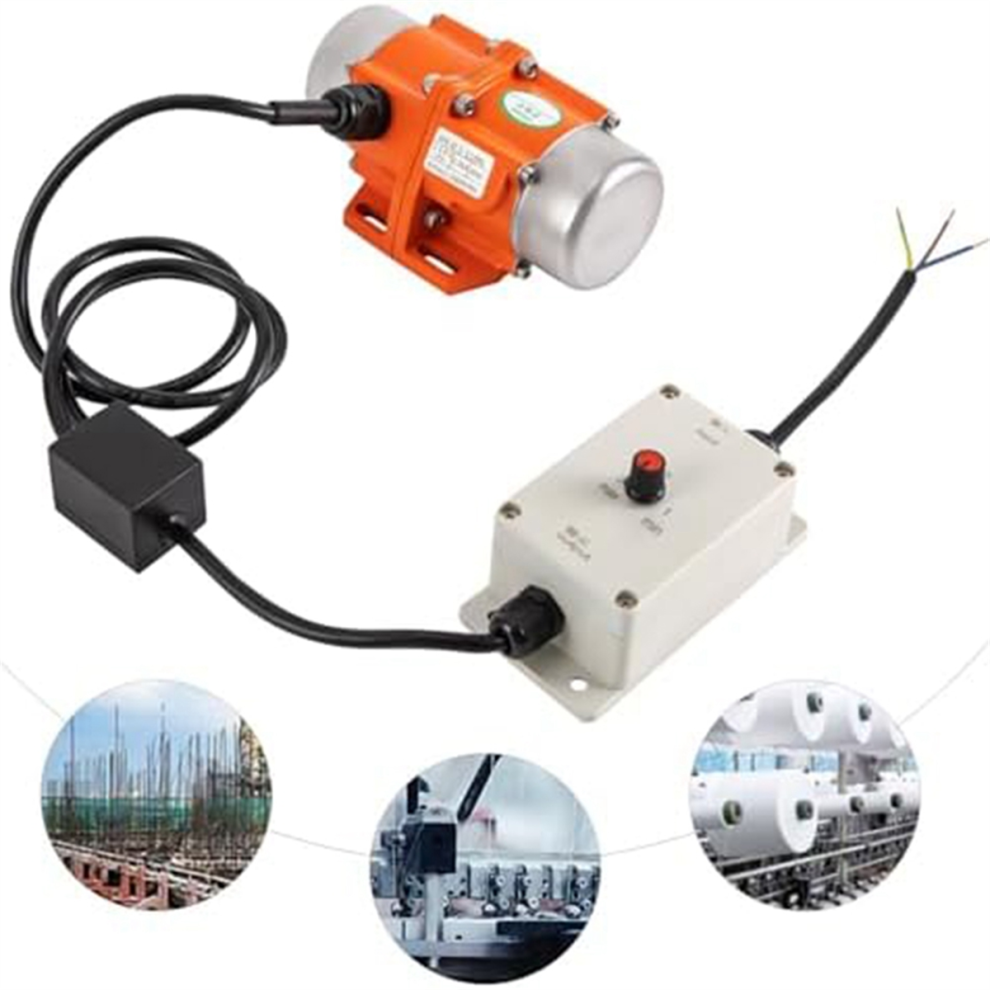

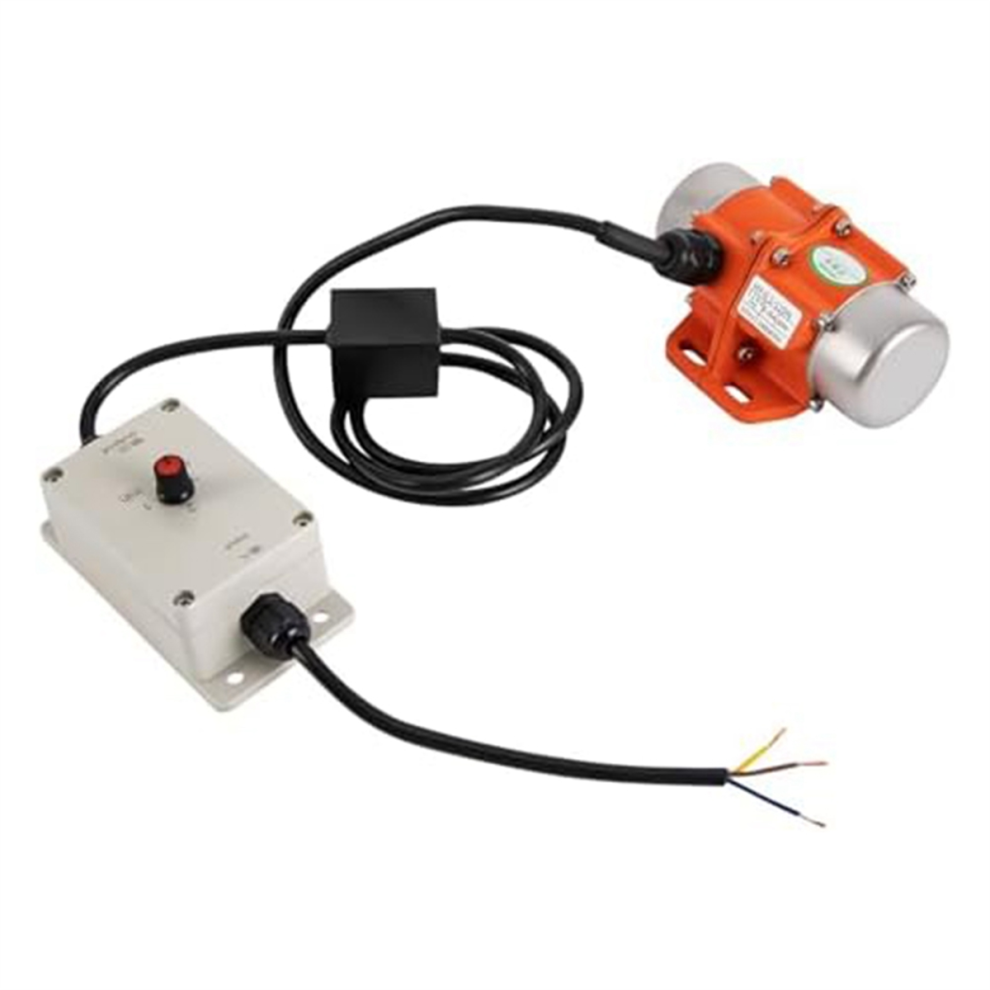

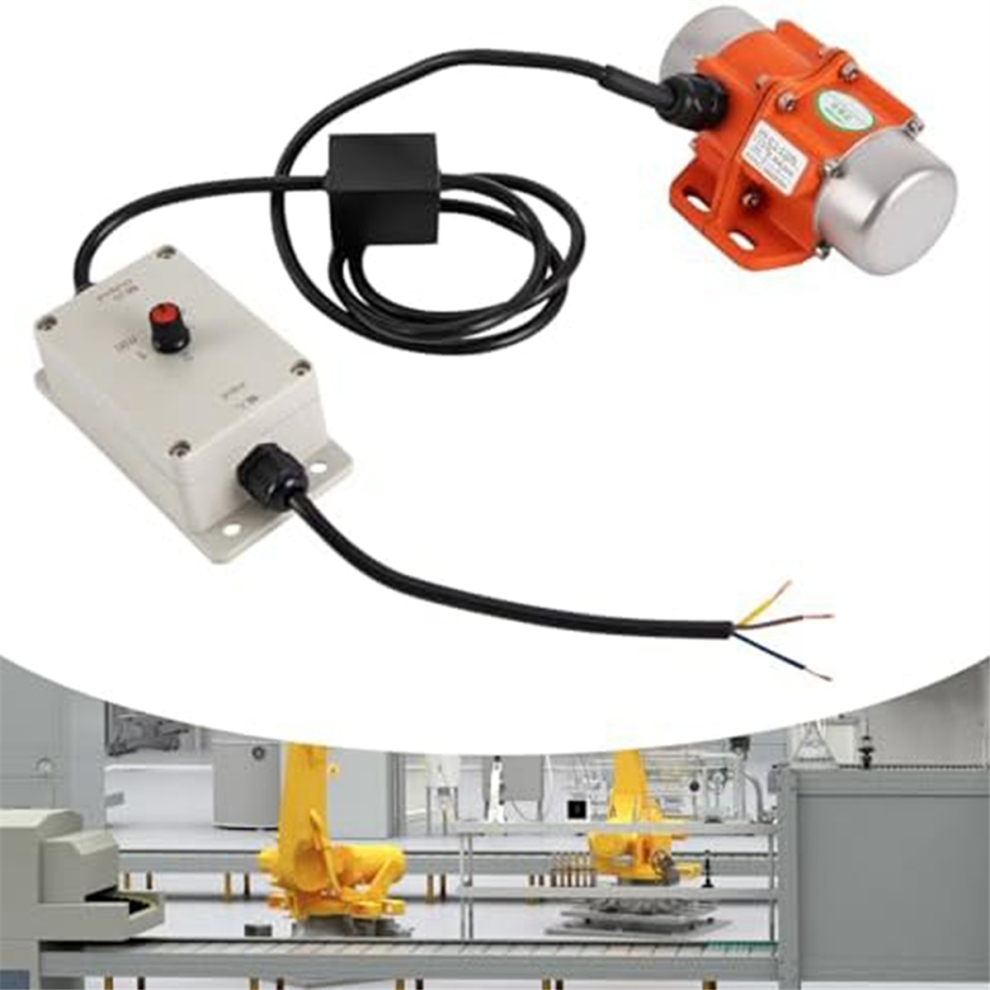

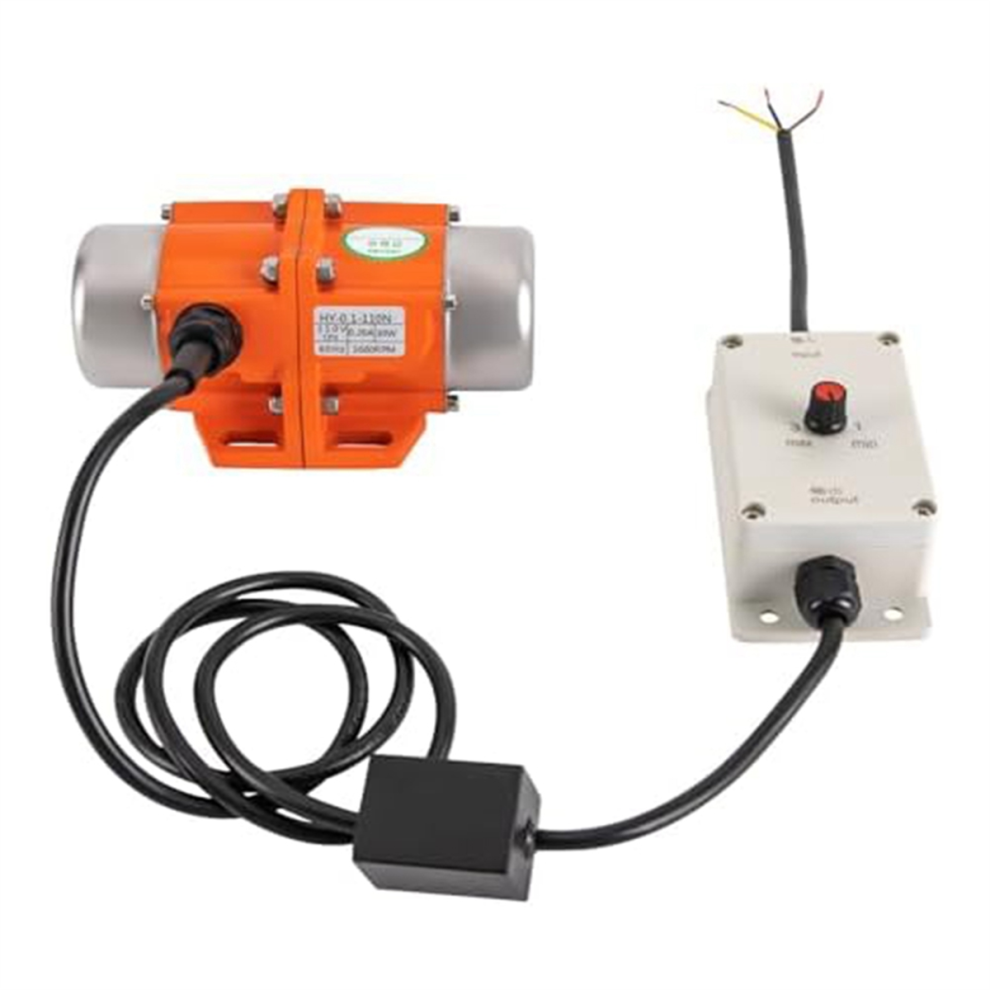

Vibration Motor, 30W Vibrating Asynchronous Vibrator Vibration Motor

Vibration Motor, 30W Vibrating Asynchronous Vibrator Vibration Motor Description

This vibration motor adopts precision bearings, , and copper coils, which can make the machine run smoothly and efficiently, save electricity, and improve your working efficiency. The sealed structure, tightly connected components and thicker base smooth operation of the motor.
Pre-drilled holes in the motor and speed controller base help you quickly secure them with tools such as screws (not included), allowing for more stable operation.
We use a pure copper coil with low-temperature rise and high-temperature resistance, which can stable output.
An efficient machine can facilitate your outdoor work and increase your productivity. This high-quality vibration motor can be used in many areas. The IP65protection rating of this product can somewhat the safety of your use,and it is suitable for many occasions. It is a reliable motor you don't want to miss!
Application: It can be widely used in mining,metal lurgy, coal, electric power, construction, casting, food, powderspraying equipment, grain machinery, and other fields.

Model:-0.1-110N
Treatment:Plastic Spraying
Motor Type:AC Asynchronous Motor
Assembly Required:Yes
Mount Type:Free Standing
Rated Voltage:110V
Rated Power:30W
Frequency:60Hz
Maximum Speed:3600RPM
Insulation Level:F
Protection Class:Closed
System:Hand Start
Power Source:Corded Electric
Number of Items:1
Protection Grade:IP65
Noise:65dB
Power Cord Length:1.5m/4.9ft
Net Weight:1.5kg/3.3lbs
Notes:
1. Please note that one speed controller can only control one motor.
2. When energized, please set thecontroller to the maximum scale to start the vibration motor, then adjust itfrom
the fastest to lower speeds asrequired. It may not be possible to start the vibration motor at a low speed.It can only be started at high speeds.
3. Please note that in order to meetthe installation needs of different customers, the product does not include a plug.
Colour:As Shown
Material:Metal
Size:14.5x11x6.7cm/5.7x4.6x2.6inch

Package Contents:
1 * Vibration Motor
1 * Speed Controller

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
