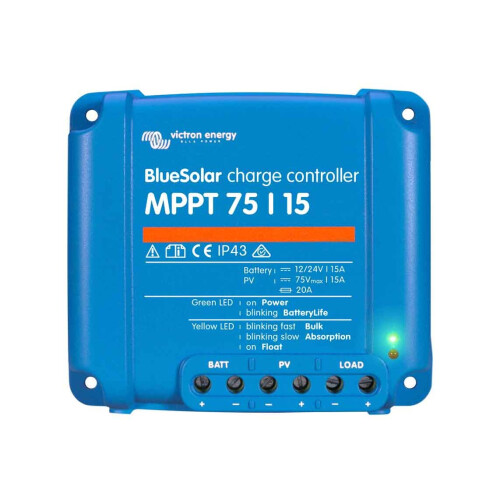

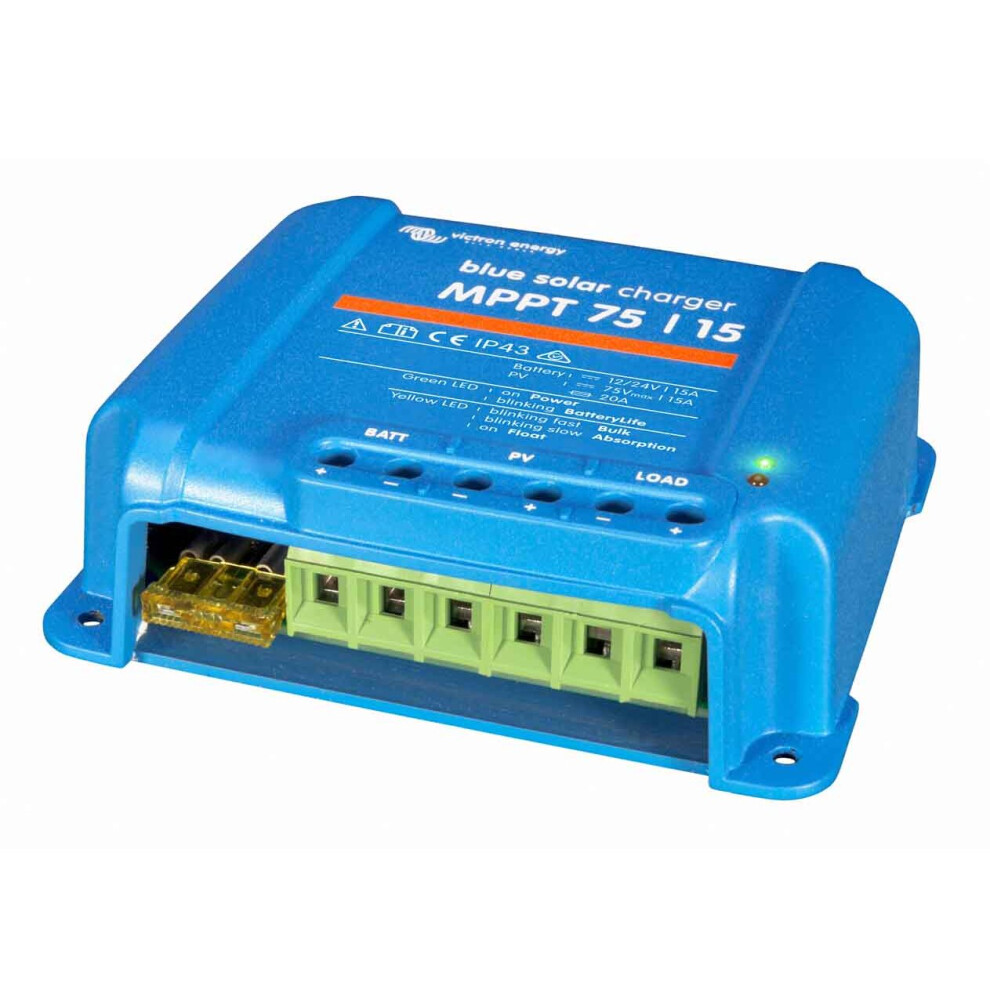

Victron Bluesolar MPPT Charge Controller 75/15 12/24V
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 130,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 30th - Fri 31st Jul
Sold by: Low Energy Supermarket Ltd
Returns: 30 days
180-day payment protection
Most Popular in Solar Charge Controllers
Summary
- A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
- MPPT: Ultra Fast Maximum Power Point Tracking By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
- Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect.
- BlueSolar Charge Controller MPPT 75/15 Battery voltage (auto select) 12/24V Rated charge current 15A Nominal PV power, 12V 1a,b) 220W Nominal PV power, 24V 1a,b) 440W Max. PV short circuit current 2) 15A Automatic load disconnect Yes
- Max. continuous load current 15A Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm Protection Output short circuit / Over temperature Operating temperature -30 to +60°C (full rated output up to 40°C) Humidity 95%, non-condensing Data communication port VE.Direct
Victron Bluesolar MPPT Charge Controller 75/15 12/24V Description
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and ControlRemotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.
Load outputThe intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which BlueSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: BlueSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.
Specifications
- BlueSolar Charge Controller MPPT 75/15
- Battery voltage (auto select) 12/24V
- Rated charge current 15A
- Nominal PV power, 12V 1a,b) 220W
- Nominal PV power, 24V 1a,b) 440W
- Max. PV short circuit current 2) 15A
- Automatic load disconnect Yes
- Max. PV open circuit voltage 75V 100V
- Peak efficiency 98%
- Self-consumption 12V: 25 mA 24V: 15 mA
- Charge voltage 'absorption' 14,4V / 28,8V (adjustable)
- Charge voltage 'float' 13,8V / 27,6V (adjustable)
- Charge algorithm multi-stage adaptive
- Temperature compensation -16 mV / °C resp. -32 mV / °C
- Max. continuous load current 15A
- Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
- Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
- Protection Output short circuit / Over temperature
- Operating temperature -30 to +60°C (full rated output up to 40°C)
- Humidity 95%, non-condensing
- Data communication port VE.Direct
Enclosure
- Colour Blue (RAL 5012)
- Power terminals 6 mm² / AWG10
- Protection category IP43 (electronic components), IP22 (connection area)
- Weight 0,6 kg
- Dimensions (h x w x d) 100 x 113 x 50 mm
Standards
- Safety EN/IEC 62109-1, UL 1741, CSA C22.2
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start.
Thereafter the minimum PV voltage is Vbat + 1V
2) A PV array with a higher short circuit current may damage the controller.
