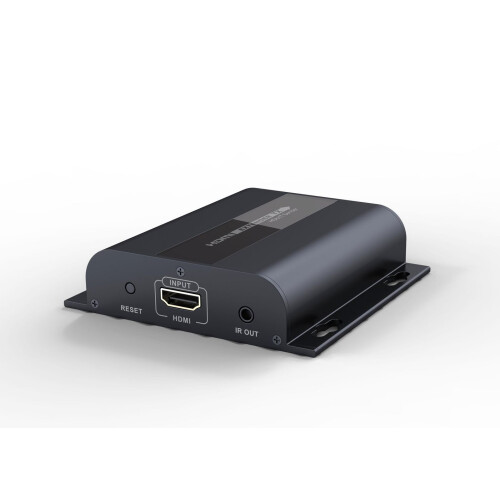

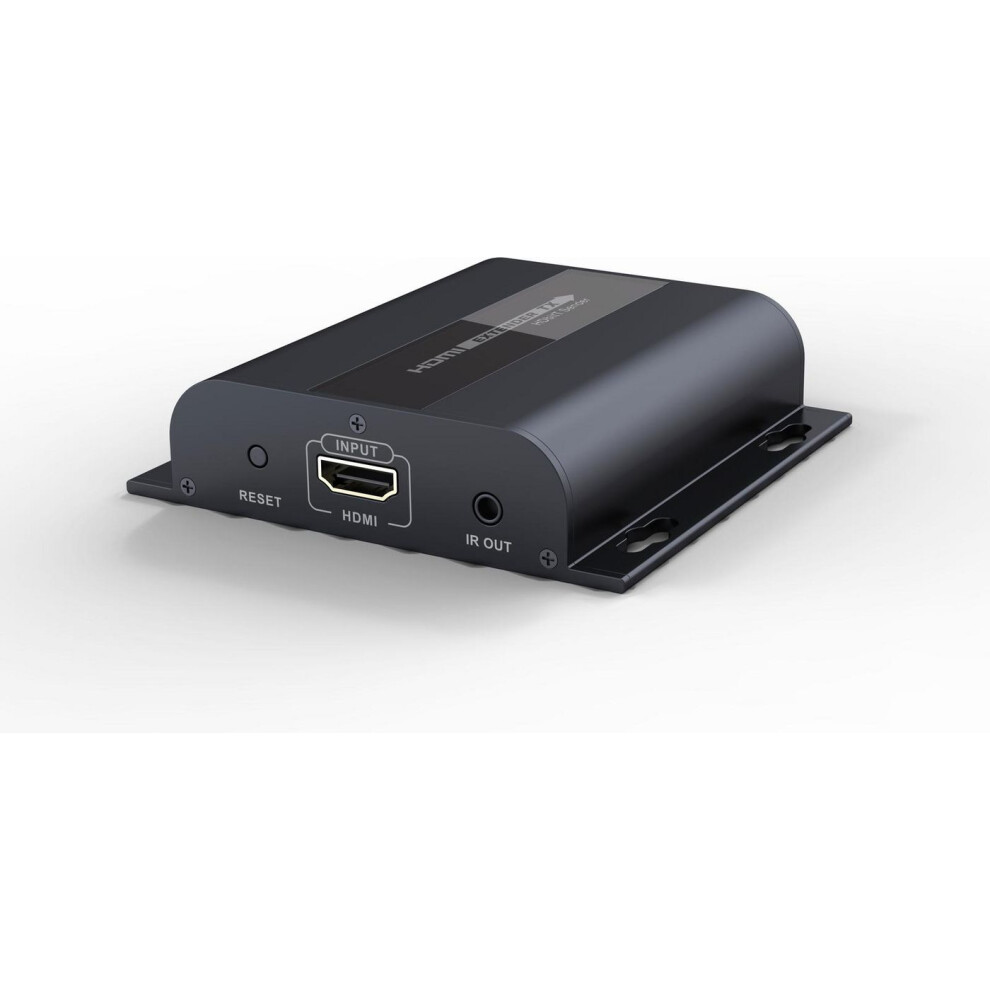

Vivolink HDMI over IP 120m 1:253 + IR Transmitter
Brand VivoLink
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
£122.47
+£6.50 Delivery
1%
Earn £1.22 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£6.50) | Sat 22nd - Mon 24th Aug
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Vivolink HDMI over IP 120m 1:253 + IR Transmitter Description

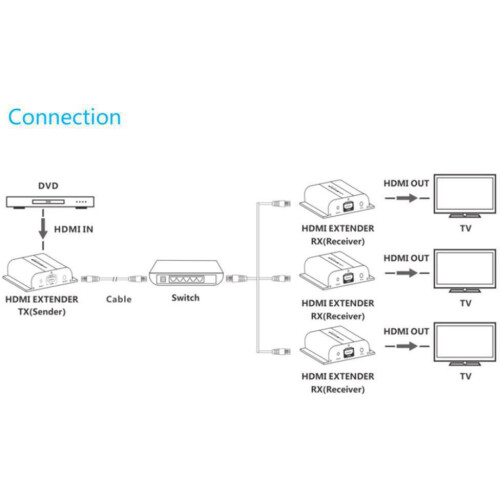

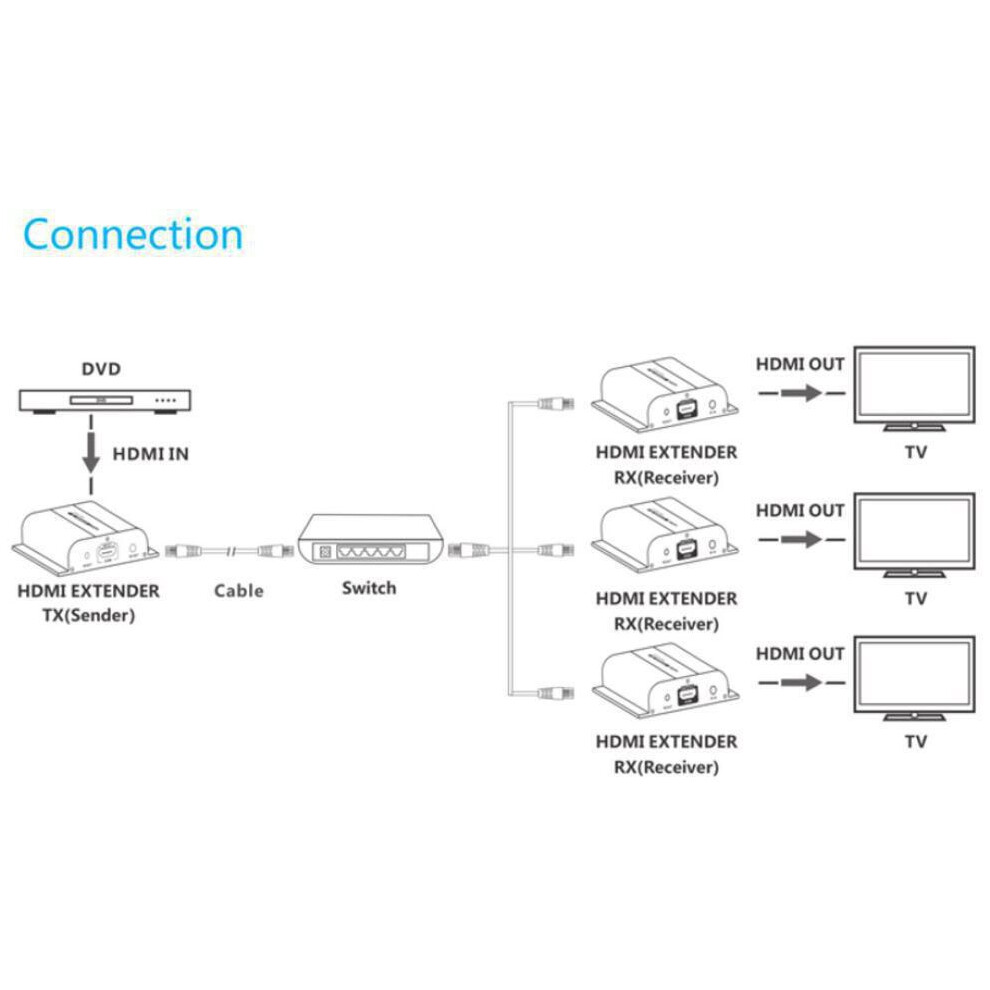

Transmitter unit with IR transmitter Max resolution 1080P@60hz VLHDMIEXT1-TV2 is transmitter for VLHDMIEXT1-RV2 It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 120 meters via single network cable (Cat 5e/6) Up to 253 receivers can be connected to one transmitter using Gbit switch. One receiver will occupy 18Mbit bandwith. Note that this product is not compatible with HDBaseT receivers Typical installation: It can be installed anywhere to extend HDMI signal up to 120m including AV/IR control signals E.g. Private installation, Info screens in Shops or offices Function: HDMI extender Point to point,Tx to Rx for 120m 1080P@60Hz Signal can be spitted with a GBit Switch to several receivers One receiver device only occupy 18M bandwidth. Key features: Super cost-effective HDMI extender over IP network TX: 192.168.1.210 RX: 192.168.1.220 Features:- Cable length: 120- Cable types supported: Cat5e/Cat6- HDCP: Yes- HDCP & EDID bypass: Yes- HDCP pass-through: Yes- HDCP version: 1.4- IR pass-through: Yes- LED indicators: Yes- Maximum resolution: 1920x1080p- Maximum transfer distance: 120- Product colour: Black- Remote control type: IR- Supported video modes: 1080p- Type: AV transmitter- Video compression formats: H.264- Wall mountable: YesOperational conditions:- Operating relative humidity (H-H): 10 - 90- Operating temperature (T-T): 0 - 60Packaging content:- AC adapter included: Yes- Included power plug types: EU- IR blaster included: No- IR receiver included: YesPorts & interfaces:- 3.5 mm (1/8-inch) in: Yes- 3.5 mm (1/8-inch) out: Yes- Connectivity technology: Wired- DC-in jack: Yes- Ethernet LAN: Yes- HDMI in: 1- HDMI version: 1.4- Number of HDMI outputs: 1- Remote (IR) input: 1- Remote (IR) output: 1- RJ-45 output ports: 1- Video in: 1- Video out: 1Power:- AC input frequency: 50 / 60- AC input voltage: 100 - 240- Power consumption (typical): 3.5Technical details:- Audio support: YesVendor information:- Brand Name: Vivolink- Warranty: 5- Product.Details.Specifications.Level1: ProAV Solutions- Product.Details.Specifications.Level2: Signal Management- Product.Details.Specifications.Level3: Extenders- Product.Details.Specifications.Level4: AV Extenders
Details
| OPC | PVMR7NW |
|---|---|
| Brand | VivoLink |
| Codes | 5704174238935 (EAN) |
| MPN | VLHDMIEXT1-TV2 |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Features
| Type | AV transmitter |
|---|---|
| Cable length | 120 m |
| LED indicators | Yes |
| Wall mountable | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Product colour | Black |
| Video compression formats | H.264 |
| Bandwidth | 0.018 Gbit/s |
| Remote control type | IR |
| Supported video modes | 1080p |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Cable types supported | Cat5e |
| Maximum transfer distance | 120 m |
| HDCP version | 1.4 |
| HDCP & EDID bypass | Yes |
| IR pass-through | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| HDCP pass-through | Yes |
Weight & dimensions
| Weight | 206 g |
|---|---|
| Height | 23.7 mm |
| Width | 96.8 mm |
| Depth | 94 mm |
Power
| Power consumption (typical) | 3.5 W |
|---|---|
| External power adapter | Yes |
| Output current | 1 A |
| Power source type | DC |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (transmitter) (max) | 3.5 W |
| Operating voltage (receiver) | 5 V |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Packaging data
| Package weight | 306 g |
|---|---|
| Package depth | 119 mm |
| Package height | 80 mm |
| Package width | 153 mm |
| Quantity per pack | 1 pc(s) |
Packaging content
| AC adapter included | Yes |
|---|---|
| IR blaster included | No |
| Included power plug types | EU |
| IR receiver included | Yes |
Ports & interfaces
| Ethernet LAN | Yes |
|---|---|
| Video in | 1 |
| Video out | 1 |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| HDMI version | 1.4 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
Technical details
| Audio support | Yes |
|---|
