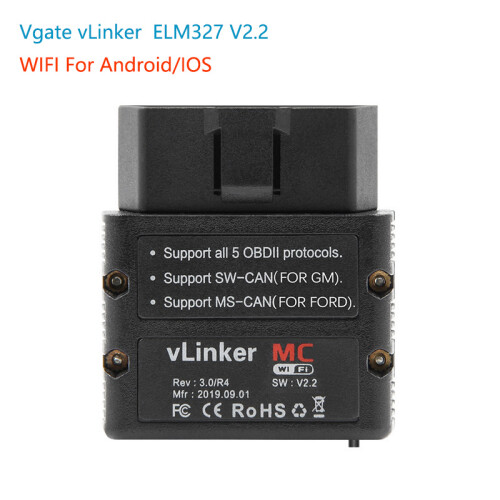

(Vlinker BT 4.0) Vgate vLinker MC+ ELM327 V2.2 Bluetooth 4.0 WIFI OBD2 Fault Code Reader OBDII Scanner For Android/IOS

(Vlinker BT 4.0) Vgate vLinker MC+ ELM327 V2.2 Bluetooth 4.0 WIFI OBD2 Fault Code Reader OBDII Scanner For Android/IOS Description

Features:
100% Original Vgate vLinker BT3.0/4.0/WIFI.
Compatible with 95%+ world car models.
1. Data buffer up to 2K bytes, UART baud rate increased to 230. 4 Kbpsc.
2. Support Almost All ELM327/ELM329/OBDLINK Adapter Software.
3. Automatic sleep and start to reduce power consumption.
4. OBD2 Standard Protocols+More protocols.
5. Support user-defined commands.
6. Request bytes up to 48 bytes.
7. Support Firmware Update.
8. Support user-defined APP.

Multiple protocols:
15 ELM format protocols;
23 STN format protocols;
Up to 64 user-defined protocols.

OBDII 5 standard protocols:
SAE J1850 VPW
SAE J1850 PWM
ISO 9141-2
ISO 14230-4
ISO 15765-4 CAN

Additional protocols:
SAE J1939 CAN
ISO 11898 (raw CAN)
for GMLAN Single Wire CAN (for GMW3089)
for Ford Medium Speed CAN (MS CAN)
These protocols cover almost 99% of the OBDII Cars on the market.

Rich instruction set, compatible with more APP software:
Fully compatible with ELM's AT command set;
Fully compatible with STN's ST command set;
Expanded 7 AT commands for HS-CAN, MS-CAN, SW-CAN;
39 VT macro commands, some instructions are equivalent to the effect of several AT and ST instructions, simplifying the communication steps.
Compatible with ELM and STN power management solutions.
Support for instructions, UART silence, battery low voltage, OBD bus silence, etc. Up to 5 ways to go to sleep;
Support UART active, battery voltage drop, OBD bus active, key, etc. Up to 5 ways to wake up from sleep mode.
Device sleep power consumption is less than 2 mA.
OBD request byte up to 48 bytes, can meet the needs of some special long frame communication.
UART data buffer up to 2K bytes, baudrate increased to 230.4Kbps.
256-byte storage unit.
More than 100,000 erasable times.
Read and write operations on any unit in the storage area by using the VT command.
Mix ID Sending" mode of CAN protocol.
Optional formatted send data according to protocol.
Multiple WM sequence settings.
Support AT command to manually set WM sequence.
Support for specifying a protocol or a full protocol-wide temporary WM sequence.
Support for a permanent link between a protocol and a private WM sequence.
Secure bootloader for easy firmware updates.

Package list:
1 * Vgate vLinker Car Diagnostic Tool
1 * User manual
