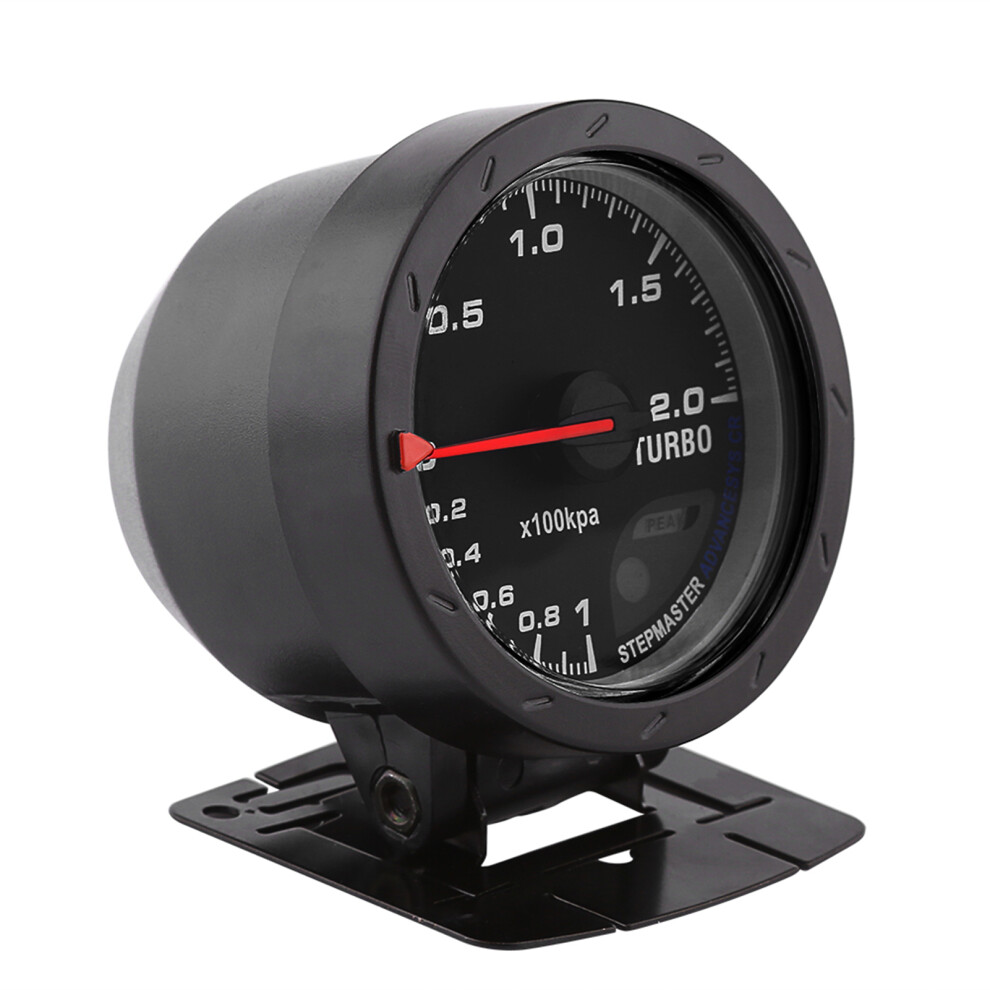

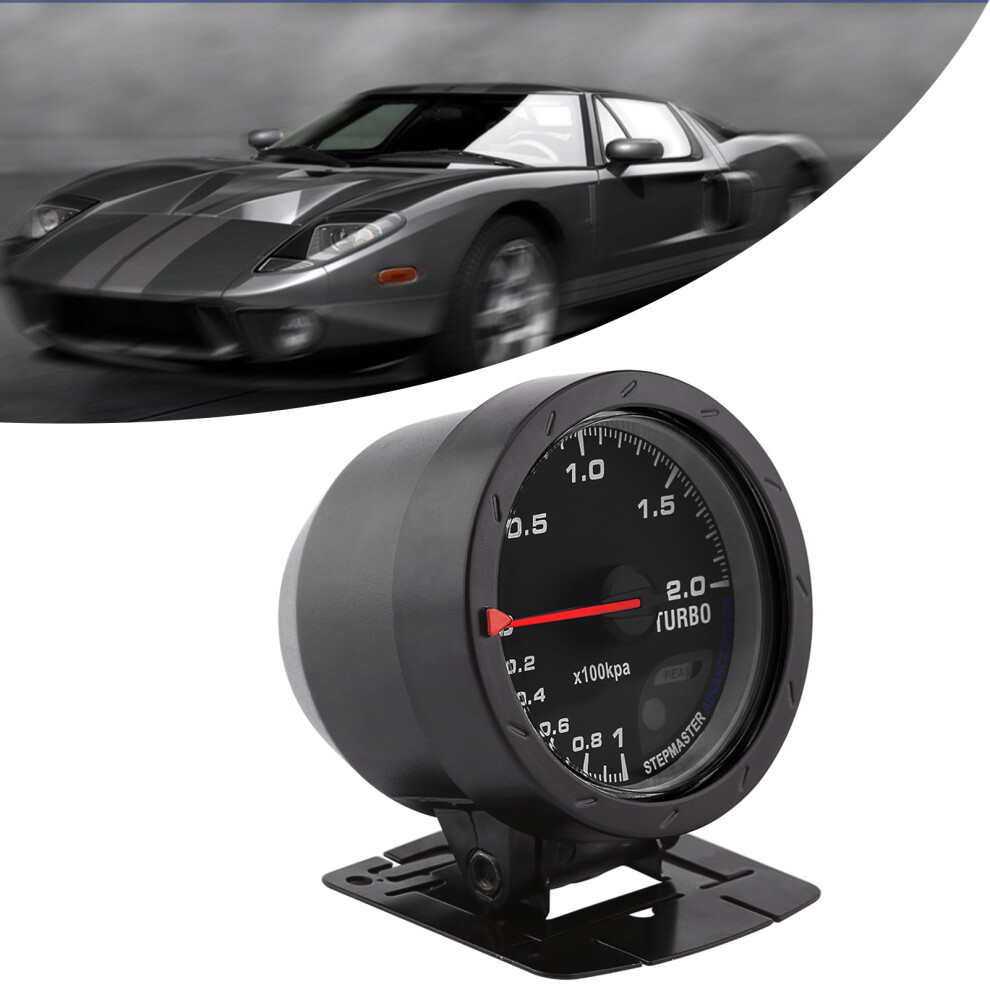

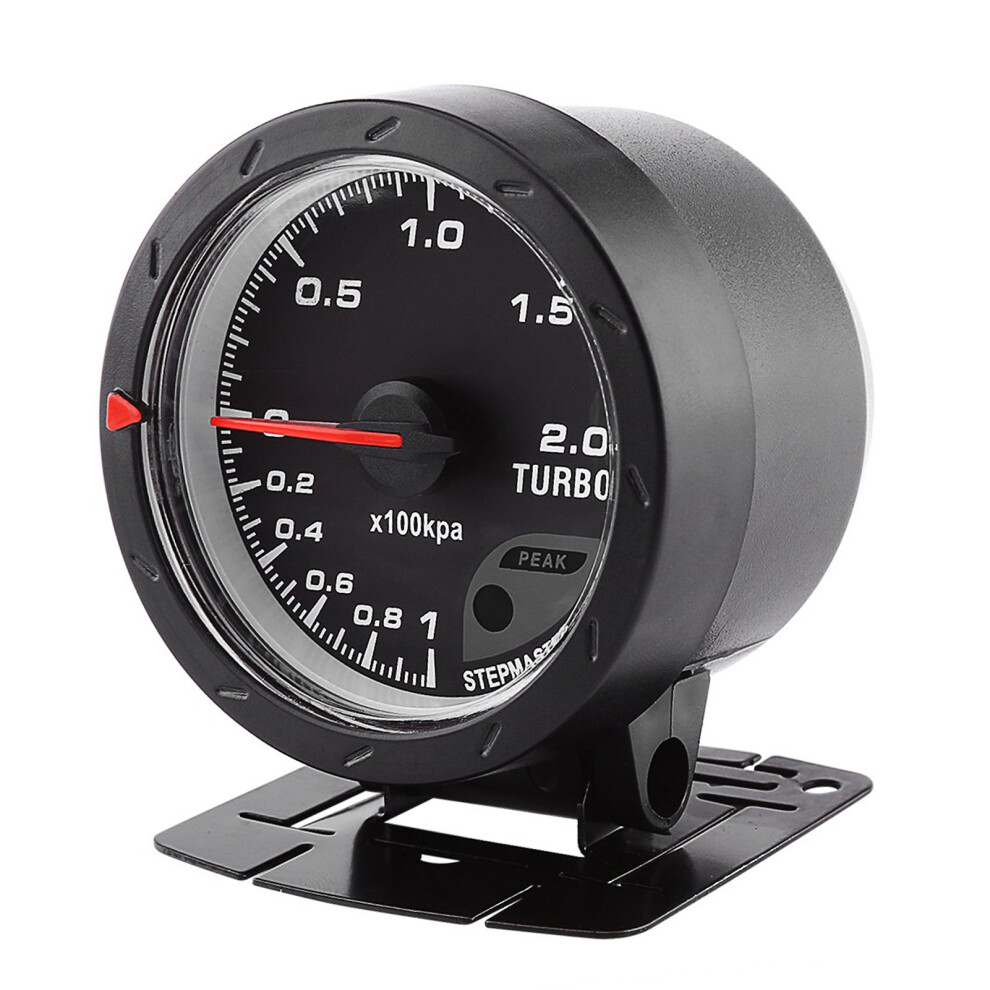

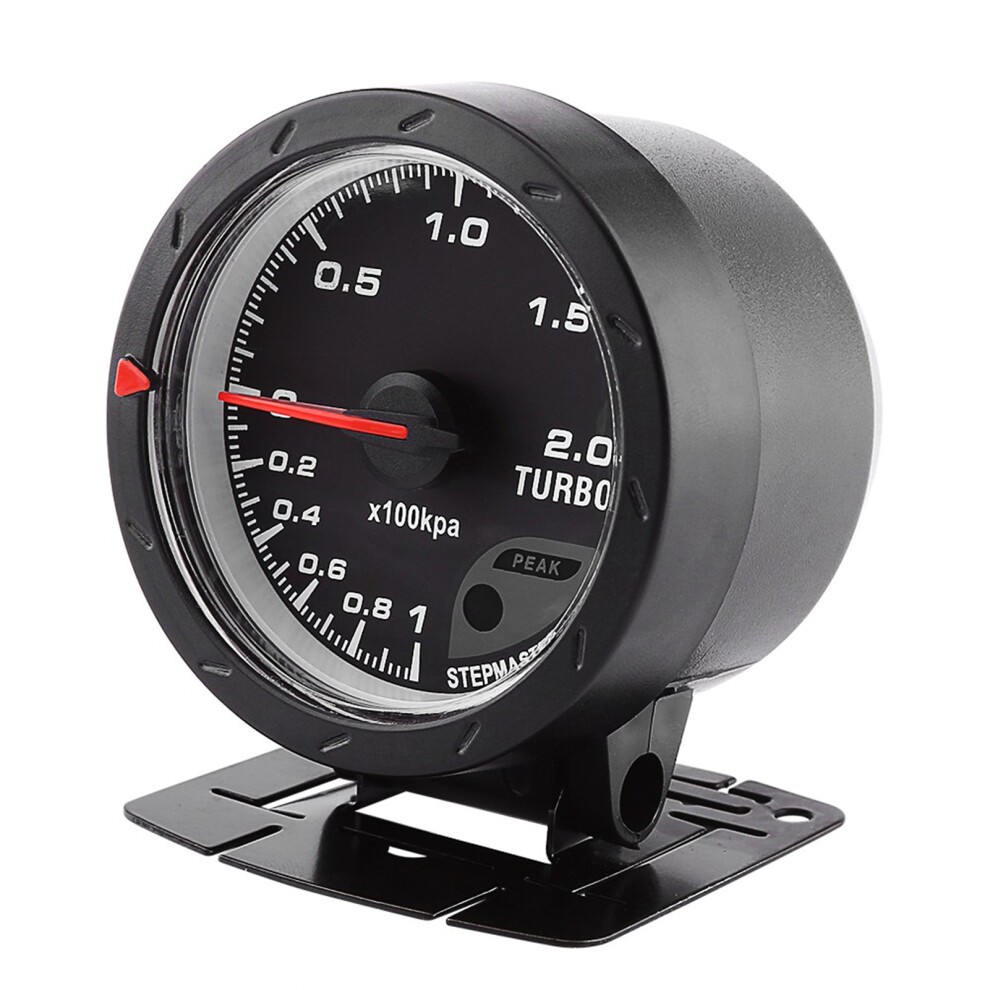

Vobor Universal 60mm LED Turbo Boost Meter Gauge B

Vobor Universal 60mm LED Turbo Boost Meter Gauge B Description

Specifications:
Material: Stainless steel shell + glass top
Body Color: Black

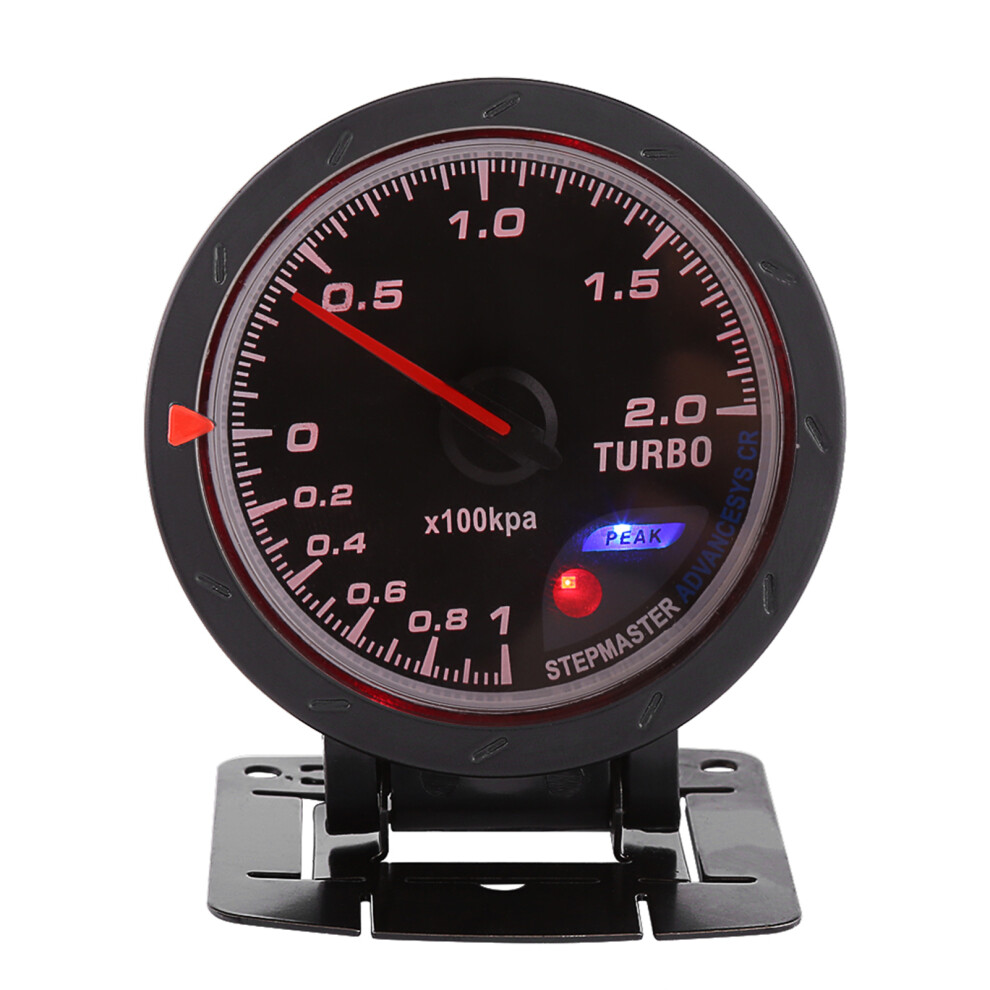

Backlight Color: As the Picture Shown
Working voltage: DC 12V
Size: Approx. 8 x 7 x 6cm/3.15'' x 2.75'' x 2.36''
Package Weight: Approx. 340g

Wiring Method:
A Set of 4 Wires:
1. Red wire connects + 12V power supply.
2. White wire connects the headlight switch + 12V.
3. Yellow wire connects the ignition switch.
4. Black wire connect the storage battery or car shell.
A Set of 2 Wires:
1. Green wire connects turbo boost sensor line.
2. Black wire connects the ground wire.
(The last wire is a spare one for similar item connection.)

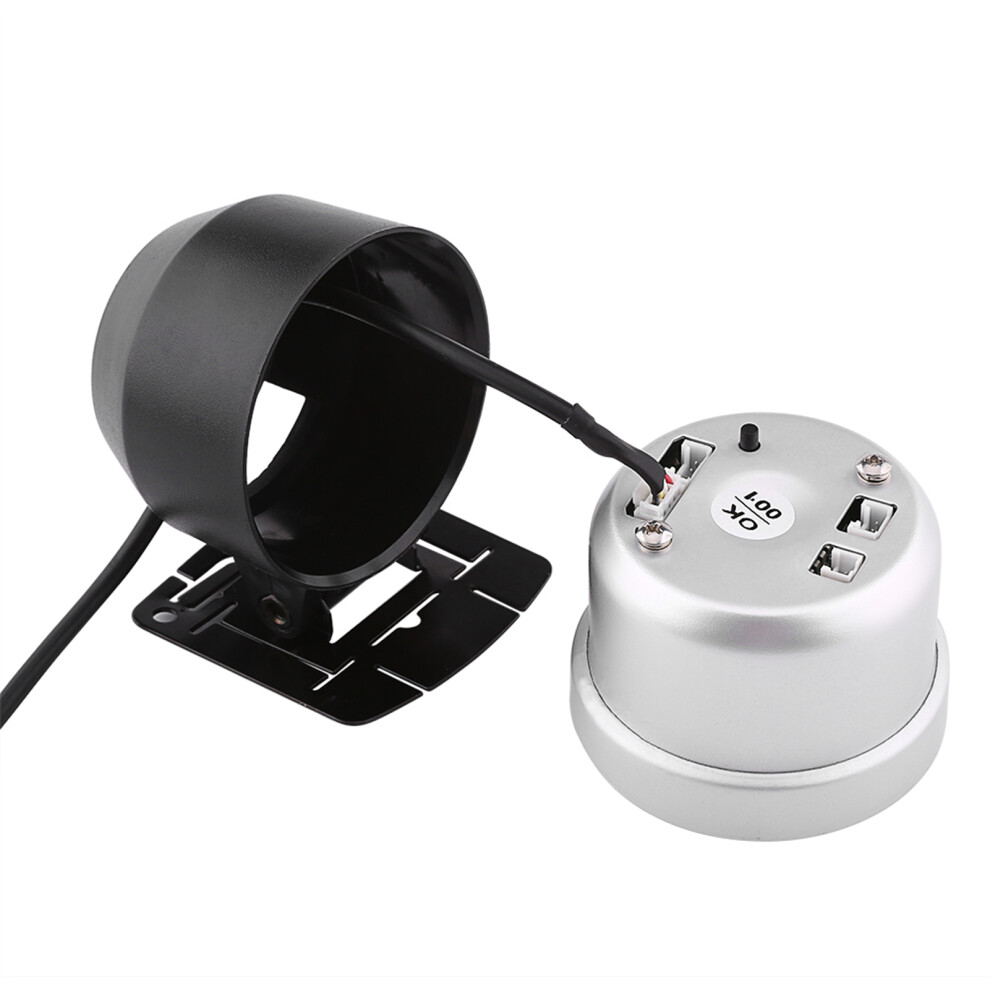

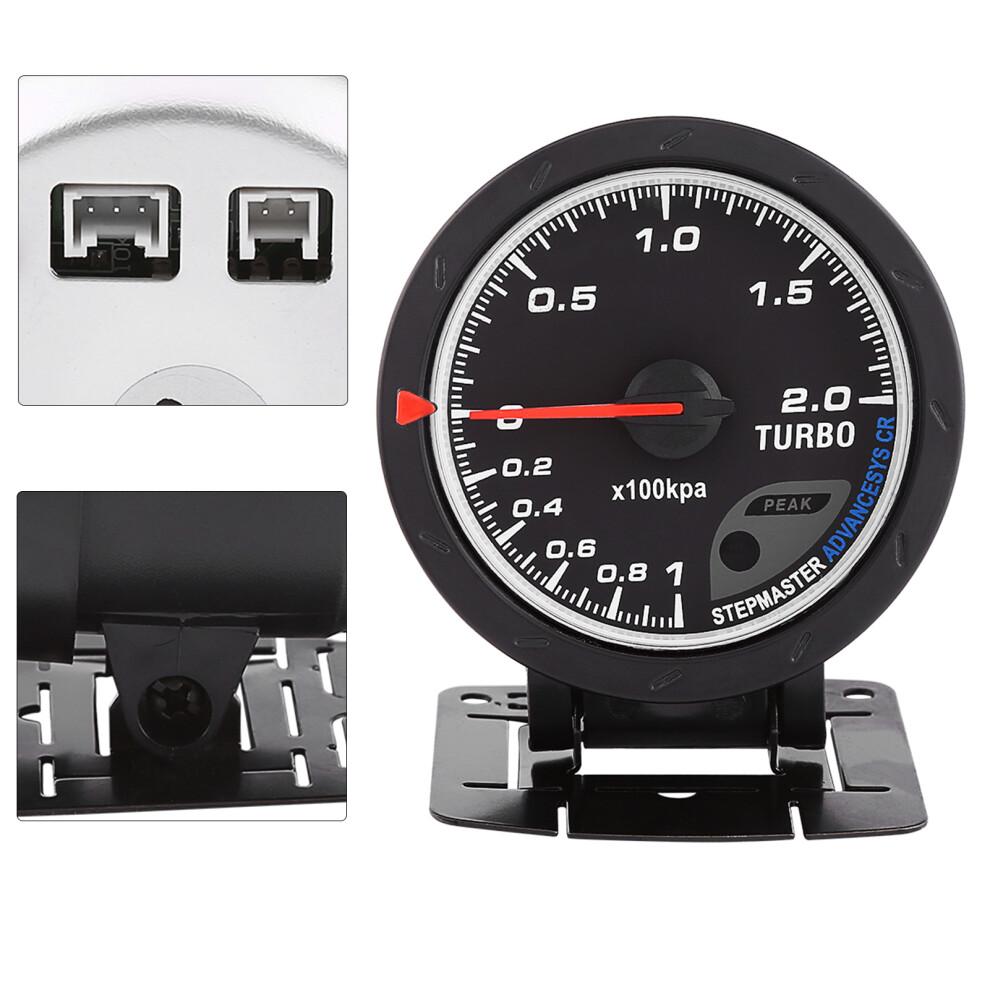

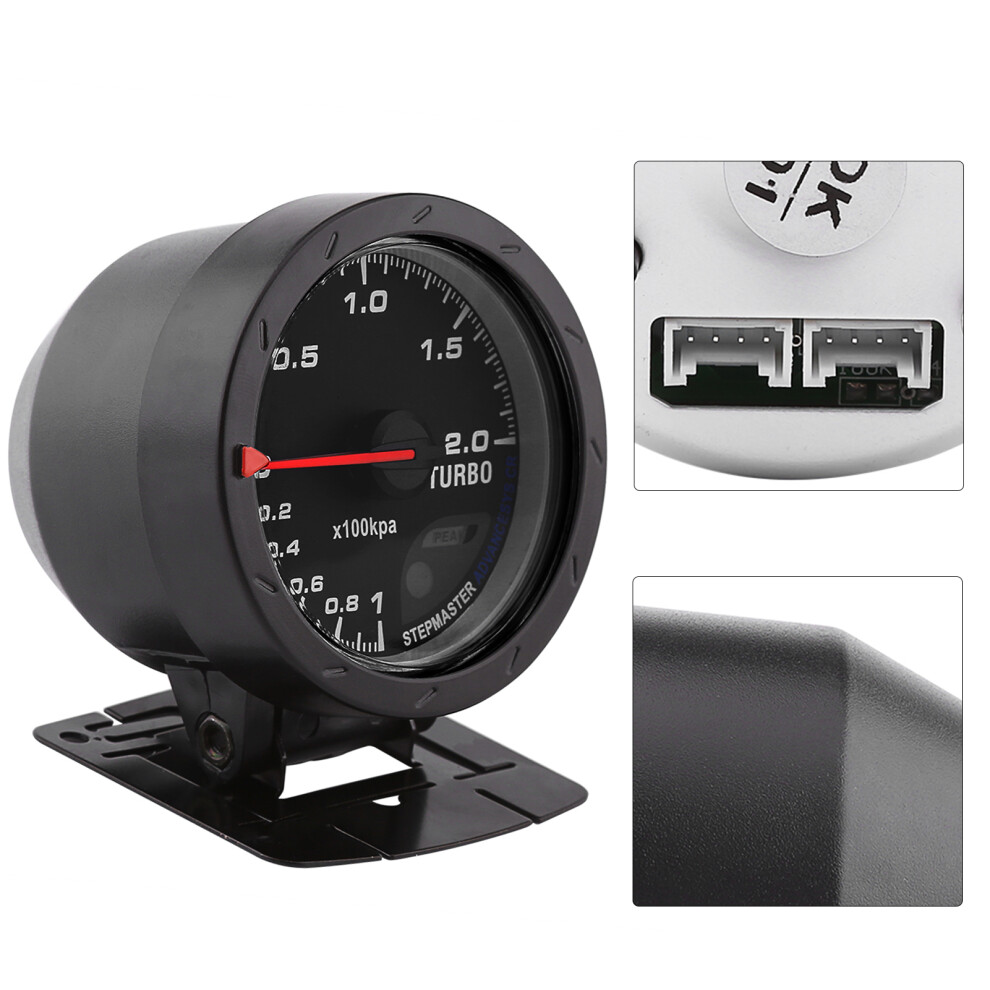

Back Sockets Instruction:
1. 2-pin socket links to external warning light(this item not includes the warning light)
2. 3-pin socket adapts to signal line.
3. 4-pin socket is for battery connection. (When there are two 4-pin sockets, you only need to choose one to connect the power, and the rest socket is ready for other similar item without linking the power again.)


Package List:
1 x Boost Gauge with Bracket

1 x Set of Installation Accessories

Note:
Easy to install but professional installation is highly recommended.
