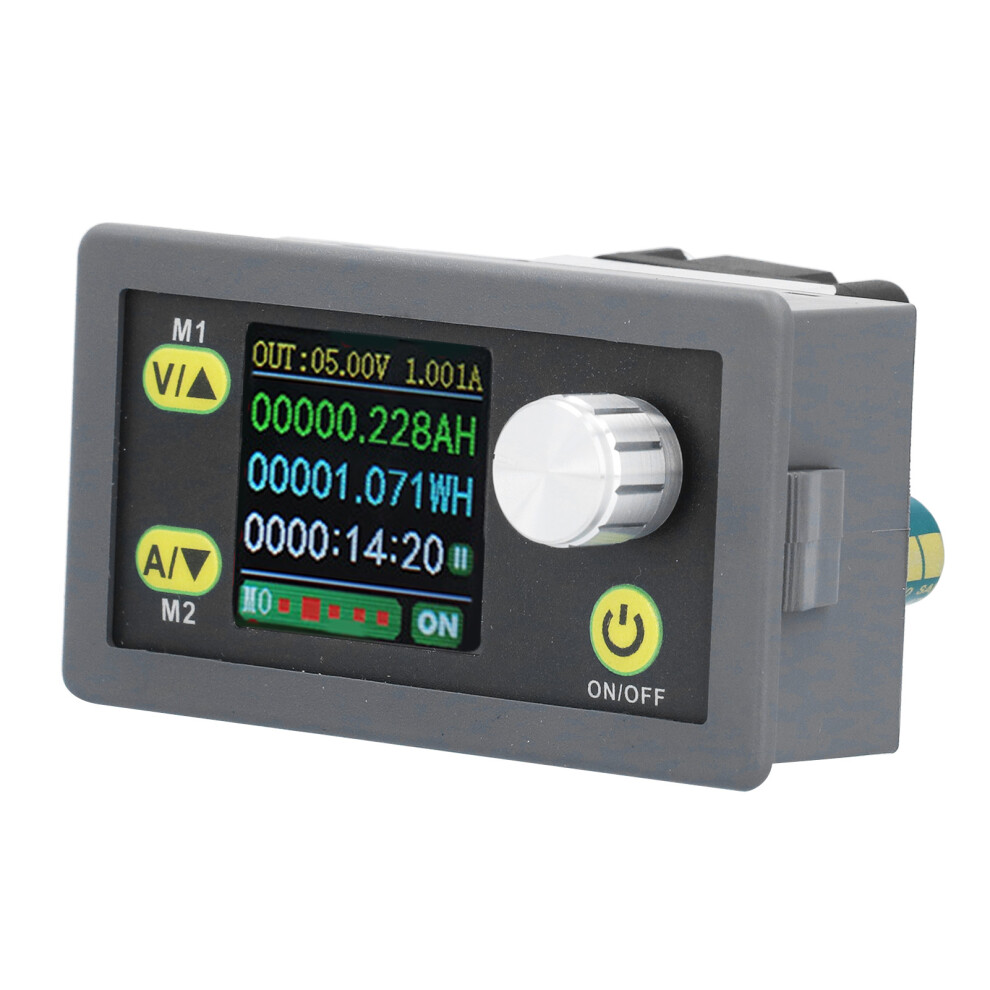

Voltage Converter ABS AntiReverse DC Regulator for Electronics

Voltage Converter ABS AntiReverse DC Regulator for Electronics Description

1、This input terminal has anti‑reverse connection protection, reverse connection will not burn, you can use the voltage converter with confidence 2、With accuracy, can display the value, which is convenient for reading and gives you a good experience 3、The voltage converter has a data storage function to meet the needs of various working situations 4、The main purpose is to change the output voltage and current, which can be well applied to your equipment 5、Widely used, suitable for electronic equipment, mechanical engineering, electrical machinery
Item Type: Voltage Converter
Material: ABS
Model: WZ3605E
Display: 1.44in Colorful LCD
Input Voltage Range: DC 6.00-36.00V
Input Voltage Resolution: 0.1V
Output Voltage Range: DC 0.60-36.00V
Output Voltage Resolution: 0.01V
Output Current Range: 0-5.000A
Output Current Resolution: 0.001A
Output Power Range: 0-80.000W
Input Voltage Accuracy: (1%+5 words)
Output Voltage Accuracy: (0.3%+3 words)
Output Current Accuracy: (0.5%+5 words)
Typical Output Ripple Value: 150mV Peak
Normal Working Temperature Range: -10 ~60
Statistical Time Range: 10000 Hours
Energy Measurement Range: 0-99999.999WH
Capacity Measurement Range: 0-99999.999AH
Energy Statistics Error: +2%
Screen Brightness: 0-6 Total 7 Levels
Purpose: Change the Output Voltage and Current
Applicable Situations: Electronic Equipment, Mechanical Engineering, Electrical Machinery
1 x Voltage Converter
