Voltage Current Power Meter PZEM-016 80-260V 100A Compact

Voltage Current Power Meter PZEM-016 80-260V 100A Compact Description

Voltage Current Power Factor Frequency Energy Meter (1*Meter 1*Closed type Ct 1*USB to 485 )

Features:



The

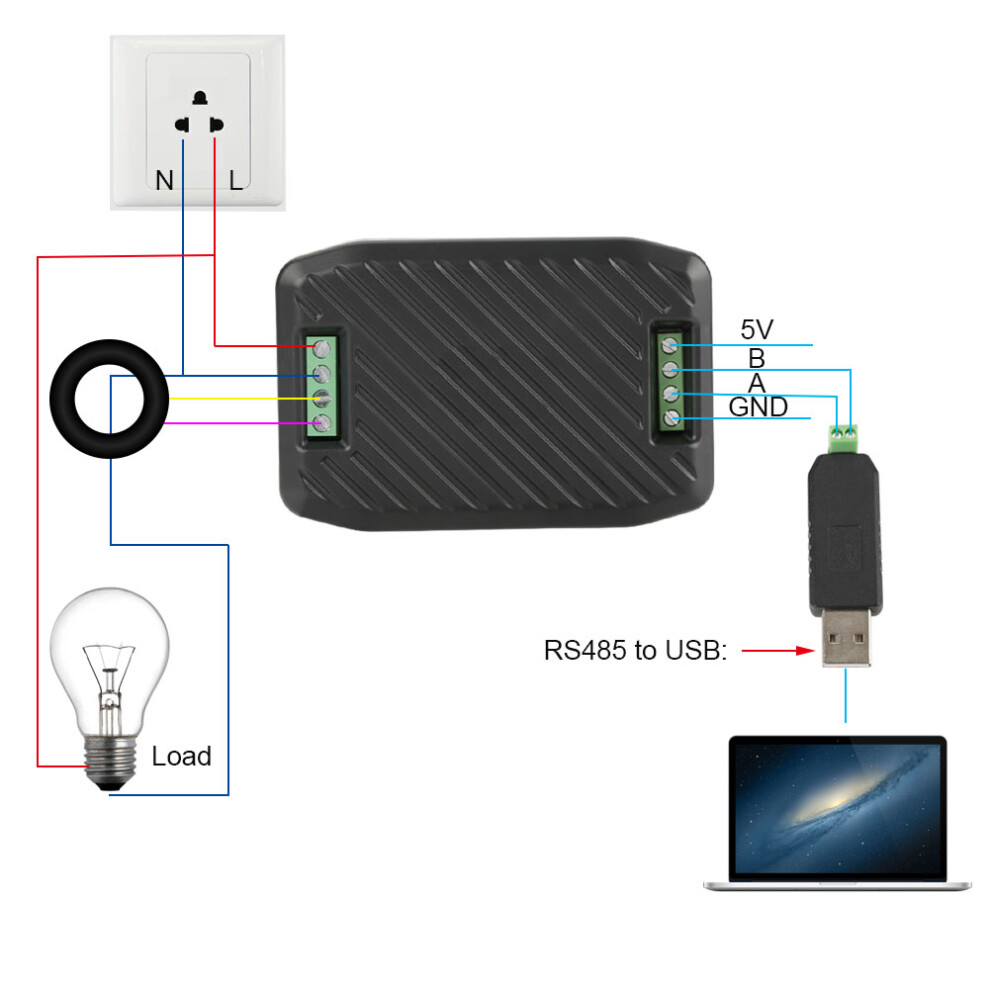

physical layer adopts UART to RS485 communication interface, with baud
rate of 9,600, 8-bit data bits, 1-bit stop bits and no verification




Over power alarm: Active power threshold can be set, when the measured active power exceeds the threshold, it can alarm



It can display six measurement parameters on the computer when communicate through the software

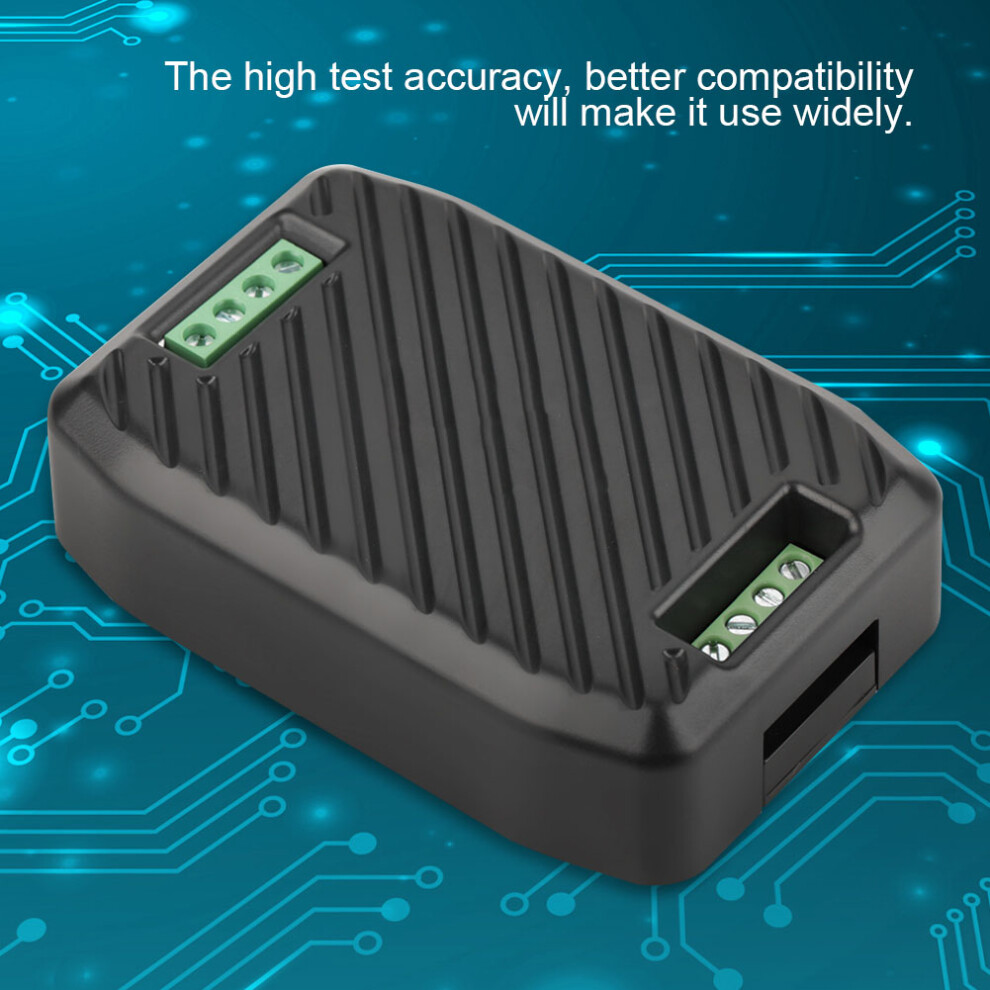

The high test accuracy, better compatibility will make it use widely.







Specifications:


Brand: PEACEFAIR



Model: PZEM-016



Type(Optional):

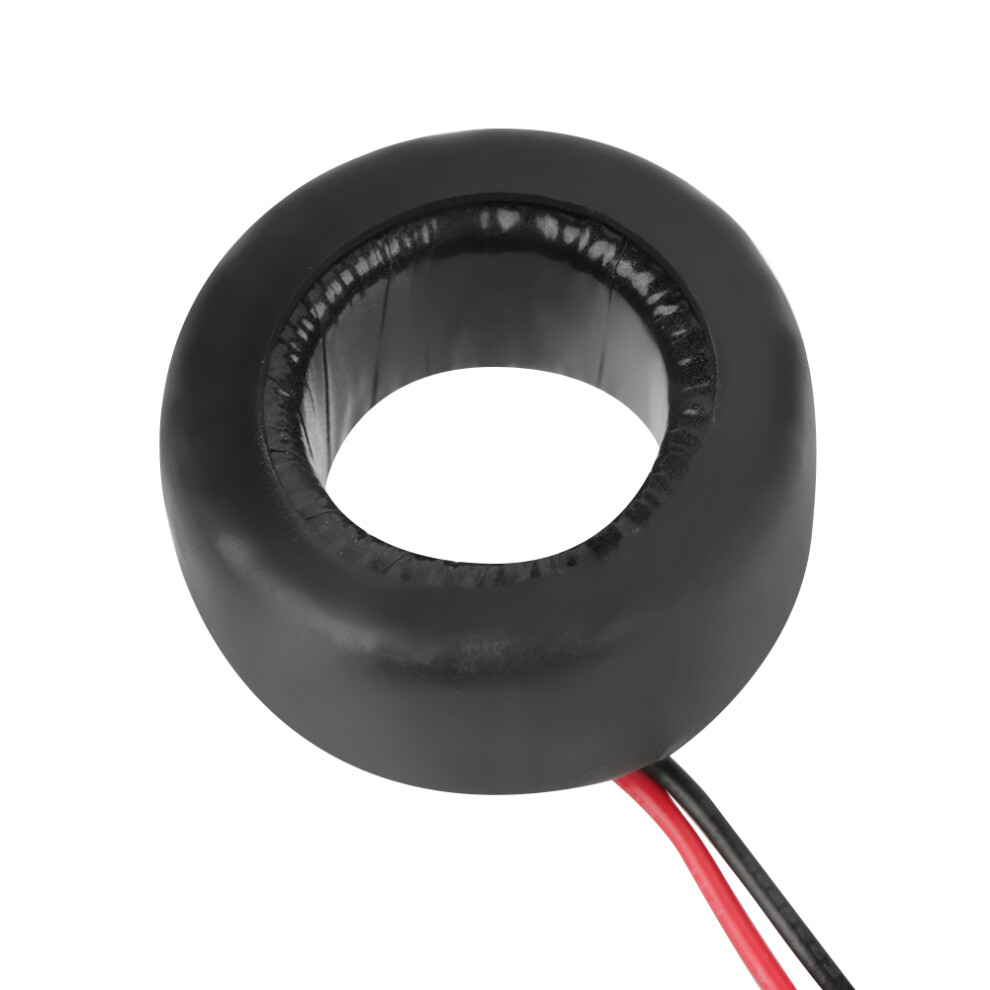

Type1: 1*Meter+1* Closed type CT

Type2: 1*Meter+ 1*open type CT

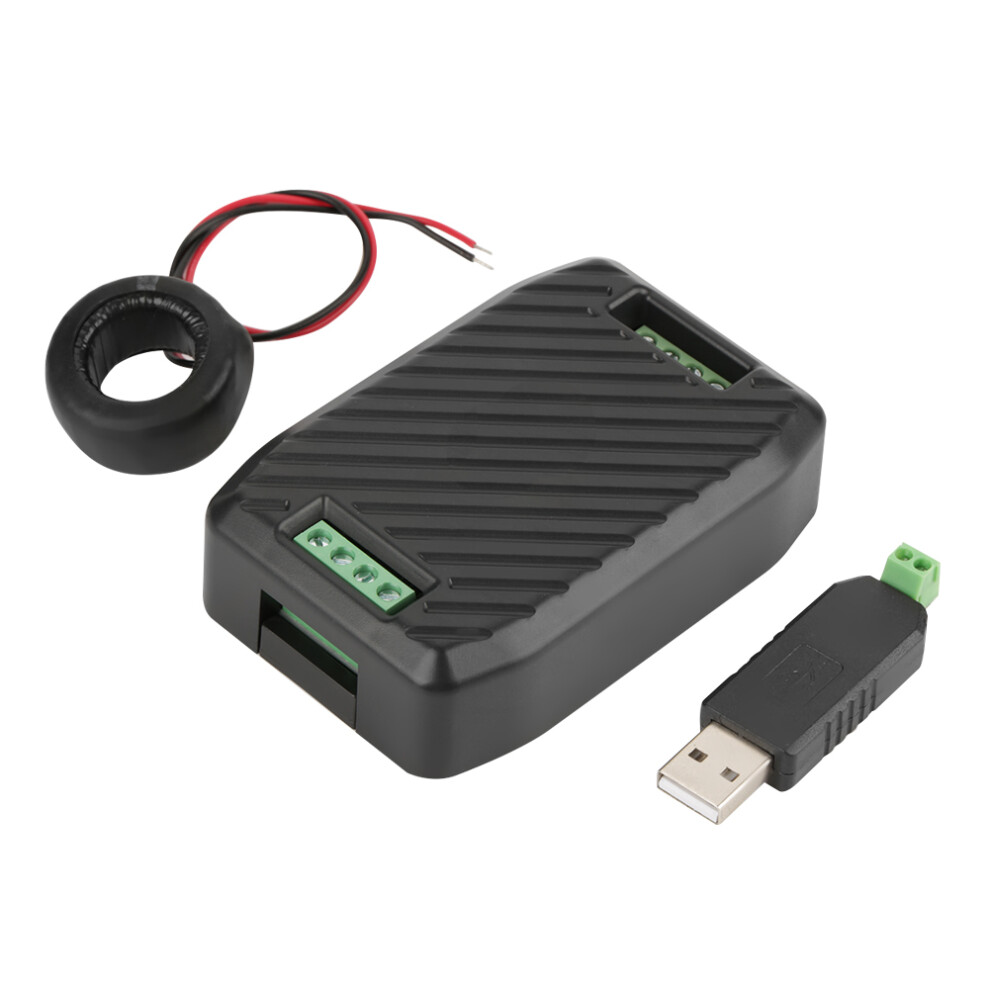

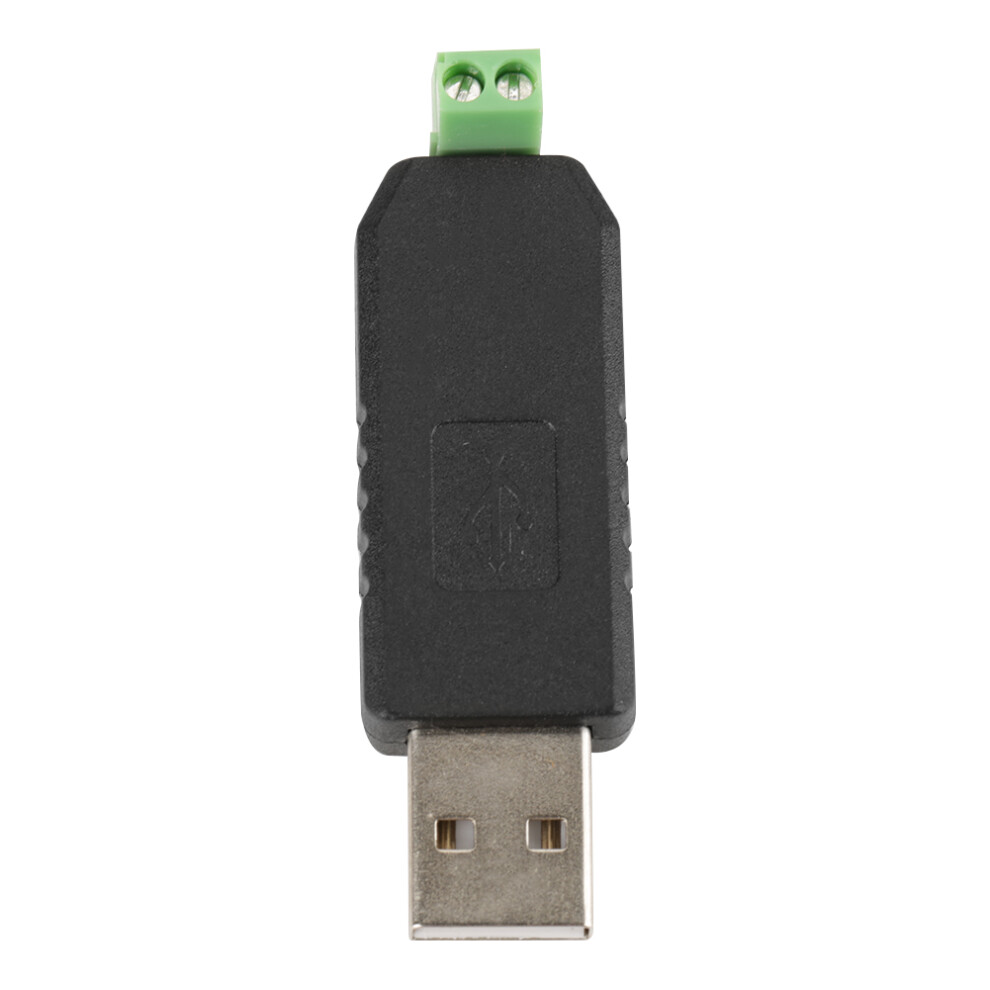

Type3: 1*Meter+ 1*Closed type CT+ 1*USB to 485

Type4: 1*Meter+ 1*open type CT+ 1*USB to 485


Voltage

Measuring range:80~260V

Resolution: 0.1V

Measurement accuracy: 0.5%


Current

Measuring range: 0~100A

Starting measure current: 0.02A

Resolution: 0.001A

Measurement accuracy: 0.5%


Active power

Measuring range: 0~23kW

Starting measure power: 0.4W

Resolution: 0.1W

Display format:

When the data is 1000W, it display one decimal, such as: 999.9W

When the data is 1000W, it display only integer, such as: 1000W

Measurement accuracy: 0.5%


Power factor

Measuring range: 0.00~1.00

Resolution: 0.01

Measurement accuracy: 1%


Frequency

Measuring range: 45Hz~65Hz

Resolution: 0.1Hz

Measurement accuracy: 0.5%


Active energy

Measuring range: 0~9999.99kWh

Resolution: 1Wh

Measurement accuracy: 0.5%

Display format:

When the data is 10kWh, the display unit is Wh(1kWh=1000Wh), such as: 9999Wh

When the data is 10kWh, the display unit is kWh, such as: 9999.99kWh

Reset energy: use software to reset.

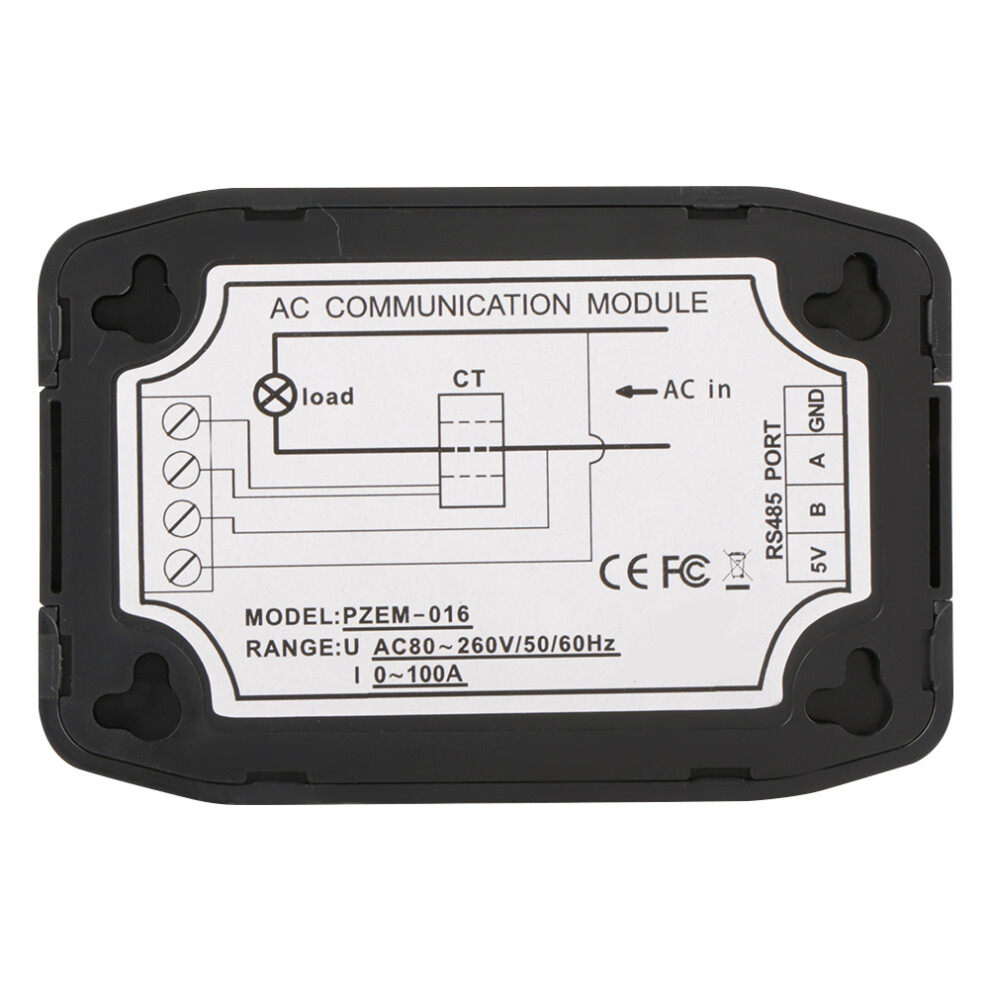

Communication interface: RS485 interface

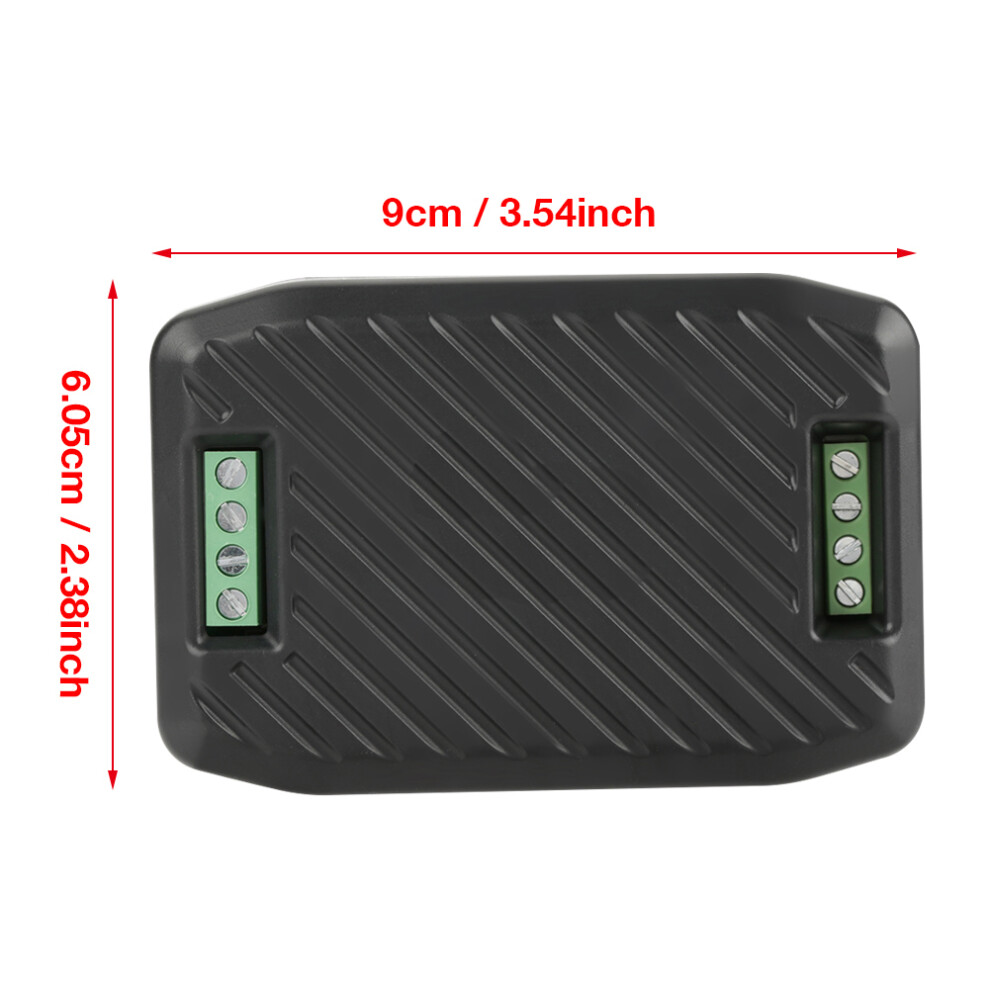

Size:90 x 60.5mm / 3.54 x 2.38in



Weight: Approx.118~154g







Package includes:


Type1,Type2,Type3,Type4 (Optional)



Type1: 1*Meter+1* Closed type CT

Type2: 1*Meter+ 1*open type CT

Type3: 1*Meter+ 1*Closed type CT+ 1*USB to 485

Type4: 1*Meter+ 1*open type CT+ 1*USB to 485
